Introduction

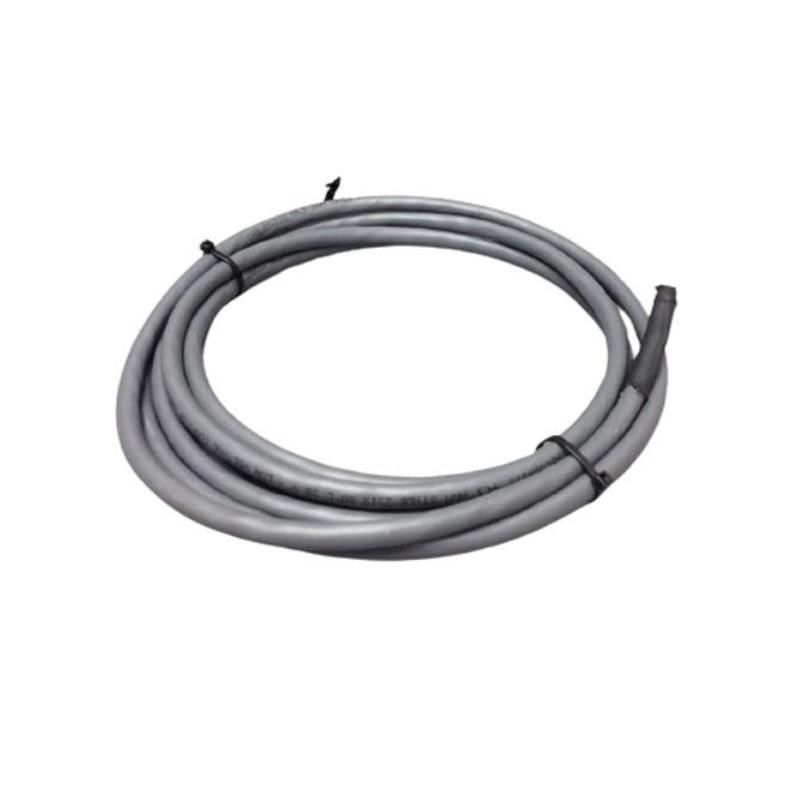

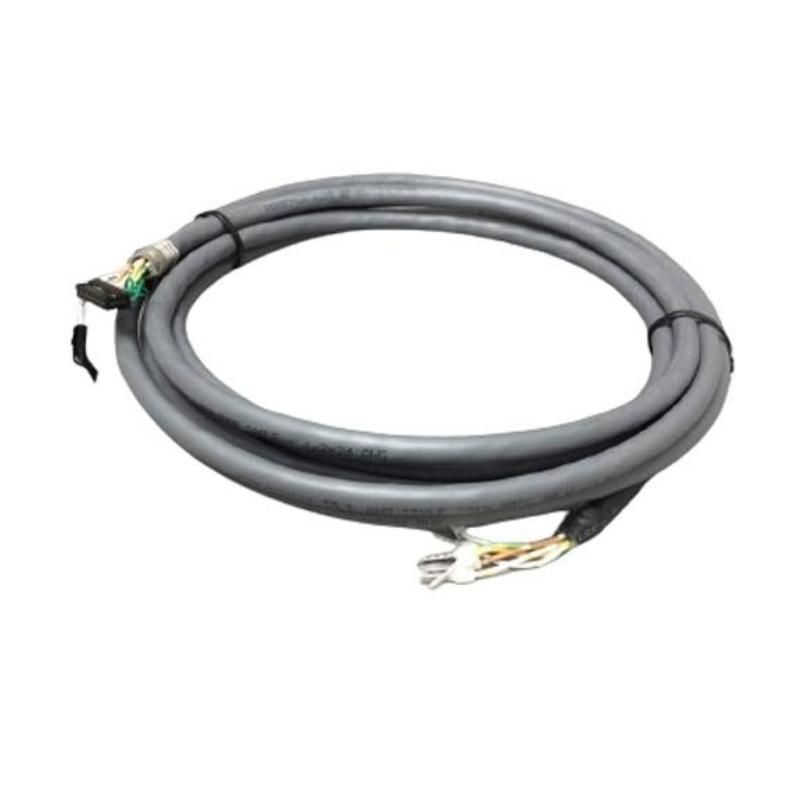

The Schneider TSXSCPCM4030 is a high‑quality communication cable engineered to support isolated RS‑422/485 Tap Link connections in Schneider Electric Modicon TSX and related PLC networks. Designed for industrial communication environments, this cable enables robust data transmission between controllers, remote I/O modules, and network devices while maintaining electrical isolation to protect sensitive control electronics.
It is ideal for automation systems where noise immunity, reliable signals, and network integrity are essential—such as in manufacturing plants, process automation, and distributed control environments.
Technical Specifications
| Parameter | Specification |
|---|
| Model | TSXSCPCM4030 |
| Cable Type | Isolated RS‑422/485 Tap Link |
| Conductor | Multi‑strand copper conductors |
| Number of Wires | 4 communication conductors + shield |
| Impedance | Designed for RS‑422/485 differential signaling |
| Connector Type | Pluggable screw or terminal interface (system dependent) |
| Isolation | Electrical isolation for noise immunity |
| Voltage Rating | Suitable for industrial control networks |
| Temperature Range | -20°C to +70°C |
| Jacket Material | Industrial PVC or equivalent |
| Shielding | Foil or braid shielding to reduce EMI/RFI |
| Maximum Length | Up to RS‑485 network limits (typically 1200 m) |
| Weight | Approx. 0.10–0.25 kg per meter |
Applications
The TSXSCPCM4030 cable is widely used in industrial automation and control system installations where isolated communication links are required:
-
RS‑422/485 Tap Link between PLCs and remote I/O
-
Schneider Modicon TSX system networking
-
Distributed control systems (DCS) communications
-
Serial communication to instrumentation and actuators
-
Data links in electrical noise‑prone environments
Its isolated design helps protect against ground loops and minimizes communication errors caused by electrical interference.
Advantages
-
Industrial‑Grade Isolation: Built‑in electrical isolation supports stable communication in environments with high noise or ground potential differences.
-
Reliable Differential Signaling: Designed specifically for RS‑422/485 differential data transmission to maintain signal integrity over long distances.
-
Flexible Connectivity: Suitable for use with a wide range of Modicon PLC systems and compatible network devices.
-
Durable Construction: Shielded cable with robust jacket material improves resistance to abrasion and environmental wear.
-
Reduced Interference: Shielding and isolation improve resistance to electromagnetic and radio frequency interference (EMI/RFI).
These features help ensure consistent network performance and reduce communication‑related troubleshooting in industrial installations.
Technical FAQs
1. What is the TSXSCPCM4030 used for?
It provides an isolated RS‑422/485 communication link between controllers and networked devices.
2. Which PLC systems is it compatible with?
Primarily Schneider Modicon TSX and related PLC networks using RS‑422/485 communication.
3. Why is isolation important?
Isolation protects against ground loops and electrical noise that can corrupt communication signals.
4. How long can the cable run be?
RS‑485 networks typically support up to 1200 m, depending on termination and network conditions.
5. What type of shielding does the cable use?
It uses foil or braid shielding to reduce EMI/RFI.
6. Can it be used in noisy electrical environments?
Yes, the isolated design improves immunity to electrical noise.
7. What is the temperature rating?
Typically –20°C to +70°C for industrial applications.
8. What connectors are used?
Connector type depends on system design but often uses pluggable terminal or screw interfaces.
9. Is this cable suitable for differential signaling?
Yes, it is designed for RS‑422/485 differential communication.
10. What is included in the cable jacket?
Multi‑strand copper conductors with shielding and industrial‑rated outer jacket.
