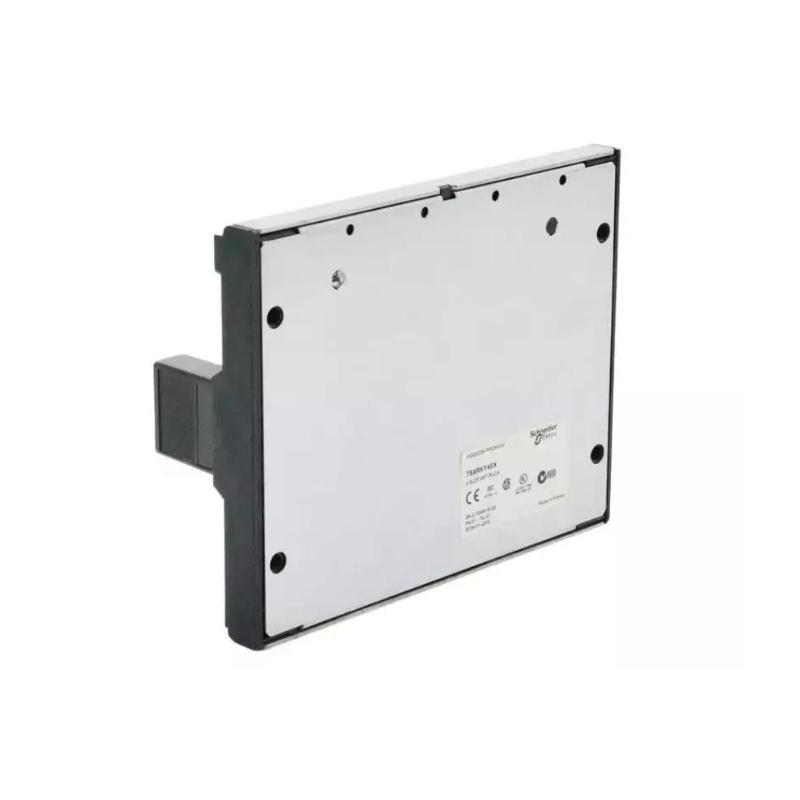

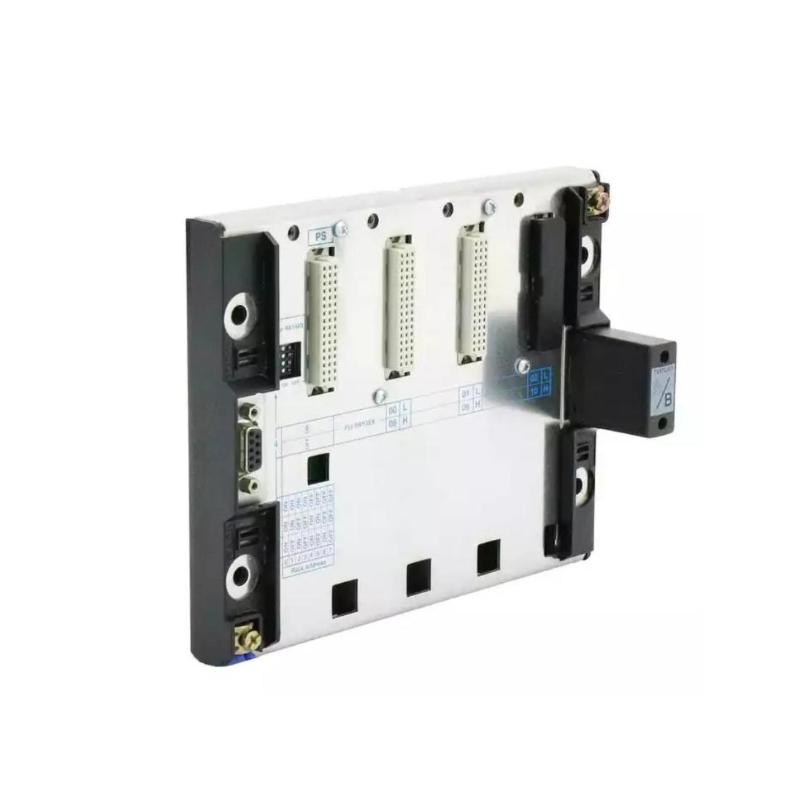

Schneider TSXRKY4EX Extendable Rack

Brand:Schneider PLC
Item No.:TSXRKY4EX
Product Origin:France
Product Dimensions:150 × 100 × 45 mm
Product Weight:0.46kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

TSXRKY4EXTSXRKY4EX-1TSXRKY4EX-2TSXRKY4EX-3

Introduction

The Schneider TSXRKY4EX Extendable Rack is a modular hardware component designed to expand the I/O capacity of Schneider Electric Modicon TM3 and TSX series PLC systems. Engineered for flexibility and scalability, it provides a robust mounting platform that lets automation engineers integrate additional I/O modules into control architectures without reconfiguring existing racks. Its extendable design simplifies system growth and reduces installation downtime in industrial and process automation environments.

Technical Specifications

ParameterSpecification
ModelTSXRKY4EX
Product TypeExtendable Rack / Backplane Assembly
SeriesSchneider Electric Modicon TSX / TM3
Rack Slots SupportedUp to 16 slots (expandable)
Module CompatibilityDigital, analog, communication, special function modules
Mounting TypeDIN rail or panel mount with brackets
Connector InterfaceBackplane bus with module edge connectors
Expansion CapabilityStackable extensions up to system limits
Operating Temperature-10°C to +55°C
Storage Temperature-25°C to +70°C
Relative Humidity5% to 95% non‑condensing
DimensionsApprox. 150 × 100 × 45 mm per section
WeightApprox. 0.40–0.60 kg


Applications

The TSXRKY4EX Extendable Rack is suitable for a variety of industrial control scenarios where modular expansion, flexibility, and reliable signal routing are required:

  • Manufacturing line automation and process control
  • Machine control systems with evolving I/O needs
  • Distributed control systems and remote stations
  • Packaging, material handling, and conveyor systems
  • Building automation and energy management systems

Its ability to support a mix of digital, analog, and communication modules makes it ideal for systems that need phased expansion without significant redesign.


Advantages

  • Modular Expandability: The extendable design allows engineers to increase I/O capacity by adding additional rack sections, avoiding the need for complete rack replacement.
  • Flexible Configuration: Compatible with a wide range of Schneider Electric I/O and communication modules, supporting mixed signals and special functions.
  • Robust Construction: Designed for industrial environments with solid backplane interconnects and secure mounting options.
  • Simplified Installation: DIN rail or panel mounting provides flexibility during system layout and reduces engineering time.
  • Cost‑Effective Scalability: Supports phased system growth without incurring large upfront infrastructure costs.

These benefits help reduce system development time and improve long‑term maintainability in complex automation applications.


Technical FAQs

1. What systems is the TSXRKY4EX compatible with?
It is compatible with Schneider Electric Modicon TSX and TM3 PLC series.

2. How many modules can it support?
Up to 16 slots per extendable rack section, with further expansion possible within system limits.

3. What types of modules can be installed?
Digital I/O, analog I/O, communication, and special function modules.

4. How is the rack mounted?
It supports DIN rail or panel mounting with the appropriate brackets.

5. What expansion options are available?
Rack sections can be stacked or extended to add additional module slots.

6. What is the operating temperature range?
Typically -10°C to +55°C for standard industrial environments.

7. Can it be used outdoors?
It may be used outdoors with appropriate enclosure protection.

8. How are modules connected to the rack?
Modules plug directly into the backplane bus via edge connectors.

9. Is any special wiring needed for extensions?
No special wiring is required; rack extensions maintain backplane continuity.

10. What is the typical weight?
Approximately 0.40–0.60 kg per rack section.
