Introduction

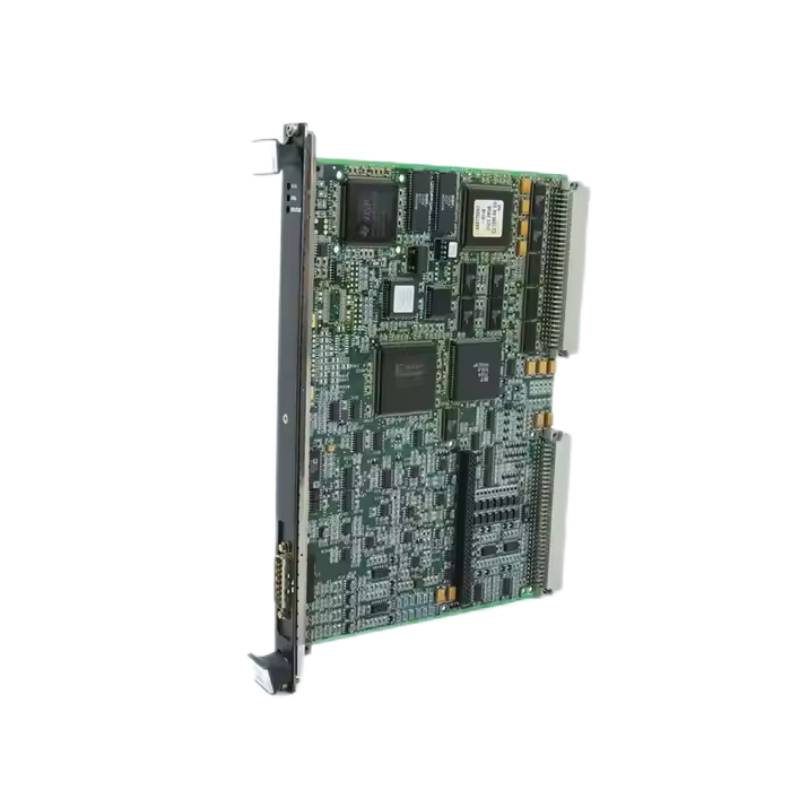

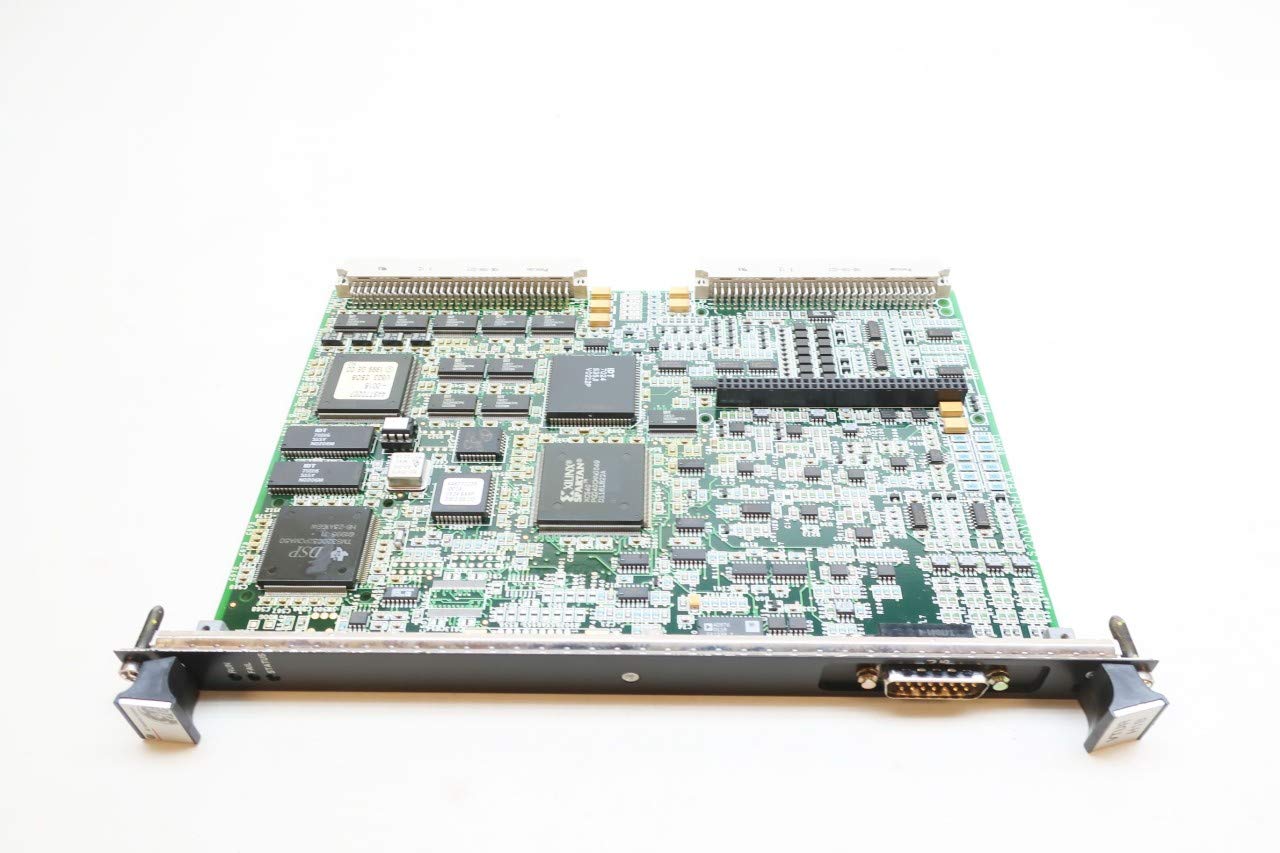

The GE IS200VTURH1B VME Turbine Protection Board is a mission‑critical module engineered for GE Mark VI Speedtronic turbine control systems. It plays a central role in safeguarding turbines by processing protection logic, monitoring key parameters, and executing trip actions when predefined thresholds are exceeded. Built for reliable operation in heavy‑duty power generation environments, this board ensures fast, deterministic response to abnormal conditions to protect rotating assets from damage.
Technical Specifications
| Parameter | Specification |
|---|
| Model | IS200VTURH1B |
| Module Type | VME Turbine Protection Board |
| Series | GE Mark VI Speedtronic |
| Platform Compatibility | VME backplane control systems |
| Function | Turbine protection logic processing |
| Inputs | Discrete and analog trip signal interfaces |
| Outputs | Trip logic command outputs |
| Processing Logic | Dedicated protection processor |
| Status Indicators | Front panel LEDs |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | VME rack module |
| Dimensions | Standard VME card form factor |
| Weight | Approx. 0.30 kg |
Typical Applications
The IS200VTURH1B is deployed wherever turbine protection and plant safety are paramount:
-
Gas turbine overspeed and overtemperature protection
-
Steam turbine trip logic and monitoring
-
Hydraulic and pneumatic actuator safety interfaces
-
Emergency shutdown systems in power plants
-
Combined cycle and cogeneration turbine protection
It monitors critical operating conditions and initiates protective actions to prevent damage from mechanical, thermal, or electrical excursions.
Core Advantages
This turbine protection board offers robust features aligned with industrial safety and control system requirements:
-
Fast Trip Response: Designed for deterministic execution of protection logic to minimize risk during abnormal conditions.
-
Dedicated Protection Processing: Built‑in processing logic handles complex trip decision trees independently of primary control functions.
-
Clear Diagnostics: Front panel LEDs provide immediate visual indication of board status and protection logic activity.
-
Industrial‑Grade Reliability: Engineered for continuous operation under vibration, temperature variation, and electrical noise common in turbine control rooms.
-
Seamless Integration: Compatible with GE Mark VI VME backplane systems, enabling straightforward installation and service.
These strengths make the IS200VTURH1B a dependable choice for plant engineers and maintenance teams focused on safety and uptime.
Technical FAQs
1. What is the function of the IS200VTURH1B board?
It executes turbine protection logic and generates trip commands based on monitored parameters.
2. With which systems is it compatible?
Designed for GE Mark VI Speedtronic systems with a VME backplane architecture.
3. What types of signals does it monitor?
It monitors discrete and analog trip signals related to overspeed, overtemperature, and other fault conditions.
4. What action does it take on fault detection?
It generates trip logic outputs to initiate turbine shutdown or protective measures.
5. Does it have diagnostic indications?
Yes, front panel LEDs provide quick visual feedback of status and activity.
6. What is its operating temperature range?
Typically from -30°C to +65°C.
7. Can it withstand electrical noise?
Yes, it is designed with robust signal processing to handle industrial electrical environments.
8. How is the board mounted?
It installs in a standard VME rack slot within the control system.
9. Is this a standalone device?
No, it functions as part of a larger control rack and protection system.
10. What industries commonly use it?
It is used in power generation plants, industrial automation systems, and turbine protection applications.
