Product Overview

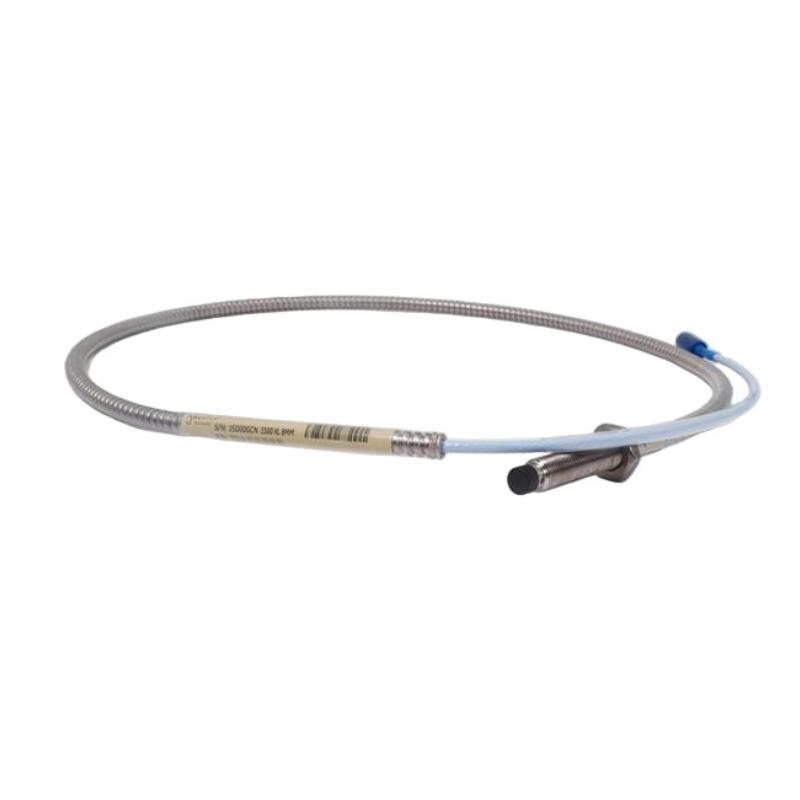

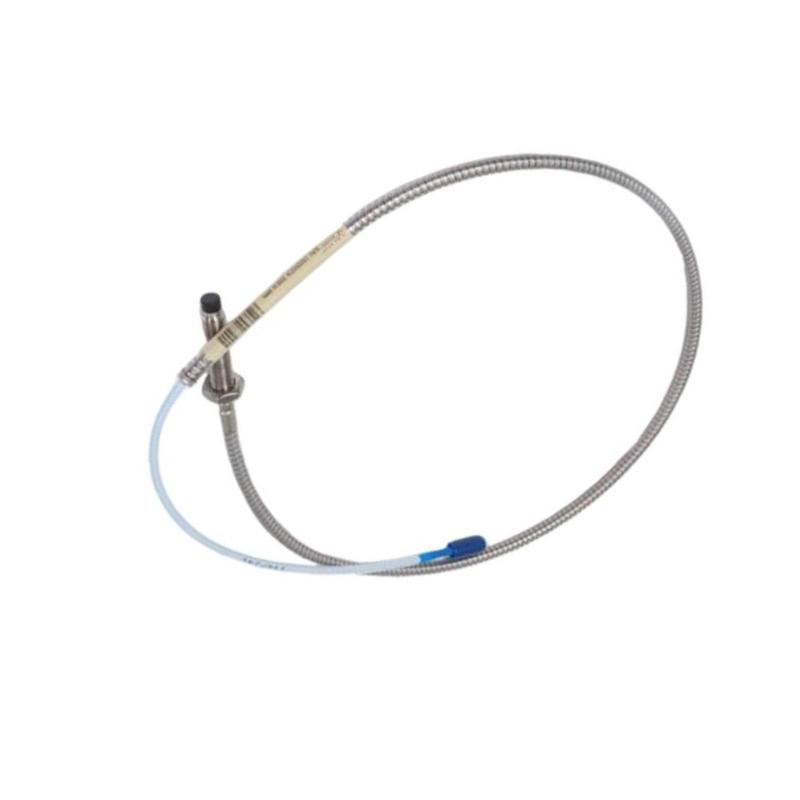

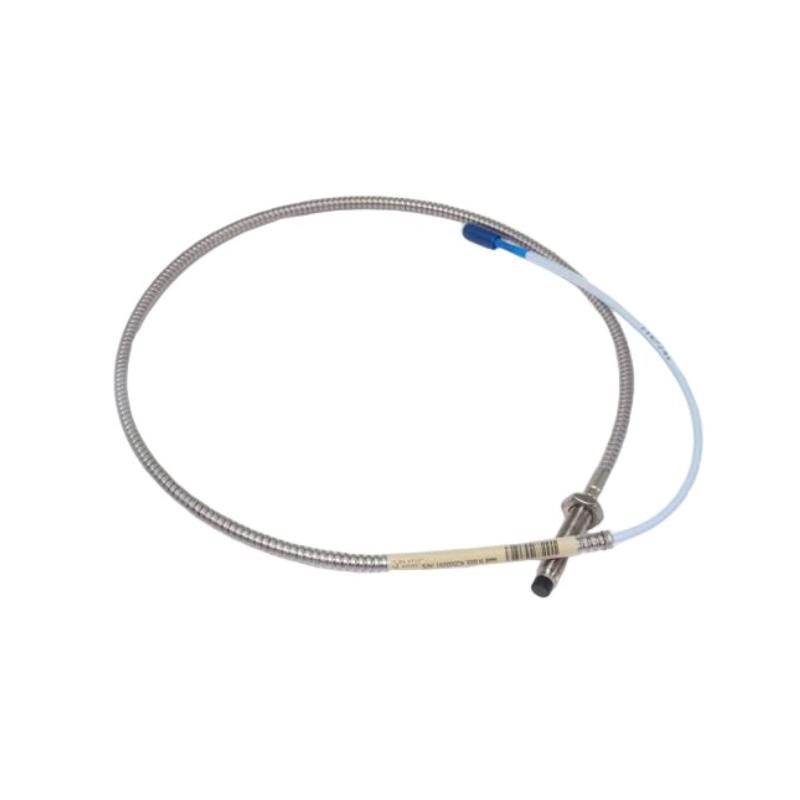

The Bently Nevada 330104-04-10-05-01-05 proximity probe is a premium 8 mm sensor from the 3300 XL series, designed for non-contact monitoring of shaft vibration and displacement in high-value rotating machinery. This model delivers highly stable, precise signals, making it a cornerstone for predictive maintenance and machinery protection systems in demanding industrial applications.
Engineered for reliability under harsh operating conditions, the probe is ideal for turbines, compressors, pumps, and motors. Its seamless integration with the 3300 XL transducer system ensures accurate, real-time monitoring to protect machinery and optimize performance.
Technical Specifications
| Parameter | Specification |
|---|
| Model | 330104-04-10-05-01-05 |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Case Length | 100 mm |
| Total Cable Length | 0.5 m |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | FluidLoc cable |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless steel (AISI 303/304) |
| Operating Temperature | -40°C to +85°C |
| Dimensions | Probe body 100 mm + cable 0.5 m |
| Weight | Approx. 0.35 kg |
Application Fields
This proximity probe is widely used in industrial environments requiring precise and reliable machinery monitoring:
-
Steam and gas turbine shaft monitoring
-
Compressor and pump vibration analysis
-
Electric motor protection in continuous operation systems
-
Oil & gas processing equipment
-
Power generation machinery
It is particularly suited for fluid-film bearing machines, providing accurate shaft displacement measurements that are essential for safe, efficient operation.
Core Advantages
The 330104-04-10-05-01-05 combines precision sensing with rugged durability. The stainless-steel housing protects against corrosion, vibration, and mechanical stress, while the PPS tip maintains thermal stability and electrical consistency.
The FluidLoc cable enhances durability and reduces signal degradation in high-vibration environments. The ClickLoc connector provides secure and reliable installation.
Its high linearity and repeatable output allow early detection of mechanical faults, reducing unplanned downtime and supporting proactive maintenance strategies.
Technical FAQs
1. What is the main function of this probe?
It measures shaft vibration and displacement without contact.
2. What is the probe diameter?
8 mm.
3. What is the total cable length?
0.5 meters.
4. What type of connector does it use?
Miniature coaxial ClickLoc.
5. Can it operate in harsh environments?
Yes, it is designed for extreme temperatures, vibration, and industrial conditions.
6. What materials are used in its construction?
Stainless steel housing and PPS probe tip.
7. Is calibration required during operation?
It maintains factory calibration when used with the 3300 XL system.
8. Is it suitable for hazardous areas?
This configuration does not include hazardous area certification.
9. What systems is it compatible with?
Compatible with 3300 XL proximity transducer systems.
10. What maintenance is required?
Routine inspection of installation and cable condition is sufficient.
