Product Overview

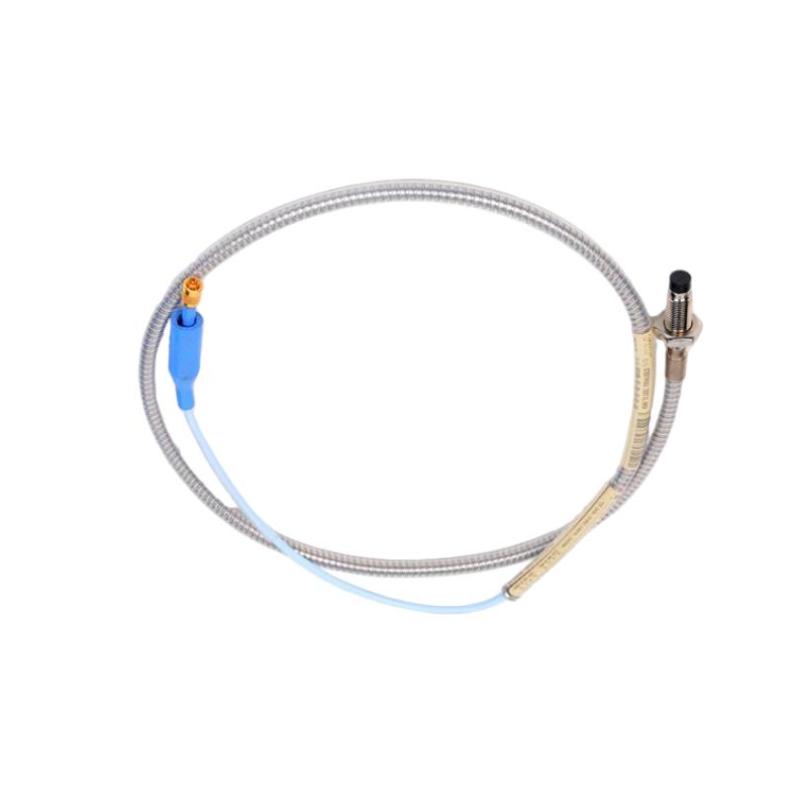

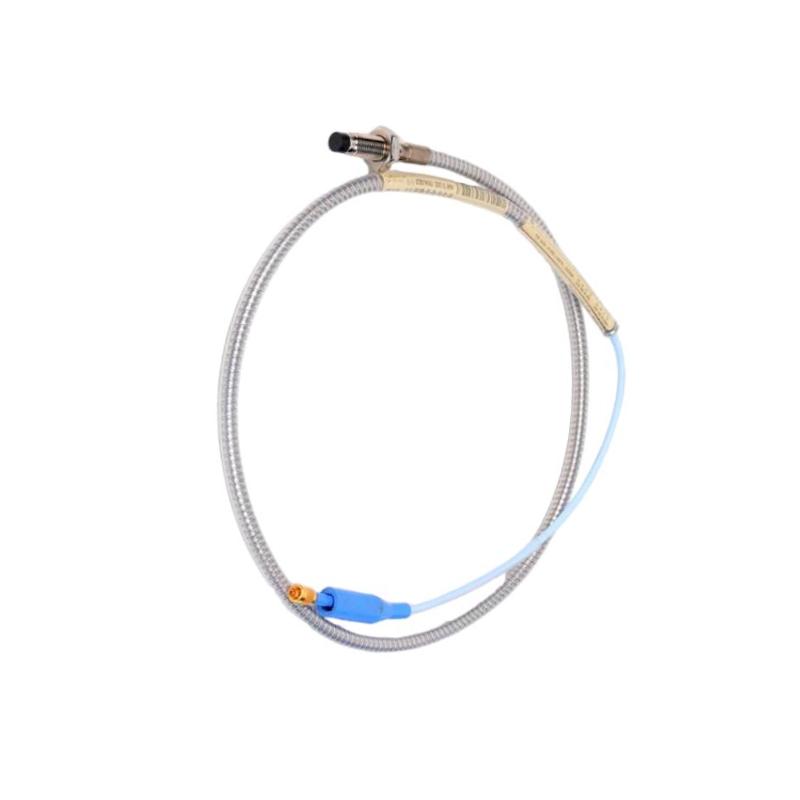

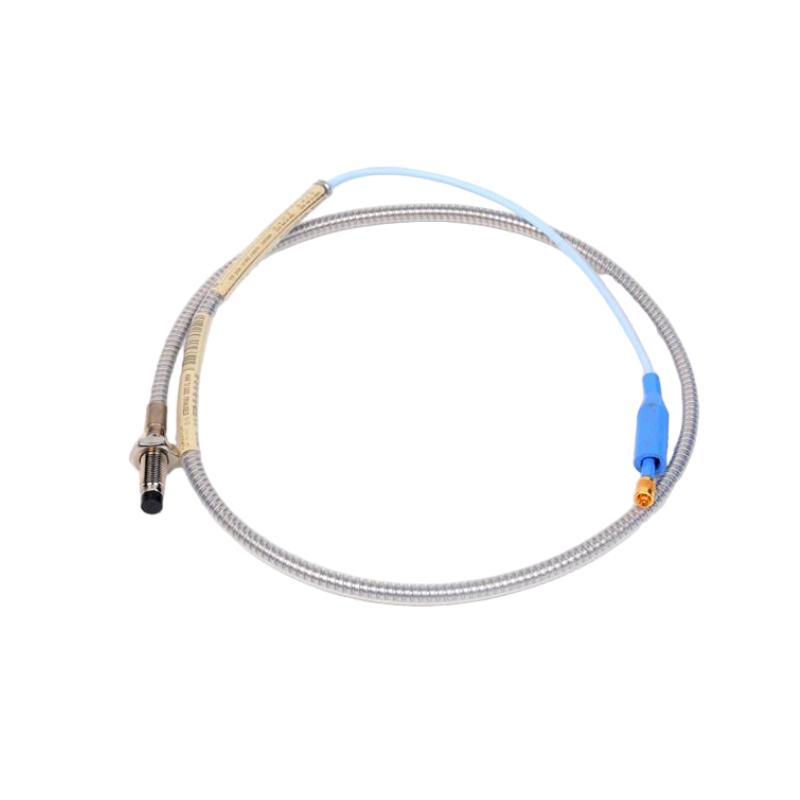

The Bently Nevada 330104-00-10-05-01-00 is a high-precision 8 mm proximity probe from the 3300 XL series, designed for non-contact monitoring of shaft vibration and displacement in critical rotating machinery. It is engineered to provide stable, reliable signals in harsh industrial environments, making it an essential component for predictive maintenance and machinery protection systems.
Its robust construction and advanced sensing technology ensure accurate measurements over long operational periods. The probe integrates seamlessly with 3300 XL transducer systems, offering dependable performance for turbines, compressors, pumps, and other high-speed machinery.
Technical Specifications
| Parameter | Specification |
|---|
| Model | 330104-00-10-05-01-00 |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Case Length | 100 mm |
| Total Cable Length | 0.5 m |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | FluidLoc cable |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless steel (AISI 303/304) |
| Operating Temperature | -40°C to +85°C |
| Dimensions | Probe body 100 mm + cable 0.5 m |
| Weight | Approx. 0.35 kg |
Application Fields
The 330104-00-10-05-01-00 probe is ideal for industries requiring continuous, high-accuracy vibration monitoring:
-
Steam and gas turbines
-
Compressors and centrifugal pumps
-
Electric motors in continuous operations
-
Oil & gas machinery
-
Power generation plants
It is particularly suited for fluid-film bearing machinery, enabling accurate shaft displacement measurement for safe, efficient operation.
Core Advantages
This 8 mm proximity probe combines durability with precision. The stainless-steel housing resists corrosion, mechanical stress, and vibration, while the PPS tip ensures thermal stability and consistent electrical properties.
The FluidLoc cable enhances mechanical strength and minimizes signal degradation in demanding environments. The ClickLoc connector simplifies installation while ensuring a secure and reliable connection.
Engineers benefit from its excellent linearity and repeatability, which allow early detection of mechanical issues, reducing unplanned downtime and optimizing maintenance schedules.
Technical FAQs
1. What is the primary function of this probe?
It measures shaft vibration and displacement without physical contact.
2. What is the probe diameter?
8 mm.
3. What is the total cable length?
0.5 meters.
4. What type of connector is used?
Miniature coaxial ClickLoc.
5. Can it operate in harsh industrial conditions?
Yes, it is designed for high temperatures, vibration, and industrial environments.
6. What materials are used in construction?
Stainless steel housing and PPS probe tip.
7. Is calibration required during use?
It maintains factory calibration when used with the 3300 XL system.
8. Is it suitable for hazardous areas?
This standard configuration does not include hazardous area certification.
9. What systems is it compatible with?
Designed for 3300 XL transducer systems.
10. What maintenance is needed?
Routine inspection of installation and cable condition is sufficient.
