Product Overview

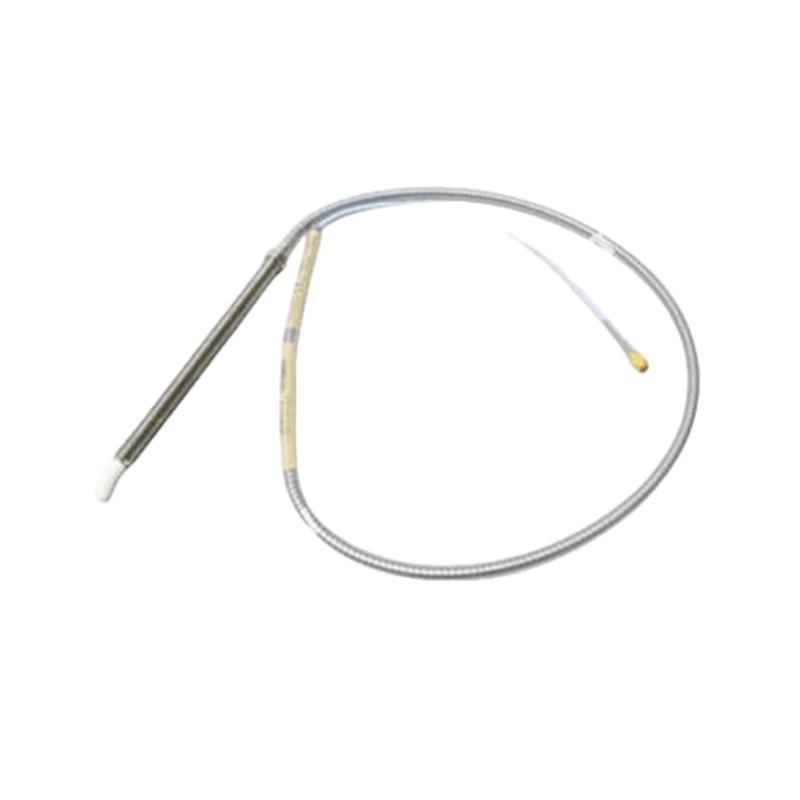

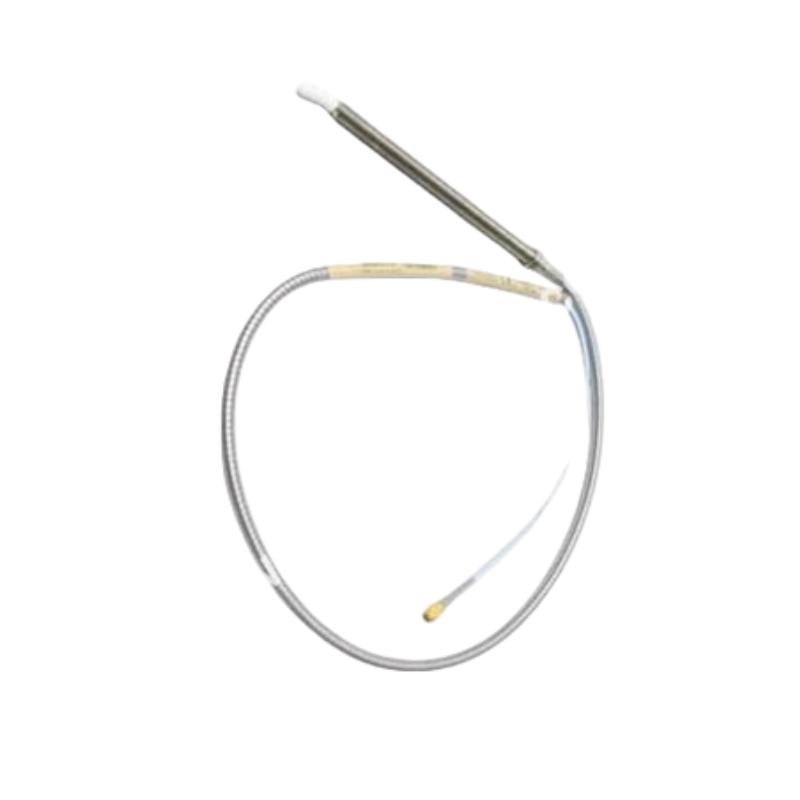

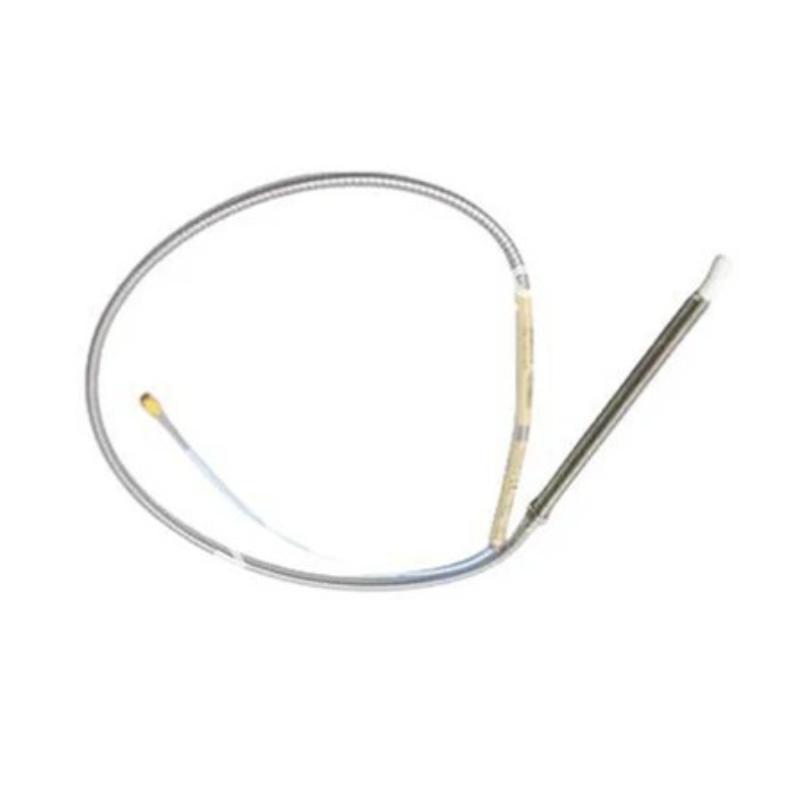

The Bently Nevada 330104-00-09-05-11-05 proximity probe is a high-precision sensing solution from the 3300 XL series, engineered for continuous, non-contact measurement of shaft vibration and displacement. Designed to support advanced condition monitoring systems, it plays a critical role in protecting rotating machinery and improving operational reliability.
With its refined mechanical structure and optimized cable configuration, this model ensures stable signal output and long-term performance. It is an excellent choice for applications where accuracy, durability, and system uptime are essential.
Technical Specifications
| Parameter | Specification |
|---|
| Model | 330104-00-09-05-11-05 |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Case Length | 90 mm |
| Total Cable Length | 0.5 m |
| Connector Type | Miniature coaxial ClickLoc with protector |
| Cable Type | FluidLoc cable |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless steel (AISI 303/304) |
| Operating Temperature | -40°C to +85°C |
| Dimensions | Probe body 90 mm + cable 0.5 m |
| Weight | Approx. 0.30 kg |
Application Fields
This proximity probe is widely used in industrial environments where precision monitoring is vital to equipment safety and performance:
-
Steam and gas turbine systems
-
Compressor vibration monitoring
-
Pumps and electric motors
-
Oil & gas processing equipment
-
Power generation facilities
It is especially suitable for fluid-film bearing machinery, where accurate shaft displacement measurement is required to ensure stable operation.
Core Advantages
The 330104-00-09-05-11-05 is designed to deliver both durability and measurement consistency. Its stainless-steel housing provides strong resistance to corrosion and mechanical stress, while the PPS probe tip enhances insulation and thermal stability.
The inclusion of FluidLoc cable technology improves mechanical robustness and reduces signal interference, even in high-vibration environments. The ClickLoc connector simplifies installation and ensures a secure, reliable connection.
Additionally, the probe offers excellent linearity and repeatability, enabling early detection of mechanical issues and helping reduce unplanned downtime. It is a dependable solution for long-term machinery protection.
Technical FAQs
1. What is the main purpose of this probe?
It measures shaft vibration and displacement without physical contact.
2. What is the probe diameter?
The probe features an 8 mm diameter.
3. What cable length is included?
This model includes a 0.5-meter integrated cable.
4. What type of connector does it use?
A miniature coaxial ClickLoc connector with a protective design.
5. Can it operate in harsh industrial environments?
Yes, it is designed for high-temperature and high-vibration conditions.
6. What materials are used in the probe?
It uses stainless steel housing and a PPS sensing tip.
7. Is calibration required during operation?
When used within a complete 3300 XL system, it maintains factory calibration.
8. Is this model suitable for hazardous areas?
This configuration does not include hazardous area certification unless specified.
9. What systems is it compatible with?
It is designed for 3300 XL proximity transducer systems.
10. What maintenance is required?
Routine inspection of installation and cable condition is generally sufficient.
