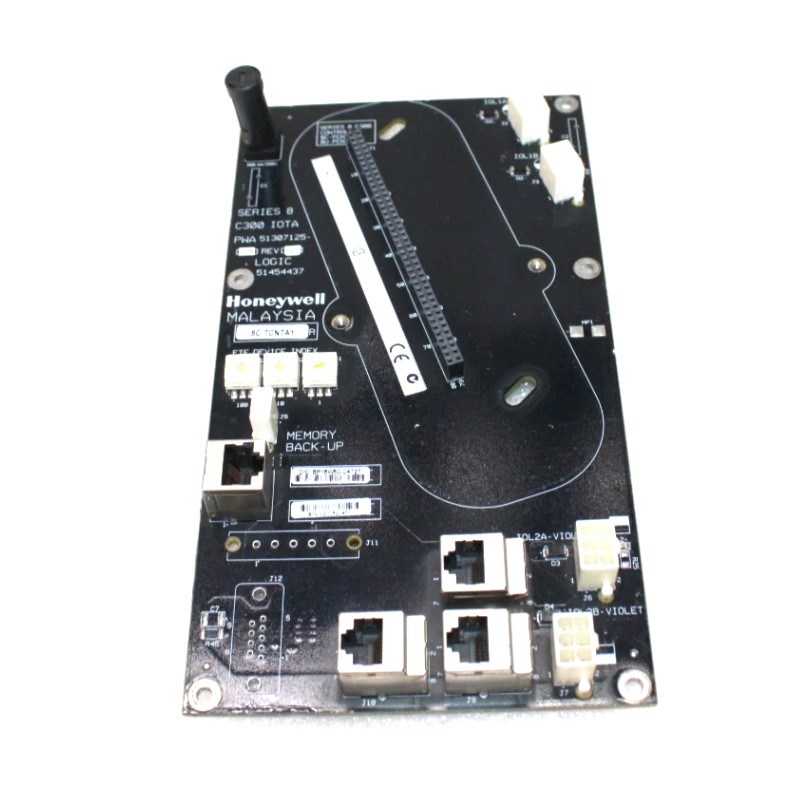

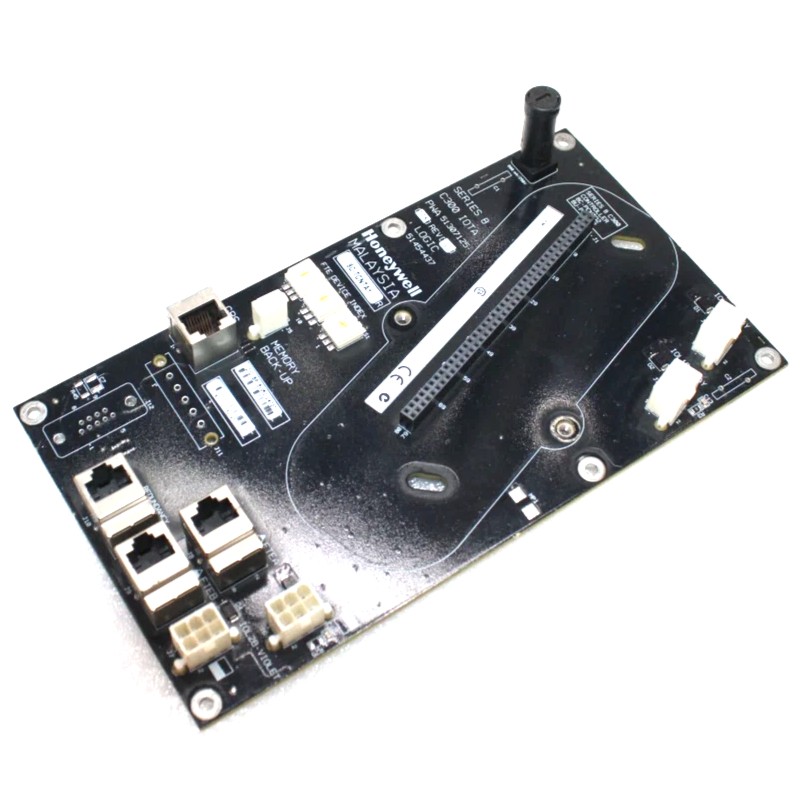

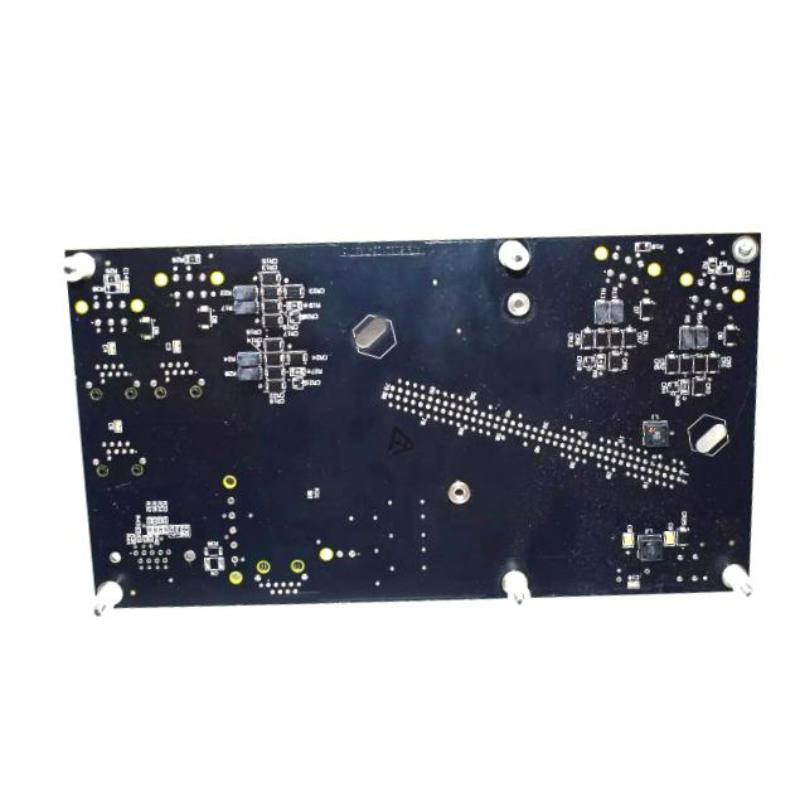

Honeywell 8U-TCNTA1 I/O Termination Assembly

Brand:Honeywell DCS
Item No.:8U-TCNTA1
Product Origin:USA
Product Dimensions:127 × 89 × 25 mm
Product Weight:0.45 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The 8U-TCNTA1 I/O Termination Assembly (IOTA) is intended as the field-wiring interface module for Honeywell’s Series 8 / C300 controller systems. It simplifies the wiring topology by consolidating digital, analog, and relay signal terminations into a compact module that plugs directly into the controller rack. With its design focus on versatility and reliability, the 8U-TCNTA1 supports mixed I/O types while offering robust isolation and diagnostic capabilities—making it a critical component for stable operation in process plants, utilities, and automation systems.

Technical Specifications

Item Specification
Model Number 8U-TCNTA1
Module Type I/O Termination Assembly (IOTA)
Supported I/O Mixed analog, digital, relay/triac outputs (universal-channel support)
Signal Types Voltage, current, digital input, relay/triac/analog output (depending on configuration)
Isolation Channel-to-system isolation (for improved noise immunity and safety)
Mounting DIN-rail or rack-mounted in industrial control cabinets
Protection & Diagnostics Short-circuit protection; built-in wiring and channel diagnostics
Operating Voltage (I/O) 24 V DC (typical for control systems)
Environmental Rating Standard industrial control-cabinet environment (temperature, humidity, vibration)
Dimensions 127 × 89 × 25 mm (approx. W × H × D)
Weight 0.45 kg

Applications

  • Termination of field wiring from sensors, transmitters, actuators to controller I/O modules

  • Consolidated mixed-signal handling (analog, digital, relay) within a single assembly

  • Simplification of cabinet wiring layout and reduction of external marshalling panels

  • Use in process control loops — temperature, pressure, flow, level control systems

  • Deployment in petrochemical, power generation, water treatment, and general manufacturing plants

  • Support for modular system expansion and retrofits with flexible I/O configuration

  • Interface for safety-critical or redundant control system architectures

  • Facilitation of maintenance and commissioning through built-in diagnostics


Advantages

  • Supports mixed I/O types in one compact termination assembly

  • Provides channel isolation, reducing signal interference and enhancing safety

  • Reduces wiring complexity and cabinet space compared to discrete wiring schemes

  • Simplifies installation and maintenance with plug-in module design

  • Built-in diagnostics improve troubleshooting and reduce downtime

  • Compatible with Honeywell Series 8 / C300 controller racks for seamless integration

  • Suitable for harsh industrial environments, including vibration and temperature variation

  • Scalable — supports system expansion without major rewiring

  • Enhances reliability of control loops by ensuring solid, consistent I/O terminations

  • Helps standardize system architecture across different installations

Technical FAQs

  1. What types of I/O signals can 8U-TCNTA1 handle?
    It can handle mixed signal types — analog (voltage/current), digital inputs, and relay/triac or analog outputs depending on configuration.

  2. Is this module compatible only with Honeywell controllers?
    It is designed specifically for Honeywell Series 8 / C300 controllers; use with non-Honeywell racks is not recommended.

  3. Does the module provide electrical isolation?
    Yes — input/output channels are isolated from the system bus to improve noise immunity and safety.

  4. Can it be mounted on a DIN rail?
    Yes, it supports DIN-rail or standard control cabinet rack mounting.

  5. Is there built-in protection for wiring faults?
    Yes — the module includes short-circuit protection and channel-level diagnostics.

  6. Can it simplify mixed-signal wiring?
    Yes — it consolidates analog, digital, and relay wiring into one assembly, reducing cabinet complexity.

  7. Is the module suitable for industrial environments with vibration or temperature variations?
    Yes — it’s designed to operate under typical industrial control conditions.

  8. Does it support system expansion or retrofit?
    Yes — adding or reconfiguring I/O channels is straightforward due to its modular design.

  9. How heavy is the module?
    Approximately 0.45 kg.

  10. What are its physical dimensions?
    Roughly 127 × 89 × 25 mm (width × height × depth), suitable for compact installations.
