System Introduction

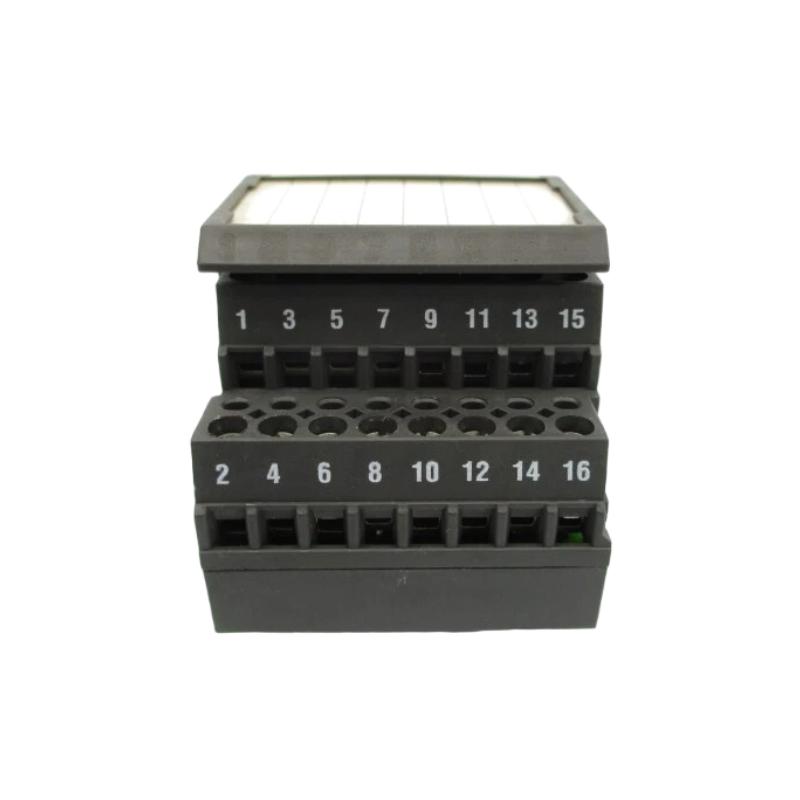

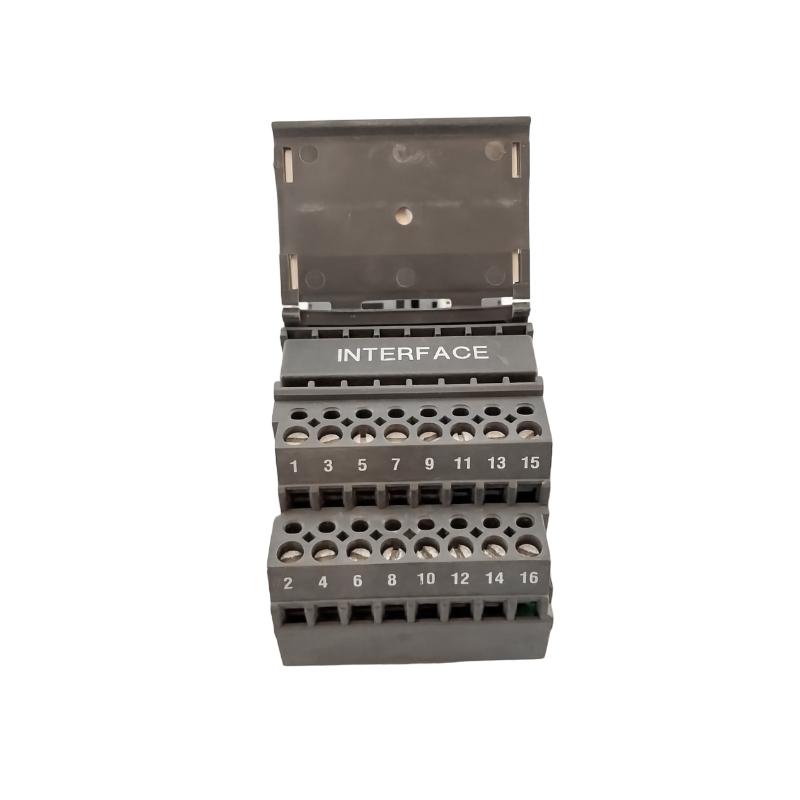

The Emerson KJ3003X1-EA1 12P0921X022 Serial Interface Terminal Block is a compact and reliable module for connecting serial devices to Emerson PLC, PAC, or DeltaV systems. It ensures stable communication, supporting accurate data transfer and integration of distributed automation components.
With dimensions of 120 × 70 × 55 mm and a weight of 0.09 kg (0.20 lb), it is compact and ideal for installation in control cabinets or PLC/PAC racks. Its industrial-grade construction ensures consistent performance and durability in harsh environments.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Emerson |
| Model | KJ3003X1-EA1 12P0921X022 |
| Module Type | Serial Interface Terminal Block |
| Function | Provides serial communication for connecting field devices to PLC/PAC systems |
| System Platform | Emerson PLC/PAC/DeltaV Automation Systems |
| Installation | Mounted in control cabinet or PLC/PAC rack |
| Operating Environment | Industrial |
| Dimensions | 120 × 70 × 55 mm |
| Weight | 0.09 kg (0.20 lb) |
Industrial Deployment Applications
The Emerson KJ3003X1-EA1 Serial Interface Terminal Block is designed to provide robust serial communication between field devices and Emerson PLC or PAC systems. It enables reliable data transfer for automation processes, facilitating integration of distributed control components.
Typical applications include:
-
Connecting serial devices such as sensors, meters, and controllers to PLC/PAC systems
-
Industrial communication networks requiring RS-232/RS-485 signal routing
-
Data acquisition from remote equipment to central control systems
-
Integration with Emerson DeltaV or PAC automation platforms
-
Machine-level and process-level serial device interfacing
-
Industrial automation environments where compact, reliable serial connectivity is required
This terminal block ensures accurate and stable serial data transmission in demanding industrial conditions.
Key Advantages
Reliable Serial Communication
Provides stable RS-232 or RS-485 connections for field devices.
Optimized for Emerson Automation Systems
Seamlessly integrates with Emerson PLC, PAC, and DeltaV platforms.
Compact and Space-Efficient
Fits into control cabinets and PLC/PAC racks without consuming excessive space.
Industrial-Grade Durability
Engineered to withstand vibration, electrical noise, and continuous industrial operation.
Supports Modular System Expansion
Allows additional serial devices to be connected without complex rewiring.
Technical FAQs
-
What is the main function of the KJ3003X1-EA1 module?
It provides a serial interface for connecting field devices to PLC/PAC systems.
-
Which automation platforms is it compatible with?
It is compatible with Emerson PLC, PAC, and DeltaV systems.
-
What types of signals does it support?
RS-232 and RS-485 serial communication protocols.
-
How is the terminal block installed?
It is mounted in a control cabinet or PLC/PAC rack.
-
Can it operate in industrial environments?
Yes, it is designed for reliable performance under electrical noise and vibration.
-
How many serial devices can be connected?
Multiple devices can be connected depending on network configuration and protocol.
-
How does it improve system communication?
By providing stable and accurate serial data transmission to automation controllers.
-
Can it integrate into existing Emerson systems?
Yes, it connects seamlessly with Emerson PLC, PAC, and DeltaV platforms.
-
Is it suitable for both machine-level and plant-wide serial communication?
Yes, it supports both localized and distributed device connectivity.
-
Which industries commonly use this module?
Manufacturing, process industries, power generation, chemical plants, and industrial automation sectors.
