Product Overview

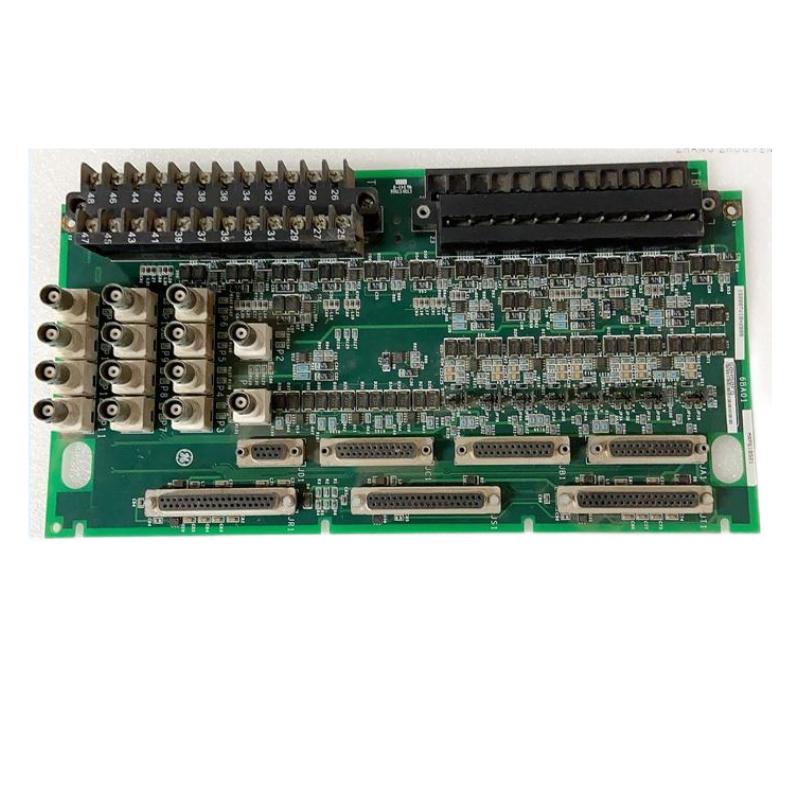

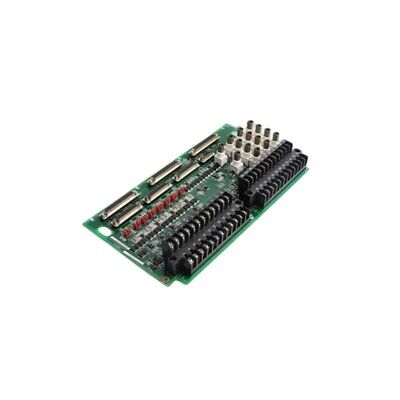

The GE IS200TVIBH2B Vibration Terminal Board is a rugged interface module designed for the Mark VI/Mark VIe Speedtronic control system. It provides precise vibration signal acquisition and conditioning from field-mounted vibration sensors, enabling real‑time monitoring and protection of rotating machinery such as turbines, compressors, and generators.
This board delivers high‑integrity vibration data directly to protection and monitoring systems, helping detect imbalance, bearing wear, shaft motion, and other mechanical anomalies before they evolve into critical failures. Its industrial‑grade design and clear diagnostics make it a dependable choice for predictive maintenance and safety‑critical applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IS200TVIBH2B |
| Module Type | Vibration Terminal Board |
| Series | GE Mark VI / Mark VIe |
| Input Channels | 8 vibration sensor inputs |
| Sensor Types | Proximity probes, velocity pickups, accelerometers |
| Signal Range | ±10 V / 4–20 mA configurable |
| Resolution | 16‑bit ADC |
| Isolation | Channel‑to‑channel galvanic isolation |
| Filtering | Active signal filtering for noise suppression |
| Indicators | LED status/fault indicators |
| Operating Temperature | -20°C to 65°C |
| Mounting | Rack‑mounted (Innovation Series) |
| Dimensions (HxWxD) | Approx. 160 × 120 × 40 mm |
| Weight | Approx. 0.8 kg |
