System Introduction

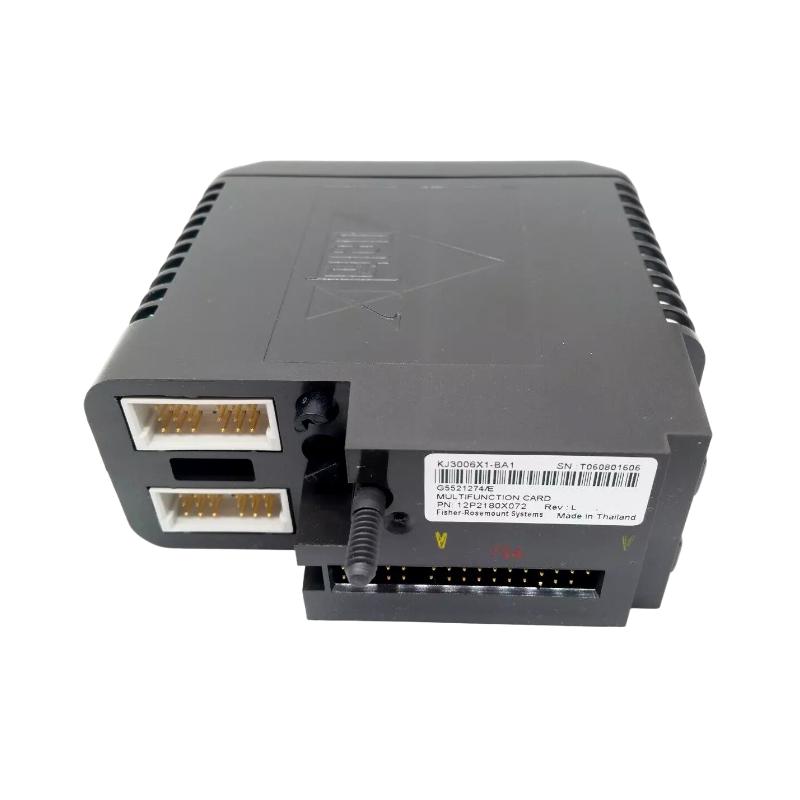

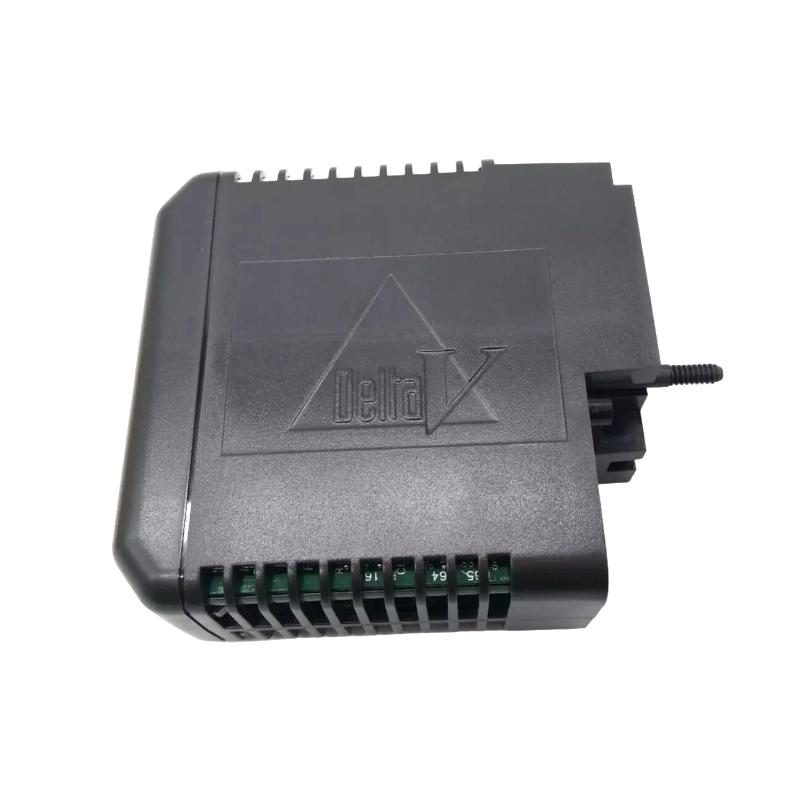

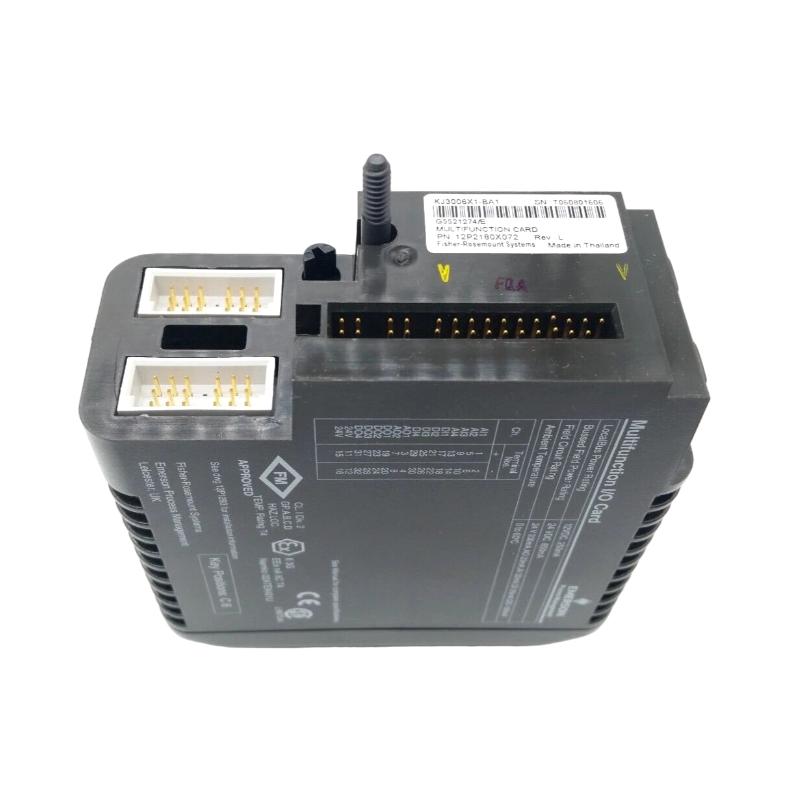

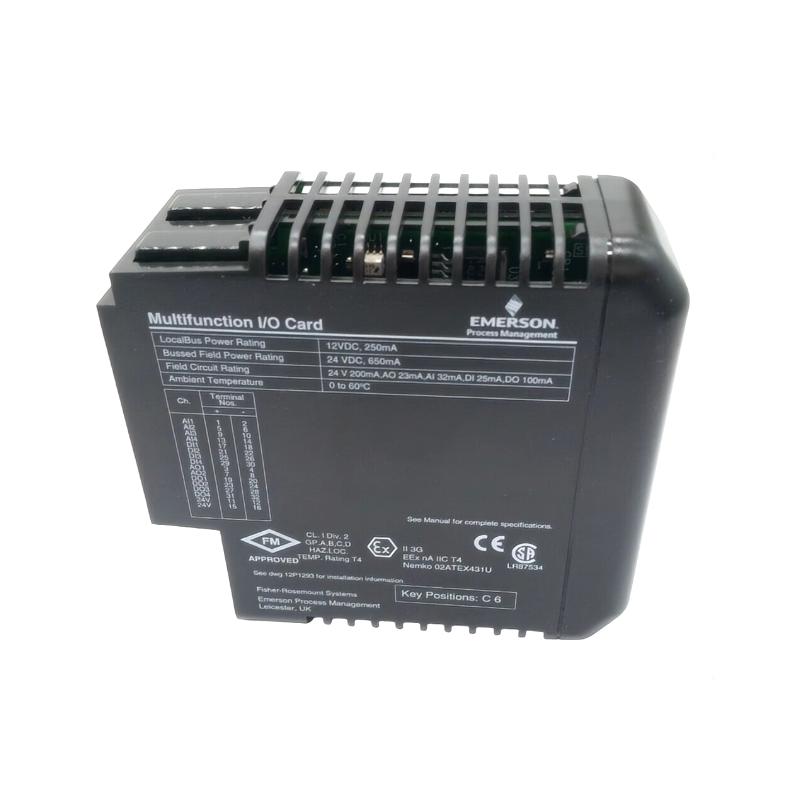

The Emerson KJ3006X1-BA1 12P2180X072 Multi-Function I/O Card is designed to provide versatile input/output control in Emerson PLC and PAC systems. It enables processing of analog and digital signals, simplifying control architecture and enhancing flexibility in industrial automation systems.
With dimensions of 107 × 41 × 105 mm and a weight of 0.204 kg (0.45 lb), the module is compact and suitable for installation in PLC or PAC racks. Its robust construction supports reliable operation and scalable integration into complex industrial automation networks.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Emerson |
| Model | KJ3006X1-BA1 12P2180X072 |
| Module Type | Multi-Function I/O Card |
| Function | Processes analog and digital input/output signals |
| System Platform | Emerson PLC/PAC Automation Systems |
| Installation | Mounted in PLC/PAC rack or control cabinet |
| Operating Environment | Industrial |
| Dimensions | 107 × 41 × 105 mm |
Industrial Deployment Applications
The Emerson KJ3006X1-BA1 Multi-Function I/O Card is engineered to handle both analog and digital signals, providing versatile input/output functionality within Emerson PLC and automation systems. It enables complex monitoring and control tasks in industrial environments, supporting process automation and machine-level operations.
Typical applications include:
-
Processing both discrete and analog signals from sensors and actuators
-
Integration with Emerson PAC and PLC systems for flexible I/O control
-
Machine-level automation and distributed process monitoring
-
Data acquisition and control in manufacturing and processing plants
-
Industrial applications requiring multi-function I/O capabilities
-
Scalable automation systems where combined analog/digital I/O is needed
This card enhances system flexibility and reduces the need for multiple separate modules in control architectures.
Key Advantages
Versatile I/O Capability
Supports analog and digital input/output functions within a single module.
Compact Design for Rack Installation
Easily fits into PLC racks or industrial control cabinets.
High Reliability in Industrial Environments
Engineered for stable operation in electrically noisy and high-demand conditions.
Flexible System Integration
Compatible with Emerson PLC and PAC systems, enabling diverse process control configurations.
Supports Scalable Automation Solutions
Facilitates modular system expansion while reducing cabling and hardware complexity.
Technical FAQs
-
What is the primary function of the KJ3006X1-BA1 module?
It provides multi-function input and output capabilities for both analog and digital signals.
-
Which systems is this card compatible with?
It is compatible with Emerson PLC and PAC automation platforms.
-
What types of signals can it handle?
Discrete (digital) inputs/outputs and analog inputs/outputs.
-
How is the module installed?
It is mounted in a PLC or PAC rack within an industrial control cabinet.
-
Can it operate in harsh industrial environments?
Yes, it is designed to function reliably in electrical noise, vibration, and continuous operation conditions.
-
How does it simplify system architecture?
By combining analog and digital I/O in one module, it reduces the need for multiple separate modules.
-
Can it support scalable control systems?
Yes, it allows modular expansion of I/O capabilities in Emerson automation systems.
-
How does it improve process monitoring?
By providing flexible I/O functionality, it enables precise control and data acquisition.
-
Is it suitable for both machine-level and process-level control?
Yes, it can be used in localized machine control or integrated plant-wide process automation.
-
Which industries typically deploy this module?
Manufacturing, process industries, energy production, and industrial automation sectors frequently use it.
