System Introduction

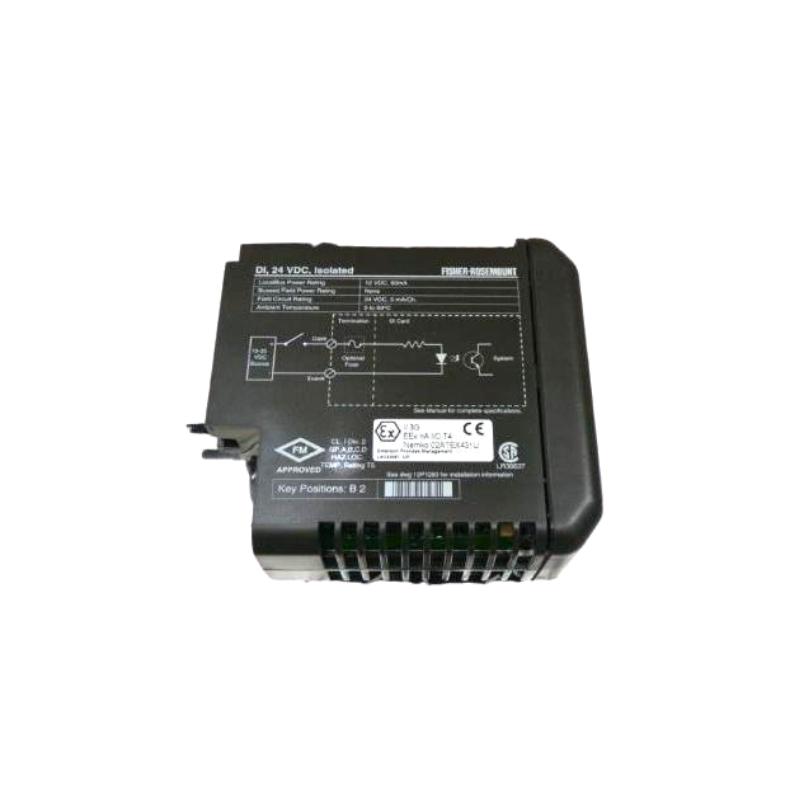

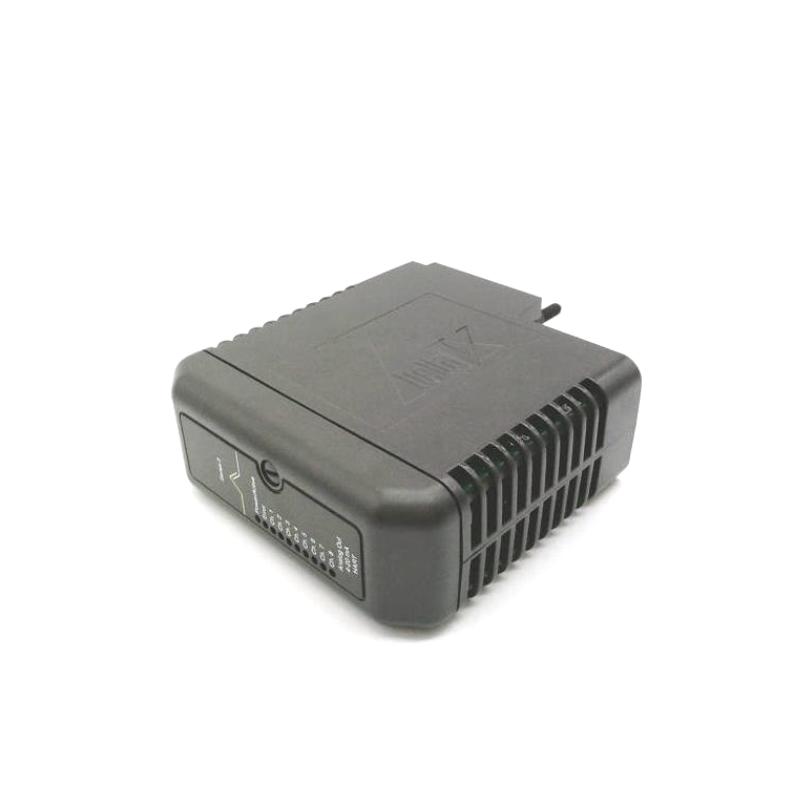

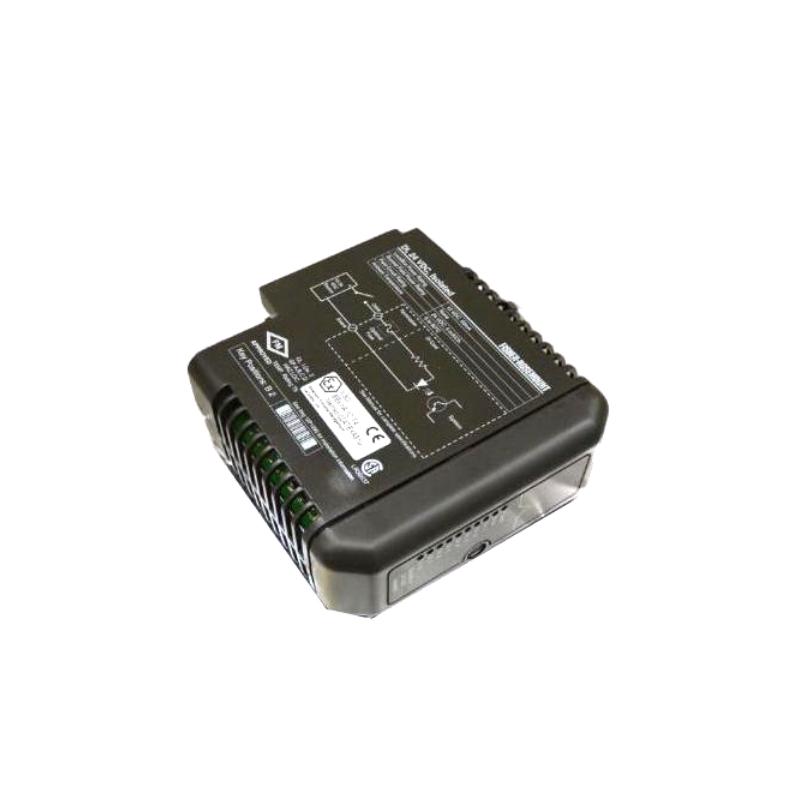

The Emerson KJ3001X1-BA1 129P549X152 Isolated Discrete Input Module is designed for accurate and safe acquisition of digital input signals in Emerson PLC systems. Its isolated design protects both the PLC and connected field devices, ensuring reliable signal transmission in industrial environments.
With dimensions of 107 × 41 × 105 mm and a weight of 0.2 kg (0.44 lb), the module is compact and suitable for installation in PLC racks or control panels. It supports scalable input configurations while maintaining high signal integrity and industrial reliability.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Emerson |
| Model | KJ3001X1-BA1 129P549X152 |
| Module Type | Isolated Discrete Input Module |
| Function | Acquires discrete input signals with electrical isolation |
| System Platform | Emerson PLC/Automation Systems |
| Installation | Mounted in PLC rack or control cabinet |
| Operating Environment | Industrial |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.2 kg (0.44 lb) |
Industrial Deployment Applications
The Emerson KJ3001X1-BA1 Isolated Discrete Input Module is designed to acquire digital signals from field devices while providing electrical isolation, ensuring safe and accurate signal transmission to PLC systems. It is ideal for industrial environments where signal integrity and device protection are critical.
Typical applications include:
-
Monitoring limit switches, push buttons, and proximity sensors in industrial automation
-
Safety-critical process control requiring electrical isolation
-
Integration with Emerson PLC and control systems for discrete input acquisition
-
Machine-level and process-level monitoring in manufacturing facilities
-
Data acquisition for automated process control systems
-
Industrial environments with electrical noise or potential ground loop issues
This module enables accurate and reliable digital input monitoring while protecting both the PLC and field devices.
Key Advantages
Electrical Isolation for Safety
Protects both field devices and PLC inputs from voltage spikes and ground loops.
Accurate Discrete Signal Acquisition
Ensures reliable detection of digital input states from sensors and switches.
Compact and Rack-Friendly Design
Easily integrates into PLC racks and industrial control panels.
Industrial-Grade Reliability
Engineered to operate in electrically noisy environments with consistent performance.
Supports Scalable Automation Systems
Allows integration into larger discrete input networks for expanding PLC systems.
Technical FAQs
-
What is the primary function of the KJ3001X1-BA1 module?
It collects discrete input signals from field devices and transmits them to the PLC while providing electrical isolation.
-
Which control systems support this module?
It is compatible with Emerson PLC and automation systems.
-
What types of devices can be connected?
Limit switches, push buttons, proximity sensors, and other discrete input devices.
-
How is the module installed?
It is mounted in a PLC rack or control cabinet within an Emerson automation system.
-
Can it operate reliably in industrial environments?
Yes, it is designed for stable operation in environments with electrical noise and potential voltage fluctuations.
-
Does the module support multiple input channels?
Yes, it can monitor several discrete input signals simultaneously.
-
How does electrical isolation benefit the system?
It prevents damage from voltage spikes and reduces the risk of ground loop interference.
-
Can it be integrated into existing Emerson PLC systems?
Yes, it integrates seamlessly with compatible Emerson automation configurations.
-
Is it suitable for large-scale automation systems?
Yes, it supports distributed and plant-level monitoring architectures.
-
Which industries typically use this input module?
Manufacturing, process industries, energy production, and industrial automation sectors commonly deploy it.
