System Introduction

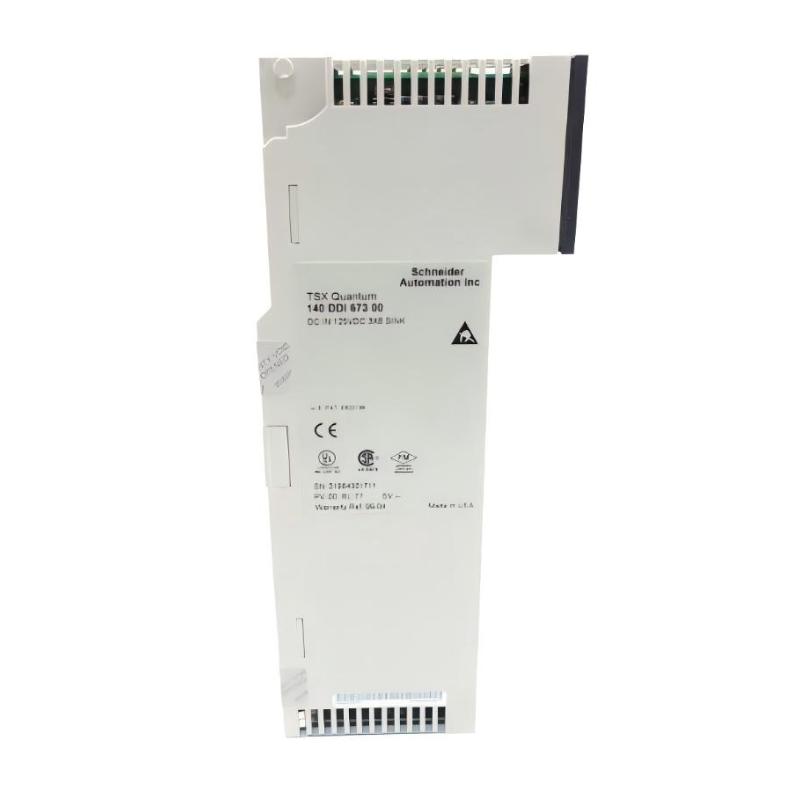

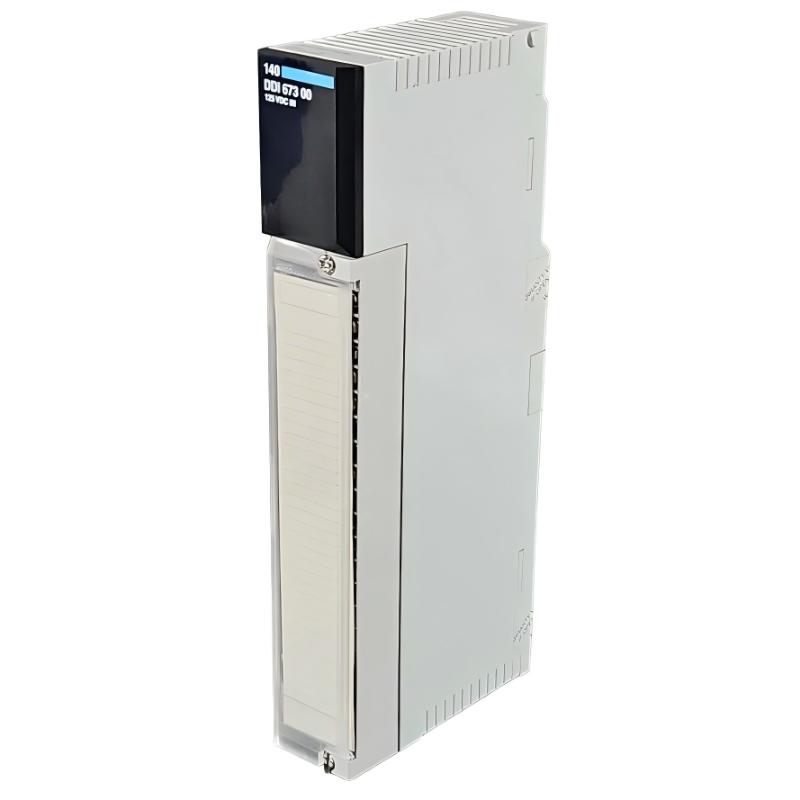

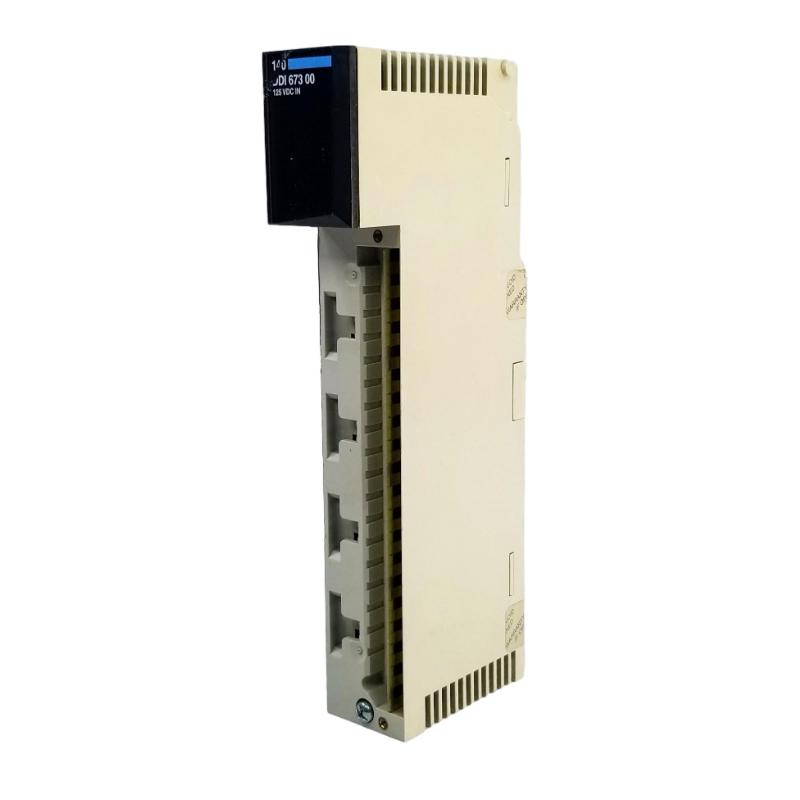

The Schneider 140DDI67300 Discrete Input Module is a signal acquisition interface for Modicon Quantum PLC systems. It allows PLC controllers to receive and process digital input signals from industrial devices, supporting accurate monitoring and automated control of machinery and processes.
With dimensions of 103.9 × 40.3 × 250 mm and a weight of 0.3 kg (0.66 lb), the module is designed for easy rack-mounted installation in control cabinets. Its compact and robust design ensures long-term reliability and seamless integration into industrial automation networks.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Schneider Electric |
| Model | 140DDI67300 |
| Module Type | Discrete Input Module |
| Function | Collects digital input signals from field devices |
| System Platform | Modicon Quantum PLC System |
| Installation | Mounted in PLC rack or control cabinet |
| Operating Environment | Industrial |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg (0.66 lb) |
Industrial Deployment Applications
The Schneider 140DDI67300 Discrete Input Module is designed to collect and transmit digital signals from industrial field devices to Modicon Quantum PLC systems. It plays a critical role in monitoring process status and enabling automated responses in industrial automation environments.
Typical applications include:
-
Capturing signals from limit switches, push buttons, and proximity sensors
-
Machine status monitoring on automated production lines
-
Feedback acquisition for PLC-based process control
-
Integration into distributed Modicon Quantum control architectures
-
Data acquisition from sensors in manufacturing and processing systems
-
Industrial applications requiring reliable digital input detection
This module ensures precise signal collection, allowing PLC systems to respond effectively to operational conditions.
Key Advantages
Accurate and Reliable Signal Acquisition
Captures discrete input signals from field devices consistently.
Optimized for Quantum PLC Platforms
Fully compatible with Schneider Modicon Quantum automation systems.
Compact and Rack-Friendly Design
Supports straightforward installation within PLC racks and control cabinets.
Industrial-Grade Performance
Engineered to operate in environments with electrical noise, vibration, and continuous operation.
Supports Scalable Input Systems
Allows expansion of digital input capacity in modular PLC architectures.
Technical FAQs
-
What is the primary function of the 140DDI67300 module?
It collects discrete input signals from field devices and transmits them to the PLC.
-
Which PLC system supports this module?
It is designed for Schneider Electric Modicon Quantum PLC systems.
-
What types of devices can be connected to it?
Limit switches, push buttons, proximity sensors, and other discrete input devices.
-
How is it installed?
It is mounted in a Modicon Quantum PLC rack inside an industrial control cabinet.
-
Can it function in industrial environments?
Yes, it is designed to operate reliably in demanding industrial conditions.
-
Does it support multiple input channels?
Yes, it can monitor multiple discrete inputs simultaneously.
-
Can it be integrated into existing Quantum PLC systems?
Yes, it integrates seamlessly into compatible Quantum PLC configurations.
-
How does it support automation reliability?
By providing accurate, real-time feedback from field devices to the PLC.
-
Is it suitable for large-scale industrial automation systems?
Yes, it supports distributed and plant-wide control architectures.
-
Which industries commonly deploy this module?
Manufacturing, process industries, energy production, and industrial automation sectors frequently use it.
