Product Overview

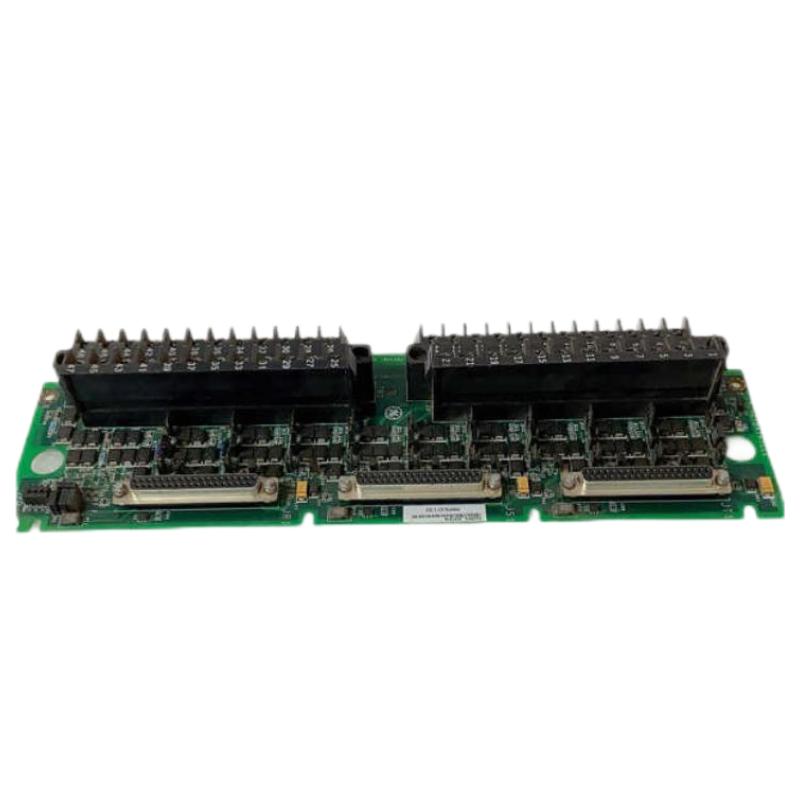

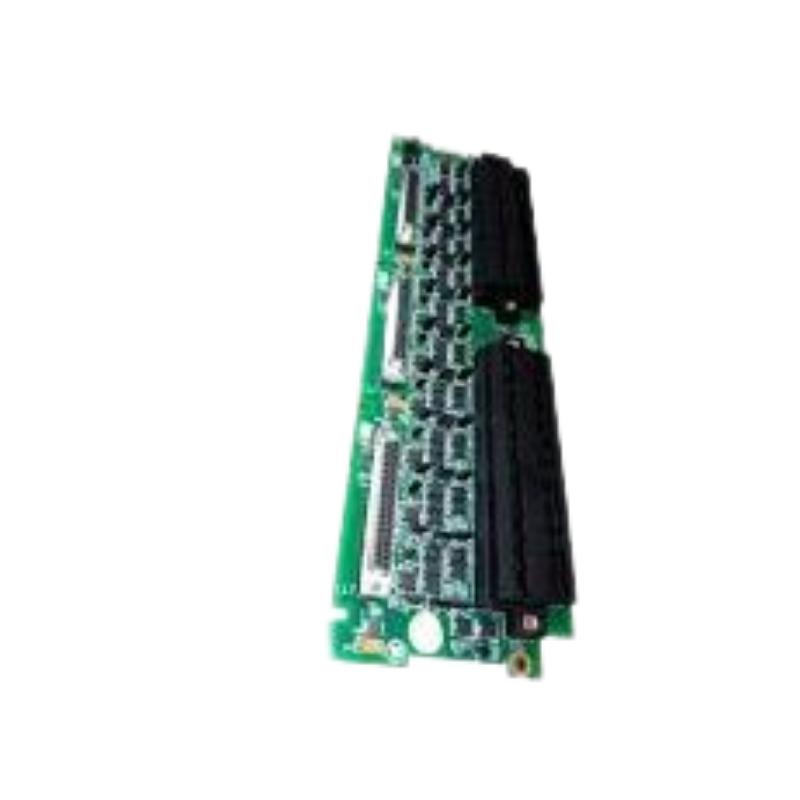

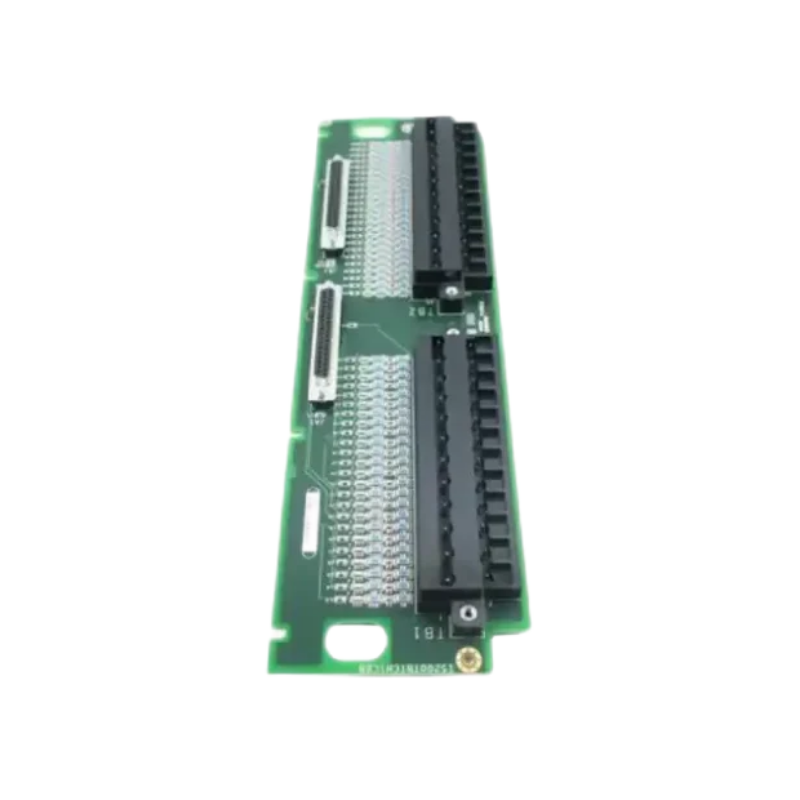

The GE IS200TBAIH1C Analog Input Terminal Board is an essential module in the Mark VI Speedtronic control system, designed to accurately capture and transmit analog signals from field devices to the central controller. This board enables precise monitoring of process variables such as temperature, pressure, and flow, ensuring accurate control and reliable operation of turbines and industrial processes.
Its robust construction and user-friendly diagnostics allow engineers to maintain uptime and simplify troubleshooting, making it a key component for critical industrial automation applications.
Technical Specifications
| Parameter | Details |
|---|
| Model | IS200TBAIH1C |
| Module Type | Analog Input Terminal Board |
| Series | GE Mark VI Speedtronic |
| Input Channels | 16 Analog Inputs per board |
| Input Signal Range | ±10 V, 4–20 mA |
| Resolution | 16-bit ADC |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel galvanic isolation |
| Operating Temperature | -20°C to 65°C |
| Mounting | Rack-mounted (Innovation Series) |
| Dimensions (HxWxD) | Approx. 160 x 120 x 40 mm |
| Weight | Approx. 0.75 kg |
| Indicators | LED status indicators for each input channel |
Typical Applications
The IS200TBAIH1C is used in environments where precise analog input monitoring is essential for safe and efficient operation:
-
Gas and steam turbine control systems
-
Power generation facilities
-
Oil & gas process plants
-
Chemical and petrochemical manufacturing
-
Large-scale industrial automation
It ensures accurate signal acquisition from field devices, supporting reliable process control and system monitoring.
Technical FAQs
1. How many analog input channels are available?
It provides 16 analog input channels per board.
2. What input signal types are supported?
±10 V and 4–20 mA signals.
3. What is the resolution of the inputs?
16-bit ADC provides high-precision analog conversion.
4. Is the board electrically isolated?
Yes, each channel is galvanically isolated.
5. What is the operating temperature range?
-20°C to 65°C.
6. Does it provide diagnostic indicators?
Yes, each input channel has an LED status indicator.
7. Which industries typically use this board?
Gas/steam turbines, power plants, chemical plants, and industrial automation.
8. How is the board installed?
Rack-mounted in the Innovation Series backplane.
9. What devices does it interface with?
Sensors for temperature, pressure, flow, and other analog field devices.
10. Is it compatible with other Mark VI modules?
Yes, it integrates seamlessly within the Mark VI Speedtronic ecosystem.
