Accurate AC Voltage Sensing for RX3i Control Systems

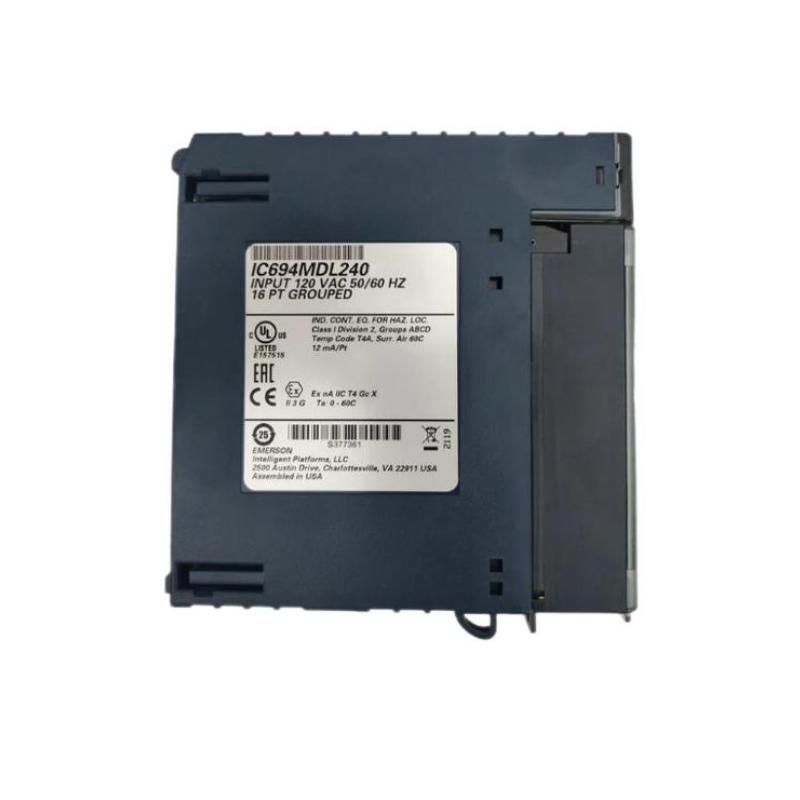

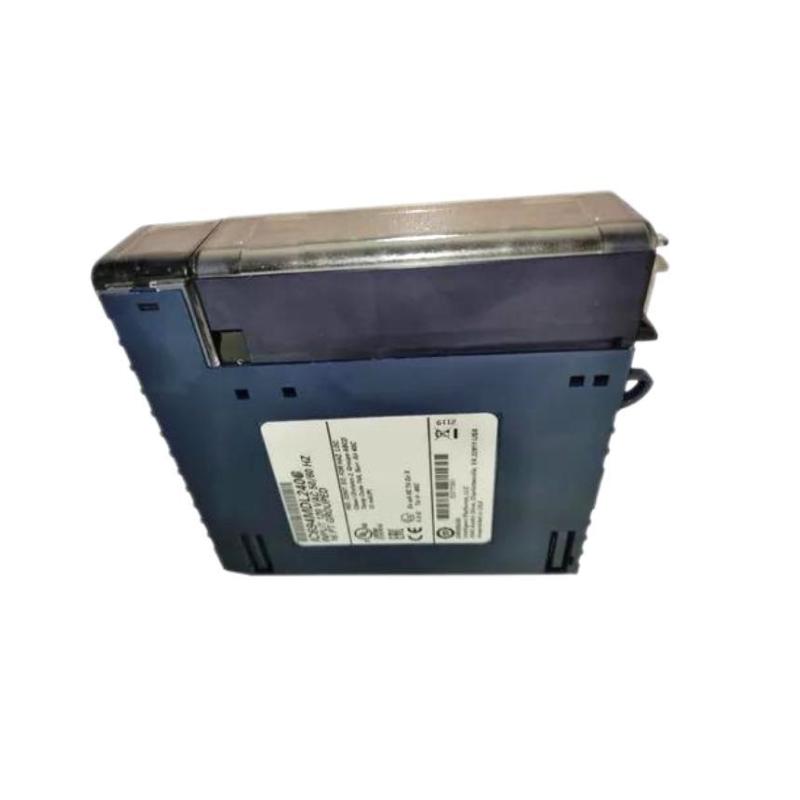

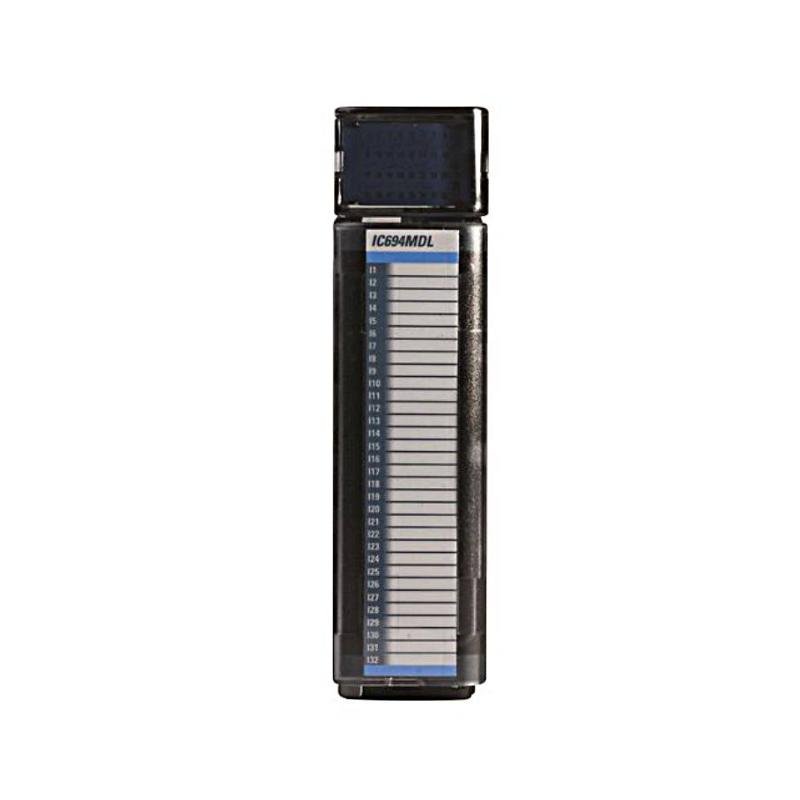

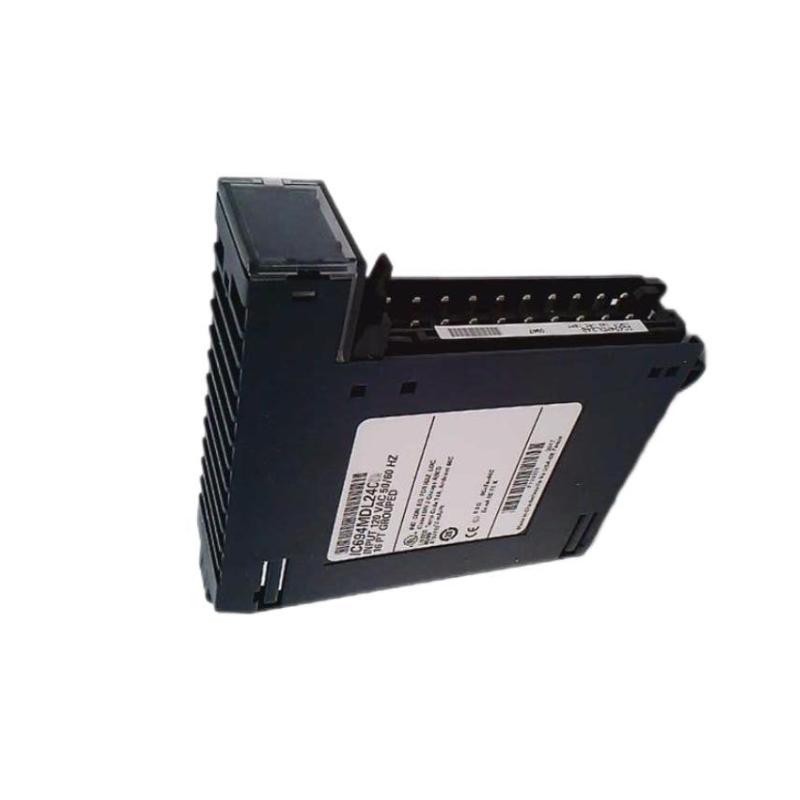

The GE IC694MDL240 RX3i AC Voltage Input Module is a field‑proven I/O module designed to acquire multiple AC voltage signals and convert them into data usable by GE Fanuc RX3i programmable logic controllers. Built for industrial automation, this module provides reliable detection of AC voltage conditions, enabling PLC logic to make decisions based on power status, line presence, and other voltage‑dependent states.
Engineered with rugged construction and solid noise immunity, the IC694MDL240 supports a wide range of automation applications where dependable AC voltage monitoring is essential for safety, control, and process logic.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | AC Voltage Input Module |
| Model Number | IC694MDL240 |
| Platform | GE Fanuc RX3i Modular I/O System |
| Input Channels | 8 independent AC voltage inputs |
| Input Type | AC voltage (field input) |
| Nominal Voltage Range | 20–150 V AC RMS |
| Frequency Range | 45–65 Hz |
| Input Impedance | ~100 kΩ per channel |
| Resolution | 12‑bit |
| Update Rate | 10 ms per channel |
| Isolation | Channel‑to‑backplane isolation |
| Backplane Interface | RX3i serial backplane |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | ‑40 °C to 85 °C |
| Relative Humidity | 5–95 % non‑condensing |
| Dimensions (HxWxD) | Approx. 120 × 35 × 139 mm |
| Weight | Approx. 0.28 kg |
| Mounting | RX3i backplane slot |
Application Scenarios
The IC694MDL240 module is widely used in automation systems where AC voltage detection and status reporting are integral to system performance. Typical applications include:
-
Control Panels: Monitoring incoming supply voltages to PLC racks, motor starters, and auxiliary circuits.
-
Industrial Machinery: Detecting presence/absence of AC line power to enable or inhibit equipment operations.
-
Process Systems: Tracking voltage conditions on heaters, mixers, or other AC‑powered devices.
-
Building Management: Verifying mains availability in HVAC, lighting, and security systems.
By converting each AC input into discrete data, the module equips the PLC with accurate, timely voltage status information for logic decisions, alarms, and safety interlocks.
Key Advantages and Value
-
Multi‑Channel Input Density: Eight AC voltage channels provide efficient use of backplane space, reducing the number of modules required.
-
Reliable Signal Processing: 12‑bit resolution supports accurate interpretation of field voltage states.
-
Fast Update Performance: Channel refresh times (≈10 ms) support near‑real‑time logic decisions.
-
Electrical Isolation: Channel‑to‑backplane isolation enhances noise immunity and protects control electronics.
-
Seamless Integration: Plug‑and‑play compatibility with the RX3i backplane simplifies installation and configuration.
These attributes make the IC694MDL240 a dependable module for AC voltage monitoring in diverse automation applications.
Technical FAQs
1. How many voltage inputs does the IC694MDL240 provide?
It offers eight independent AC voltage input channels.
2. What voltage range does it support?
Nominal 20–150 V AC RMS.
3. What is the signal resolution?
12‑bit resolution for precise voltage state detection.
4. What is the typical update rate per channel?
Around 10 milliseconds.
5. Is the module electrically isolated?
Yes, channel‑to‑backplane isolation is provided.
6. Which PLC platform is it compatible with?
GE Fanuc RX3i modular I/O system.
7. What environments can it operate in?
Industrial temperatures from 0 °C to 60 °C with wide humidity tolerance.
8. How is it mounted?
Installed in an RX3i backplane slot.
9. What types of signals does it accept?
AC voltage field inputs within the specified range.
10. What is its main use?
Monitoring AC voltage presence for status logic, alarms, and control decisions.
