Precision AC Voltage Monitoring for RX3i Automation

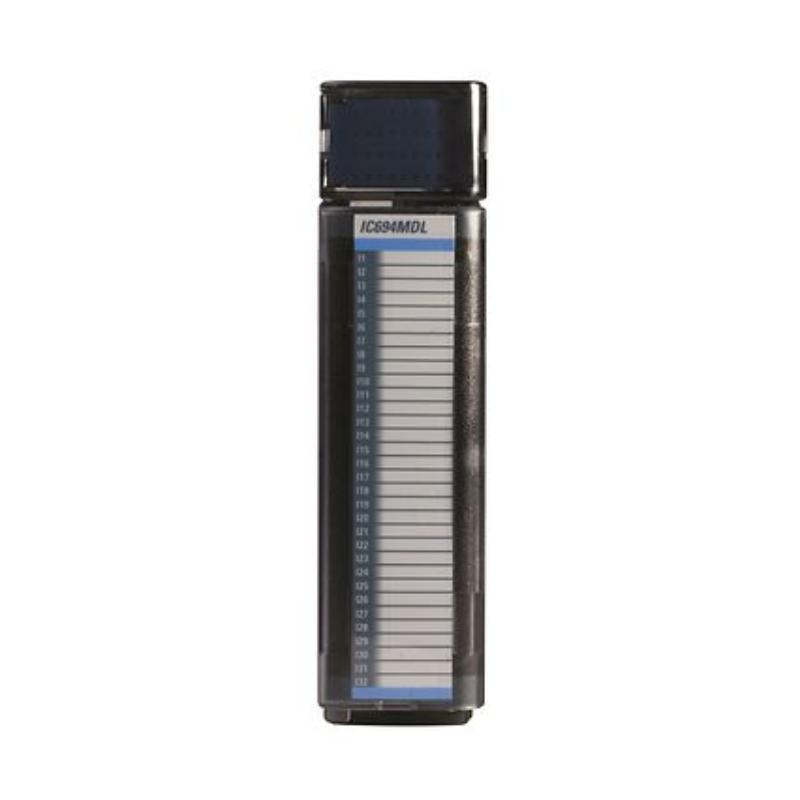

The GE IC694MDL231 RX3i AC Voltage Input Module is engineered to deliver accurate and reliable AC voltage signal acquisition in GE Fanuc RX3i programmable automation systems. Designed for process and discrete control applications, this module converts field AC voltage inputs into data for the PLC CPU, enabling precise monitoring and control of electrical system states, voltage levels, alarms, and logic conditions.
Its rugged industrial design and integrated diagnostics help ensure long‑term stability in manufacturing, utilities, and infrastructure environments where voltage measurement fidelity directly impacts process safety and performance.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | AC Voltage Input Module |
| Model Number | IC694MDL231 |
| PLC Platform | GE RX3i Modular System |
| Input Channels | 8 independent AC voltage inputs |
| Input Type | AC voltage (universal field inputs) |
| Voltage Range (nominal) | 20–150 V AC RMS |
| Input Frequency | 45–65 Hz |
| Input Impedance | ~100 kΩ per channel |
| Resolution | 12‑bit |
| Update Rate | 10 ms per channel |
| Isolation | Channel‑to‑bus isolation |
| Bus Interface | RX3i serial backplane |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | ‑40 °C to 85 °C |
| Relative Humidity | 5–95% non‑condensing |
| Dimensions (HxWxD) | Approx. 120 × 35 × 139 mm |
| Weight | Approx. 0.28 kg |
| Mounting | RX3i backplane slot |
Application Scenarios
The IC694MDL231 module is widely used wherever monitored AC voltage signals form part of a control strategy or safety logic:
-
Industrial Machinery: Monitoring motor supply voltages, heater line status, and low‑voltage distribution signals.
-
Process Control: Voltage presence checks in batching, mixing, and chemical processes.
-
Utilities & Power: Monitoring external feed voltages, backup generator statuses, and grid interface conditions.
-
Building Systems: Tracking mains presence for HVAC loads or alarms.
By precisely converting AC voltage states into processor‑usable data, the module enables PLC logic to react to change‑of‑state events, threshold crossings, and fault conditions with minimal latency.
Key Advantages and Strengths
-
Multiple Independent Channels: Eight discrete AC acquisition channels maximize data density per module slot.
-
Accurate Measurement: 12‑bit resolution and defined input impedance deliver stable, repeatable readings.
-
Fast Update Rate: Channel refresh times support near‑real‑time logic decisions in the controller.
-
Independent Isolation: Each channel’s electrical isolation minimizes noise and cross‑talk effects in complex panels.
-
RX3i Platform Integration: Plug‑and‑play compatibility ensures seamless backplane communication with RX3i CPUs and other I/O modules.
These features combine to provide dependable voltage monitoring without the need for external signal conditioners in many applications.
Technical FAQs
1. How many AC voltage inputs does the module provide?
It offers 8 independent input channels.
2. What voltage range can it measure?
Nominally 20 to 150 V AC RMS.
3. What resolution does it use?
12‑bit resolution for precise signal interpretation.
4. What is the typical update rate?
Approximately 10 ms per channel.
5. Does it provide electrical isolation?
Yes, channel‑to‑bus isolation protects the PLC logic.
6. Which PLC platform is it compatible with?
The GE RX3i modular automation system.
7. What environments can it operate in?
Industrial temperatures from 0 °C to 60 °C and high humidity ranges.
8. How is it mounted?
Installed into an RX3i backplane slot.
9. What signal types does it accept?
AC voltage field inputs in the specified range.
10. What is its typical use in automation?
Monitoring AC voltage presence and levels for logic decisions, alarms, and control events.
