Versatile Control for Mid‑Range Automation

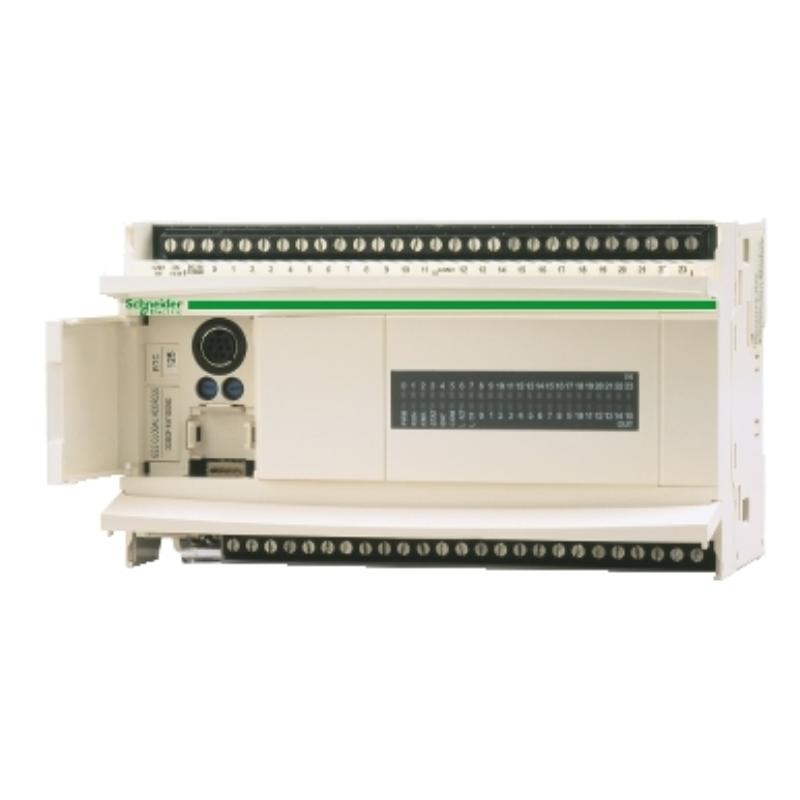

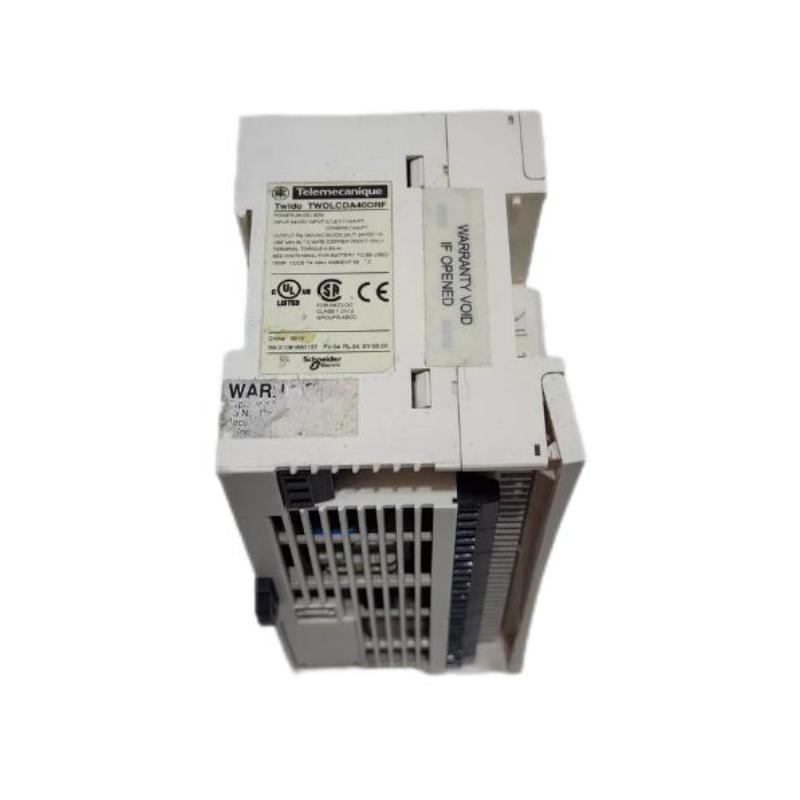

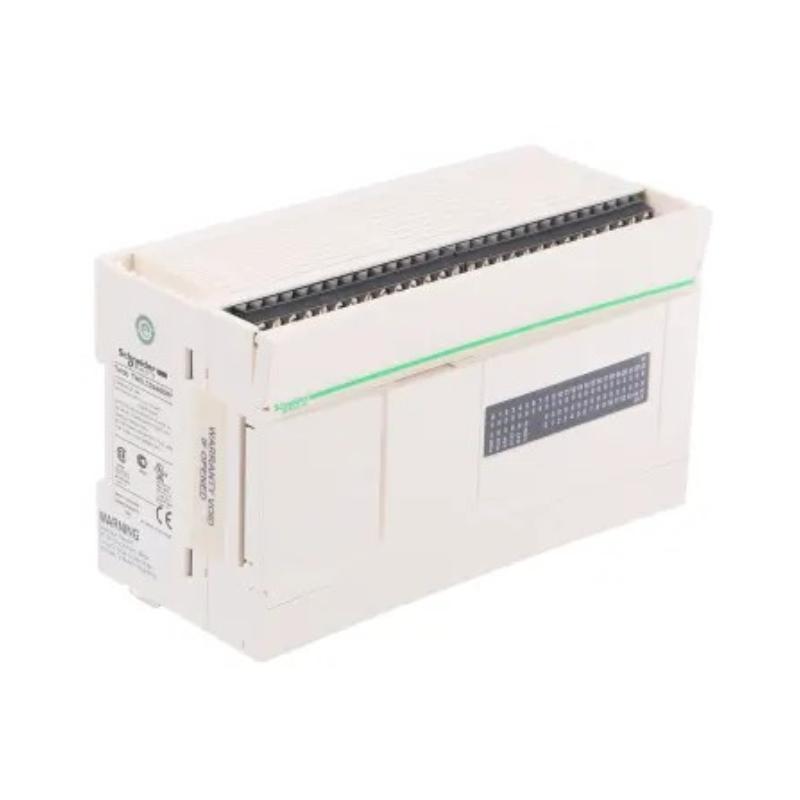

The Schneider TWDLCDA40DRF Compact Base Controller is a programmable logic controller (PLC) designed for flexible and cost‑effective automation in OEM machines and mid‑size industrial systems. Featuring a balanced mix of integrated digital inputs and outputs, reliable communications, and a compact form factor, it is ideal for applications where built‑in I/O, field connectivity, and straightforward programming matter most.
This controller offers quick response times, expandability for growing systems, and dependable performance in industrial environments—helping engineers reduce deployment time and simplify system architecture.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Compact Base Controller (PLC) |
| Model Number | TWDLCDA40DRF |
| Series | Modicon Twido |
| Total I/O Points | 40 (24 DI / 16 DO) |
| Digital Inputs | 24 × 24 V DC |
| Digital Outputs | 16 × 24 V DC (transistor / PNP) |
| Output Current per Channel | 0.4 A |
| Supply Voltage | 24 V DC |
| Communication Ports | Ethernet (RJ45), RS‑485 (Modbus), USB |
| Supported Protocols | Modbus RTU/TCP, Twido native protocol |
| Program Memory | ~3000 instructions |
| I/O Scan Rate | ≤ 1 ms per 1000 Boolean instructions |
| Expansion Capability | Supports up to 7 local and remote expansions |
| Protection Rating | IP20 |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | ‑25 °C to 70 °C |
| Relative Humidity | 10–90 % non‑condensing |
| Dimensions (HxWxD) | Approx. 95 × 90 × 70 mm |
| Weight | Approx. 0.55 kg |
| Mounting | DIN‑rail or panel mount |
Typical Industrial Applications
The TWDLCDA40DRF controller is suited for a wide range of automation tasks that require mid‑level I/O handling and flexible communication:
-
Packaging Equipment: Coordinates sensors, actuators, and conveyor logic in multi‑station systems.
-
Material Handling: Manages distributed sensors and motor controls for conveyor systems.
-
Machine Sequencing: Handles interlocks, outputs, and event processing in machinery control.
-
Building Automation: Controls HVAC, lighting sequences, and access systems.
-
OEM Equipment: Provides embedded control for custom machinery requiring compact yet capable PLC logic.
Its high I/O count and built‑in networking support make it particularly useful for systems that demand local processing with direct field device connections.
Key Advantages and Value
-
Balanced I/O Integration: 40 onboard discrete channels reduce the need for external I/O expansion.
-
Flexible Networking: Ethernet and RS‑485 support simplify integration with HMIs, SCADA, and remote systems.
-
Fast Response: Efficient scan times ensure responsive operation in real‑time control loops.
-
Expandable Architecture: Up to 7 expansion modules can be added for increased I/O or specialized functions.
-
Compact Footprint: Space‑efficient design suits crowded control panels and OEM enclosures.
-
Industrial Reliability: Operating from 0 °C to 55 °C with robust electronics for factory environments.
This controller delivers a strong balance between integrated capability and expansion flexibility—making it a versatile choice for a variety of automation needs.
Technical FAQs
1. What types of I/O does the TWDLCDA40DRF provide?
It includes 24 digital inputs and 16 digital outputs.
2. What communication options are available?
Ethernet, RS‑485 (Modbus), and USB programming port.
3. What programming protocols does it support?
Modbus RTU, Modbus TCP/IP, and Twido native protocols.
4. What is the supply voltage?
24 V DC.
5. Can the controller be expanded?
Yes, it supports up to 7 local or remote expansion modules.
6. What is the operating temperature range?
0 °C to 55 °C.
7. Is it suitable for networked systems?
Yes, with Ethernet and Modbus support.
8. What is typical scan performance?
≤ 1 ms per 1000 Boolean instructions.
9. What types of machines use this controller?
Packaging lines, material handling, automated machines, and building systems.
10. How is it mounted?
Standard DIN‑rail or panel mounting.
