Compact Yet Powerful Control for OEM and Small Systems

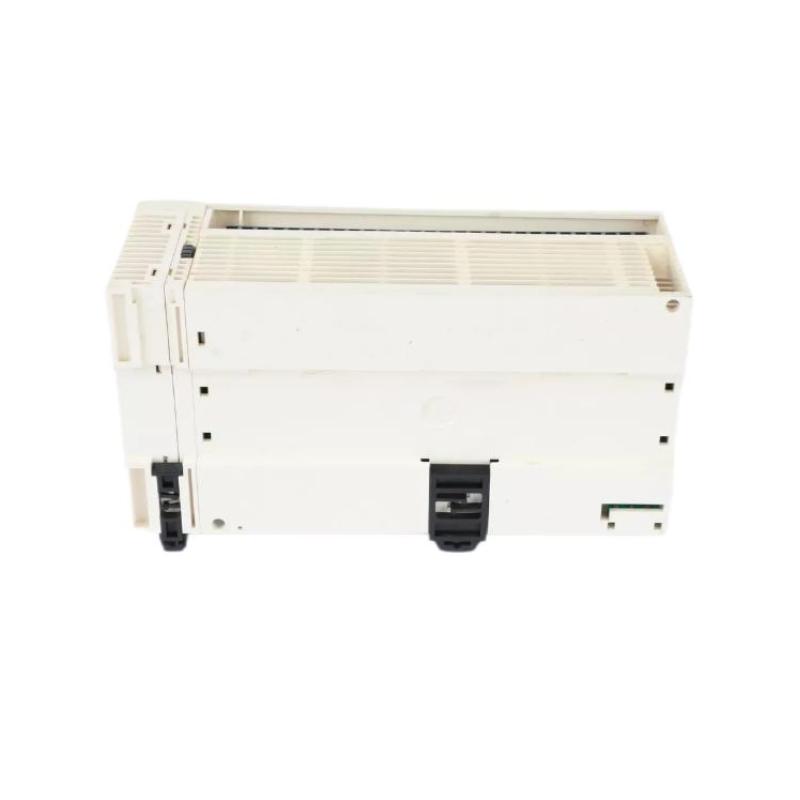

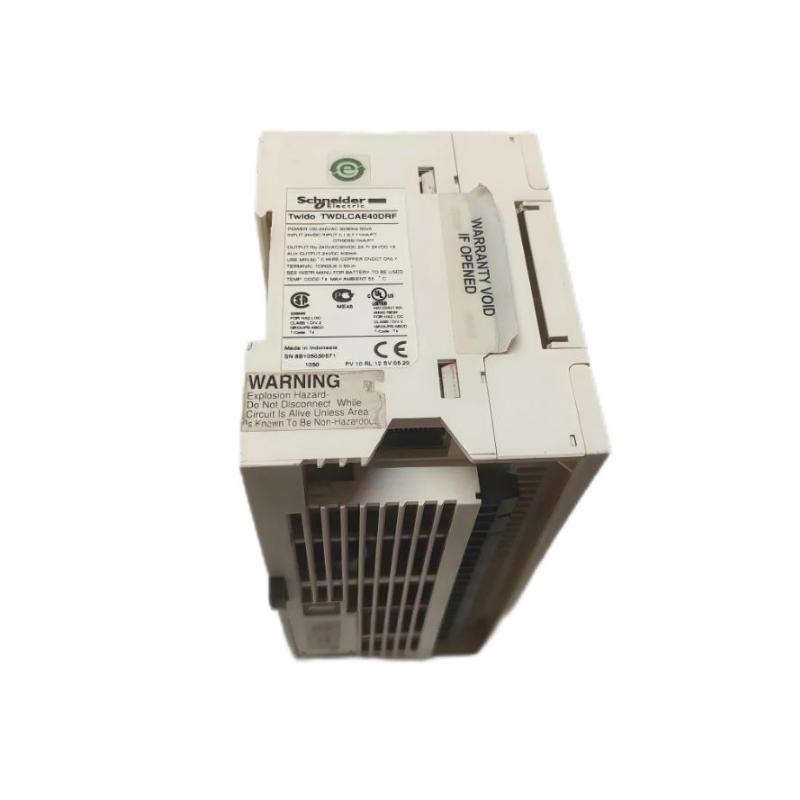

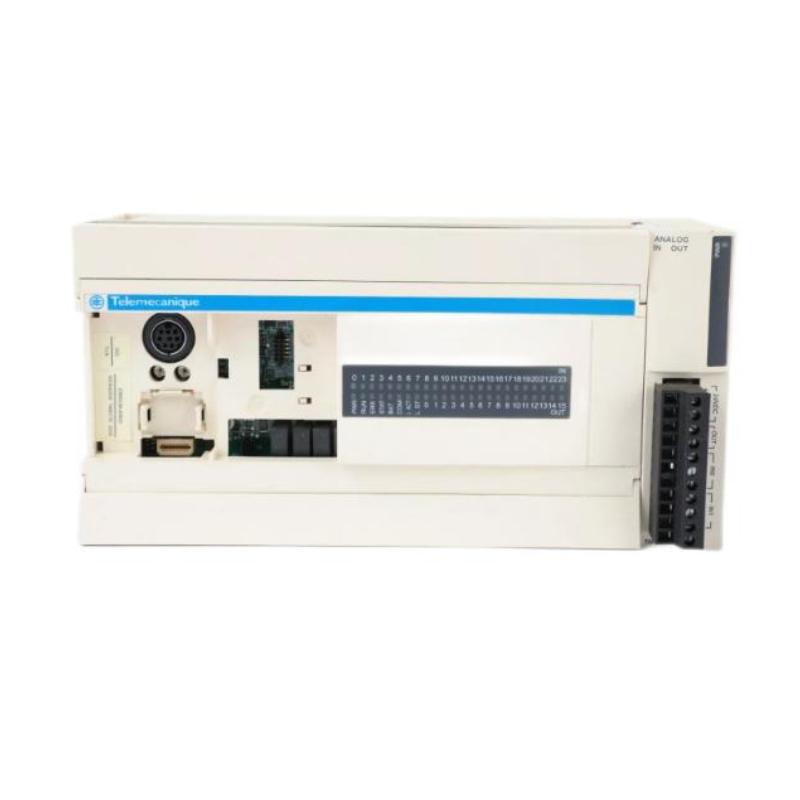

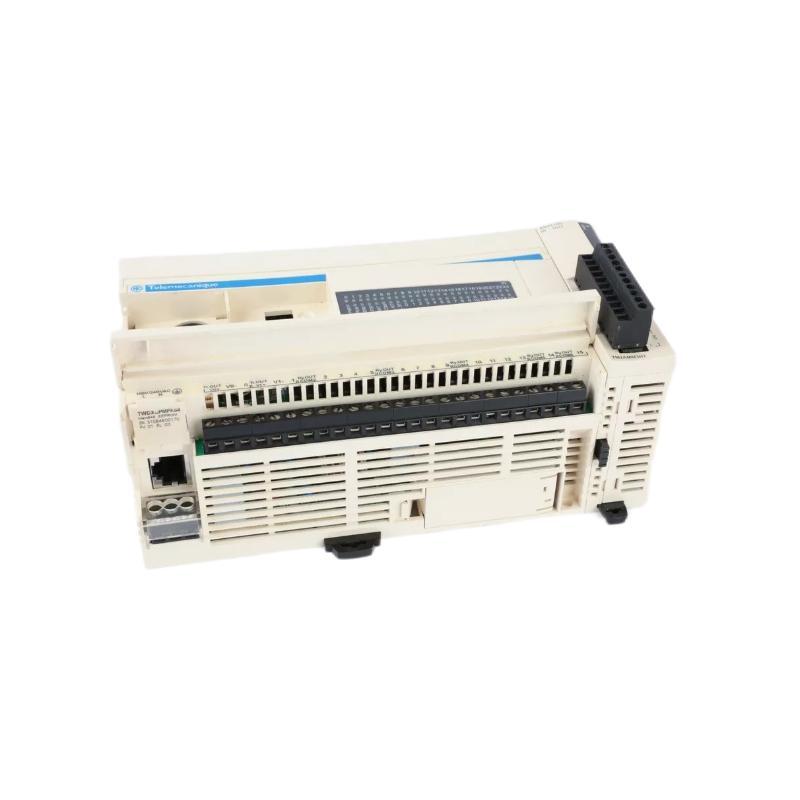

The Schneider TWDLCAE40DRF Compact Basic Controller is a versatile PLC base unit from the Modicon Twido family, designed to deliver reliable control in compact automation environments. Integrating both digital inputs and outputs within a single housing, it reduces panel space while maintaining strong processing capability and communication flexibility.
Engineered for OEM machines and small-to-medium automation systems, this controller combines ease of use with solid industrial performance—making it a practical and cost-effective choice for modern control applications.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Compact Basic Controller (PLC) |
| Model Number | TWDLCAE40DRF |
| Series | Modicon Twido |
| Total I/O Points | 40 (24 DI / 16 DO) |
| Digital Inputs | 24 × 24 V DC (sink/source) |
| Digital Outputs | 16 (relay + transistor mix) |
| Output Current | Up to 2 A per channel |
| Supply Voltage | 100–240 V AC |
| Input Voltage Range | 20.4–28.8 V DC |
| Communication Ports | Ethernet (RJ45), RS-485 (Modbus), USB |
| Supported Protocols | Modbus RTU/TCP, Ethernet TCP/IP |
| Program Memory | ~3000 instructions |
| Cycle Time | ~1 ms per 1K instructions |
| Expansion Capability | Up to 7 I/O expansion modules |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions (HxWxD) | Approx. 95 × 90 × 70 mm |
| Weight | Approx. 0.52–0.60 kg |
Application Scenarios
The TWDLCAE40DRF is widely applied in compact automation systems where integrated I/O and reliable control are essential.
It is commonly used in packaging machines, conveyor systems, and small assembly lines, where multiple digital signals must be processed efficiently. In building automation, it supports HVAC control, lighting systems, and access management.
Additionally, OEM equipment manufacturers favor this controller for embedded control systems due to its compact size, integrated communication ports, and flexible expansion capability.
Key Advantages and Value
The TWDLCAE40DRF delivers an excellent balance between compact design and functional capability. With 40 onboard I/O points, it minimizes the need for additional modules, reducing system cost and wiring complexity.
Its built-in Ethernet and Modbus communication interfaces enable seamless integration with SCADA systems, HMIs, and remote devices, supporting modern networked automation architectures.
The controller also supports expansion modules, allowing systems to scale up significantly when needed—providing flexibility for future upgrades.
With integrated features such as PID control, event processing, and real-time clock functionality, it offers advanced control capabilities typically found in larger PLC systems—while maintaining simplicity and ease of deployment.
Technical FAQs
1. What is the main function of the TWDLCAE40DRF?
It serves as a compact PLC with integrated I/O for controlling industrial automation systems.
2. How many I/O points are included?
40 total I/O points (24 inputs and 16 outputs).
3. What type of outputs are available?
Relay outputs with additional transistor outputs for flexible load control.
4. What communication interfaces are built in?
Ethernet, RS-485 (Modbus), and USB programming port.
5. Can the controller be expanded?
Yes, it supports up to 7 expansion modules.
6. What programming software is used?
TwidoSuite or compatible Schneider programming tools.
7. What is the power supply requirement?
100–240 V AC input.
8. Is it suitable for networked automation systems?
Yes, with Modbus TCP/IP and Ethernet support.
9. What industries typically use this controller?
Manufacturing, packaging, building automation, and OEM machinery.
10. Does it support advanced control functions?
Yes, including PID control, event processing, and real-time clock features.
