Introduction

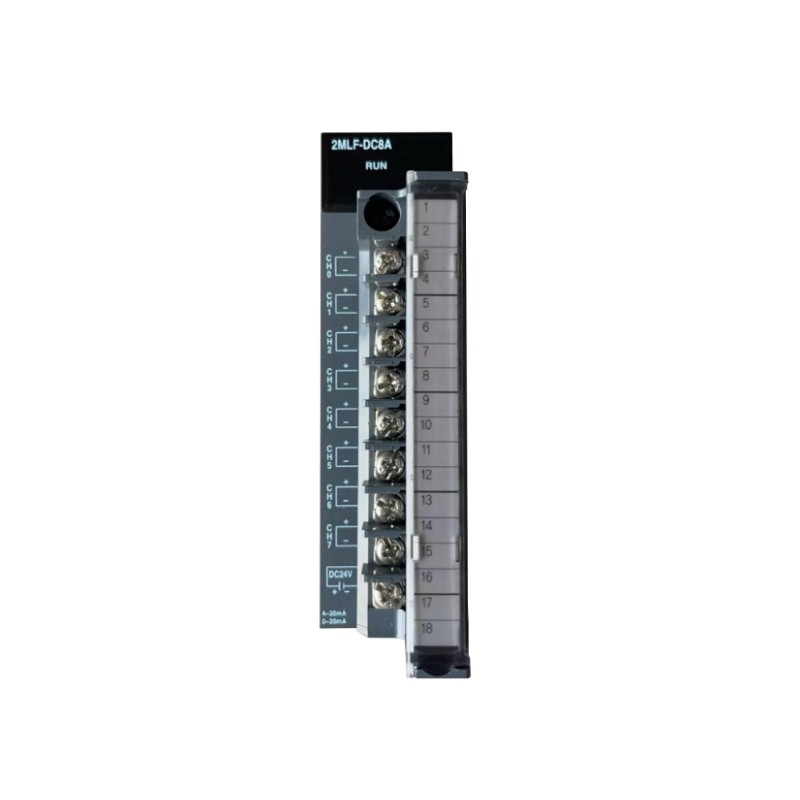

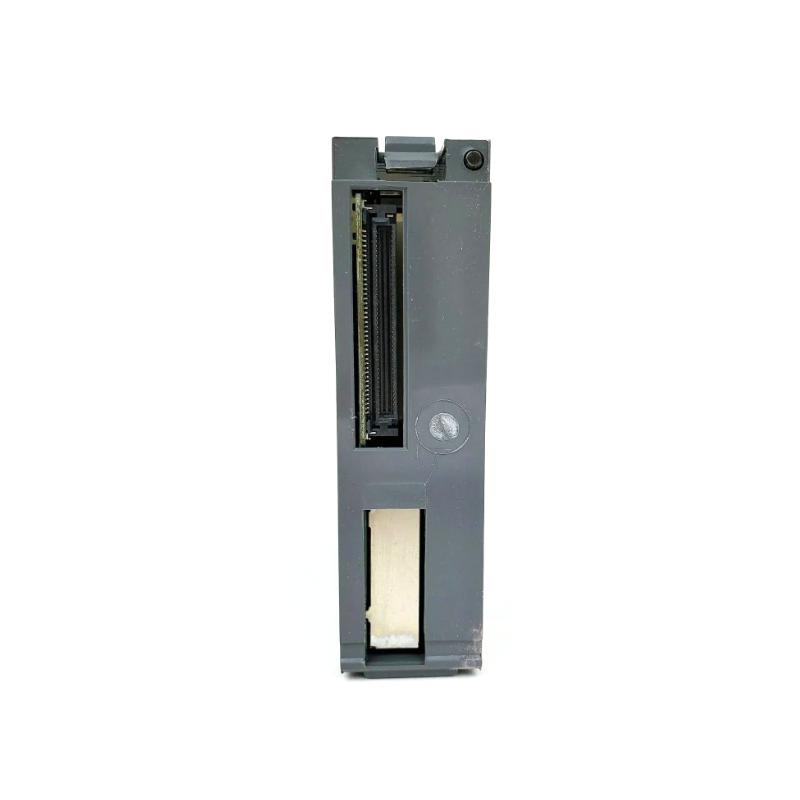

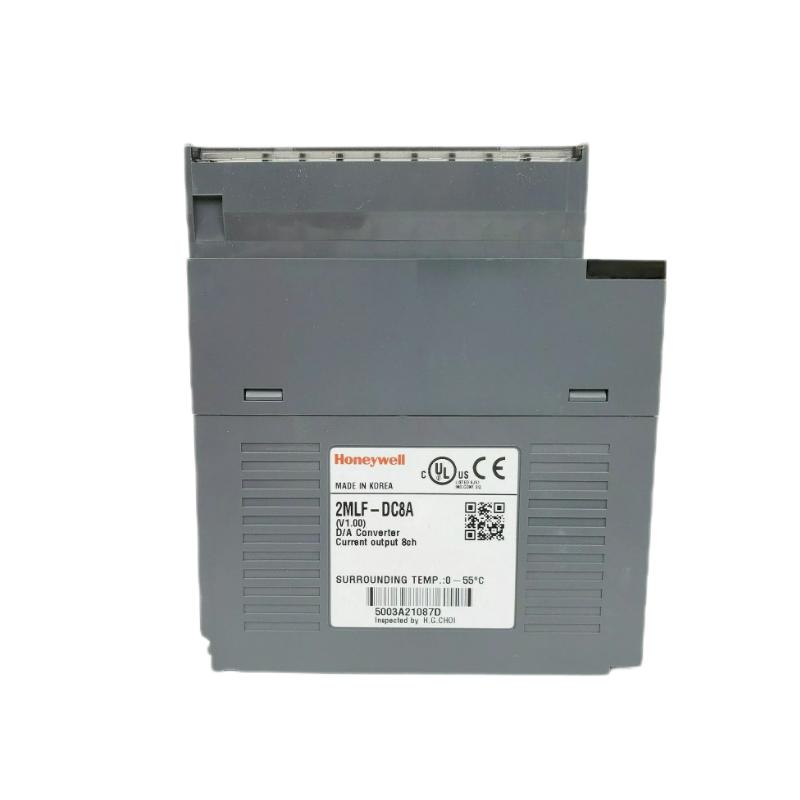

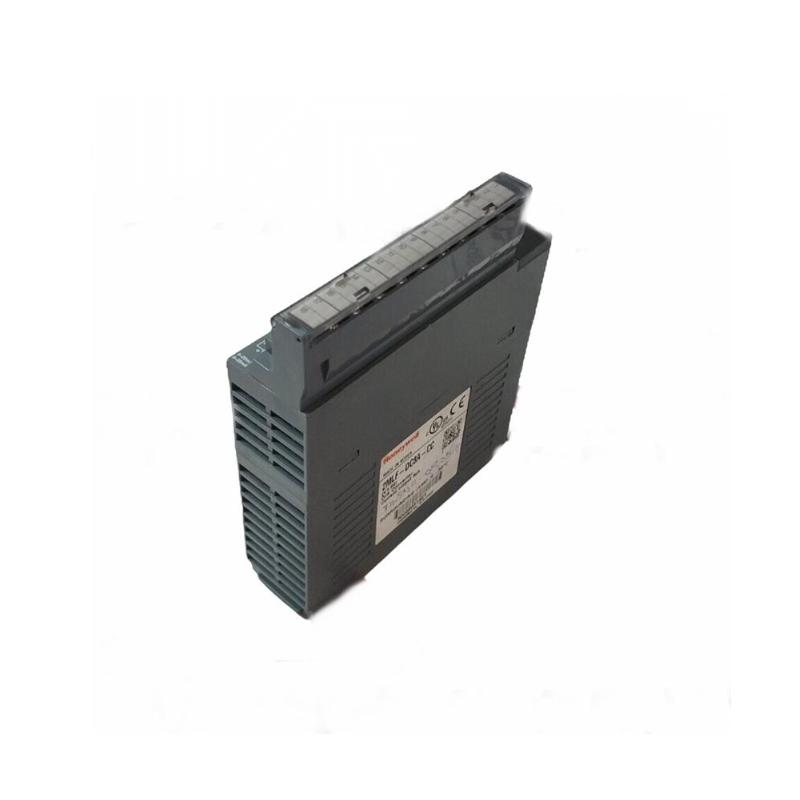

The Honeywell 2MLF-DC8A 8-Channel Voltage Output Module is engineered for precise control of voltage signals in industrial automation and process control systems. Designed to provide reliable output for multiple channels simultaneously, it enables efficient operation of field devices such as actuators, valves, and sensors. Fully compatible with Honeywell Experion® PKS and System 57 architectures, this module offers high accuracy, fast response, and robust construction for demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 2MLF-DC8A |
| Module Type | 8-Channel Voltage Output Module |
| Output Channels | 8 |
| Output Signal | 0–10 V DC |
| Resolution | 16-bit |
| Accuracy | ±0.2% of full scale |
| Response Time | <10 ms |
| Operating Voltage | 24 VDC nominal |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions (L × W × H) | 140 mm × 100 mm × 35 mm (5.51" × 3.94" × 1.38") |
| Weight | 0.53 kg (1.17 lbs) |
| Mounting | DIN rail or panel mount compatible |
| Certifications | CE, UL recognized, RoHS compliant |
