Reliable Power Source for TSX Micro and Modicon PLC Systems

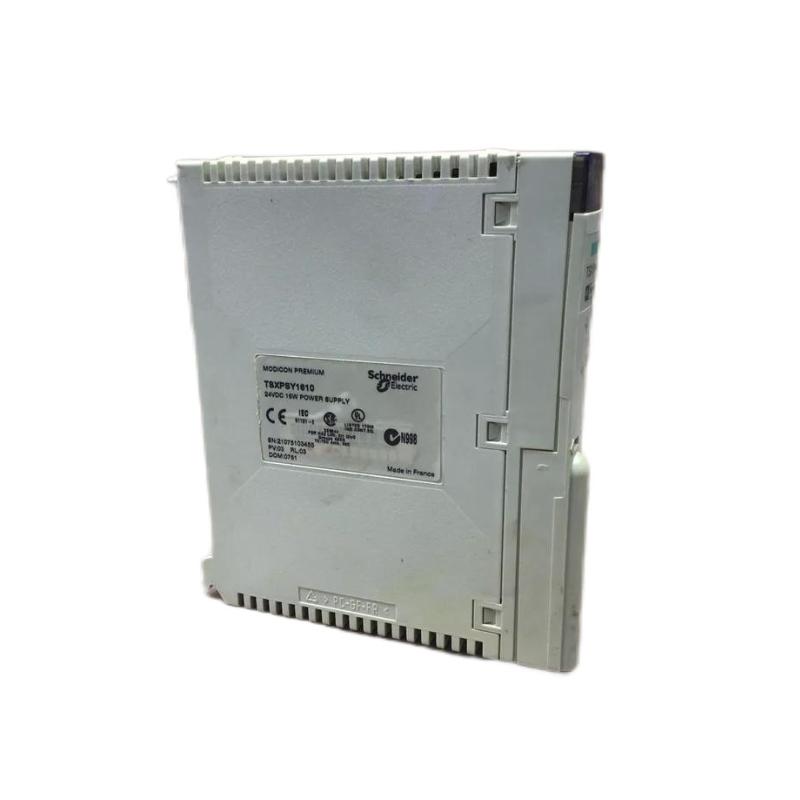

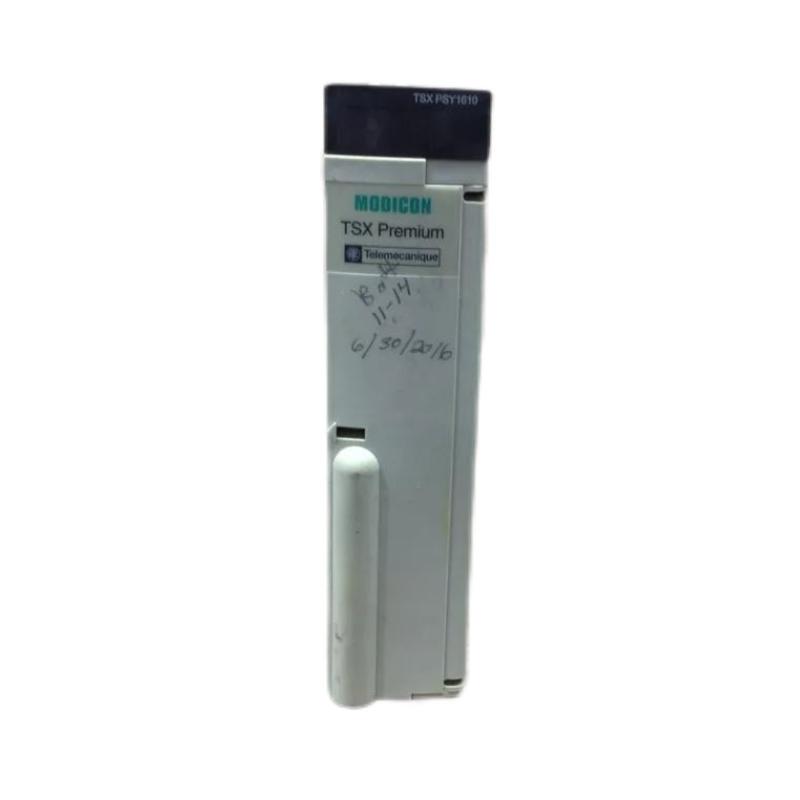

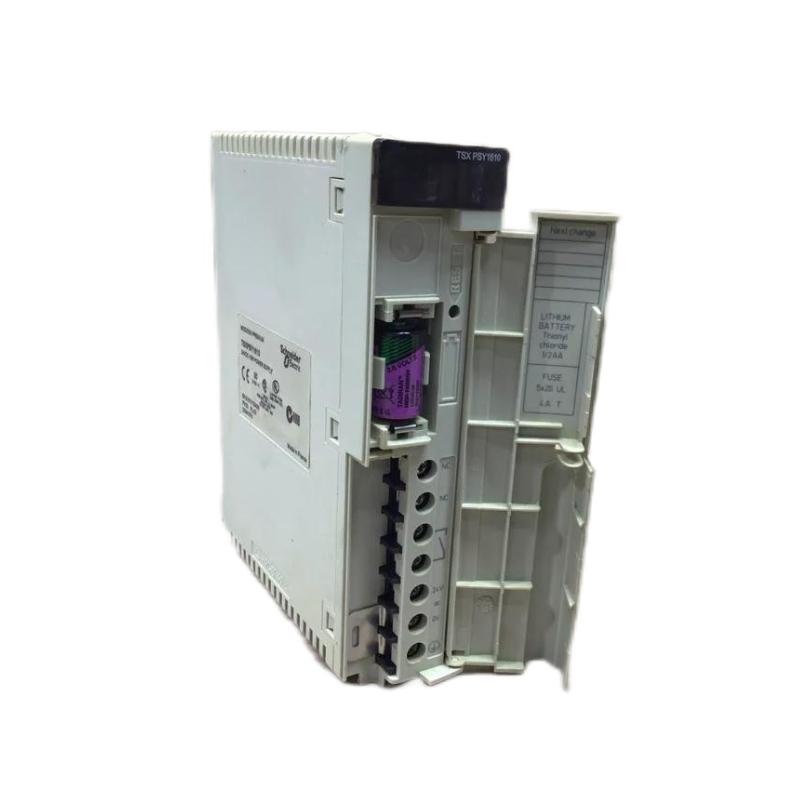

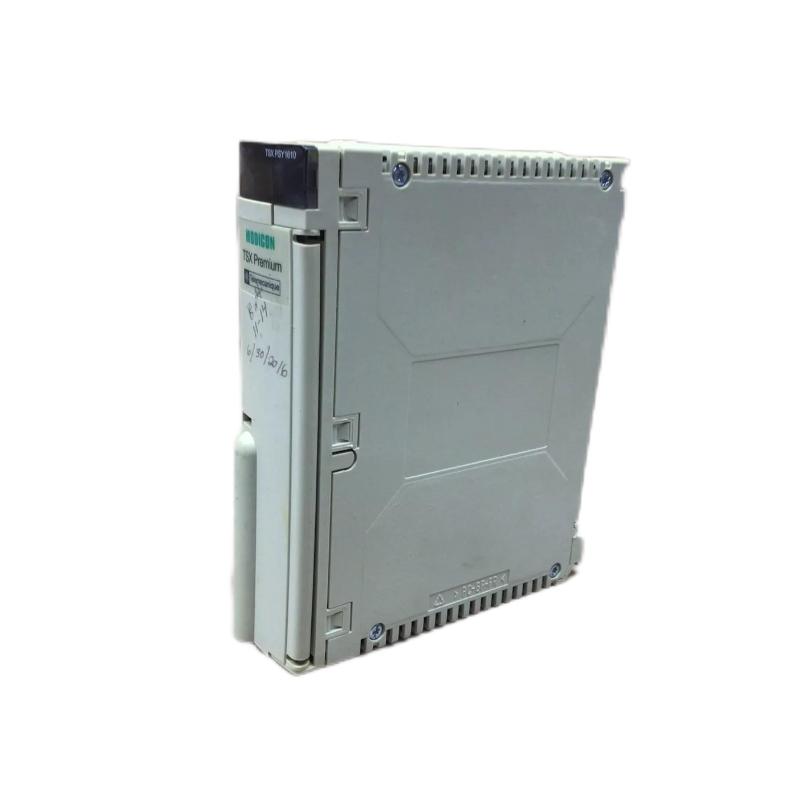

The Schneider TSXPSY1610 Power Module is a compact and dependable DC power supply designed to provide stable voltage and current for TSX Micro and Modicon programmable logic controllers (PLCs) and associated I/O modules. Engineered for industrial environments, this module ensures reliable control panel operation by delivering clean, regulated power to CPU units, interface cards, and signal modules.
Whether you’re building a new control system or upgrading an existing one, the TSXPSY1610 delivers consistent performance and protection against electrical anomalies commonly found in industrial settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Power Module |
| Model Number | TSXPSY1610 |
| Output Voltage | 24 V DC |
| Output Current | 1.6 A |
| Power Output | 38.4 W |
| Input Voltage Range | 100–240 V AC (auto‑sensing) |
| Input Frequency | 50/60 Hz |
| Efficiency | > 80% |
| Protection Features | Overload, short‑circuit, overvoltage protection |
| Indicators | Power ON / Fault LED indicators |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | ‑25°C to 70°C |
| Relative Humidity | 10–90% non‑condensing |
| Mounting | DIN‑rail or panel mount |
| Dimensions (HxWxD) | Approx. 90 × 35 × 110 mm |
| Weight | Approx. 0.22 kg |
