Essential Interface for Modicon PLC Wiring

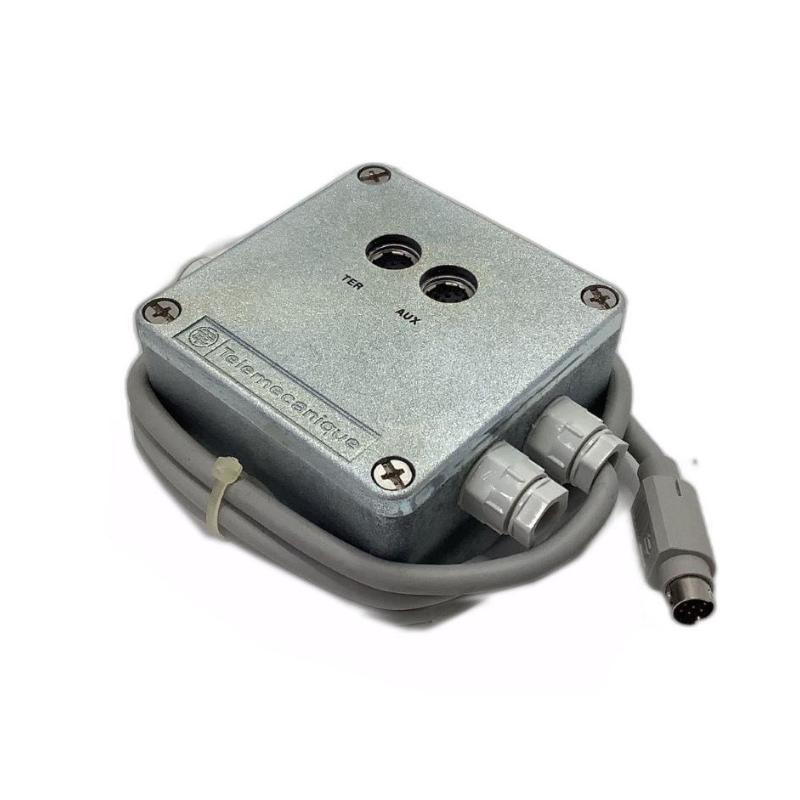

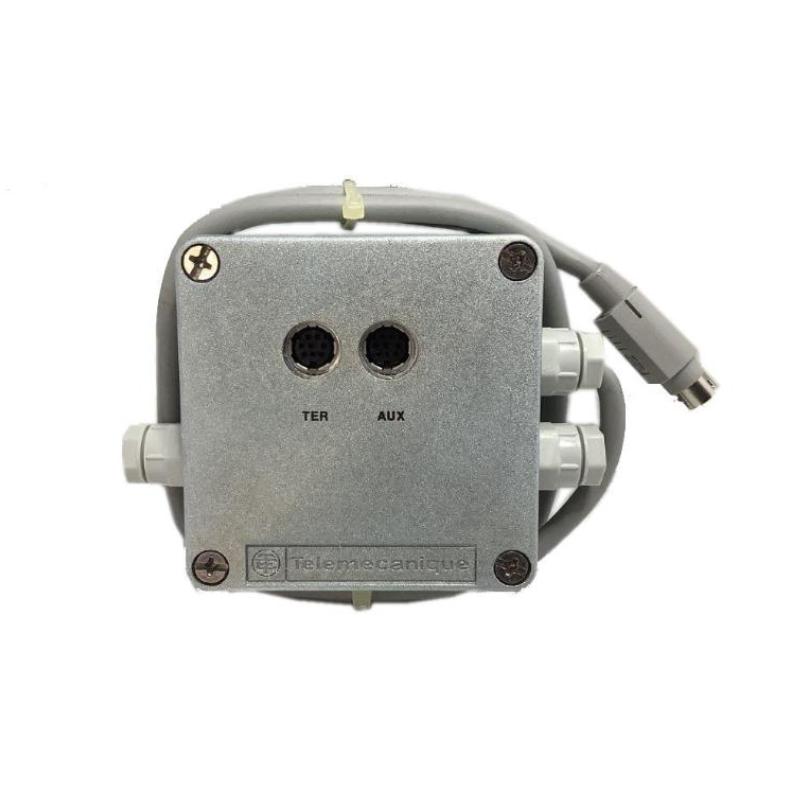

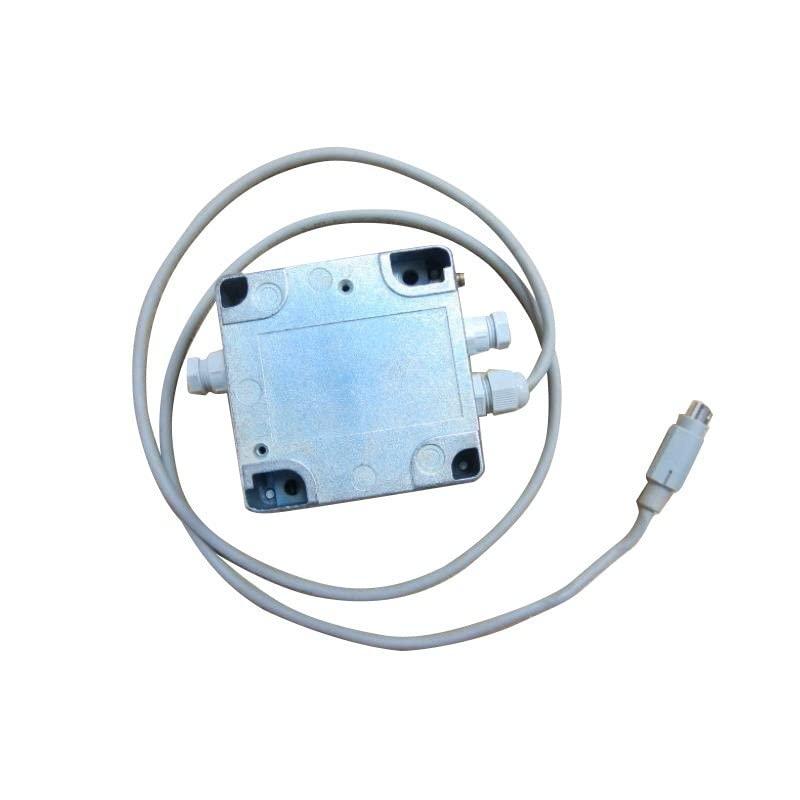

The Schneider TSXPACC01 Terminal Port Connection Box is a comprehensive terminal interface designed to simplify field wiring and signal distribution for Modicon PLC systems. This connection box consolidates multiple I/O and communication terminals into a single, organized enclosure, reducing installation time, minimizing wiring errors, and enhancing overall system reliability.
Engineered for industrial control panels, it supports structured cable routing, clear labeling, and secure connections, making it an efficient choice for both new builds and retrofit applications.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Terminal Port Connection Box |
| Model Number | TSXPACC01 |
| Compatible Systems | Schneider Electric Modicon PLC Platforms |
| Terminal Type | Screw‑type / Cage Clamp Options |
| Number of Terminal Points | 40–80 (configurable based on wiring layout) |
| Connector Interfaces | Multi‑pin terminal strips |
| Rated Voltage | 24–240 V AC/DC |
| Rated Current | Up to 10 A per terminal |
| Insulation Rating | 600 V AC |
| Cable Entry | Bottom and side entry points |
| Mounting | DIN‑rail or panel mount |
| Enclosure Material | Industrial‑grade thermoplastic / metal |
| Operating Temperature | ‑10°C to +60°C |
| Storage Temperature | ‑40°C to +85°C |
| Dimensions (HxWxD) | Approx. 200 × 150 × 80 mm |
| Weight | Approx. 1.1 kg |
Typical Applications
The TSXPACC01 connection box is commonly used in industrial control panels where field wiring needs to be consolidated and organized. It is especially effective:
-
In manufacturing systems to route signals from sensors, actuators, and auxiliary devices to the PLC rack.
-
In water and wastewater facilities for grouping pump, valve, and level sensor connections.
-
In energy and utilities to centralize instrumentation cabling for remote telemetry systems.
-
In process plants to structure alarm, interlock, and control signal wiring.
By centralizing connection points, this box simplifies maintenance and troubleshooting while improving cabinet layout clarity and signal integrity.
Technical FAQs
1. What is the purpose of the TSXPACC01 terminal box?
It consolidates and organizes field wiring for PLC I/O and communication signals.
2. What type of terminals does it use?
Screw‑type or cage clamp options for secure wire termination.
3. How many terminal points can it support?
Typically 40–80 points, depending on wiring configuration.
4. What mounting options are available?
DIN‑rail and panel mounting support flexibility in cabinet design.
5. What environments can it operate in?
Industrial environments from ‑10°C to +60°C with normal humidity.
6. Is it compatible with Modicon systems?
Yes, designed to interface with Schneider Electric Modicon PLC platforms.
7. What rated voltages are supported?
24–240 V AC/DC cabling.
8. What is the maximum current per terminal?
Up to 10 A per terminal, depending on wiring and application.
9. How does it improve maintenance?
By centralizing terminals, labeling, and simplifying connection tracing.
10. Can it handle communication and I/O signals together?
Yes, it supports mixed terminal wiring for digital I/O, analog signals, and field communications.
