Stable Power Backbone for Modicon Premium Systems

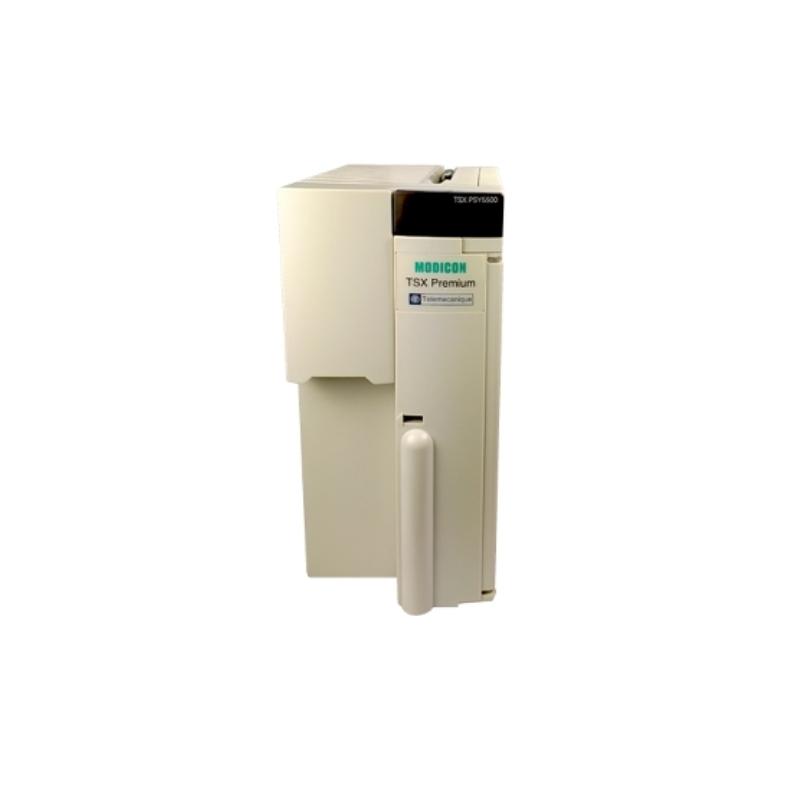

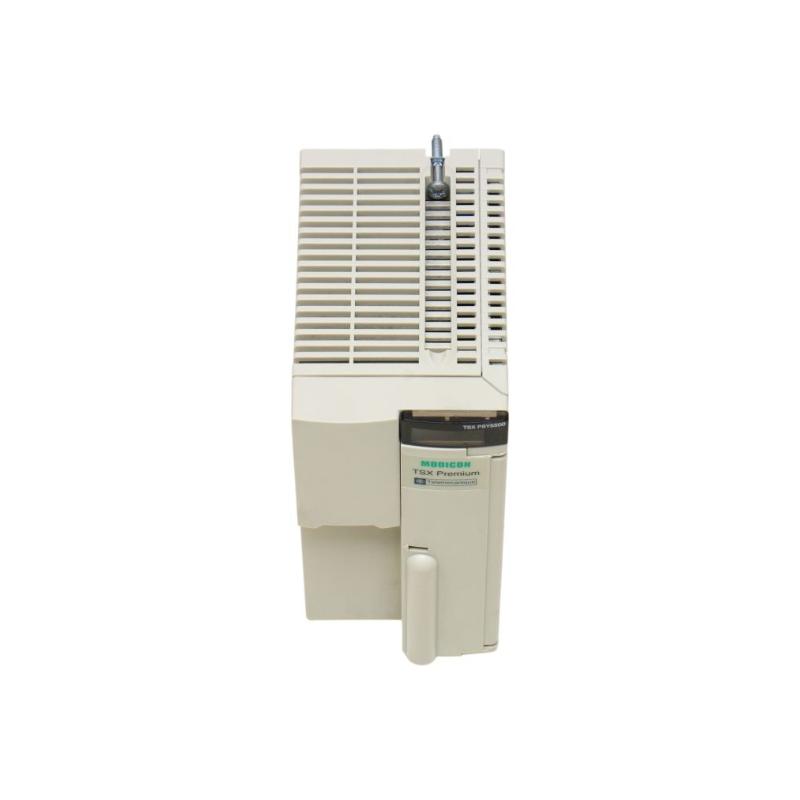

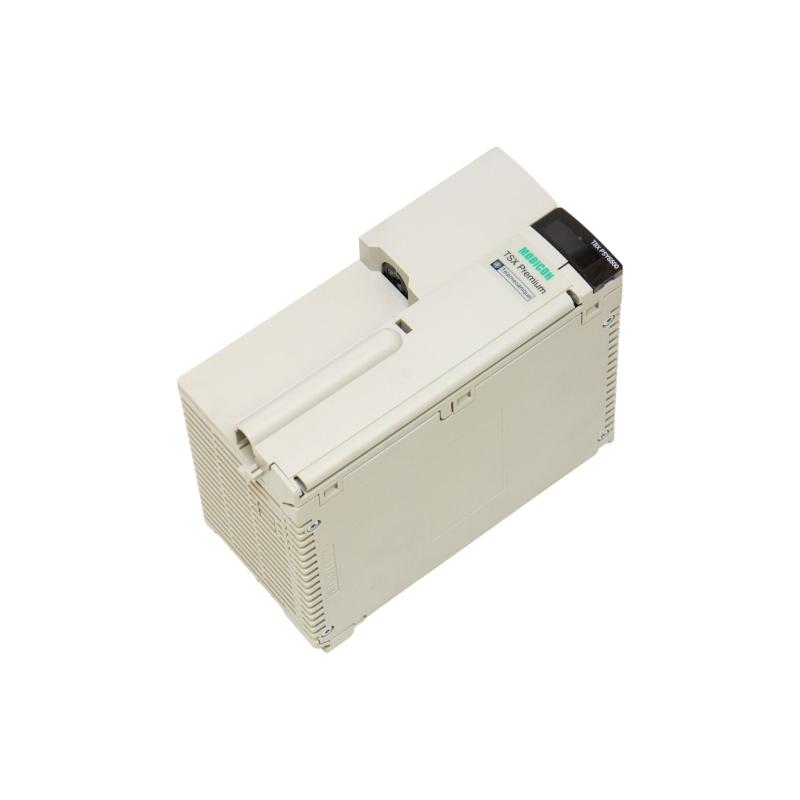

The Schneider TSXP5Y5500M Power Supply Module is a dedicated industrial power supply designed to deliver reliable and protected electrical power for Schneider Electric Modicon Premium automation platforms. Built to withstand demanding environments, this module ensures stable voltage distribution to controller CPUs, I/O modules, sensors, and relays—making it a foundational component in your automation system design.
Engineered with broad input compatibility and advanced protection features, the TSXP5Y5500M safeguards your control system from electrical disturbances while supporting consistent performance over long operational lifecycles.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Power Supply Module |
| Model Number | TSXP5Y5500M |
| Platform Compatibility | Modicon Premium Automation |
| Primary Voltage | 100–120 V AC (85–140 V) / 200–240 V AC (190–264 V) |
| Frequency | 50/60 Hz (47–63 Hz) |
| Input Current | 1,700 mA @ 100 V / 500 mA @ 240 V |
| Inrush Current | 38 A (both 100 and 240 V) |
| Total Secondary Power | 50 W |
| Secondary Voltages | 24 V DC (19 W) / 5 V DC (35 W) |
| Output Currents | 0.8 A @ 24 V DC / 7 A @ 5 V DC |
| Protection Features | Internal fuse, overload, overvoltage, short circuit |
| Indicators | LEDs for voltage presence & fault signaling |
| Isolation Resistance | ≥100 MΩ primary/ground & primary/secondary |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | ‑25°C to 70°C |
| Relative Humidity | 10–95% non‑condensing |
| Mounting | DIN‑rail/panel installation |
| Weight | Approx. 0.62 kg |
Ideal Use Cases
The TSXP5Y5500M module is engineered for industrial automation environments where dependable power delivery and system protection are priorities. It is extensively used in manufacturing facilities, process plants, and industrial machinery panels to ensure that PLC systems and I/O modules remain continuously powered without fail. This module is especially suitable for setups with mixed sensor, relay, and logic loads, where segmented power rails simplify circuit design and improve overall system stability.
Whether you’re building a new Modicon system or modernizing an existing one, this power supply module provides a solid electrical foundation that enhances performance predictability and reduces maintenance overhead.
Technical FAQs
1. What AC input voltages does this power module accept?
100–120 V AC and 200–240 V AC with wide allowable tolerances.
2. What DC outputs are provided?
24 V DC (19 W) and 5 V DC (35 W) with robust current capacity.
3. How much total power can it supply?
Up to 50 W of total useful secondary power.
4. Are there built‑in protections?
Yes — internal fuse, overload, overvoltage, and short‑circuit protection.
5. Does it provide diagnostic feedback?
Yes, status LEDs indicate voltage presence and fault conditions.
6. What environments can it withstand?
Operating temperature up to 60°C and relative humidity up to 95% (non‑condensing).
7. Can it be used with multiple loads at once?
Yes, separate 24 V and 5 V outputs support mixed sensor and control loads.
8. Is the module globally compatible?
Wide AC input range and dual frequency support make it usable worldwide.
9. How is it mounted?
Designed for DIN‑rail or panel mounting in control cabinets.
10. What insulation safety does it offer?
High insulation resistance (≥100 MΩ) between primary and secondary.
