Powerful Control for Advanced Automation

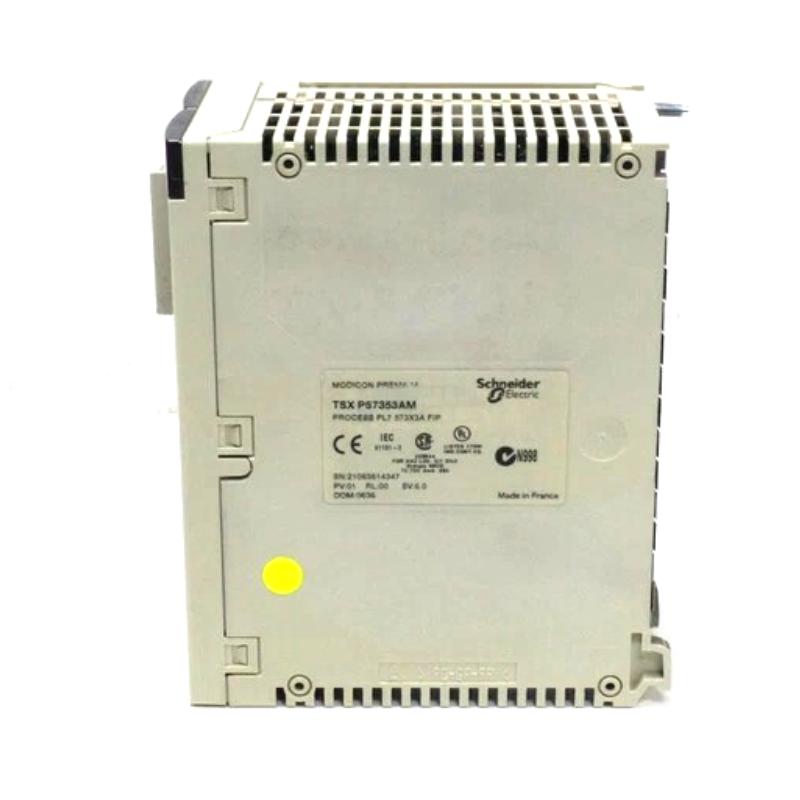

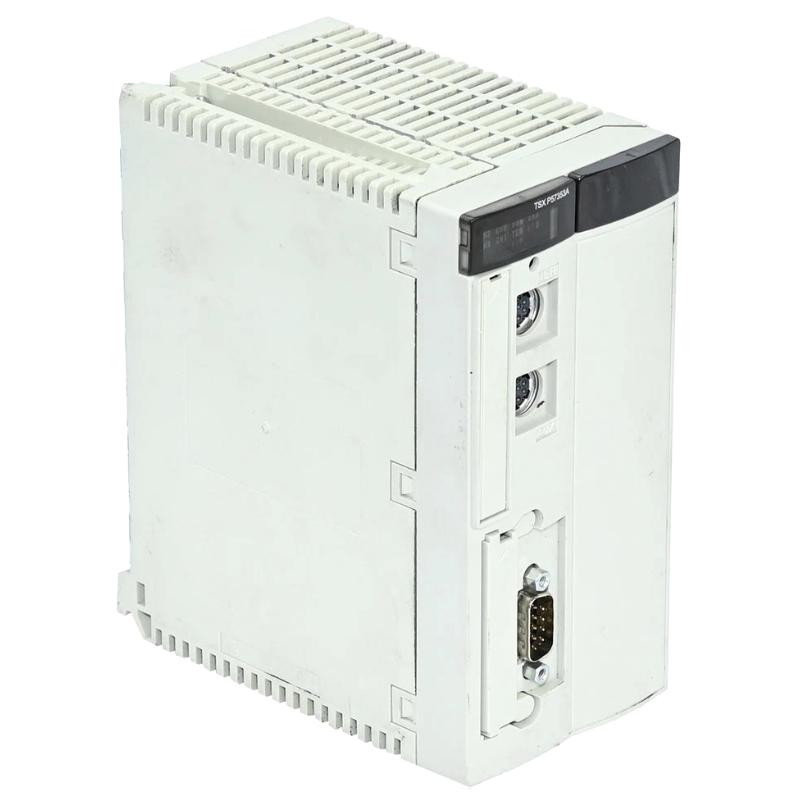

The Schneider TSXP57353AM Double Format PL7 Processor is a high‑performance programmable logic controller (PLC) designed to deliver robust control for medium‑ to large‑scale industrial systems. Built around the PL7 programming environment, this double‑format CPU provides expanded memory, multi‑task capability, and enhanced processing power—making it ideal for applications with complex logic, high I/O counts, and integrated communications.
Engineers value this processor for its balance of classic PL7 reliability and support for modern interfacing, giving plants the flexibility to maintain legacy systems while moving toward more advanced architectures.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Double Format PL7 Processor |
| Model Number | TSXP57353AM |
| Platform | Schneider Electric Modicon/PL7 |
| CPU Architecture | 32‑bit High‑Speed Logical Processor |
| Program Memory | 256 KB |
| Data Memory | 128 KB |
| Communication Interfaces | RS‑232, RS‑485, Modbus RTU/TCP |
| Supported Protocols | Modbus, CANopen |
| Max Concurrent Tasks | Up to 8 tasks |
| Supported Languages | Ladder Logic, Function Block Diagram (FBD), Structured Text |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | ‑20°C to 70°C |
| Dimensions (HxWxD) | 200 × 90 × 60 mm |
| Weight | Approx. 0.9 kg |
| Mounting | DIN‑rail or panel mounting |
Industrial Application Scope
The TSXP57353AM is widely used in sectors where reliable and scalable control is essential. In manufacturing, it manages assembly lines, conveyors, robotics, and safety interlocks with precision and repeatability.
Water and wastewater treatment facilities deploy this processor for pump sequencing, process control, and remote monitoring. In energy and utility systems, it helps coordinate distributed assets, balance loads, and interface with SCADA systems. Its expanded memory and multi‑task features make it well‑suited for applications combining discrete control and analog process management.
Key Benefits and Strengths
This double format processor stands out for its combination of expanded memory and multi‑task support, allowing larger programs and more sophisticated control strategies without sacrificing performance.
Engineers appreciate its flexible communication options, including support for Modbus and CANopen networks, which facilitate integration with diverse field devices and supervisory systems. The rugged industrial design ensures reliable operation in environments with vibration, temperature fluctuations, and electrical noise.
Its compatibility with the PL7 programming environment simplifies development for engineers familiar with Schneider’s legacy control solutions, while the module’s modular form factor enables quick replacement and system upgrades to minimize downtime.
Technical FAQs
1. What is the main purpose of the TSXP57353AM?
It executes control logic and manages I/O for industrial automation systems.
2. Which programming languages are supported?
Ladder Logic, Function Block Diagram (FBD), and Structured Text.
3. How much memory does it have?
256 KB program memory with 128 KB data memory.
4. How many tasks can it handle at once?
Up to 8 concurrent tasks.
5. What communication protocols are supported?
Modbus RTU/TCP and CANopen.
6. What is the operating temperature range?
0°C to 55°C.
7. Can it be mounted on DIN‑rail?
Yes, or panel‑mountable depending on installation needs.
8. Is it compatible with legacy Modicon systems?
Yes, it integrates with the Modicon PL7 ecosystem.
9. What types of applications suit this processor?
Complex machine control, distributed process automation, and systems requiring multi‑tasking.
10. Does it support SCADA integration?
Yes, through its communication interfaces and protocol support.
