High-Performance Automation Controller

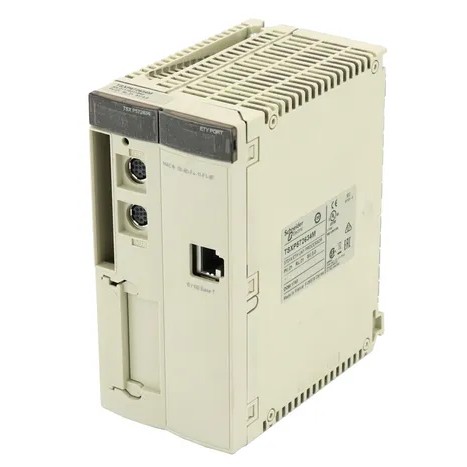

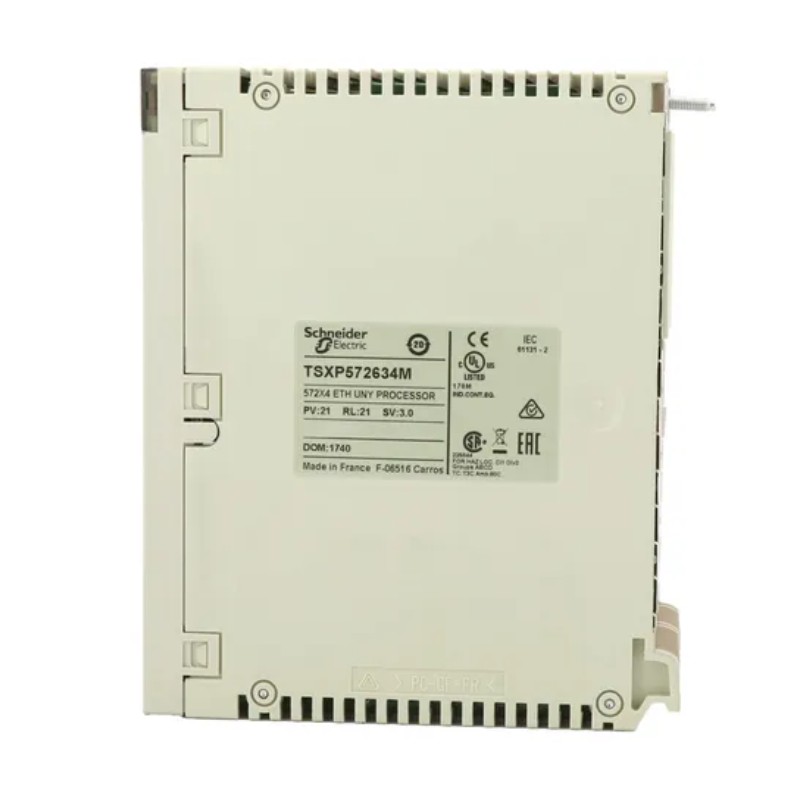

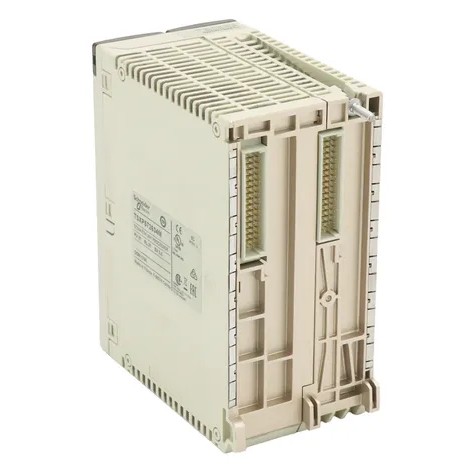

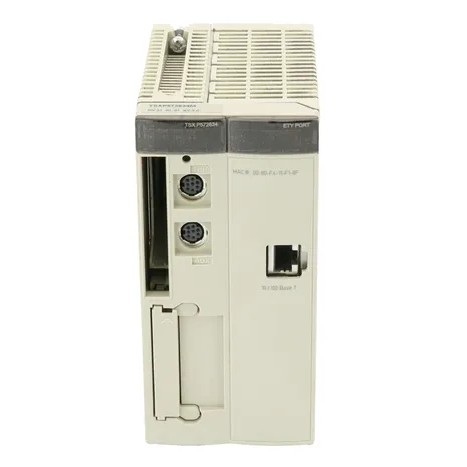

The Schneider TSXP572634M Unity Processor is a versatile and powerful programmable logic controller (PLC) designed for industrial automation applications. Part of Schneider Electric’s Unity platform, this processor delivers high-speed logic execution, multi-tasking capabilities, and seamless integration with Modicon systems.
Engineered for flexible and scalable automation, it is ideal for both small machine control and complex process applications, enabling engineers to implement robust control strategies with minimal downtime.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Unity Processor PLC |
| Model Number | TSXP572634M |
| Platform | Schneider Electric Modicon/Unity |
| CPU Type | High-speed 32-bit processor |
| Memory | 16 MB user program memory |
| Communication Ports | Ethernet, CANopen, Modbus TCP/RTU |
| I/O Scan Rate | < 0.5 ms per 1,000 Boolean instructions |
| Supported Languages | Ladder, Structured Text, Function Block Diagram (FBD) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (HxWxD) | 160 × 90 × 60 mm |
| Weight | Approx. 0.8 kg |
| Mounting | DIN-rail or panel-mounted |
Application Areas
The TSXP572634M Unity Processor is suitable for a wide range of industrial applications. In manufacturing, it manages assembly lines, robotic arms, and conveyor systems with precise timing and coordination. In water and wastewater treatment plants, it controls pumps, valves, and chemical dosing systems.
The processor is also widely used in building automation for HVAC and lighting control and in energy management systems for monitoring and controlling distributed energy assets. Its high-speed performance and flexibility allow it to meet the requirements of both discrete and continuous process applications.
Key Advantages and Benefits
The Schneider TSXP572634M stands out for its combination of speed, scalability, and ease of programming. Its high-performance processor enables fast execution of complex logic while minimizing scan time.
The Unity platform provides a unified development environment, allowing engineers to program, simulate, and monitor systems efficiently. Integrated communication ports enable seamless connectivity with field devices, remote I/O, and other automation controllers.
Its modular design supports system expansion without downtime, while robust construction ensures reliable operation in industrial environments with vibration, temperature fluctuations, and electrical noise.
Furthermore, the processor’s multi-language support gives engineers the flexibility to choose programming methods best suited to each application, improving development efficiency and maintainability.
Technical FAQs
1. What is the main function of the TSXP572634M?
It serves as a high-speed PLC for industrial control and automation tasks.
2. Which programming languages are supported?
Ladder, Structured Text, and Function Block Diagram (FBD).
3. What communication protocols are included?
Ethernet, Modbus TCP/RTU, and CANopen.
4. What is the memory capacity?
16 MB of user program memory.
5. Can it handle complex multi-tasking operations?
Yes, it supports multiple concurrent tasks efficiently.
6. What is the operating temperature range?
0°C to 60°C.
7. Is it suitable for DIN-rail mounting?
Yes, it can be mounted on a DIN rail or panel.
8. How fast is the I/O scan rate?
Less than 0.5 ms per 1,000 Boolean instructions.
9. Can it integrate with legacy Modicon devices?
Yes, it is fully compatible with the Modicon ecosystem.
10. How scalable is the system?
Highly scalable, allowing additional I/O modules and communication interfaces without downtime.
