Product Overview (Introduction)

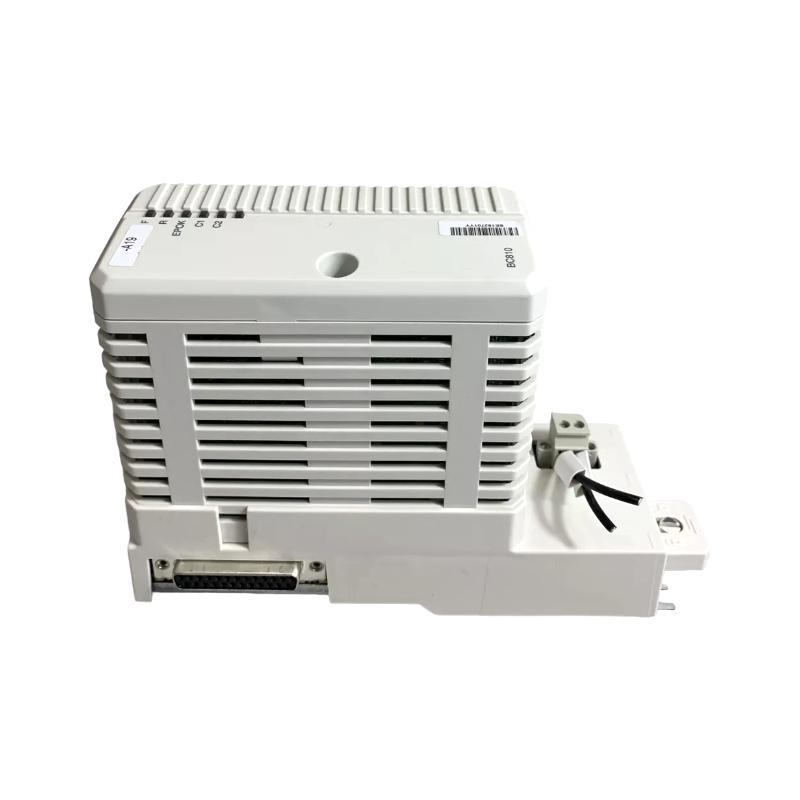

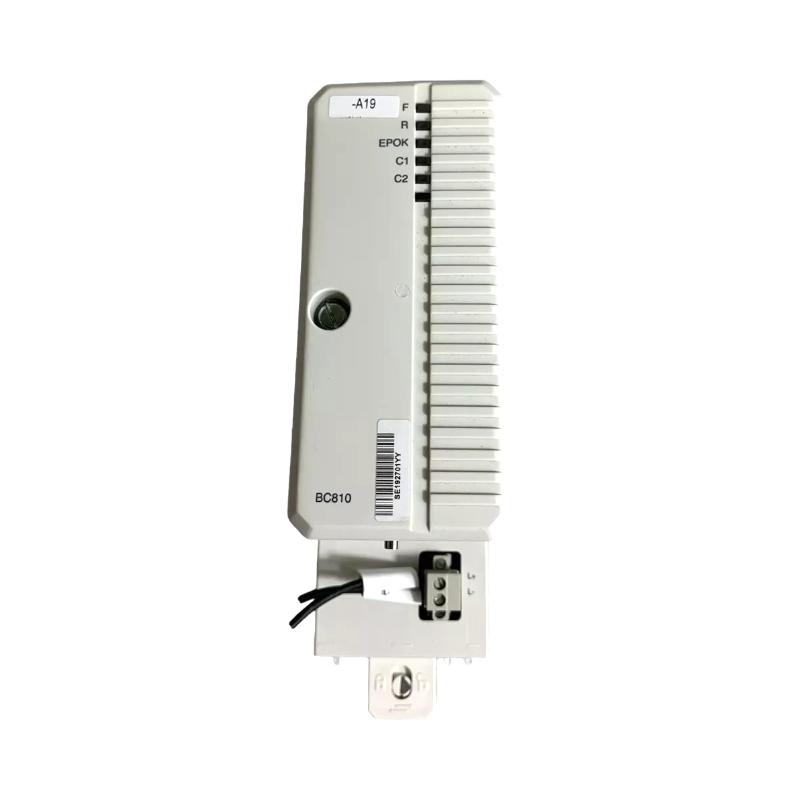

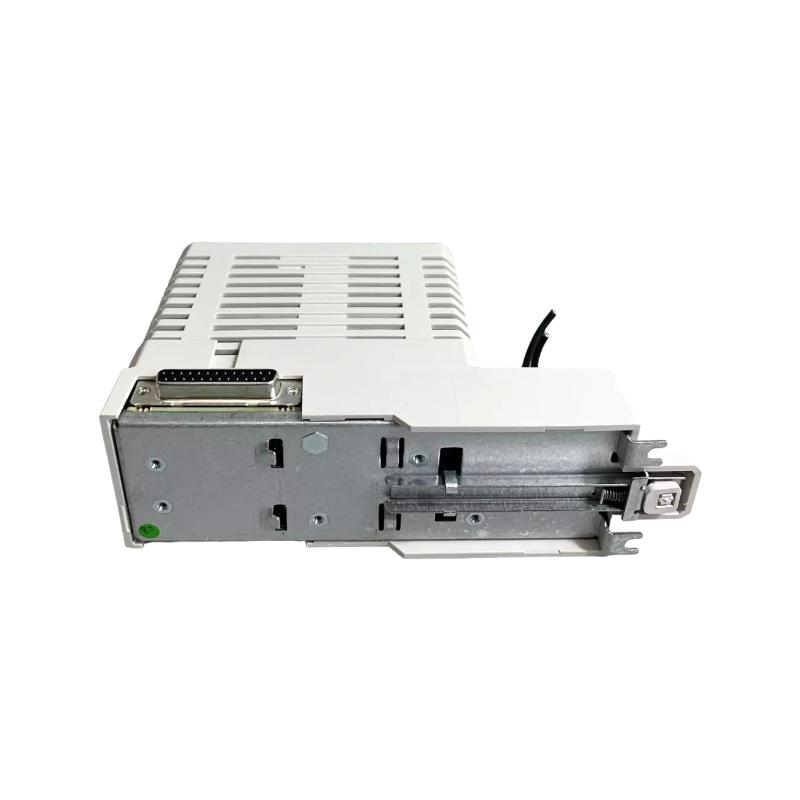

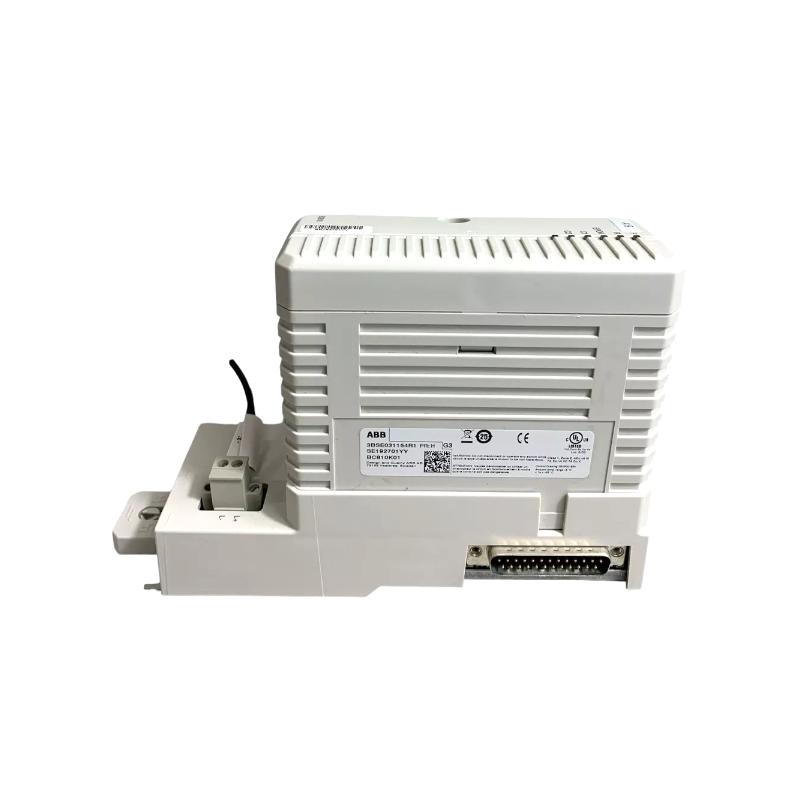

The ABB BC810K01 3BSE031154R1 CEX-Bus Interconnect Unit is a compact module that enables reliable communication between CEX-Bus I/O modules in ABB distributed automation systems. By providing a robust interconnection path, it ensures high-speed and deterministic signal transmission for industrial control applications.
Its design allows for efficient integration into dense control panels while maintaining reliable performance in harsh industrial environments. This interconnect unit is essential for expanding modular I/O networks and maintaining consistent communication across automation systems.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | ABB |
| Model Number | BC810K01 3BSE031154R1 |
| Module Type | CEX-Bus Interconnect Unit |
| System Platform | ABB CEX-Bus |
| Function | Interconnect modular I/O units within a bus network |
| Installation | Control panel or modular I/O rack |
| Operating Environment | Industrial |
| Dimensions | 127.5 mm × 185 mm × 59 mm |
| Weight | 0.77 kg (1.70 lb) |
Applications in Industrial Automation (Applications)
The ABB BC810K01 3BSE031154R1 CEX-Bus Interconnect Unit is designed to facilitate communication between modular I/O units within ABB CEX-Bus automation networks. It ensures seamless signal transmission and synchronization across distributed control systems.
Typical applications include:
-
Connecting CEX-Bus I/O modules in industrial control systems
-
Machine automation requiring reliable inter-module communication
-
Distributed control systems in manufacturing plants
-
Process automation with modular I/O expansion
-
Factory automation panels integrating multiple field devices
-
Systems requiring centralized monitoring with distributed bus architecture
This unit ensures high-speed and reliable interconnection for modular automation networks.
Key Advantages (Advantages)
Reliable CEX-Bus Communication
Provides stable data transfer between modular I/O units.
Compact and Space-Efficient Design
Slim profile allows installation in high-density control panels.
Supports System Scalability
Facilitates easy addition of modules without communication issues.
Industrial-Grade Reliability
Engineered for operation in environments with electrical noise and vibration.
Simplified Network Configuration
Reduces complexity in setting up distributed CEX-Bus systems.
Technical FAQs (Technical FAQs)
1. What is the primary function of the BC810K01?
It interconnects CEX-Bus modules for seamless communication in ABB automation systems.
2. Which platform is this unit compatible with?
It is designed for ABB CEX-Bus distributed I/O systems.
3. Can it support multiple modules in a network?
Yes, it enables connection and synchronization of multiple I/O modules.
4. How is it installed?
Mounted on control panels or modular I/O racks.
5. Does it support industrial environments?
Yes, built to operate under electrical noise, vibration, and harsh conditions.
6. Can it be used for machine-level automation?
Yes, ideal for modular machine automation setups.
7. How does it support system expansion?
Additional modules can be connected easily via the CEX-Bus interface.
8. Does it simplify network wiring?
Yes, it centralizes bus communication and reduces cabling complexity.
9. Is it compatible with ABB PLCs?
Yes, it integrates seamlessly into ABB modular control systems.
10. Which industries commonly use this unit?
Manufacturing, automotive, packaging, process automation, and industrial control plants.
