Introduction

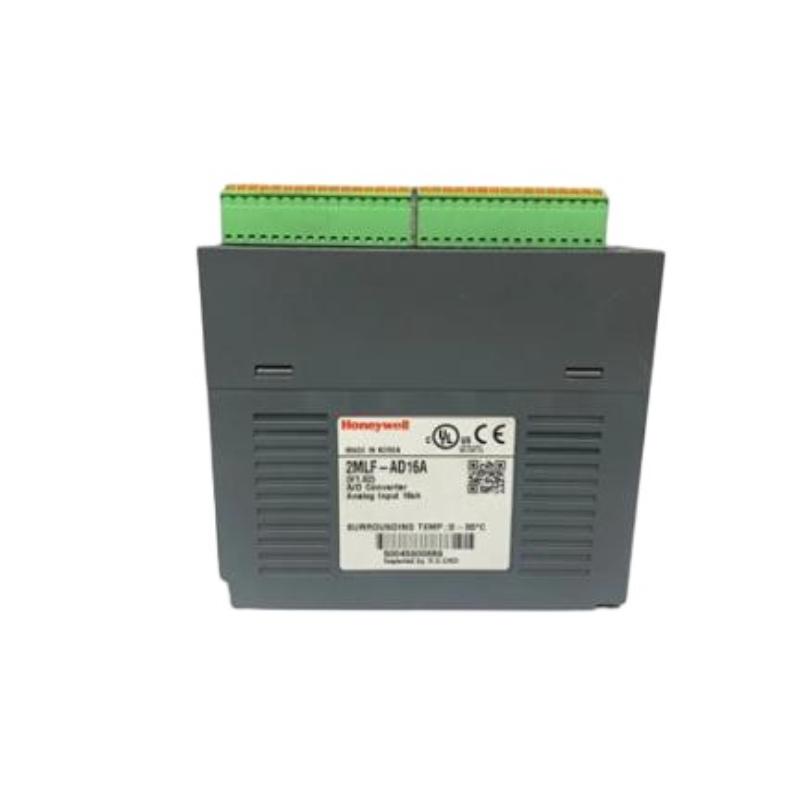

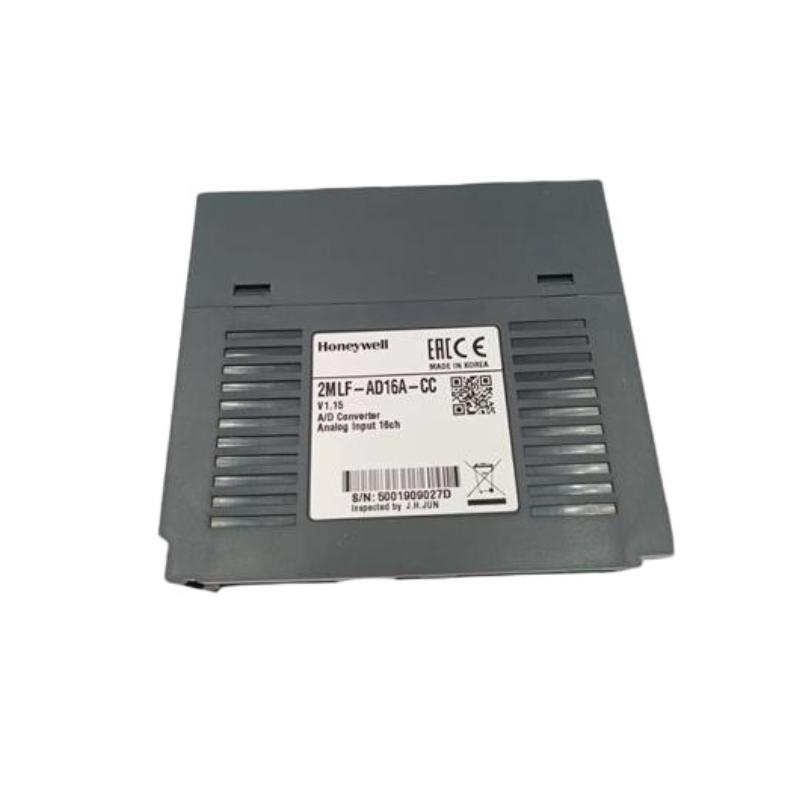

The Honeywell 2MLF-AD16A-CC 16-Channel Current Input Module is designed for high-performance industrial automation and process control applications. With 16 independent channels, it enables precise monitoring of multiple current signals simultaneously, making it ideal for complex control systems. Engineered for accuracy, reliability, and seamless integration, this module ensures optimal system performance within Honeywell Experion® PKS and System 57 architectures. Its robust design supports long-term operation in demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 2MLF-AD16A-CC |
| Module Type | 16-Channel Current Input Module |
| Input Channels | 16 |
| Input Signal | 4–20 mA DC |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Response Time | <10 ms |
| Operating Voltage | 24 VDC nominal |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions (L × W × H) | 180 mm × 100 mm × 35 mm (7.09" × 3.94" × 1.38") |
| Weight | 0.68 kg (1.50 lbs) |
| Mounting | DIN rail or panel mount compatible |
| Certifications | CE, UL recognized, RoHS compliant |
