Technical Overview (Introduction)

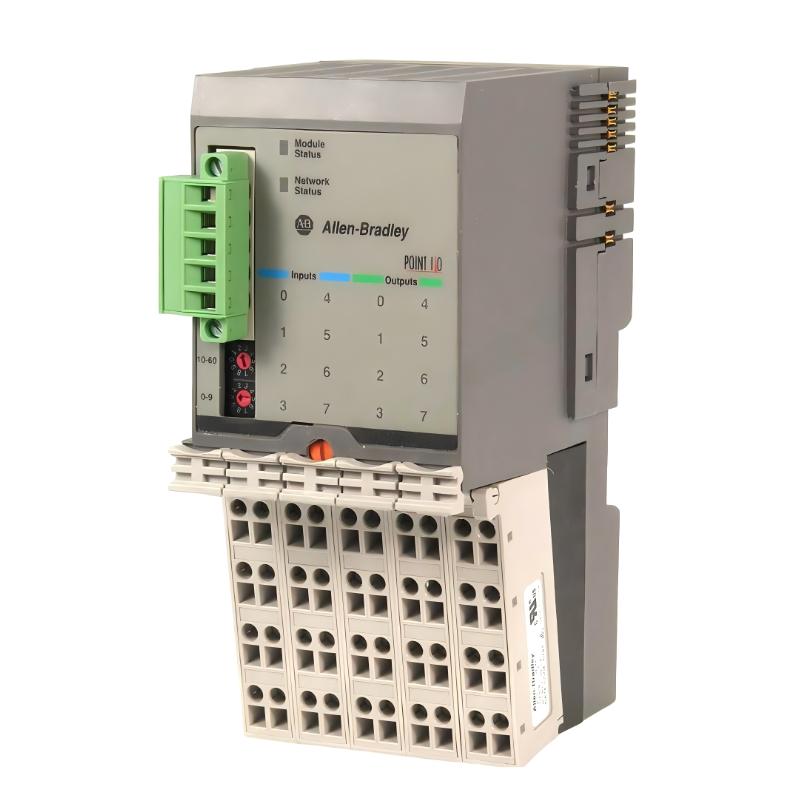

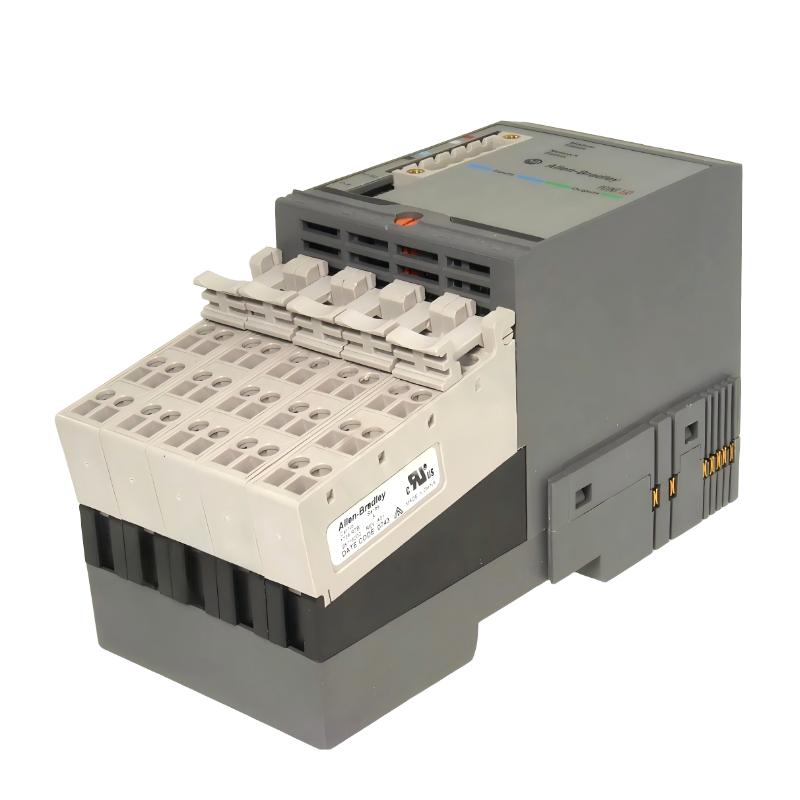

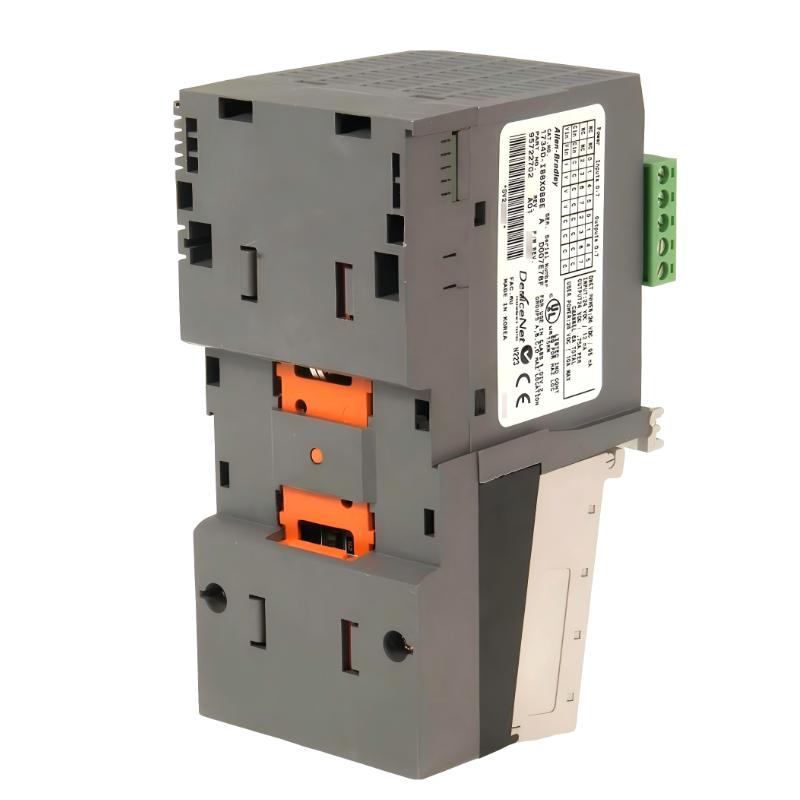

The Allen Bradley 1734D-IB8XOB8E Combined I/O Module is a high-density POINT I/O module designed to provide both digital inputs and outputs in a single device. Its compact design allows it to fit into distributed I/O assemblies while simplifying wiring and panel layout.
By consolidating I/O channels, it enables more efficient use of space and reduces hardware requirements in industrial automation systems. The module is engineered for reliable operation in demanding environments, making it ideal for machine-level and process automation applications.
It is a versatile solution for industries that require flexible, compact, and robust distributed I/O modules.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Allen Bradley |
| Model Number | 1734D-IB8XOB8E |
| Module Type | Combined I/O Module |
| System Platform | POINT I/O |
| I/O Type | 8 Digital Inputs / 8 Digital Outputs |
| Installation | POINT I/O rack assembly |
| Application | Machine-level and distributed automation |
| Operating Environment | Industrial |
| Dimensions | 76.2 mm × 60 mm × 133.4 mm |
| Weight | 0.522 kg (1.15 lb) |
Industrial Applications (Applications)
The Allen Bradley 1734D-IB8XOB8E Combined I/O Module is designed for distributed automation systems that require both digital inputs and outputs in a single module. It is ideal for machine-level control, process automation, and high-density POINT I/O architectures where flexibility and compact design are critical.
Common applications include:
-
Machine and assembly line automation
-
Packaging and material handling systems
-
Distributed I/O systems in manufacturing plants
-
Remote I/O integration with PLC-based control
-
Industrial process control requiring combined I/O functionality
-
Automation systems where space efficiency and reduced wiring are important
This module simplifies system design by combining input and output channels while maintaining reliable performance in industrial environments.
Key Advantages (Advantages)
Integrated Input and Output Channels
Provides digital input and output in one module, reducing the number of modules required.
Compact POINT I/O Design
Slim and modular form factor fits efficiently into distributed I/O racks.
Reliable Industrial Operation
Engineered to handle vibration, electrical noise, and continuous operation in factory settings.
Flexible System Integration
Compatible with POINT I/O networks and PLC-based control systems.
Simplified Wiring and Panel Layout
Reduces complexity by consolidating I/O channels into a single module.
Technical FAQs (Technical FAQs)
1. What is the primary function of the 1734D-IB8XOB8E module?
It provides combined digital input and output channels in a single POINT I/O module.
2. Which platform is this module designed for?
It is part of the Allen Bradley POINT I/O system.
3. How many input and output channels does it support?
It supports 8 digital inputs and 8 digital outputs.
4. Can it communicate with PLC controllers?
Yes, it integrates with distributed I/O networks linked to PLCs.
5. Is it suitable for machine-level control applications?
Yes, ideal for compact and modular automation systems.
6. How is it installed?
Mounted on a POINT I/O rack or base assembly.
7. Can this module reduce system wiring complexity?
Yes, by combining inputs and outputs in a single module, it simplifies panel design.
8. Is it designed for continuous industrial operation?
Yes, it is built for reliable operation in industrial environments.
9. Can it support expansion of distributed I/O networks?
Yes, additional POINT I/O modules can be added as needed.
10. Which industries commonly deploy this module?
Manufacturing, automotive, packaging, process industries, and machine automation sectors.
