Technical Overview (Introduction)

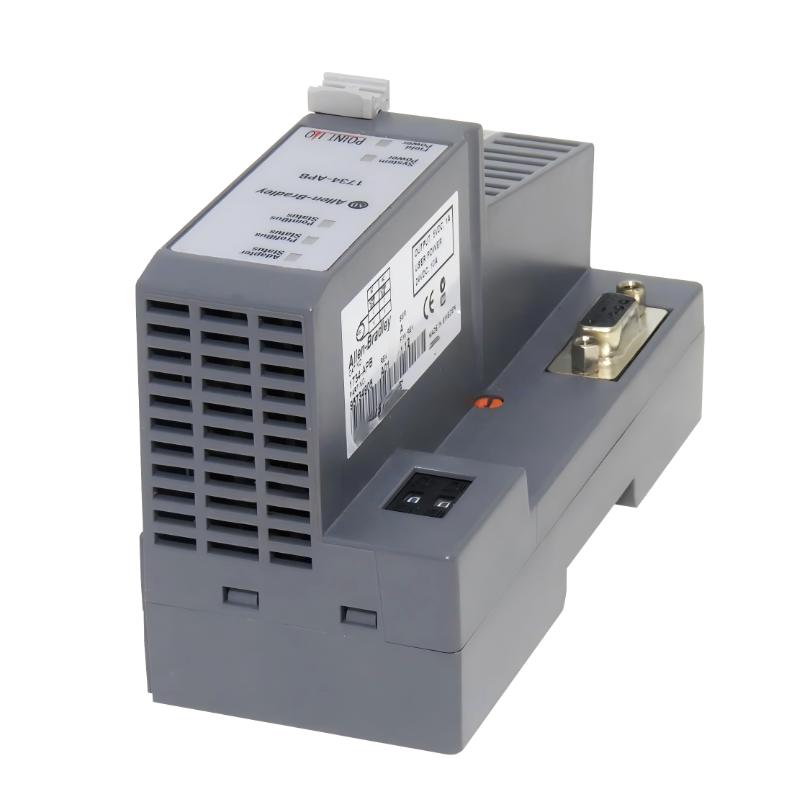

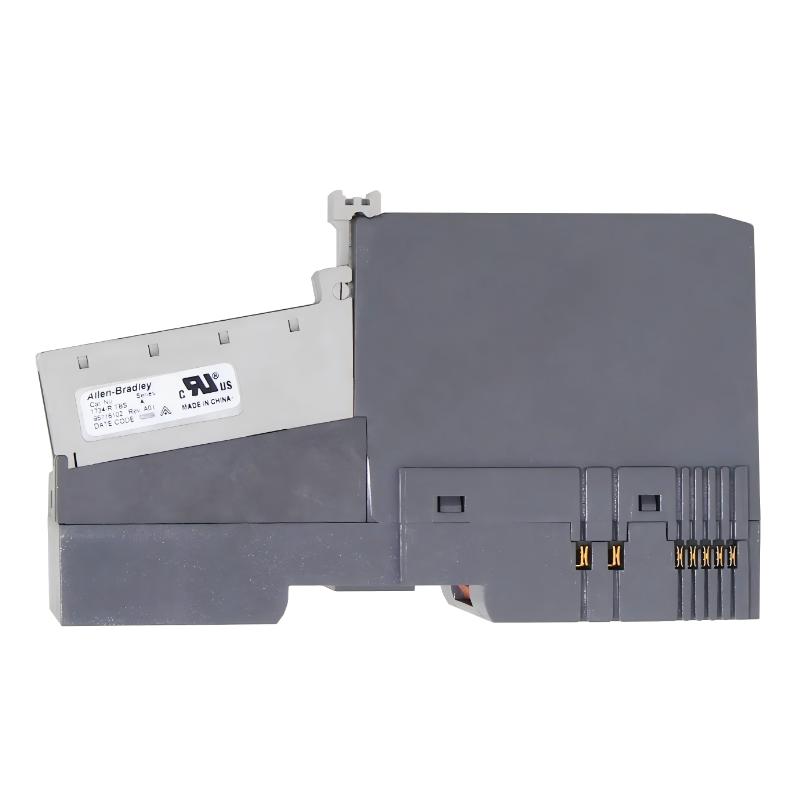

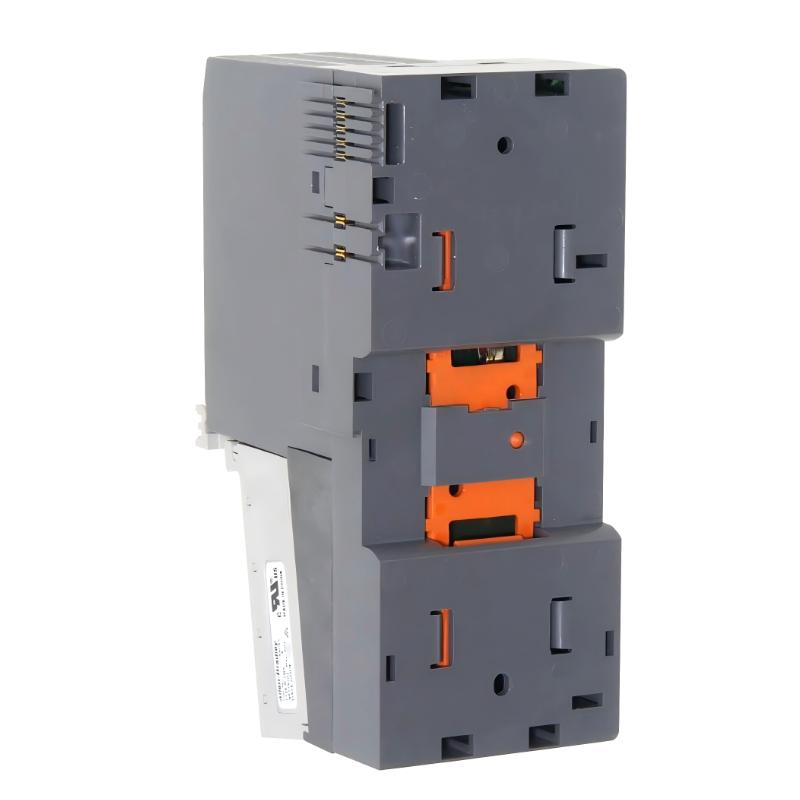

The Allen Bradley 1734-APB POINT I/O Profibus Adapter is a communication interface that integrates POINT I/O modules with PROFIBUS networks. It enables distributed field devices to exchange data efficiently with central controllers, supporting high-performance and reliable automation systems.
Its compact industrial design allows for installation in high-density I/O assemblies, while its robust construction ensures dependable operation in electrically challenging and high-vibration environments. By bridging distributed I/O with PROFIBUS networks, the module provides flexible, scalable, and efficient system communication.
This adapter is ideal for industries requiring precise machine-level automation and reliable network connectivity.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Allen Bradley |
| Model Number | 1734-APB |
| Module Type | POINT I/O Profibus Adapter |
| Communication Protocol | PROFIBUS |
| System Platform | POINT I/O |
| Function | Network interface for distributed I/O modules |
| Installation | POINT I/O rack or machine-mounted assembly |
| Operating Environment | Industrial |
| Dimensions | 79.8 mm × 56.1 mm × 133.1 mm |
| Weight | 0.225 kg (0.50 lb) |
Field Deployment Scenarios (Applications)
The Allen Bradley 1734-APB POINT I/O Profibus Adapter is designed to integrate POINT I/O modules into PROFIBUS industrial networks. It enables seamless communication between distributed field devices and PLC controllers, particularly in environments where PROFIBUS is the preferred industrial protocol.
Typical applications include:
-
Machine-level automation with PROFIBUS connectivity
-
Distributed I/O systems in manufacturing plants
-
Process automation requiring remote I/O integration
-
Material handling and packaging systems
-
Centralized PLC control with decentralized I/O nodes
-
Industrial networks in automotive, chemical, and food production
This adapter simplifies the connection of POINT I/O modules to PROFIBUS networks while supporting reliable data exchange.
Key Advantages (Advantages)
PROFIBUS Network Integration
Allows POINT I/O modules to communicate efficiently over PROFIBUS networks.
Reliable Industrial Performance
Engineered for consistent operation in electrically noisy and vibration-prone environments.
Compact POINT I/O Design
Slim profile allows installation in dense I/O racks and machine-mounted panels.
Scalable System Architecture
Supports expansion of distributed I/O networks without complex rewiring.
Efficient Field Connectivity
Facilitates direct communication between field devices and controllers.
Technical FAQs (Technical FAQs)
1. What is the main function of the 1734-APB adapter?
It connects POINT I/O modules to a PROFIBUS network for distributed automation.
2. Which platform uses this adapter?
It is designed for Allen Bradley POINT I/O systems.
3. What communication protocol does it support?
It operates on the PROFIBUS industrial communication standard.
4. How does it interface with PLC controllers?
Through the PROFIBUS network linking distributed I/O modules to controllers.
5. Can it be used for machine-level control applications?
Yes, it is suitable for localized and distributed automation tasks.
6. How does it support scalable automation systems?
Additional POINT I/O modules can be connected across the PROFIBUS network with minimal wiring changes.
7. Is the module suitable for continuous industrial operation?
Yes, it is built for reliable operation in industrial environments.
8. What advantage does PROFIBUS provide?
It ensures high-speed, deterministic communication for industrial devices.
9. Can it connect multiple remote I/O modules?
Yes, it allows integration of several POINT I/O nodes within a single PROFIBUS network.
10. Which industries commonly use this adapter?
Manufacturing, automotive, chemical processing, food & beverage, and industrial automation sectors.
