Product Technical Overview (Introduction)

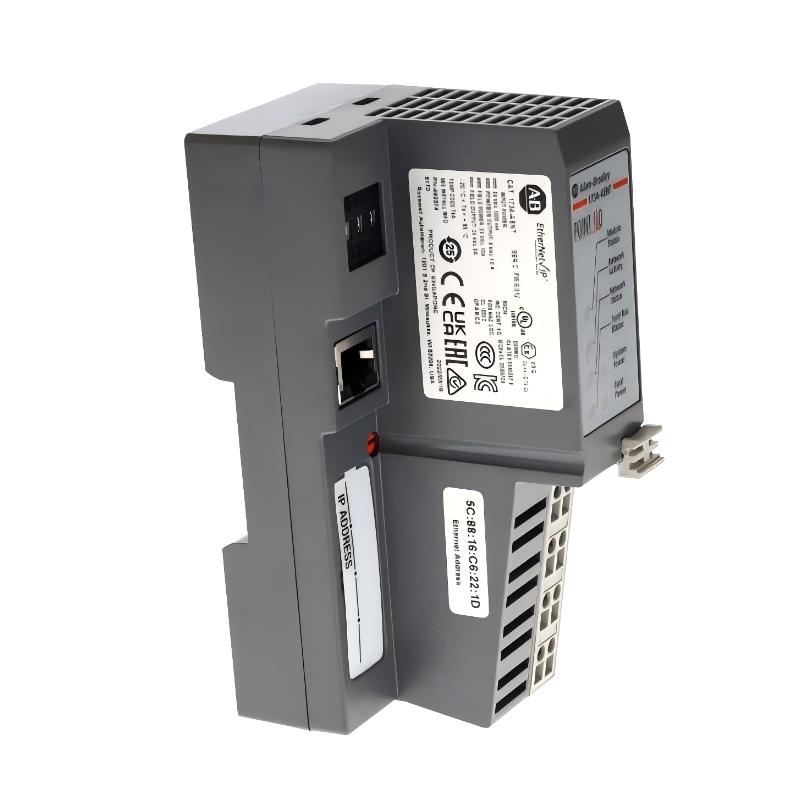

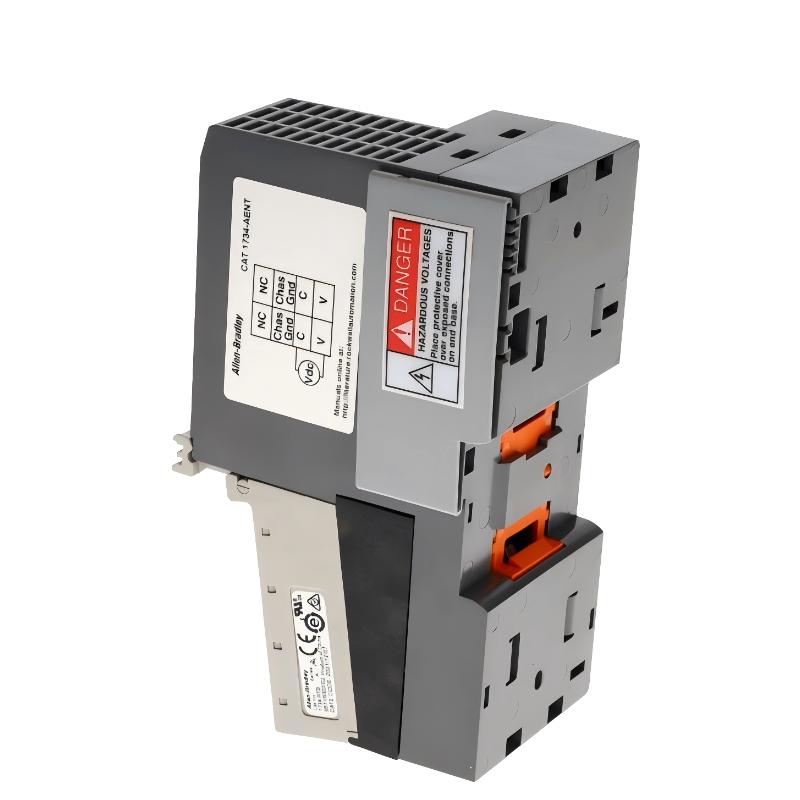

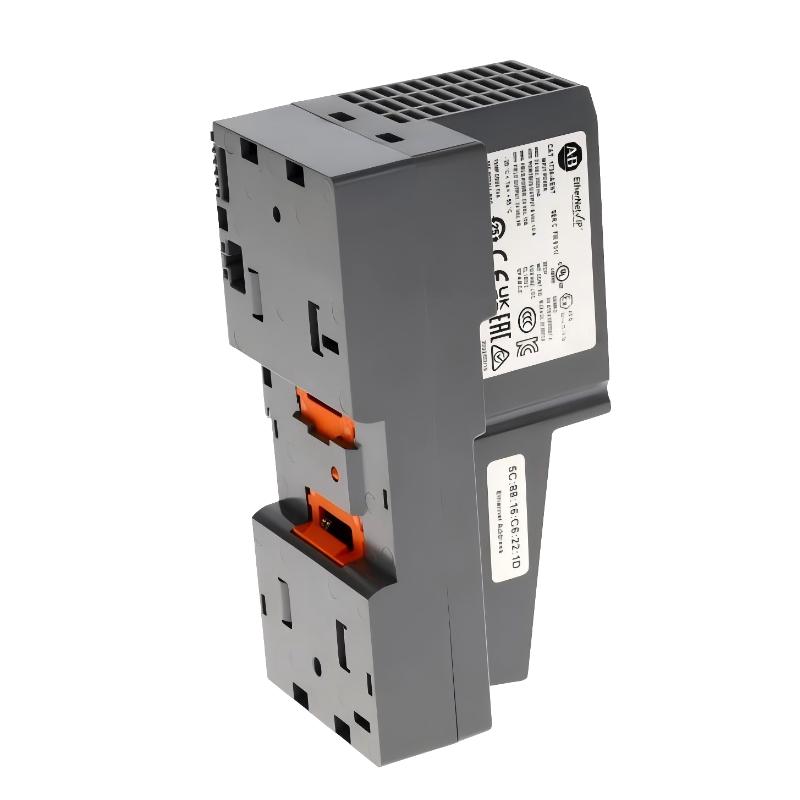

The Allen Bradley 1734-AENT Ethernet/IP Adapter is a communication interface that enables POINT I/O modules to connect to Ethernet/IP networks within industrial automation systems. It provides a reliable communication bridge between field-level devices and PLC controllers.
Its design supports distributed automation architectures where remote I/O systems are required to operate efficiently across plant networks. With stable communication performance and a compact industrial form factor, the adapter helps simplify system integration and improve overall network efficiency.
By enabling Ethernet/IP connectivity, the module supports modern automation infrastructures that rely on high-speed and scalable industrial networks.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Allen Bradley |
| Model Number | 1734-AENT |
| Module Type | Ethernet/IP Adapter |
| Communication Protocol | EtherNet/IP |
| System Platform | POINT I/O |
| Function | Network interface for distributed I/O modules |
| Installation | POINT I/O rack assembly |
| Operating Environment | Industrial |
| Dimensions | 76.2 mm × 54.9 mm × 133.4 mm |
| Weight | 0.225 kg (0.50 lb) |
Industrial Application Examples (Applications)
The Allen Bradley 1734-AENT Ethernet/IP Adapter is designed to connect POINT I/O modules to Ethernet/IP industrial networks, enabling fast and reliable communication between controllers and distributed field devices. It is widely used in modern automation systems where real-time data exchange and network flexibility are required.
Typical applications include:
-
Distributed I/O integration in Ethernet/IP automation networks
-
Manufacturing production line automation
-
Packaging and material handling systems
-
Process control environments requiring remote I/O connectivity
-
Industrial machine control systems
-
Plant-wide automation with centralized PLC monitoring
This adapter allows controllers to communicate efficiently with multiple field devices across an Ethernet/IP infrastructure.
Operational Advantages (Advantages)
Ethernet/IP Network Connectivity
Enables seamless communication between POINT I/O systems and PLC controllers.
High-Speed Data Transmission
Supports fast exchange of control and diagnostic data.
Scalable Automation Architecture
Allows easy expansion of distributed I/O systems.
Industrial-Grade Reliability
Designed for stable operation in demanding industrial environments.
Efficient Network Integration
Simplifies connectivity in modern Ethernet-based automation systems.
Technical FAQs (Technical FAQs)
1. What is the main function of the 1734-AENT adapter?
It connects POINT I/O modules to an Ethernet/IP industrial network.
2. Which automation platform is this adapter designed for?
It is part of the Allen Bradley POINT I/O system.
3. What communication protocol does it use?
It operates using the EtherNet/IP industrial communication protocol.
4. How does it interact with PLC controllers?
Through the Ethernet/IP network linking controllers and distributed I/O modules.
5. Is this adapter suitable for modern factory networks?
Yes, it is widely used in Ethernet-based industrial automation systems.
6. Can it support distributed control systems?
Yes, it enables remote I/O connectivity across plant networks.
7. How is the module installed?
Mounted on a POINT I/O rack assembly within a control panel.
8. What advantage does Ethernet/IP provide in automation?
It offers high-speed communication and flexible network integration.
9. Can it operate continuously in industrial environments?
Yes, it is built for long-term industrial operation.
10. Which industries commonly deploy this adapter?
Manufacturing, automotive production, food processing, and process industries.
