Technical Overview (Introduction)

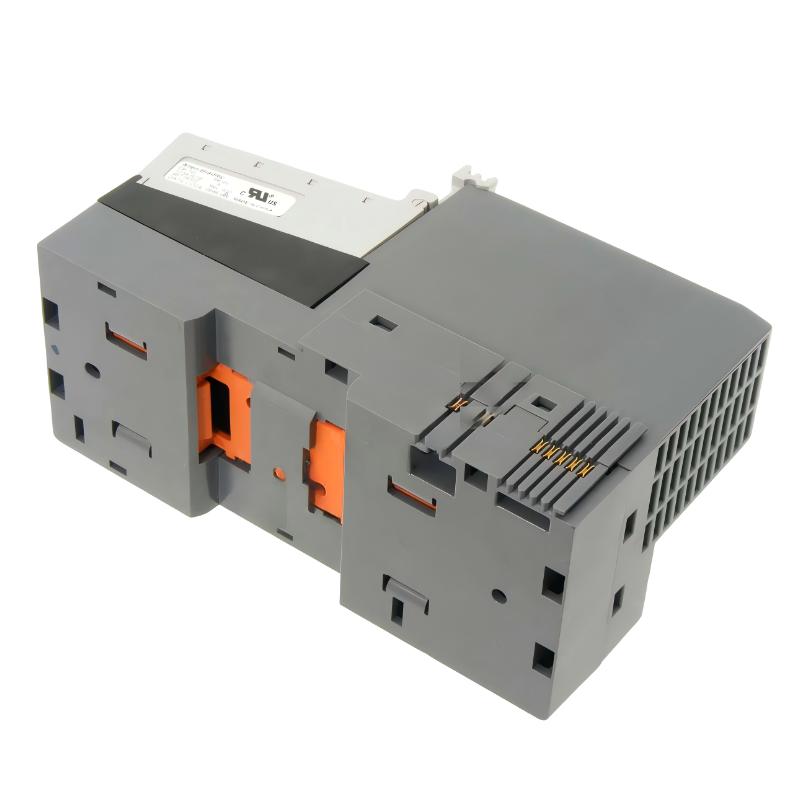

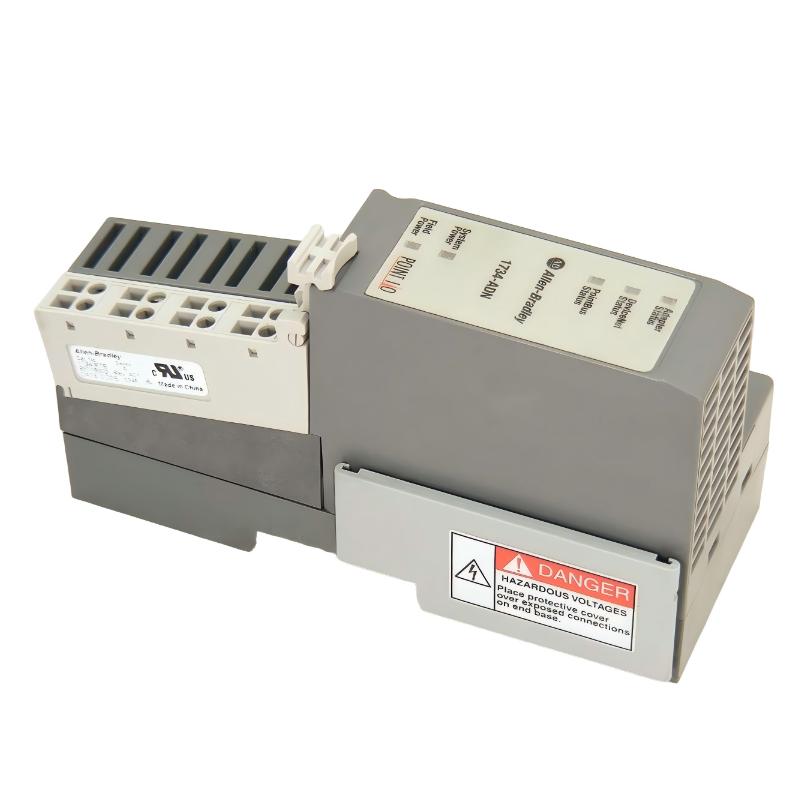

The Allen Bradley 1734-ADN ControlNet Network Adapter is a communication interface that enables POINT I/O modules to connect with ControlNet-based automation systems. It allows distributed field devices to communicate effectively with central controllers while maintaining deterministic network performance.
Its design supports scalable automation architectures, making it suitable for systems where remote I/O integration is necessary. With robust industrial construction and reliable communication capabilities, the adapter ensures stable operation in demanding environments.
This module plays a key role in connecting distributed automation components and improving system flexibility in modern industrial networks.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Allen Bradley |
| Model Number | 1734-ADN |
| Module Type | ControlNet Network Adapter |
| Communication Protocol | ControlNet |
| System Platform | POINT I/O |
| Function | Network interface for distributed I/O modules |
| Installation | POINT I/O rack assembly |
| Operating Environment | Industrial |
| Dimensions | 76.2 mm × 54.9 mm × 133.4 mm |
| Weight | 0.26 kg (0.57 lb) |
Typical Automation Environments (Applications)
The Allen Bradley 1734-ADN ControlNet Network Adapter is designed to connect distributed POINT I/O systems to ControlNet networks, allowing controllers to communicate with field devices efficiently and reliably. It is widely used in industrial automation systems that require deterministic communication and stable data exchange.
Typical applications include:
-
Distributed control systems in manufacturing plants
-
Industrial automation networks using ControlNet infrastructure
-
Machine automation requiring remote I/O communication
-
Process industries such as oil & gas and chemical processing
-
Factory automation with centralized PLC control
-
Expansion of ControlNet-based automation architectures
This adapter enables seamless communication between controllers and distributed I/O modules.
Key Functional Advantages (Advantages)
ControlNet Network Integration
Provides a reliable interface between POINT I/O modules and ControlNet networks.
Deterministic Data Communication
Supports time-sensitive automation processes requiring stable communication cycles.
Distributed System Support
Ideal for remote I/O installations in large automation systems.
Robust Industrial Design
Built to operate consistently in demanding industrial environments.
Scalable Automation Architecture
Allows system expansion without complex wiring changes.
Technical FAQs (Technical FAQs)
1. What is the main purpose of the 1734-ADN adapter?
It connects POINT I/O modules to a ControlNet communication network.
2. Which automation platform uses this adapter?
It is designed for the Allen Bradley POINT I/O distributed system.
3. What communication protocol does it support?
The adapter operates using the ControlNet industrial protocol.
4. How does it interact with PLC controllers?
It transfers data between the PLC and distributed I/O modules via ControlNet.
5. Is it suitable for real-time industrial control?
Yes, ControlNet supports deterministic and scheduled communication.
6. Can this adapter support large automation networks?
Yes, it is suitable for scalable and distributed control systems.
7. How is the module installed?
Mounted on a POINT I/O rack within a control cabinet or panel.
8. What benefit does ControlNet provide compared to basic networks?
It ensures predictable network timing and stable data exchange.
9. Can it be used in continuous operation environments?
Yes, it is designed for long-term industrial automation use.
10. Which industries typically deploy this adapter?
Manufacturing, energy, process industries, and large-scale automated facilities.
