Introduction

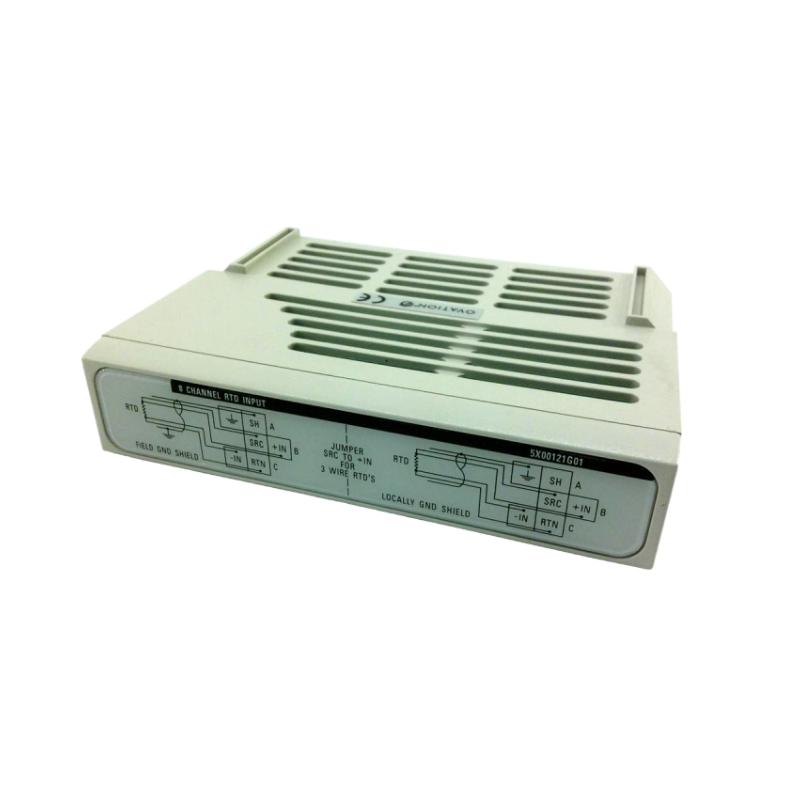

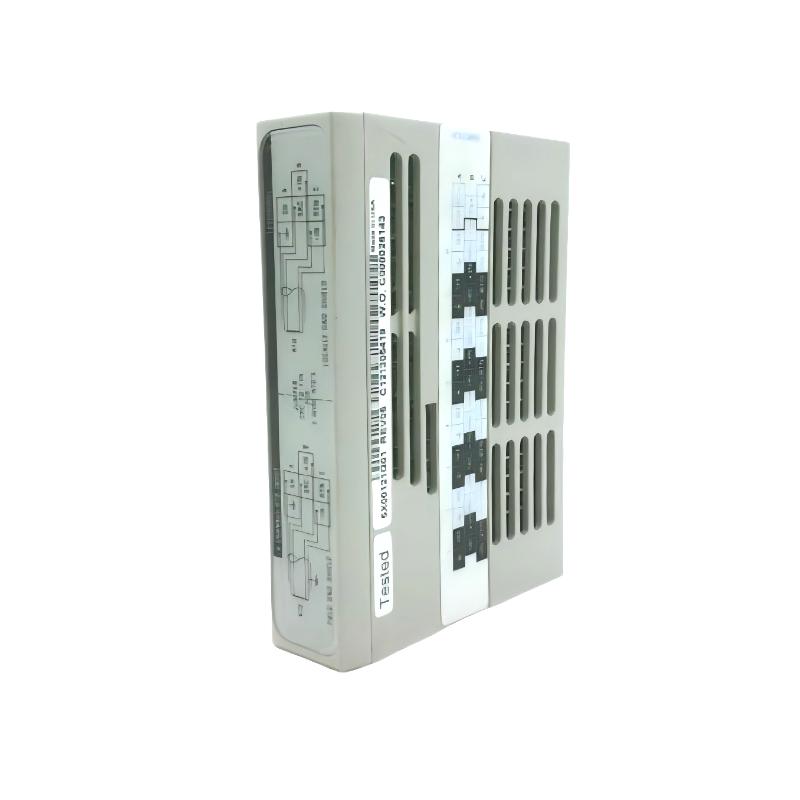

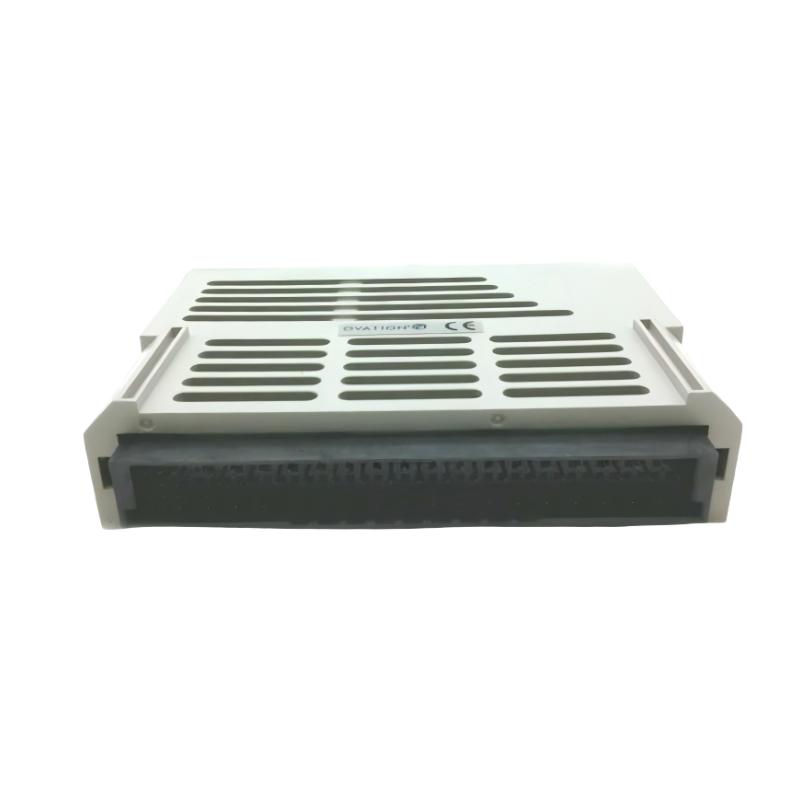

The Ovation 5X00121G01 8 Channel RTD Input Module is a precision temperature acquisition device engineered for the Emerson Ovation Distributed Control System (DCS). Purpose‑built for demanding industrial environments, this module converts signals from Resistance Temperature Detectors (RTDs) into high‑resolution digital data that can be processed by the Ovation control platform.
With eight independent RTD channels and robust signal conditioning, the 5X00121G01 supports reliable temperature monitoring across critical processes in power plants, manufacturing facilities, and utility operations. Its design ensures accurate signal capture and strong electrical isolation — essential for maintaining stable closed‑loop control and real‑time diagnostics in automated systems.
Technical Specifications
| Specification | Details |
|---|
| Model | 5X00121G01 |
| Manufacturer | Emerson Ovation |
| Module Type | 8 Channel RTD Input Module |
| System Platform | Ovation Distributed Control System |
| Input Channels | 8 independent RTD inputs |
| Supported Sensors | Pt100, Pt500, Pt1000 RTDs |
| Measurement Range | −200 °C to +850 °C (sensor dependent) |
| Resolution | 12‑bit analog‑to‑digital conversion |
| Accuracy | ±0.1 % of full scale |
| Sampling Rate | Approx. 10–20 samples/sec per channel |
| Input Impedance | High imped‑ ance, optimized for RTD sensors |
| Isolation | Galvanic isolation between channels and logic |
| Power Supply | 24 V DC (system backplane) |
| Power Consumption | < 5 W typical |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5–95 % non‑condensing |
| Mounting | Rack‑mounted within Ovation DCS chassis |
| Dimensions | Approx. 100 × 160 × 220 mm |
| Weight | ~0.35–0.85 kg |
Applications
Power Generation Monitoring
Used in fossil fuel and combined cycle power plants to measure temperatures in boilers, exhaust systems, turbine bearing housings, and generator windings.
Process Industry Control
Provides temperature feedback from RTD sensors in chemical, petrochemical, and refining applications for tight process regulation.
HVAC and Environmental Systems
Monitors critical temperature points in industrial heating, ventilation, and air conditioning systems for large facilities and infrastructure.
Oil & Gas Production
Utilized in upstream and midstream assets where accurate thermal measurement supports critical process control and safety systems.
Industrial Automation Systems
Integrates into DCS control loops, enabling temperature‑based control actions and alarm generation for process monitoring.
Advantages
Accurate Temperature Conversion
High‑resolution analog‑to‑digital conversion and signal linearization deliver precise temperature readings for control and safety applications.
Eight Fully Independent Channels
Supports multiple RTD sensors in a single module, reducing hardware footprint and system complexity.
Strong Electrical Isolation
Channel‑to‑logic isolation protects the control system and enhances signal integrity in electrically noisy environments.
Reliable Industrial Performance
Designed for continuous operation within wide temperature and humidity ranges common to control cabinets and industrial environments.
Seamless Integration with Ovation DCS
Plug‑in compatibility and consistent interface design simplify installation and maintenance within Emerson Ovation systems.
Technical FAQs
1. How many RTD channels does 5X00121G01 support?
It supports eight independent RTD input channels.
2. What types of RTDs are compatible?
The module is compatible with common resistive temperature detectors such as Pt100, Pt500, and Pt1000.
3. What is the typical temperature range measured?
Depending on the sensor type, measurement ranges extend from approximately −200 °C to +850 °C.
4. What resolution does the module provide?
It offers 12‑bit analog‑to‑digital conversion for precise temperature measurements.
5. Does it provide electrical isolation?
Yes — galvanic isolation ensures signals remain accurate and protected against interference.
6. What power supply does this module use?
The module is powered by the 24 V DC supply provided by the Ovation DCS rack.
7. How is the module installed?
It installs within the Ovation DCS I/O chassis using the system backplane.
8. What industries commonly use this module?
Common applications include power generation, refining, petrochemical, and large industrial automation.
9. Can it handle harsh environments?
Yes — the design supports continuous operation in environments with 5–95 % non‑condensing humidity.
10. What type of mounting does it use?
It is typically installed in an Ovation DCS cabinet rack.
