Product Introduction

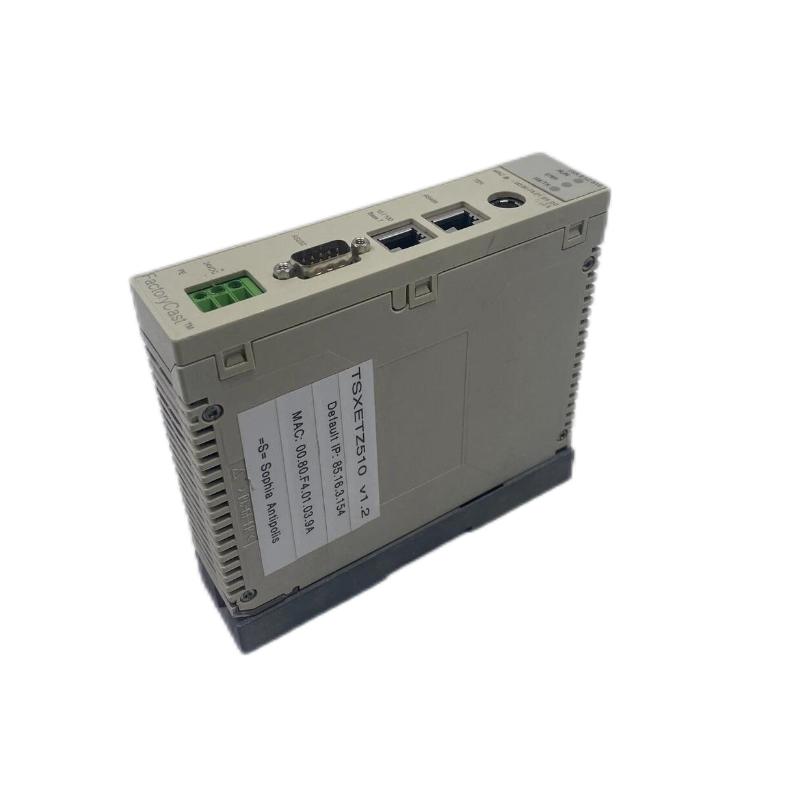

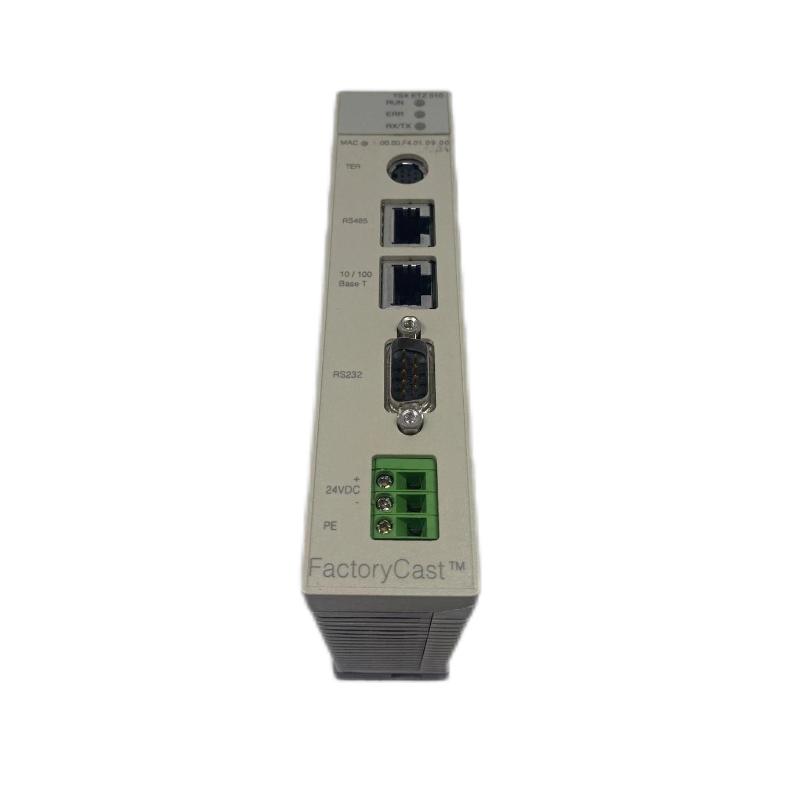

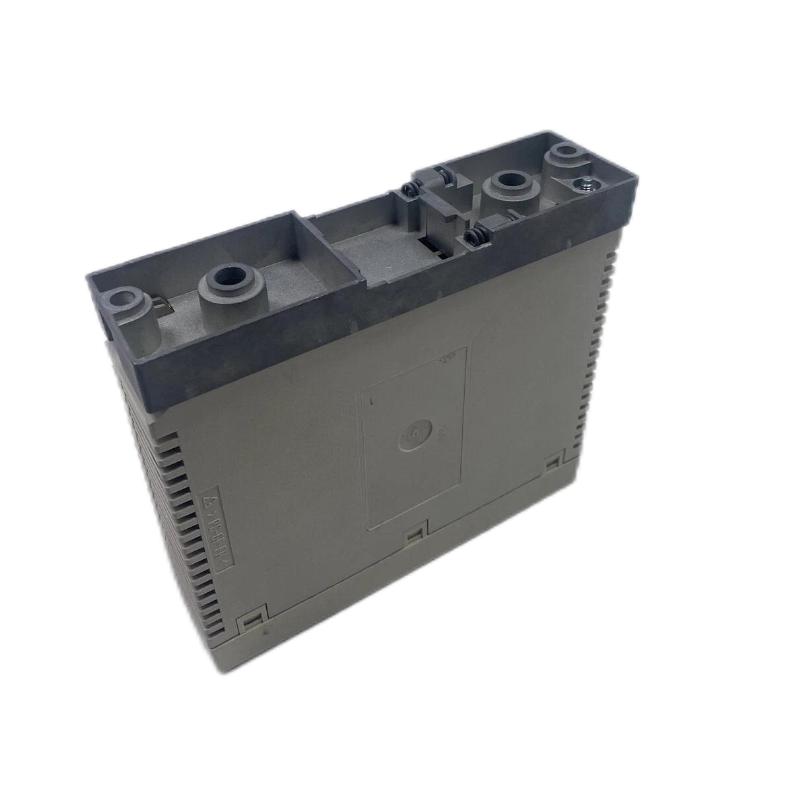

The Schneider TSXETZ510 Ethernet Module is a high‑performance communication interface designed for the Modicon TSX Micro PLC platform. Built to facilitate seamless data exchange between PLC systems and Ethernet‑based networks, this module empowers industrial automation systems with fast, reliable connectivity and expanded communication flexibility.
Featuring full Ethernet protocol support, including TCP/IP and industrial messaging standards, the TSXETZ510 enables remote monitoring, real‑time data sharing, and integration with higher‑level control systems such as SCADA and MES. Its robust networking capabilities make it an ideal choice for smart factories, distributed automation architectures, and applications demanding high‑speed data throughput.
Engineered with industrial‑grade reliability and optimized for performance, the TSXETZ510 enhances connectivity while simplifying network configuration and maintenance.
Technical Specifications
| Specification | Details |
|---|
| Model | TSXETZ510 |
| Manufacturer | Schneider Electric |
| Module Type | Ethernet Communication Module |
| PLC Platform | Modicon TSX Micro |
| Network Standard | IEEE 802.3 Ethernet |
| Connector Type | RJ‑45 Ethernet port |
| Protocol Support | TCP/IP, UDP, Modbus/TCP, HTTP, FTP |
| Data Rate | 10/100 Mbps auto‑negotiation |
| Network Topology | Star, bus, and hybrid topologies |
| IP Addressing | Static and DHCP support |
| LED Indicators | Link/Activity, Speed, Status |
| Diagnostic Functions | Network status and error counters |
| Operating Voltage | 24 V DC |
| Power Consumption | Approx. 2.5 W |
| Electrical Protection | Reverse polarity and transient suppression |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | ‑25°C to 70°C |
| Relative Humidity | 5–95% non‑condensing |
| Dimensions (L × W × H) | 26 × 18 × 5.5 cm |
| Weight | Approx. 0.40 kg |
| Mounting | TSX Micro rack or DIN‑rail adapter |
Industrial Applications
Factory Ethernet Integration
Enables PLC systems to connect with plant‑wide Ethernet networks, allowing real‑time exchange of production data and control signals.
SCADA and MES Connectivity
Facilitates communication between Modicon TSX Micro PLCs and supervisory systems for monitoring, historical logging, and operational analytics.
Remote Access and Diagnostics
Supports remote configuration, monitoring, and troubleshooting over Ethernet, reducing maintenance downtime.
Distributed Control Systems (DCS)
Optimizes data distribution among distributed control nodes, improving synchronization and performance in large automation systems.
IoT and Smart Manufacturing
Enables connection to edge devices and industrial IoT platforms, accelerating digital transformation and data‑driven decision‑making.
Key Advantages
High‑Speed Ethernet Connectivity
10/100 Mbps performance ensures rapid data transfer and low‑latency communication across industrial networks.
Wide Protocol Support
Compatible with standard Ethernet protocols including Modbus/TCP, simplifying integration with existing automation systems.
Simplified Network Management
Support for static IP and DHCP, along with diagnostic LEDs, makes setup and troubleshooting straightforward.
Robust Industrial Design
Engineered to withstand typical factory environments with wide temperature and humidity support and built‑in electrical protection.
Flexible Mounting
Can be installed directly in TSX Micro racks or adapted for DIN‑rail mounting, making it suitable for control cabinets of varying layouts.
Technical FAQs
1. What is the purpose of the TSXETZ510?
It provides Ethernet communication capability to Modicon TSX Micro PLC systems for network integration and data exchange.
2. What network speed does it support?
Supports 10/100 Mbps Ethernet with auto‑negotiation.
3. Which protocols are supported?
Includes TCP/IP, UDP, Modbus/TCP, HTTP, and FTP.
4. Can it obtain an IP address automatically?
Yes — the module supports both static IP configuration and DHCP.
5. How is network activity indicated?
LED indicators show link status, data activity, and speed.
6. What kind of connector does the module use?
It uses a standard RJ‑45 Ethernet port.
7. Is it suitable for remote diagnostics?
Yes — remote access and diagnostics are supported via Ethernet.
8. What is the operating voltage?
The module operates on a 24 V DC supply.
9. What environmental conditions can it handle?
Rated for 0°C to 60°C and 5–95% non‑condensing humidity.
10. How is it mounted?
It installs in a TSX Micro rack or on DIN‑rail with adapters.
