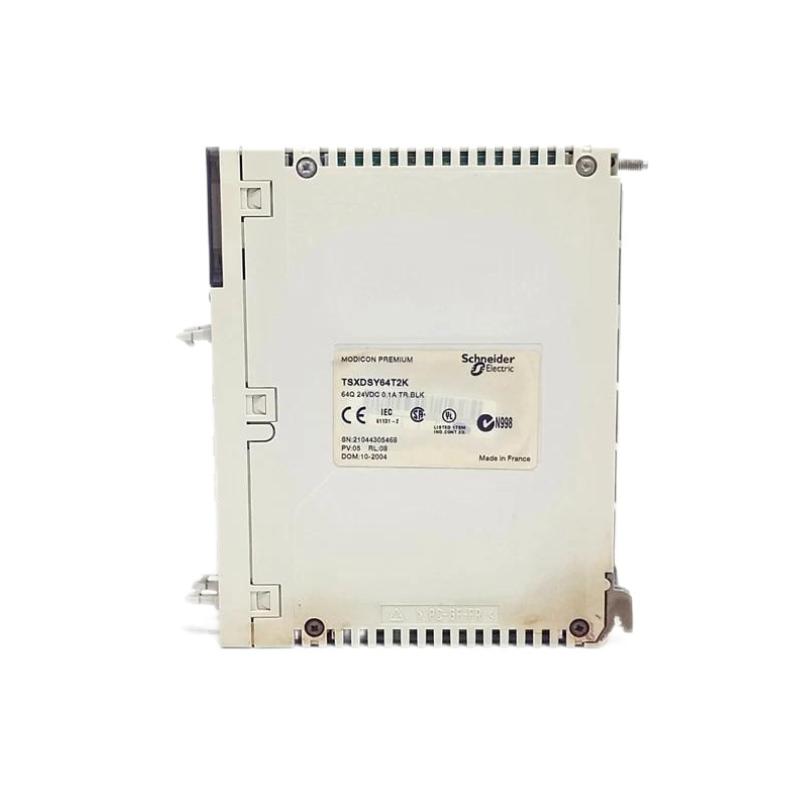

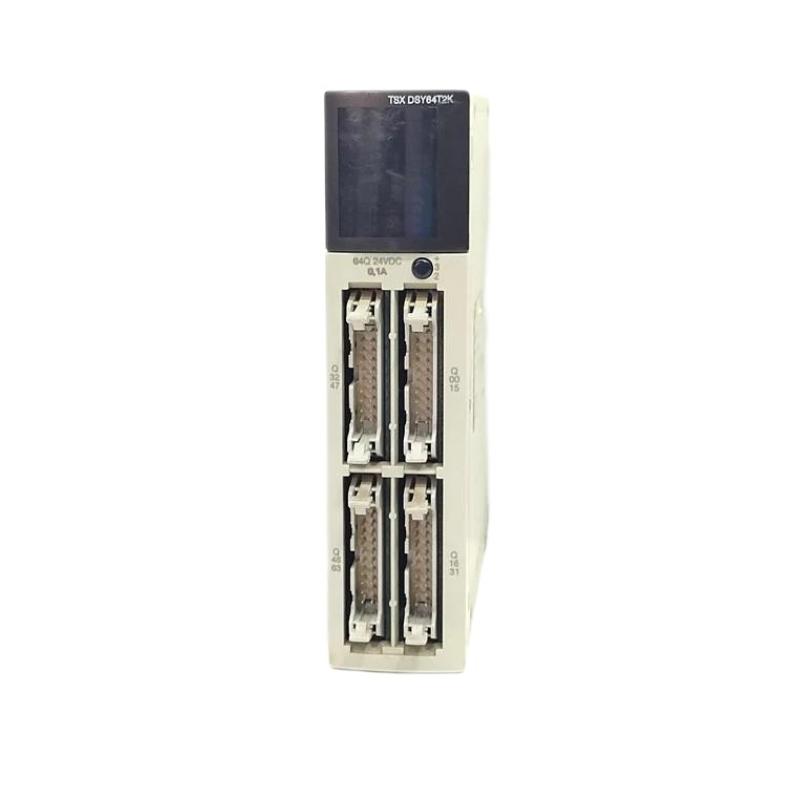

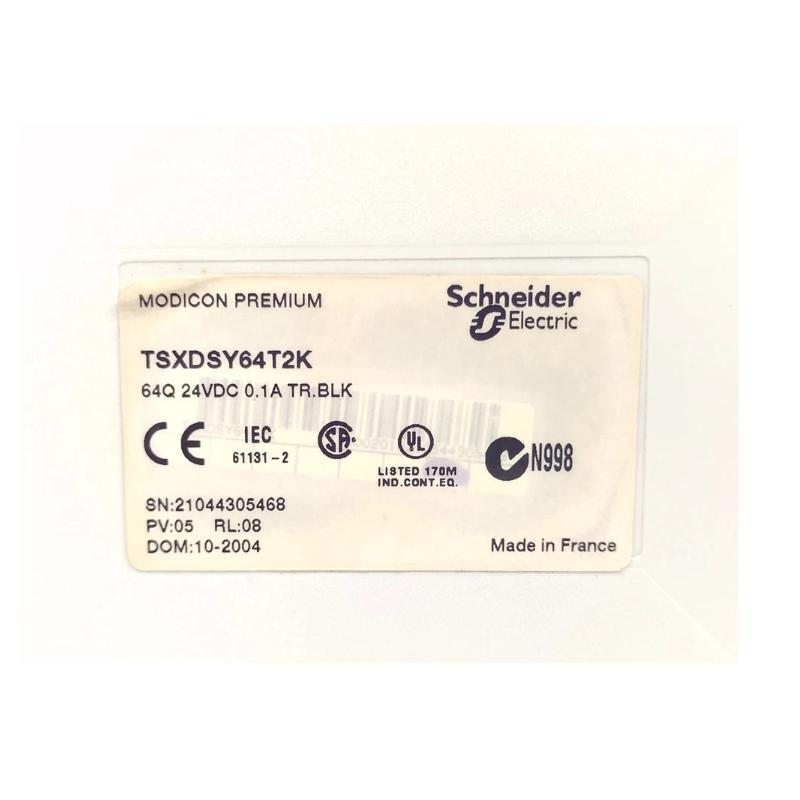

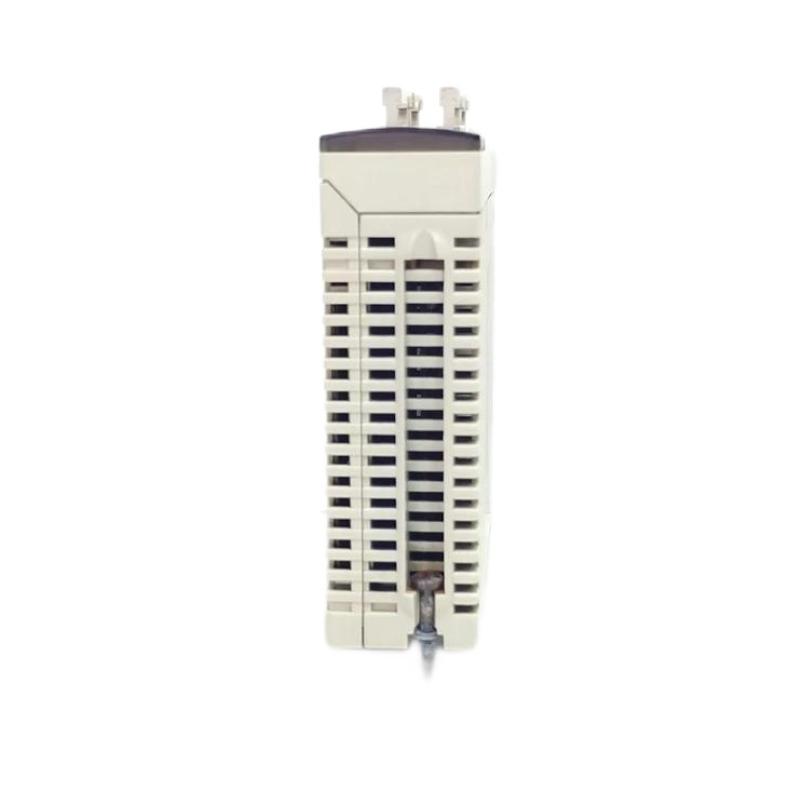

Schneider TSXDSY64T2K Discrete output modules

Brand:Schneider PLC
Item No.:TSXDSY64T2K
Product Origin:France
Product Dimensions:26 × 72 × 5.5 cm
Product Weight:1.32 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

TSXDSY64T2K 1TSXDSY64T2K 2TSXDSY64T2K 3TSXDSY64T2K 4TSXDSY64T2K 5

Product Introduction

The Schneider TSXDSY64T2K Discrete Output Modules are engineered for heavy‑duty digital output control within the Modicon TSX Micro PLC series. Designed to bridge logic signals from PLCs to field actuation devices, these modules deliver reliable switching performance and extended service life. With 64 solid‑state transistor outputs, the TSXDSY64T2K is ideal for applications demanding high channel density, fast response, and low maintenance in industrial automation systems.

Its solid‑state construction eliminates moving parts, significantly enhancing durability compared to electromechanical alternatives. Compact yet powerful, this module streamlines control cabinet layout by reducing the number of discrete modules required for large output counts.

Technical Specifications

SpecificationDetails
ModelTSXDSY64T2K
ManufacturerSchneider Electric
Module TypeDiscrete Output Module
Automation PlatformModicon TSX Micro
Output Channels64 transistor outputs
Output TypeSolid‑state transistor
Load Voltage24 V DC
Load CurrentUp to 0.5 A per channel
Output LogicPositive switching
Response Time≤ 0.5 ms
Minimum Load5 mA
Connector TypeScrew terminal blocks
Module FormatMulti‑segment assembly for high‑density outputs
Dimensions (L × W × H)Approx. 26 × 72 × 5.5 cm
WeightApprox. 1.32 kg
Operating Temperature0°C to 60°C
Storage Temperature‑25°C to 70°C
Relative Humidity5–95% non‑condensing
ProtectionRecommended short‑circuit/current protection
MountingTSX Micro rack or DIN‑rail adapter


Typical Industrial Applications

High‑Density Output Control
Ideal for systems requiring large numbers of discrete control outputs such as complex manufacturing lines or multi‑zone process systems.

Material Handling & Logistics
Controls conveyors, gates, sensors, and actuators in warehousing, sortation, and automated storage systems.

Packaging & Assembly Systems
Provides dependable digital output switching for lights, alarms, actuators, and sequencing devices in high‑throughput production lines.

Process Automation
Interface with process instruments, valves, and discrete actuators in continuous processing environments.

OEM Machinery Integration
Machine builders leverage its high channel count and solid‑state performance to reduce hardware footprint while maintaining robust control.


Key Advantages

Large Output Channel Capacity
With 64 outputs in one module assembly, it minimizes the number of discrete output units needed, simplifying system architecture.

Solid‑State Transistor Reliability
Transistor outputs deliver rapid switching and extended service life with no mechanical wear.

Fast, Precision Control
Outputs respond in under 0.5 ms, supporting time‑critical control logic and high‑speed automation sequences.

Low Power & Heat
Solid‑state output design keeps power consumption and heat generation low even in high‑density configurations.

Modular & Scalable
Modular assembly allows for tailored output capacity while maintaining consistent interface and wiring methods.


Technical FAQs

1. How many outputs does the TSXDSY64T2K module provide?
It provides 64 solid‑state transistor output channels.

2. What load voltage do the outputs support?
The module is designed to switch 24 V DC loads.

3. What is the maximum current per output channel?
Each channel supports up to 0.5 A of load current.

4. What is the response time of the outputs?
Transistor outputs switch with a response time of ≤ 0.5 ms for precise control.

5. What kind of devices can be driven?
Suitable for low‑current DC actuators, indicator lights, and control relays.

6. How are field connections made?
Devices connect via standard screw terminal blocks for reliable industrial wiring.

7. Does the module require external protection?
While transistor outputs are robust, external current/short‑circuit protection is recommended based on load requirements.

8. Can this module be mounted outside a PLC rack?
Yes — with a suitable DIN‑rail adapter, the module assembly can be installed outside a traditional rack.

9. What is the environmental operating range?
Operates between 0°C and 60°C with non‑condensing humidity.

10. Is the module suitable for high‑speed automation systems?
Yes — fast solid‑state switching makes it suitable for high‑speed control applications.
