Product Summary

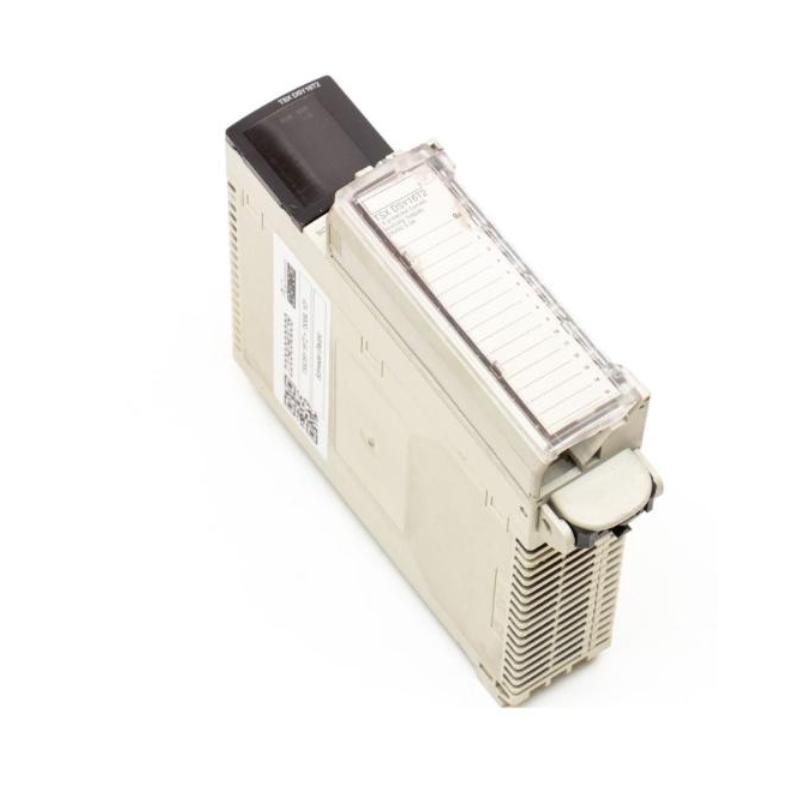

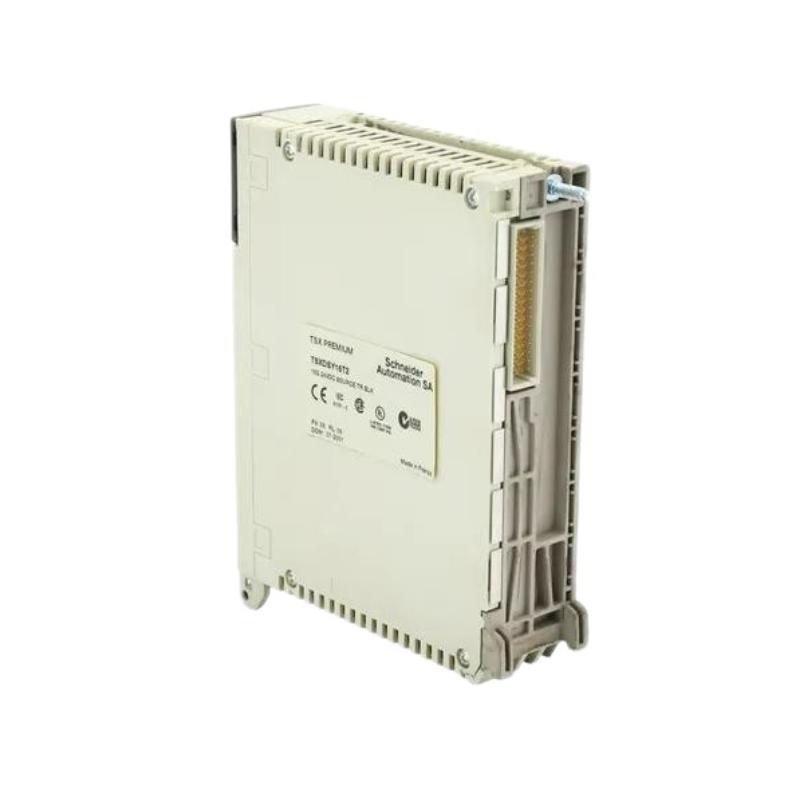

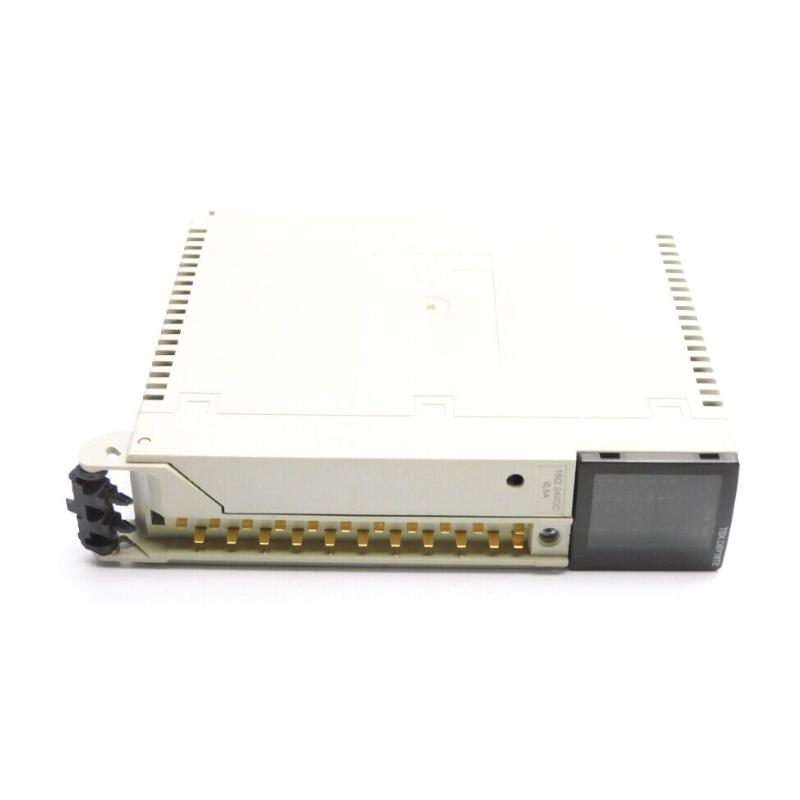

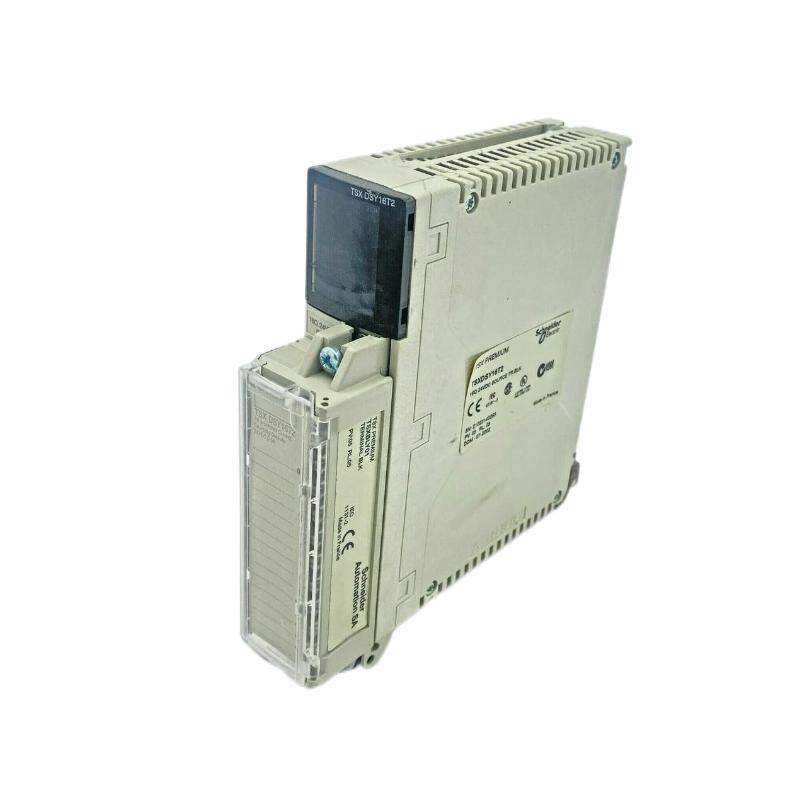

The Schneider TSXDSY16T2 Discrete Output Modules are rugged digital output interfaces designed for the Modicon TSX Micro PLC platform. Built to deliver dependable performance in industrial control systems, these modules convert PLC logic into reliable field actuation signals. With 16 transistor output channels, the TSXDSY16T2 series offers fast switching, low power consumption, and solid signal integrity — making them ideal for a wide range of automation applications.
Its solid‑state transistor outputs ensure long service life and reduced maintenance compared to electromechanical designs. Compact form factor and robust construction make the TSXDSY16T2 a dependable choice for machine builders, system integrators, and process control engineers looking to maximize system uptime and flexibility.
Technical Specifications
| Specification | Details |
|---|
| Model | TSXDSY16T2 |
| Manufacturer | Schneider Electric |
| Module Type | Discrete Output Module |
| PLC Platform | Modicon TSX Micro |
| Output Points | 16 transistor outputs |
| Output Type | Solid‑state transistor |
| Load Voltage | 24 V DC |
| Load Current | Up to 0.5 A per channel |
| Output Logic | Positive switching |
| Response Time | ≤ 0.5 ms |
| Minimum Load | 5 mA |
| Electrical Connection | Screw terminal blocks |
| Slot Format | Full‑format TSX Micro module |
| Dimensions (L × W × H) | 26 × 18 × 5.5 cm |
| Weight | Approx. 0.42 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | ‑25°C to 70°C |
| Relative Humidity | 5–95% non‑condensing |
| Protection | Short‑circuit, overcurrent protection recommended |
| Mounting | TSX Micro rack or DIN‑rail adapter |
Key Application Areas
Automated Machinery Control
Ideal for driving indicators, actuators, and control relays in production equipment where frequent switching and fast response times are critical.
Material Handling Systems
Perfect for controlling conveyors, sorters, and gate actuators in logistics and warehousing environments.
Packaging Lines
Delivers reliable output control for sensors, alarms, and sequencing elements in high‑speed packaging applications.
Process Control Equipment
Interfaces with process devices including valves, pumps, and interlock devices requiring digital output signals.
OEM Systems Integration
Preferred by machine builders for its compact footprint and long service life, simplifying wiring and reducing maintenance costs.
Competitive Advantages
Solid‑State Transistor Outputs
Provides rapid switching performance and extended lifecycle over relay‑based alternatives.
Low Power Consumption
Transistor outputs are more energy efficient, reducing heat dissipation and power draw in dense installations.
Precise Output Control
Fast response times (≤ 0.5 ms) allow better control of timing‑critical systems.
Compact and Modular Design
Slim form factor fits easily into TSX Micro racks or DIN‑rail adapters without consuming excessive cabinet space.
Reliable Industrial Protection
Built‑in transistor design reduces component wear, and recommended external protections help safeguard against electrical faults.
Technical FAQs
1. How many output channels are provided by TSXDSY16T2?
It provides 16 solid‑state transistor output channels.
2. What voltage level do the outputs support?
The outputs are designed for 24 V DC loads.
3. What is the maximum current per channel?
Each channel can handle up to 0.5 A of load current.
4. What type of devices can be driven?
Suitable for DC actuators, indicator lights, and low‑current relay coils.
5. What is the response time of the outputs?
Transistor outputs switch in under 0.5 ms for fast system response.
6. Are overload protections integrated?
Transistor outputs do not include built‑in overload protection; external circuitry is recommended as needed.
7. How are outputs wired?
Field devices connect using standard screw terminal blocks.
8. Can this module be mounted independently?
Yes — with a DIN‑rail adapter the module can be installed outside a stacked rack.
9. What environmental range does it support?
The unit operates between 0°C and 60°C with non‑condensing humidity.
10. Is this module suitable for high‑speed automation?
Yes — fast switching transistor outputs make it suitable for high‑speed control applications.
