Product Introduction

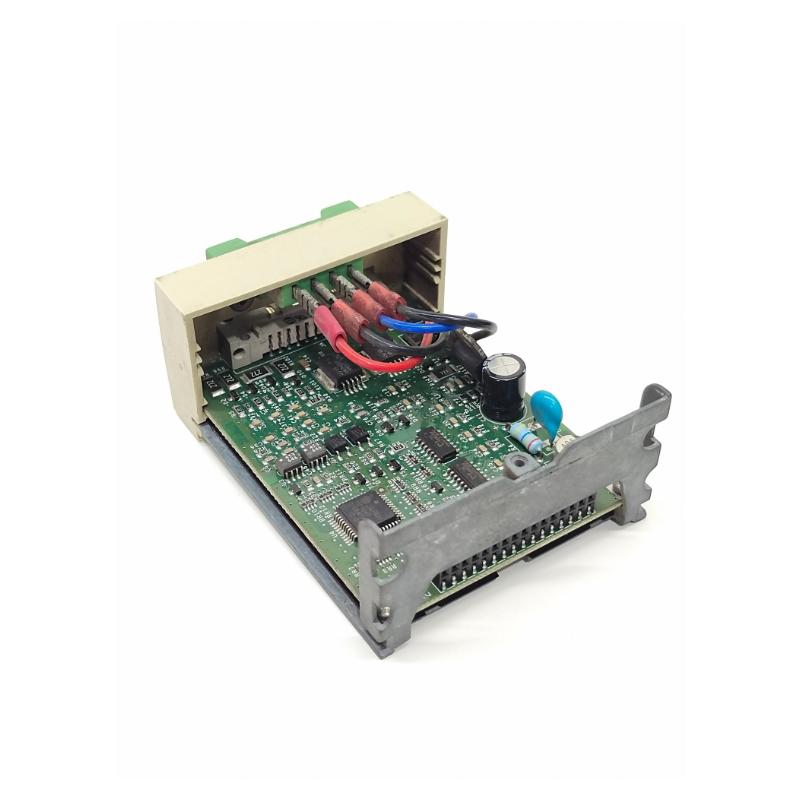

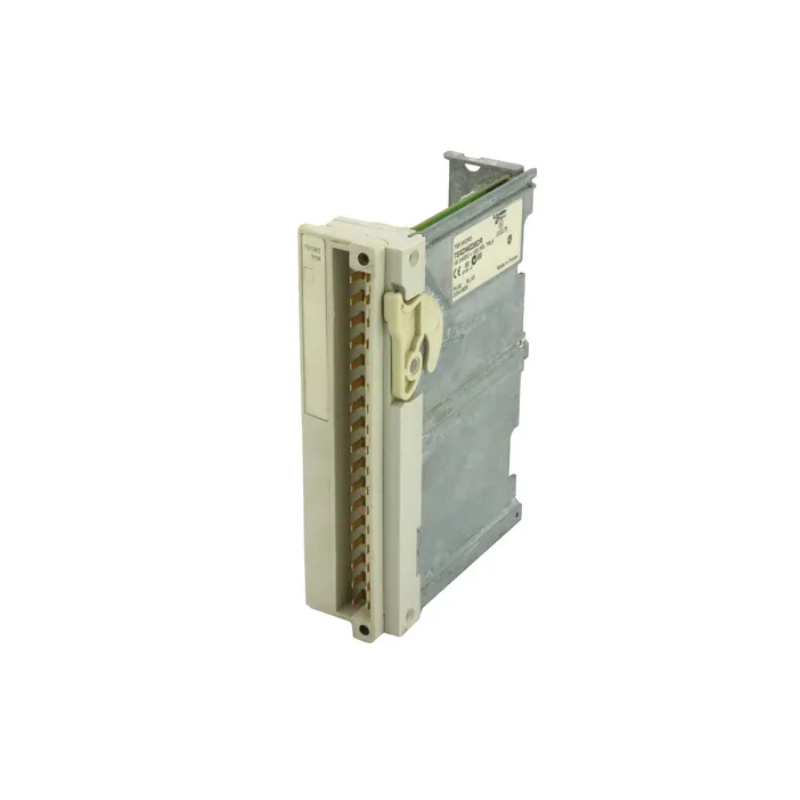

The Schneider TSXDMZ16DTK Discrete Solid State I/O Base is a compact and efficient digital input/output module designed for the Modicon TSX Micro PLC platform. It integrates both input and output channels in a single module, allowing industrial automation systems to handle field signals and actuator control with minimal wiring and hardware complexity.
Equipped with 8 digital inputs and 8 transistor outputs, the TSXDMZ16DTK enables reliable communication between PLC controllers and field devices such as sensors, push buttons, relays, and indicator lights. Its solid-state design ensures faster switching performance, longer operational life, and improved reliability compared with traditional relay-based modules.
The module supports 24 V DC control systems and is commonly installed in manufacturing equipment, packaging lines, and machine automation applications where consistent digital signal processing is required.
Core Technical Specifications

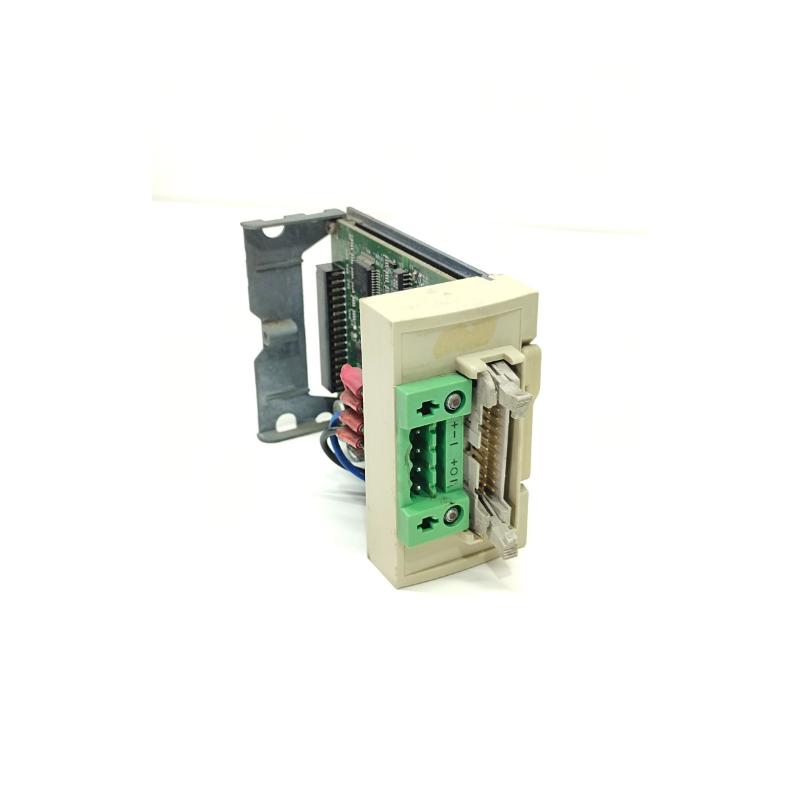

| Parameter | Specification |
|---|
| Model | TSXDMZ16DTK |
| Manufacturer | Schneider Electric |
| Product Type | Discrete Solid State I/O Base |
| PLC Platform | Modicon TSX Micro |
| Total I/O Channels | 16 |
| Digital Inputs | 8 channels |
| Digital Outputs | 8 solid-state channels |
| Input Voltage | 24 V DC |
| Input Current | 7 mA |
| Input Type | Resistive |
| Output Voltage | 24 V DC |
| Output Current | Up to 0.5 A per channel |
| Output Logic | Positive |
| Input Response Time | 0.1 – 7.5 ms |
| Output Response Time | ≤ 0.5 ms |
| Electrical Connector | 1 × HE-10 connector for inputs / outputs |
| Isolation Voltage | 1500 V for 1 second |
| Power Consumption | Approx. 76 mA |
| Dimensions (L × W × H) | 26 × 18 × 5.5 cm |
| Net Weight | Approx. 0.16 – 0.29 kg |
| Operating Voltage Range | 19 – 30 V DC |
| Protection Features | Short-circuit, reverse polarity, overvoltage protection |
Typical Application Scenarios
Industrial Production Lines
The module collects digital signals from sensors and switches to control motors, actuators, and status indicators across automated manufacturing systems.
Packaging and Assembly Machines
Fast response times enable accurate signal processing for counting, detection, and automated movement control in packaging equipment.
Material Handling Systems
Conveyor belts, robotic arms, and automated storage systems rely on stable I/O modules like TSXDMZ16DTK for reliable control logic.
Process Monitoring Systems
The module interfaces with PLC programs to monitor limit switches, valve positions, and equipment status in real-time.
OEM Machinery Integration
Machine builders integrate this compact I/O module into customized automation equipment where dependable digital communication is required.
Key Advantages
Integrated Input and Output Channels
Combining 8 inputs and 8 outputs in one module simplifies system architecture and reduces cabinet space.
Fast Solid-State Switching
Transistor outputs deliver rapid response times and extended lifecycle compared to relay-based designs.
Reliable Industrial Protection
Built-in electronic protection safeguards the module against short circuits, overvoltage, and reverse polarity.
Sensor Compatibility
Supports common industrial sensors including proximity sensors and digital detection devices.
Compact Design for Control Panels
Its slim modular structure allows easy installation within dense PLC racks and industrial control cabinets.
Technical FAQs
1. What type of module is TSXDMZ16DTK?
It is a discrete solid-state I/O base module designed for Schneider Electric Modicon TSX Micro PLC systems.
2. How many digital channels does it support?
The module provides 16 channels in total: 8 digital inputs and 8 digital outputs.
3. What voltage level does the module operate on?
Both inputs and outputs operate at 24 V DC.
4. What is the maximum output current per channel?
Each output channel can deliver up to approximately 0.5 A.
5. What type of outputs are used?
The outputs are solid-state transistor outputs with positive logic.
6. What connector type is used?
The module uses HE-10 connectors for both input and output wiring.
7. How fast does the module respond?
Outputs switch within about 0.5 ms, while input response time ranges from 0.1 to 7.5 ms.
8. Does the module support proximity sensors?
Yes, it is compatible with typical industrial sensors operating at 24 V DC.
9. Is the module still available?
The product belongs to the Modicon TSX Micro series, which has entered the phase-out stage but remains widely used in legacy automation systems.
10. What protections are built into the module?
It includes electronic short-circuit protection, reverse polarity protection, and overvoltage protection.
