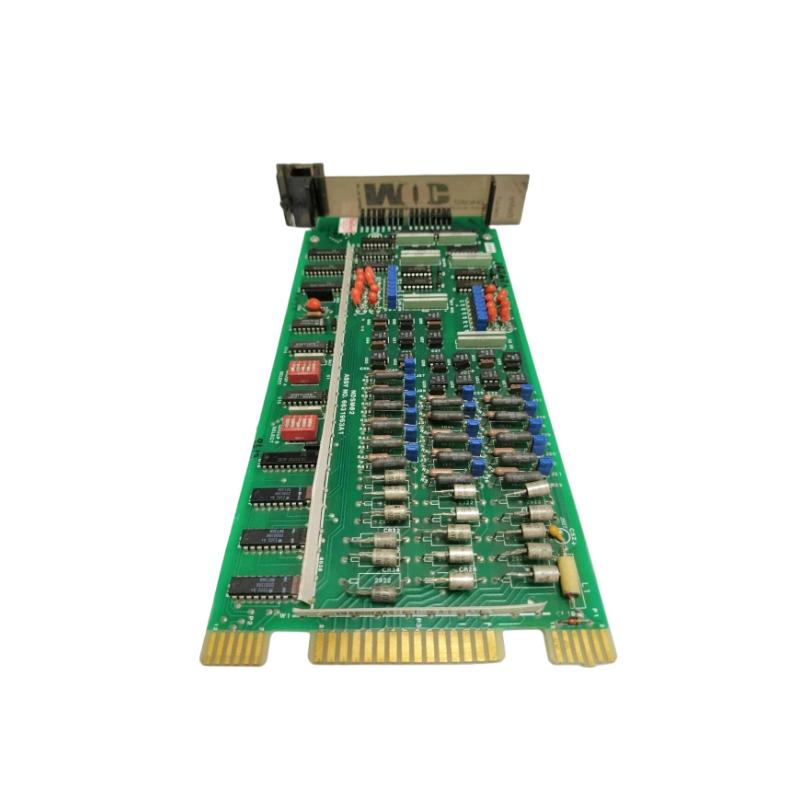

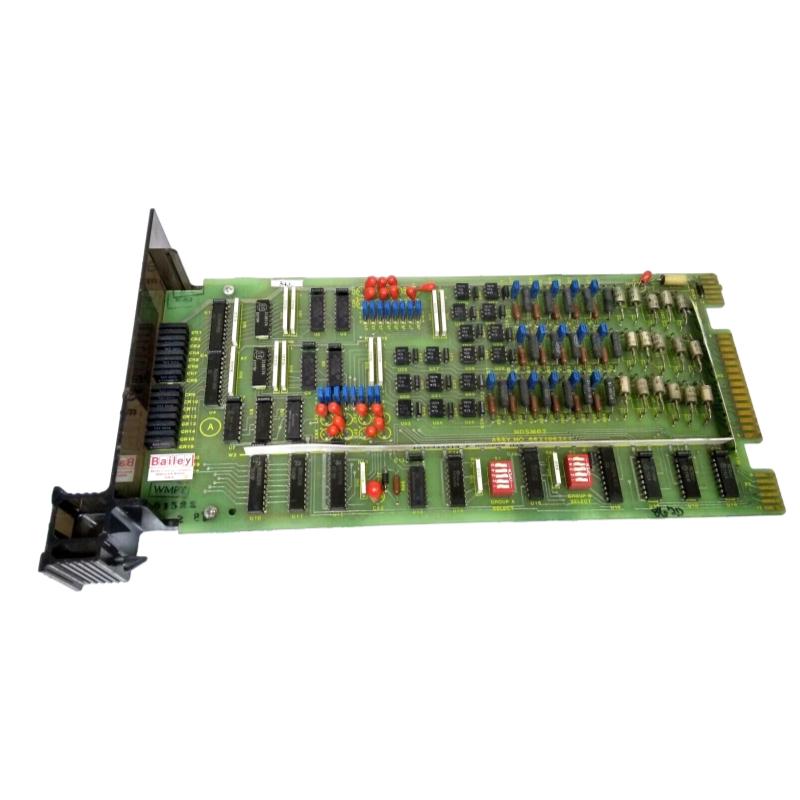

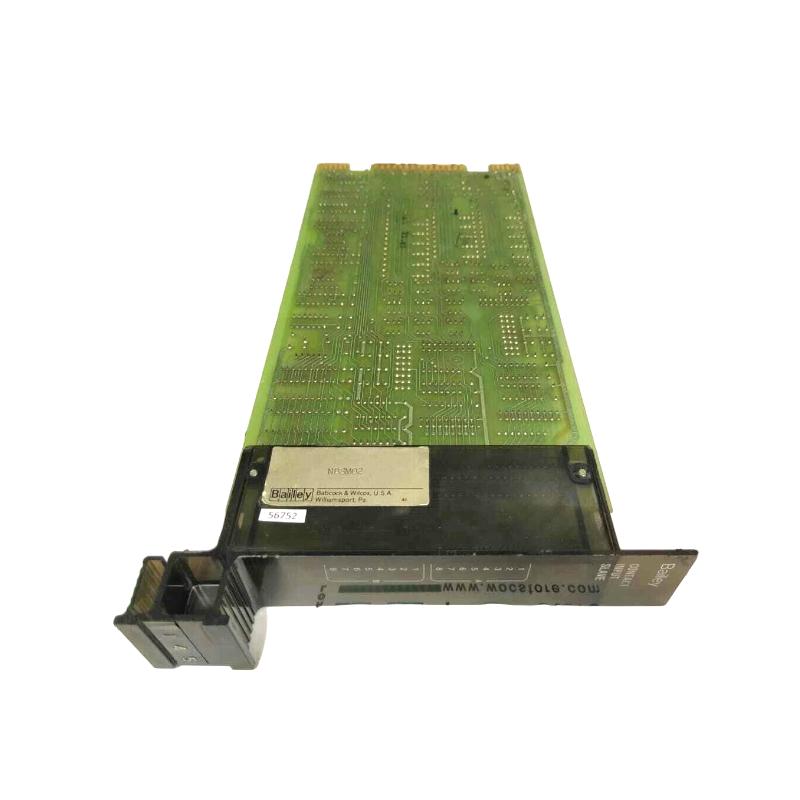

ABB Bailey NDSM02 Numeric Subordinate Input Module

Brand:ABB Bailey
Item No.:NDSM02
Product Origin:ABB Bailey
Product Dimensions:150 × 150 × 50 mm
Product Weight:0.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Introduction

The ABB Bailey NDSM02 Numeric Subordinate Input Module provides a practical solution for extending numeric input capability in distributed control systems. Its compact size, lightweight design, and reliable performance make it ideal for field deployment where space is limited and high signal fidelity is required. Engineers benefit from its plug-and-play integration, intuitive diagnostics, and robust construction, which reduce installation time and maintenance complexity. The module’s ability to act as a subordinate node enhances overall system scalability without placing additional load on the main controller.

Technical Specifications

ParameterSpecification
ModelNDSM02
TypeNumeric Subordinate Input Module
Signal TypesAnalog-converted digital inputs / numeric signals
ChannelsConfigurable
MountingPanel mount (screw)
Power Supply24V DC
Environmental Rating0°C to 55°C, 5–95% RH non-condensing
Dimensions (HxWxD)150 x 150 x 50 mm
Weight0.5 kg


Applications

The NDSM02 Numeric Subordinate Input Module is designed for distributed numeric data acquisition in industrial control systems. Its typical applications include:

  • Remote acquisition of numeric data from field devices in ABB Bailey INFI 90 and compatible DCS systems.

  • Expanding numeric input capacity without overloading the main controller.

  • Monitoring and processing critical process variables in chemical, water treatment, and power generation plants.

  • Facilitating modular expansion of I/O networks for large-scale automation projects.

  • Integrating legacy sensors and instruments into modern distributed control environments.


Advantages

  • Compact and Lightweight: Easy to install in crowded control panels; weighs only 0.5 kg.

  • Reliable Data Capture: Ensures high-fidelity numeric input for precise control and monitoring.

  • Modular Flexibility: Supports multiple subordinate nodes, allowing scalable system design.

  • User-Friendly Diagnostics: LED indicators simplify troubleshooting and status monitoring.

  • Industrial-Grade Performance: Built to withstand typical plant environmental conditions, including temperature fluctuations and humidity.


Technical FAQs

  1. What types of numeric signals does NDSM02 support?
    Supports analog-converted digital inputs and numeric signals compatible with INFI 90 systems.

  2. How is the module mounted?
    Panel-mounted using standard screws; compatible with DIN rail mounting for compact installation.

  3. Can multiple NDSM02 modules operate in a single system?
    Yes, modules can be daisy-chained to extend numeric input coverage.

  4. What is the power requirement?
    24V DC typical supply for logic and input circuitry.

  5. Does the module provide diagnostic feedback?
    Yes, LEDs indicate power, communication, and input status.

  6. Is it hot-swappable?
    No, power should be turned off before installation or removal.

  7. Can it process high-speed numeric data?
    Yes, the module supports rapid scanning cycles for real-time monitoring.

  8. What environmental conditions are supported?
    Operating temperature: 0°C to 55°C; humidity: 5–95% non-condensing.

  9. Does it integrate with higher-level controllers?
    Yes, it acts as a subordinate module feeding numeric data upstream to central controllers.

  10. How is the module configured?
    Configuration and calibration are performed via INFI 90 engineering software for precise alignment with process requirements.
