Product Design Insight (Introduction)

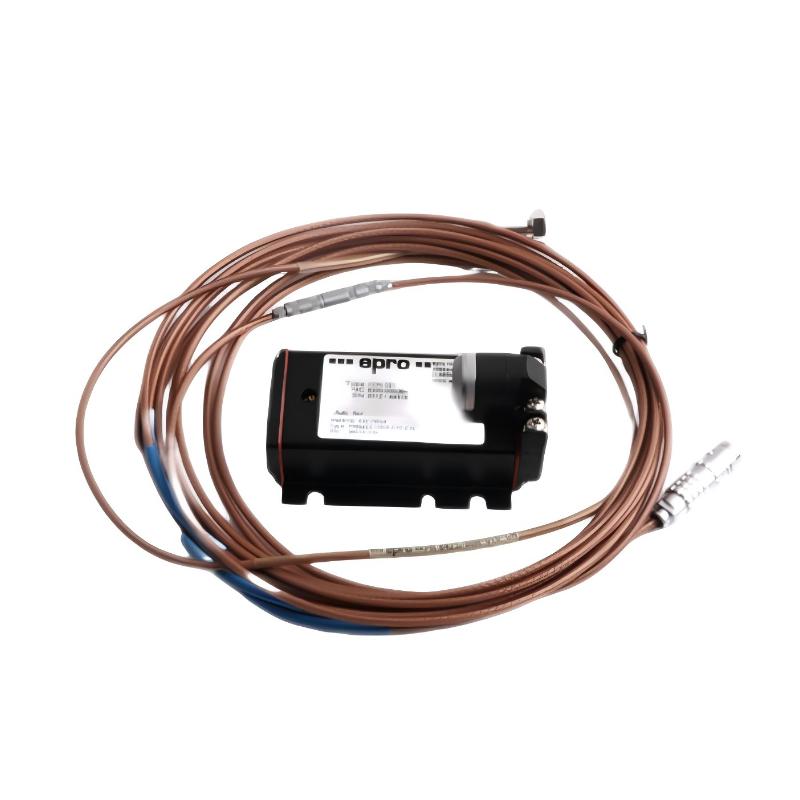

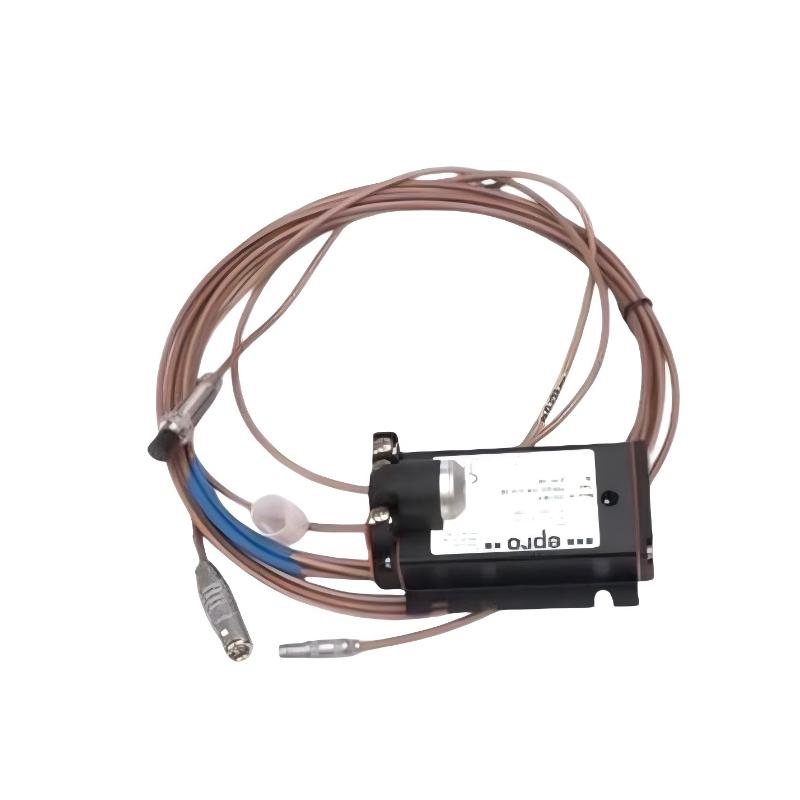

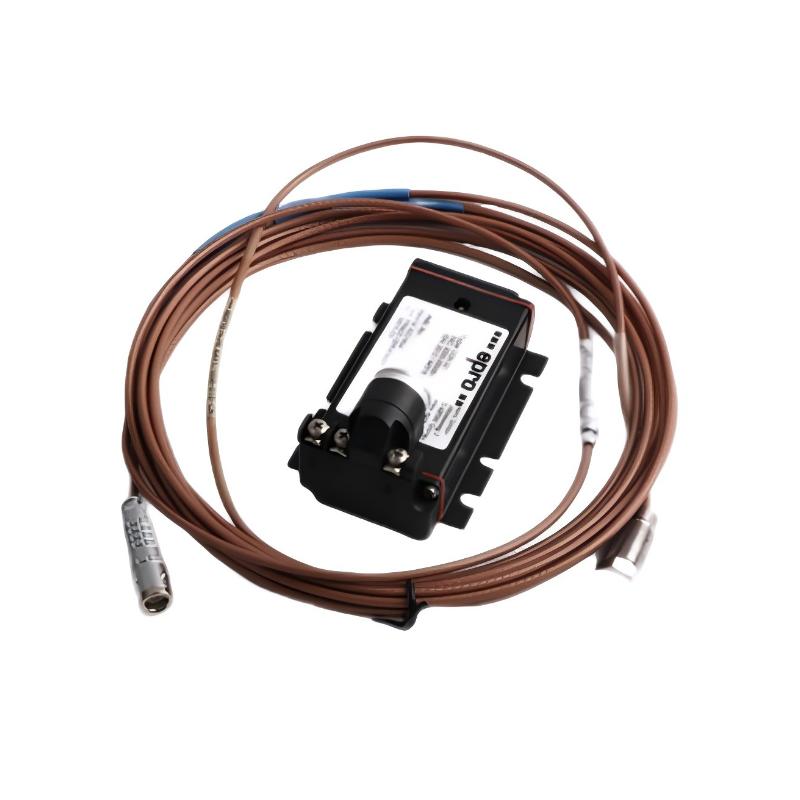

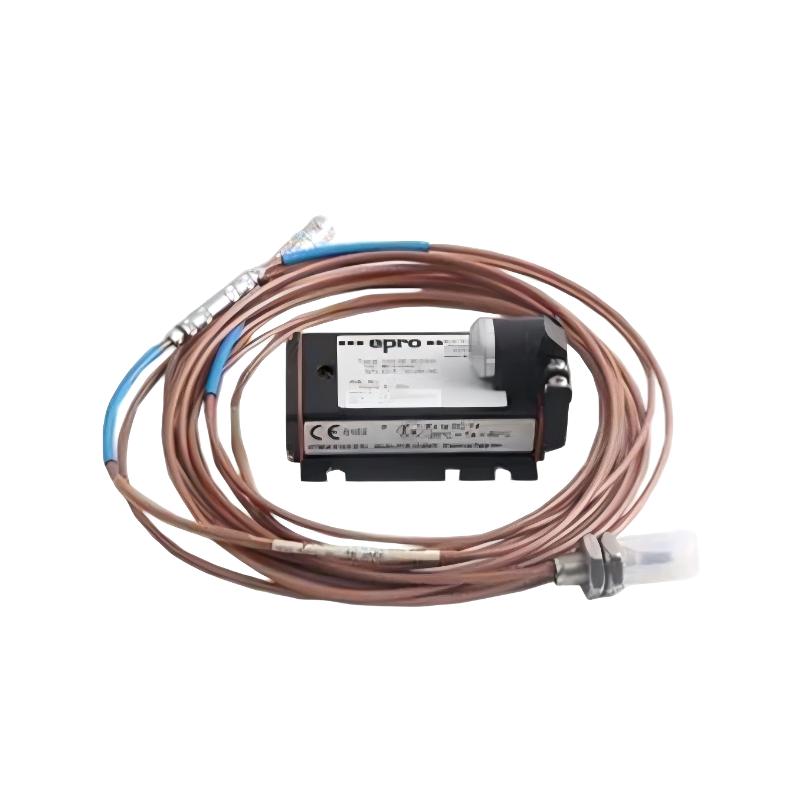

The Epro PR6423/000-030-CN + CON021 Eddy Current Sensor is a precision-engineered solution for monitoring critical rotating machinery. By combining an 8 mm eddy current probe with a CON021 signal conditioner, it ensures reliable and accurate signal output for advanced monitoring systems.
Its non-contact measurement approach eliminates wear while maintaining high accuracy over time. Designed for industrial durability, the system performs consistently under demanding conditions, making it suitable for continuous operation in mission-critical environments.
Engineers rely on this sensor system to enhance predictive maintenance strategies, reduce unplanned downtime, and improve equipment reliability.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Epro |
| Model Number | PR6423/000-030-CN + CON021 |
| Module Type | Eddy Current Sensor System |
| Measurement Principle | Eddy Current (Non-Contact) |
| Sensor Head Diameter | 8 mm |
| Measurement Type | Displacement / Vibration / Position |
| System Components | Probe + Signal Conditioner (CON021) |
| Installation | Non-contact proximity mounting |
| Application | Rotating Machinery Monitoring |
| Operating Environment | Industrial |
| Dimensions | Sensor Head Diameter: 8 mm |
| Weight | 0.22 kg (0.49 lb) |
Industrial Deployment Perspective (Applications)
The Epro PR6423/000-030-CN + CON021 Eddy Current Sensor is purpose-built for high-precision, non-contact monitoring of rotating machinery. It delivers continuous feedback on shaft dynamics, enabling early fault detection and optimized equipment performance.
Typical application environments include:
-
Steam and gas turbine vibration monitoring systems
-
Compressor shaft displacement measurement in oil & gas facilities
-
Pump and motor condition monitoring in process industries
-
Rotor position tracking in high-speed machinery
-
Bearing clearance analysis in critical equipment
-
Predictive maintenance platforms across heavy industries
This sensor system is widely implemented where reliability and real-time diagnostics are essential.
Engineering Benefits and Functional Strengths (Advantages)
Stable Signal Conversion System
Paired with CON021 for consistent and interference-resistant signal output.
Non-Contact Measurement Principle
Prevents mechanical wear and ensures long operational lifespan.
High Sensitivity Detection
Accurately captures micro-level displacement and vibration changes.
Compact 8 mm Probe Design
Ideal for installations with limited physical space.
Resilient Industrial Performance
Maintains accuracy in high-temperature, high-vibration, and noisy environments.
Technical FAQs (Technical FAQs)
1. What components are included in this system?
It includes an eddy current probe and a CON021 signal conditioner.
2. What does the “-CN” designation indicate?
Typically refers to a specific configuration or regional specification variant.
3. What parameters can the sensor measure?
Measures shaft displacement, vibration, and position.
4. What is the probe diameter?
The sensor head diameter is 8 mm.
5. What is the role of the CON021 module?
It converts probe signals into standardized outputs for monitoring systems.
6. Is it suitable for high-speed machinery?
Yes. Designed for fast dynamic response and high-frequency applications.
7. Can it operate in harsh industrial environments?
Yes. Built to withstand temperature variation, vibration, and electromagnetic interference.
8. Does the system require calibration?
Yes. Calibration ensures accurate and stable measurement results.
9. How is the sensor installed?
Mounted near the target surface using non-contact positioning.
10. Which industries commonly use this system?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
