Technical Overview and Design Insight (Introduction)

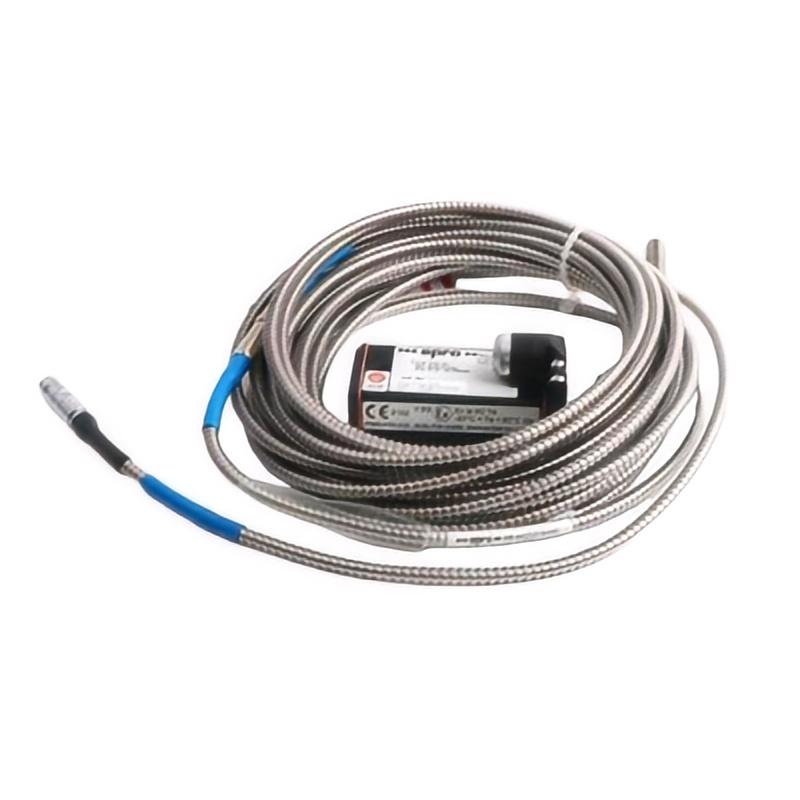

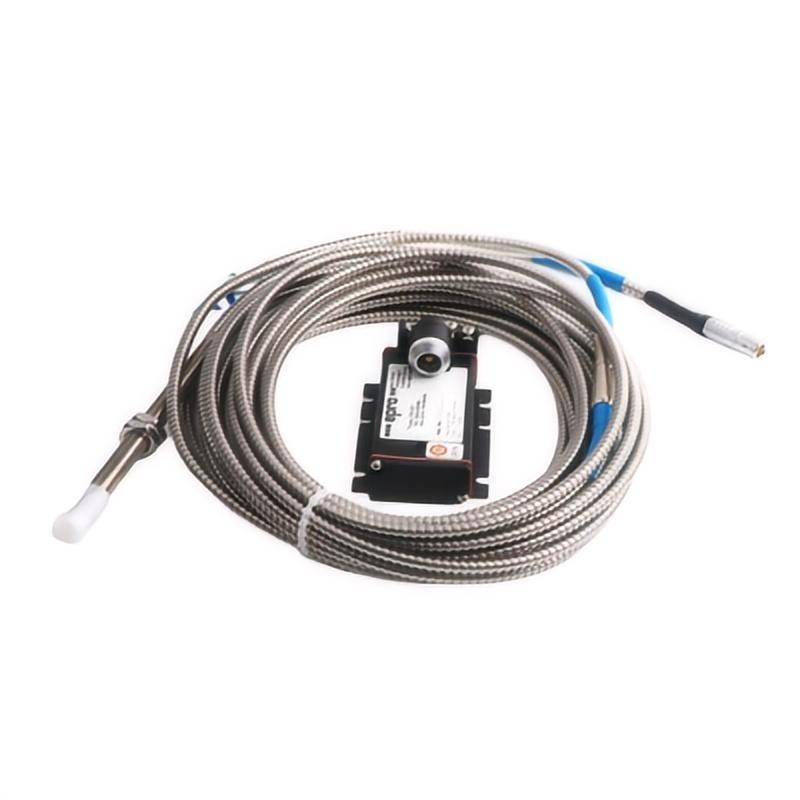

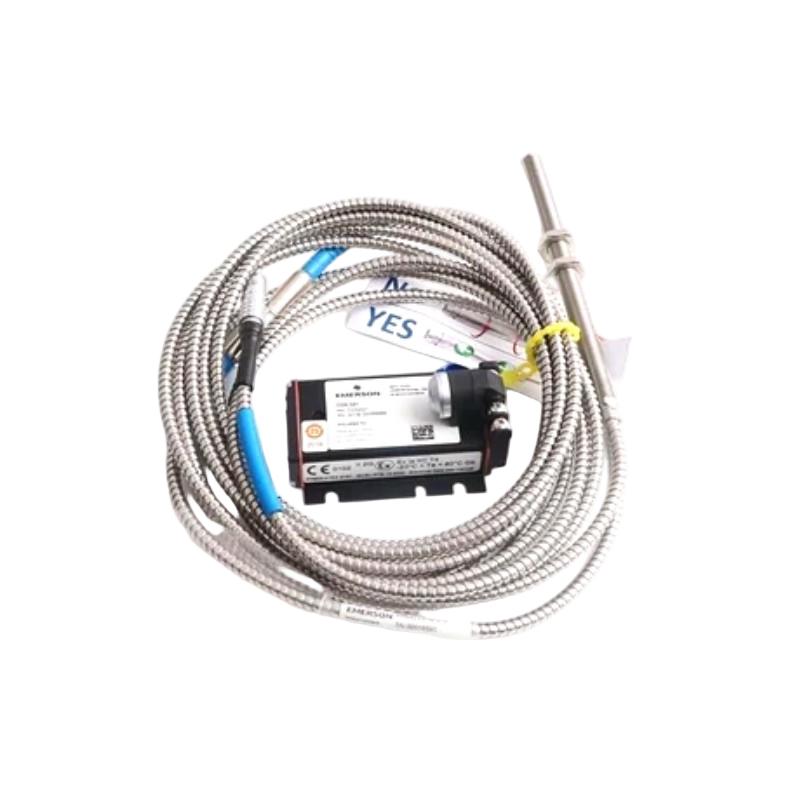

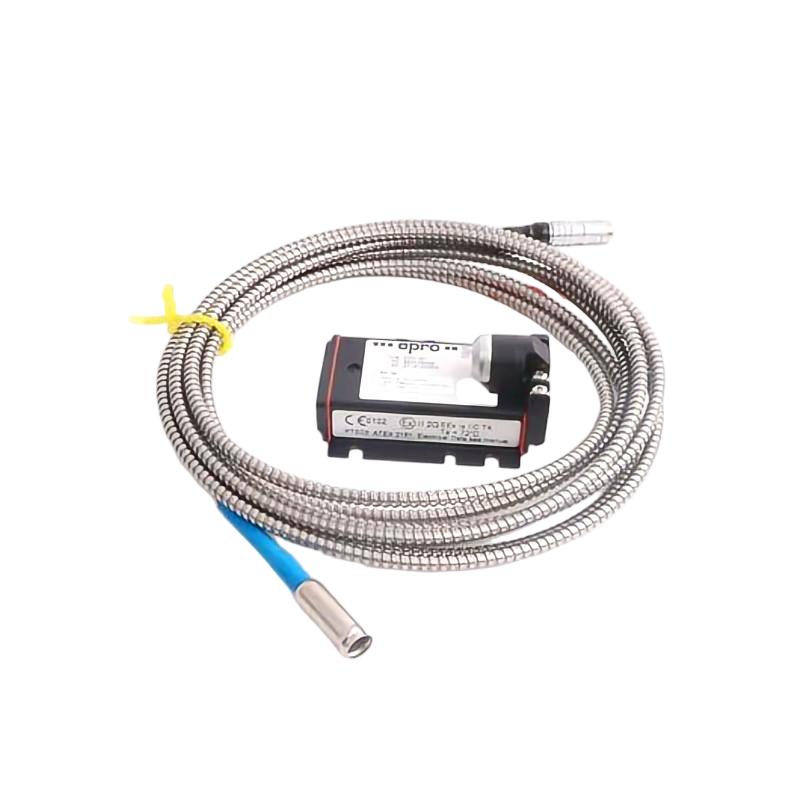

The Epro PR6423/000-001-CN + CON031 Eddy Current Sensor is a precision-engineered solution for monitoring critical rotating equipment. By leveraging eddy current technology, it provides accurate, real-time measurements of displacement and vibration without physical contact.
Its compact 8 mm probe allows installation in tight spaces, while the CON031 signal conditioner ensures reliable signal conversion and transmission. Designed for industrial durability, the system performs consistently in demanding environments, supporting advanced condition monitoring and predictive maintenance strategies.
This sensor system is a key component for maintaining operational efficiency and preventing unexpected equipment failures.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Epro |
| Model Number | PR6423/000-001-CN + CON031 |
| Module Type | Eddy Current Sensor System |
| Measurement Principle | Eddy Current (Non-Contact) |
| Sensor Head Diameter | 8 mm |
| Measurement Type | Displacement / Vibration / Position |
| System Components | Probe + Signal Conditioner (CON031) |
| Installation | Non-contact proximity mounting |
| Application | Rotating Machinery Monitoring |
| Operating Environment | Industrial (High vibration and temperature capable) |
| Dimensions | Sensor Head Diameter: 8 mm |
| Weight | 0.22 kg (0.49 lb) |
Core Industrial Monitoring Uses (Applications)
The Epro PR6423/000-001-CN + CON031 Eddy Current Sensor is a high-precision, non-contact measurement system engineered for continuous monitoring of rotating machinery. By combining an eddy current probe with a dedicated signal conditioner, it ensures stable and accurate detection of mechanical movement.
Typical applications include:
-
Shaft vibration monitoring in steam and gas turbines
-
Axial displacement measurement in compressors and pumps
-
Rotor position tracking in high-speed machinery
-
Bearing clearance monitoring in critical equipment
-
Predictive maintenance systems in petrochemical plants
-
Condition monitoring in power generation facilities
This sensor system is essential for detecting early-stage mechanical faults and maintaining equipment reliability.
Performance Characteristics and Benefits (Advantages)
Integrated Measurement System
Combines probe and CON031 driver for stable and consistent signal output.
Non-Contact Sensing
Eliminates mechanical wear and enables long-term reliable operation.
High Sensitivity and Accuracy
Captures small displacement changes with excellent precision.
Fast Dynamic Response
Suitable for high-speed rotating equipment and transient analysis.
Rugged Industrial Construction
Performs reliably in environments with vibration, temperature variation, and electromagnetic interference.
Technical FAQs (Technical FAQs)
1. What components are included in this sensor system?
It includes an eddy current probe and a CON031 signal conditioner.
2. What parameters can be measured?
Measures shaft displacement, vibration, and position.
3. What is the probe size?
The sensor head diameter is 8 mm, allowing compact installation.
4. What is the function of the CON031 module?
It converts probe signals into standardized output signals for monitoring systems.
5. Is it suitable for high-speed machinery?
Yes. Designed for fast dynamic response and high-frequency measurement.
6. Can it operate in harsh industrial environments?
Yes. Built for high vibration, temperature fluctuations, and electrical noise conditions.
7. Does the sensor require calibration?
Yes. Proper calibration ensures measurement accuracy and reliability.
8. How is it installed?
Mounted close to the target surface with non-contact positioning.
9. What is the advantage of using a probe with a driver module?
Ensures signal stability, accuracy, and compatibility with control systems.
10. Which industries commonly use this system?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
