Technical Overview and Working Principle (Introduction)

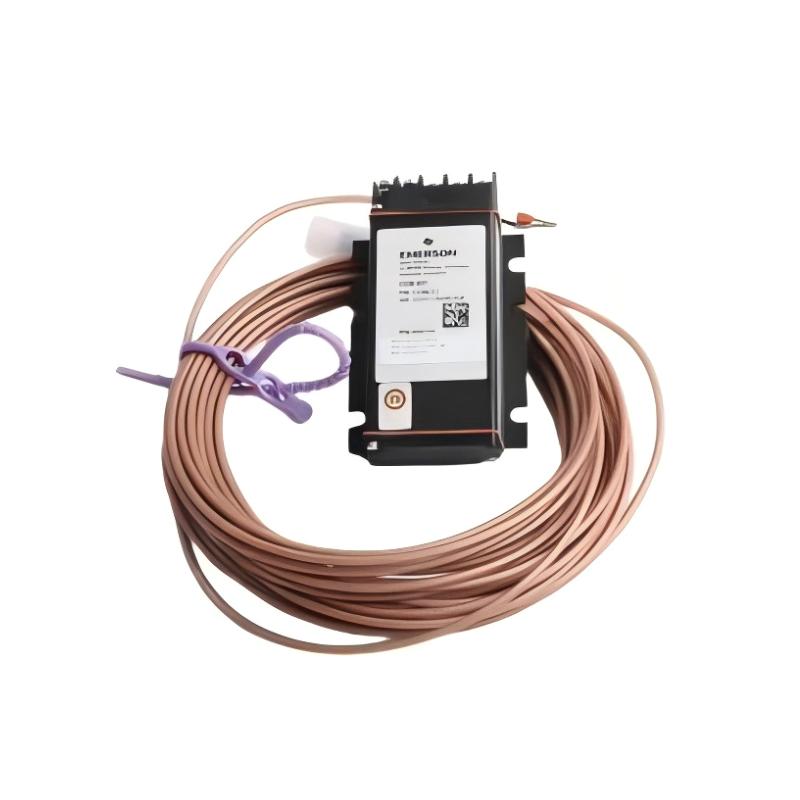

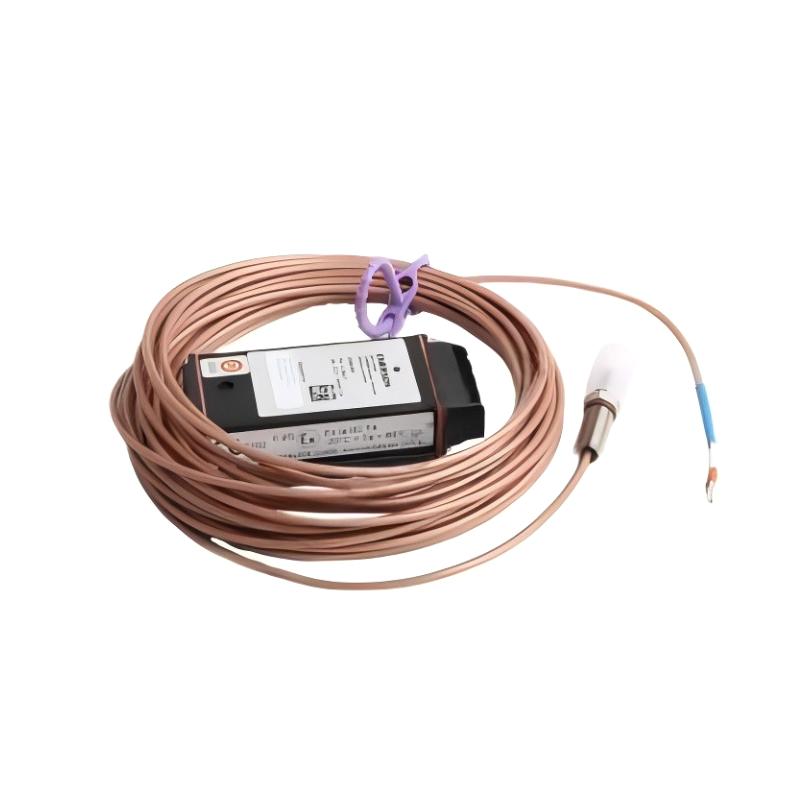

The Epro CON041-CN + PR6423/003-031-CN Eddy Current Sensor is a high-performance non-contact measurement device designed for monitoring displacement and vibration in rotating machinery. Utilizing eddy current technology, it detects changes in distance between the sensor tip and a conductive target, converting these variations into electrical signals.
Its compact 8 mm probe design allows installation in tight spaces while maintaining high measurement accuracy. The sensor is engineered for demanding industrial environments, providing stable performance even under extreme operating conditions.
As part of advanced condition monitoring systems, this sensor supports predictive maintenance strategies, helping reduce downtime and improve equipment reliability.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Epro |
| Model Number | CON041-CN + PR6423/003-031-CN |
| Module Type | Eddy Current Sensor |
| Measurement Principle | Eddy Current (Non-Contact) |
| Sensor Head Diameter | 8 mm |
| Application | Shaft Displacement and Vibration Monitoring |
| Output Type | Analog Signal |
| Installation | Threaded Probe Mount |
| Operating Environment | Industrial, High-Vibration Conditions |
| Dimensions | Sensor Head Diameter: 8 mm |
| Weight | 0.16 kg (0.35 lb) |
Typical Industrial Monitoring Scenarios (Applications)
The Epro CON041-CN + PR6423/003-031-CN Eddy Current Sensor is widely used for high-precision, non-contact measurement of displacement and vibration in rotating machinery. It is a critical component in predictive maintenance and condition monitoring systems.
Common applications include:
-
Turbine shaft vibration monitoring in power plants
-
Compressor and pump condition monitoring in oil & gas facilities
-
Bearing position and shaft displacement measurement
-
High-speed rotating machinery diagnostics
-
Steam and gas turbine protection systems
-
Industrial machinery requiring real-time vibration analysis
This sensor is particularly valuable in environments where direct contact measurement is not feasible or could affect system performance.
Performance Highlights and Engineering Benefits (Advantages)
Non-Contact Measurement Technology
Ensures no physical wear, increasing sensor lifespan and reliability.
High Measurement Accuracy
Delivers precise displacement and vibration readings for critical equipment.
Excellent Dynamic Response
Captures high-frequency vibration signals in real time.
Robust Industrial Design
Performs reliably in high-temperature, high-vibration environments.
Stable Signal Output
Provides consistent data for monitoring and protection systems.
Technical FAQs (Technical FAQs)
1. What is the primary function of this eddy current sensor?
It measures shaft displacement and vibration without physical contact.
2. What does the 8 mm specification refer to?
It indicates the sensor head diameter, which affects measurement range and application suitability.
3. What type of systems is it used with?
Compatible with Epro monitoring systems and vibration analysis platforms.
4. Can it be used for high-speed rotating equipment?
Yes. It is designed for high-speed machinery such as turbines and compressors.
5. How does it maintain measurement accuracy?
By using eddy current principles for precise, non-contact sensing.
6. Is it suitable for harsh industrial environments?
Yes. Built to operate in high temperature, vibration, and electromagnetic conditions.
7. What is the benefit of non-contact sensing?
Eliminates mechanical wear and reduces maintenance requirements.
8. Can it be used for predictive maintenance?
Yes. It is ideal for condition monitoring and early fault detection.
9. What kind of signals does it output?
Provides analog signals corresponding to displacement or vibration levels.
10. Which industries commonly use this sensor?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
