Technical Overview and System Integration (Introduction)

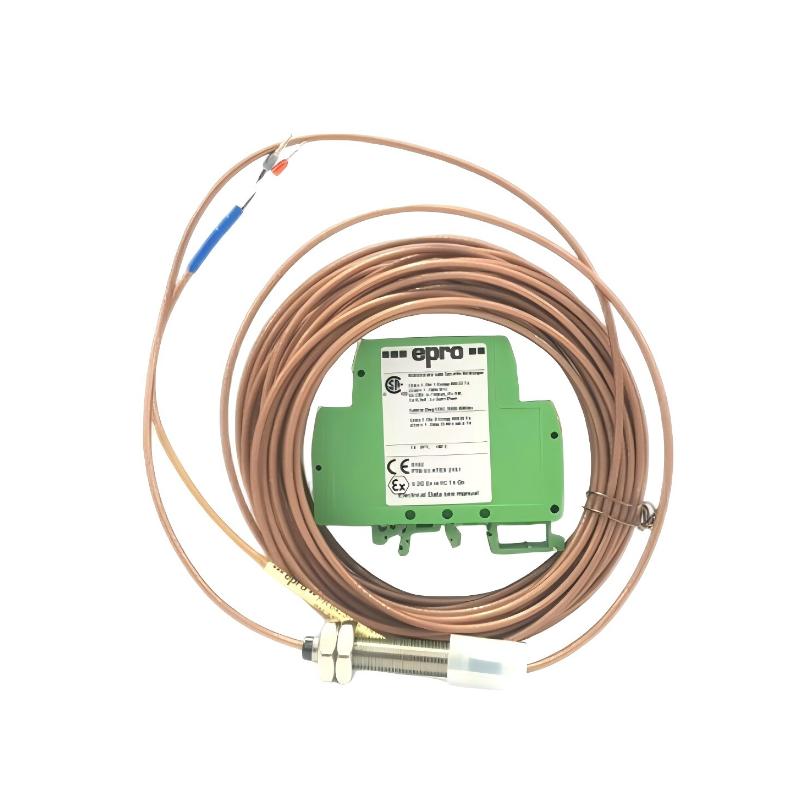

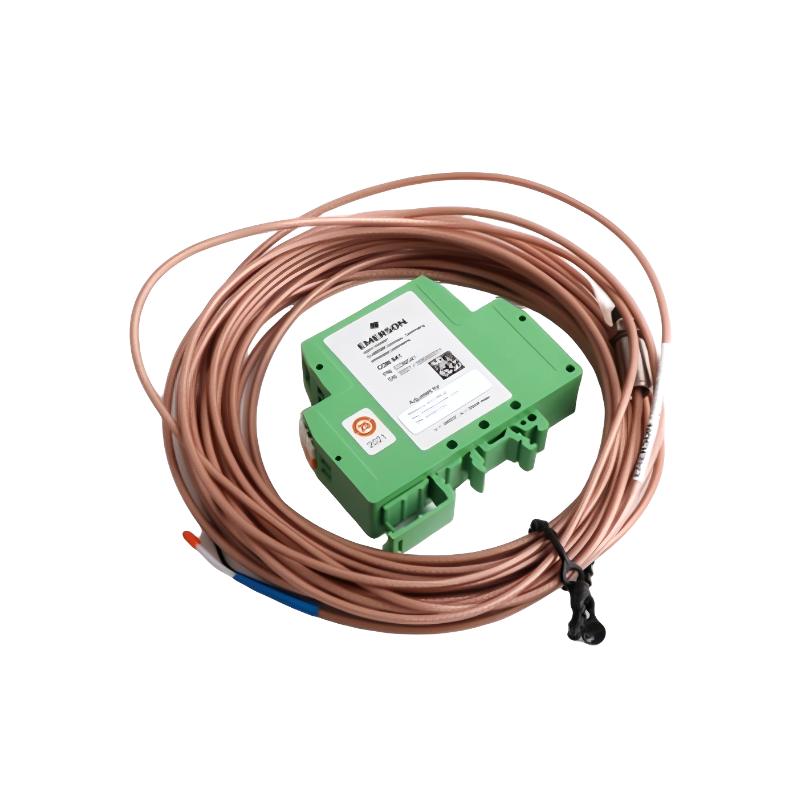

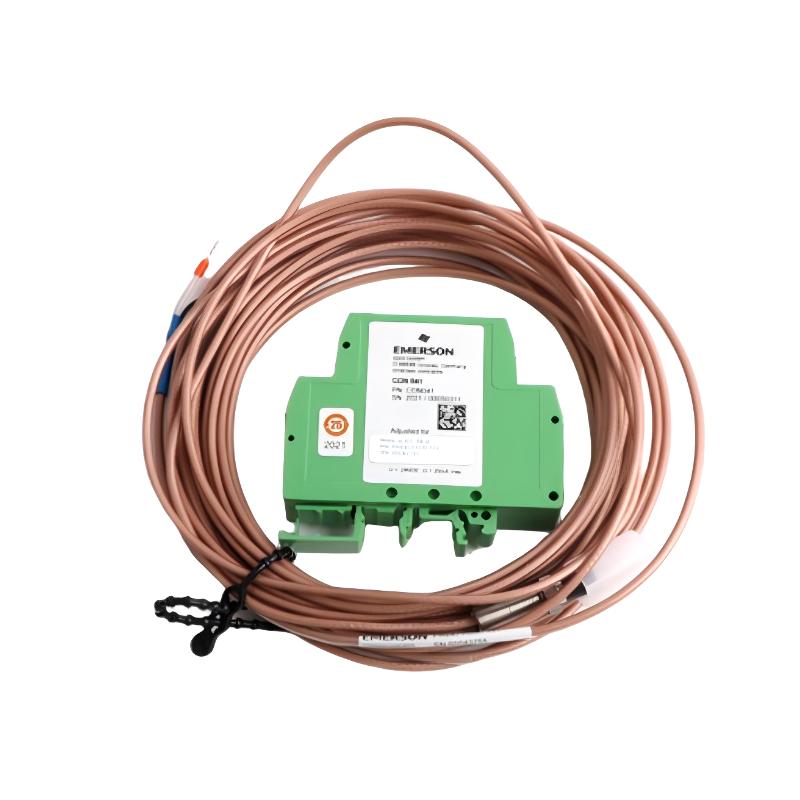

The Epro CON041-CN + PR6423/000-031-CN Eddy Current Sensor is a precision measurement system designed for monitoring critical parameters in rotating machinery. It combines a high-sensitivity probe with a signal conversion module, delivering accurate and stable measurements in real time.
Its non-contact design makes it ideal for applications where mechanical wear must be minimized, while its robust construction ensures reliable operation in demanding industrial environments. The system is widely used in predictive maintenance and machine protection systems, helping engineers detect faults early and prevent costly downtime.
With its compact form factor and proven measurement technology, this sensor system is a trusted solution for high-performance industrial monitoring.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Epro |
| Model Number | CON041-CN + PR6423/000-031-CN |
| Product Type | Eddy Current Sensor |
| Measurement Type | Non-contact Displacement / Vibration |
| Sensor Head Diameter | 8 mm |
| Output Type | Analog Signal (via driver module) |
| System Components | Sensor Probe + Signal Converter |
| Application | Rotating Machinery Monitoring |
| Operating Principle | Eddy Current |
| Mounting | Threaded Probe Installation |
| Operating Temperature | Industrial-grade (varies by configuration) |
| Dimensions | Compact probe design (8 mm head) |
| Weight | 0.16 kg (0.35 lb) |
Industrial Measurement Scenarios (Applications)
The Epro CON041-CN + PR6423/000-031-CN Eddy Current Sensor is a high-precision non-contact measurement solution designed for monitoring displacement, vibration, and shaft position in critical rotating machinery. With an 8 mm sensor head, it is widely used in applications where accuracy and reliability are essential.
Typical applications include:
-
Turbine shaft vibration monitoring in power plants
-
Compressor and pump shaft displacement measurement
-
Bearing condition monitoring in rotating equipment
-
Steam and gas turbine protection systems
-
High-speed machinery alignment and position tracking
-
Predictive maintenance systems in heavy industry
This sensor is especially valuable in environments where contact measurement is not feasible or could cause wear.
Performance Characteristics and Benefits (Advantages)
High-Precision Measurement
Provides accurate displacement and vibration readings with excellent repeatability.
Non-Contact Sensing Technology
Eliminates mechanical wear, extending operational lifespan.
Compact 8 mm Sensor Head
Ideal for installations with limited space or tight mounting constraints.
Strong Anti-Interference Capability
Maintains stable performance in electrically noisy industrial environments.
Reliable for Critical Machinery
Widely used in safety-critical systems requiring continuous monitoring.
Technical FAQs (Technical FAQs)
1. What is the primary function of this sensor?
It measures shaft displacement, vibration, and position using eddy current technology.
2. What does the 8 mm specification refer to?
It refers to the sensor head diameter, suitable for compact installations.
3. Is this a contact or non-contact sensor?
It is a non-contact sensor, reducing wear and maintenance needs.
4. What types of machinery is it used for?
Commonly used in turbines, compressors, pumps, and motors.
5. How does eddy current sensing work?
It detects changes in electromagnetic fields caused by conductive targets.
6. Can it operate in harsh environments?
Yes. Designed for high-temperature and high-vibration industrial conditions.
7. What is the role of the CON041-CN module?
It acts as the signal converter/driver for the PR6423 sensor probe.
8. Does it require calibration?
Yes. Proper calibration ensures measurement accuracy and system reliability.
9. Is it suitable for continuous monitoring systems?
Yes. Ideal for real-time condition monitoring and protection systems.
10. What industries typically use this sensor?
Power generation, oil & gas, petrochemical, and heavy manufacturing industries.
