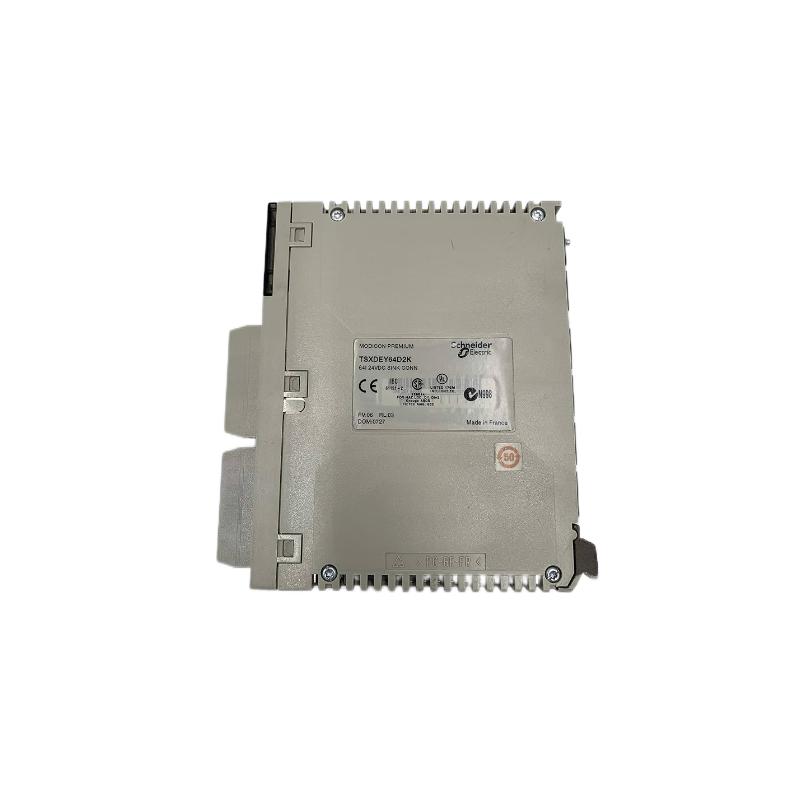

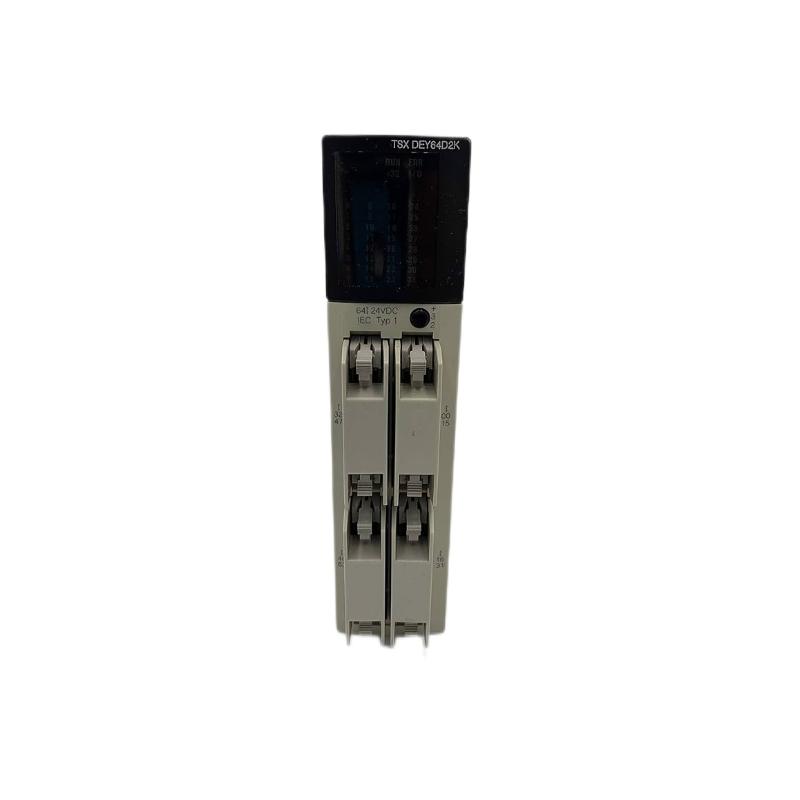

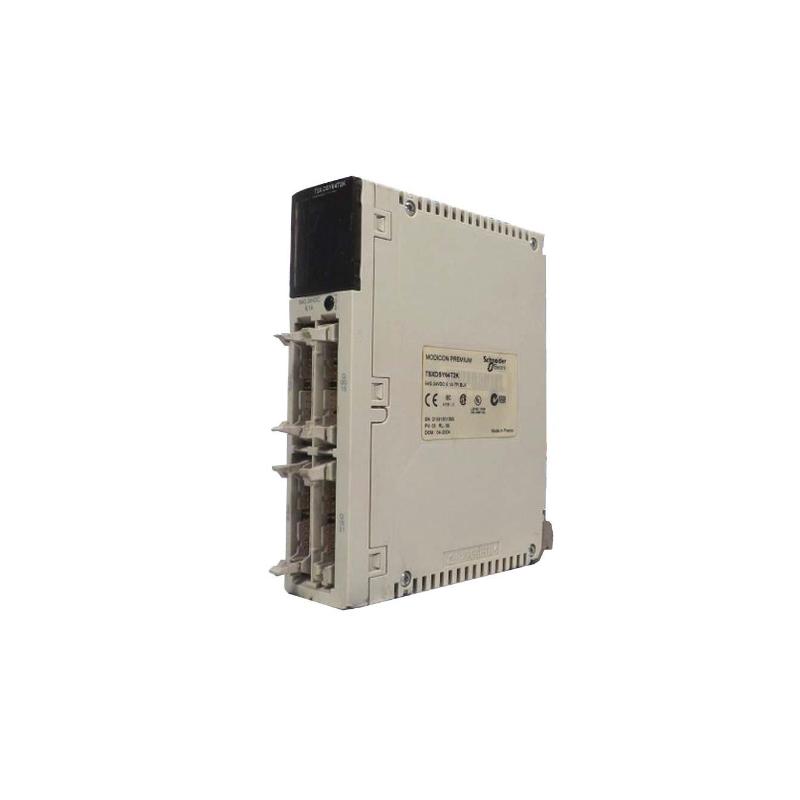

Schneider TSXDEY64D2K Discrete input modules

Name: Schneider TSXDEY64D2K Discrete input modules
Brand: Schneider PLC
SKU: 6062
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Schneider PLC
Item No.:TSXDEY64D2K
Product Origin:France
Product Dimensions:24.0 × 5.0 × 7.5 cm
Product Weight:1.2kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The TSXDEY64D2K is a high-capacity 64-channel discrete input module designed for the Schneider Electric Modicon Premium PLC platform. Built for large-scale industrial automation, this module provides rapid and reliable digital signal acquisition, enabling precise monitoring and control of complex machinery and production systems. Its robust design ensures long-term durability, while integrated diagnostics simplify maintenance. Ideal for factories, process automation, and high-density control systems, the TSXDEY64D2K combines performance, efficiency, and reliability in one compact package.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Module Type	Discrete Input Module (64 channels)
PLC Platform	Modicon Premium
Input Type	Sourcing (PNP) or Sinking (NPN) selectable
Nominal Input Voltage	24 V DC
Nominal Input Current	6 mA per channel
Electrical Isolation	Opto-isolated inputs
Response Time	<1 ms
Status Indicators	LED per channel for input state
Operating Temperature	0 °C to 60 °C
Storage Temperature	‑25 °C to 70 °C
Humidity	5 %–95 % non-condensing
Dimensions (approx.)	24.0 × 5.0 × 7.5 cm (9.45″×1.97″×2.95″)
Weight	~1.2 kg (2.65 lb)

Applications

The TSXDEY64D2K is ideal for large-scale industrial automation where high-density digital inputs are required:

Full-scale factory automation and process control
Complex conveyor systems with multiple sensors
Safety monitoring and emergency stop systems
Large packaging, assembly, and material handling operations
Expanding I/O capabilities in Modicon Premium PLC racks

Its modular design ensures easy integration into existing control cabinets while supporting high channel counts without sacrificing reliability.

Advantages

High Channel Density: 64 inputs in a single module maximize control efficiency
Rapid Response: Sub-millisecond signal detection ensures real-time monitoring
Electrical Protection: Opto-isolated inputs protect PLCs from electrical disturbances
Integrated Diagnostics: LEDs for each channel simplify troubleshooting
Flexible Connectivity: Supports both PNP and NPN devices for versatile applications

Technical FAQs

How many input channels does TSXDEY64D2K provide?
- 64 digital input channels.
What types of input signals are supported?
- Both sourcing (PNP) and sinking (NPN).
What is the nominal input voltage?
- 24 V DC.
Are the inputs electrically isolated?
- Yes, all inputs are opto-isolated.
What is the response time of the module?
- Less than 1 ms.
Does it have diagnostic LEDs?
- Yes, one per channel for input state monitoring.
Can it operate in high-humidity environments?
- Yes, supports 5 %–95 % non-condensing humidity.
Is it compatible with Modicon Premium PLC racks?
- Fully compatible with standard Modicon Premium systems.
What is the operating temperature range?
- 0 °C to 60 °C.
Can this module be used for safety monitoring or emergency stop systems?
- Yes, it reliably handles safety-critical digital inputs.
