Introduction

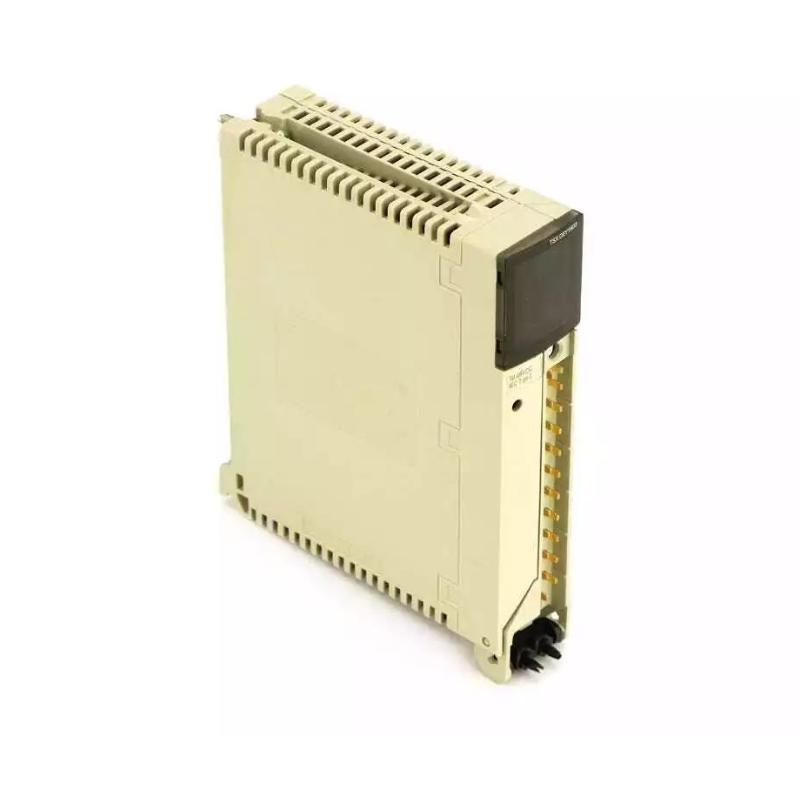

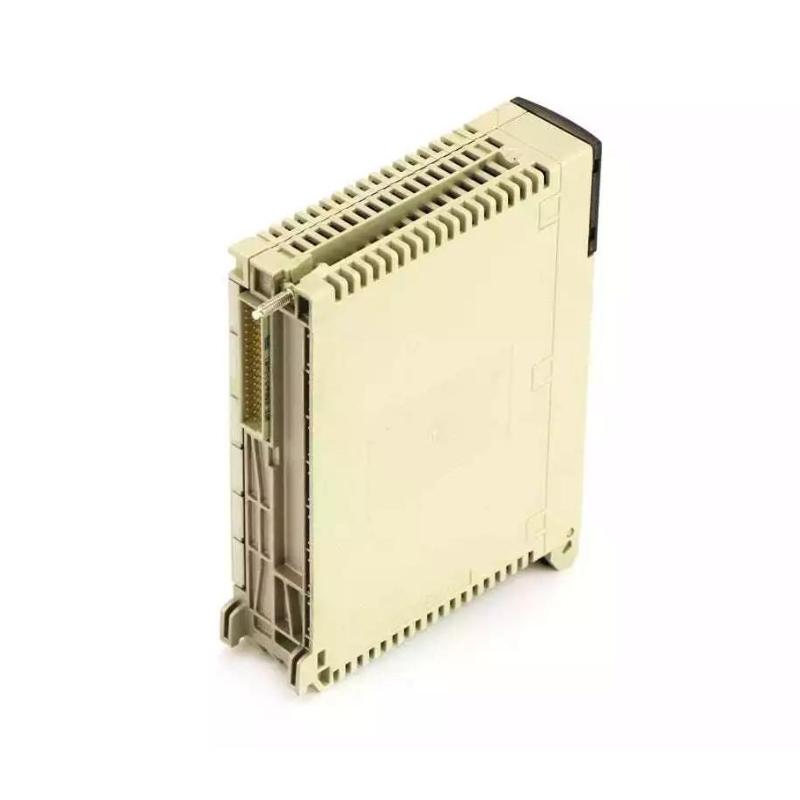

The TSXDEY16D3 is a high-performance 16-channel discrete input module designed for the Schneider Electric Modicon Premium PLC platform. It provides reliable digital input acquisition for industrial automation systems, allowing operators to monitor and control machinery with precision and confidence. With fast response times, robust electrical protection, and a compact design, this module is ideal for manufacturing lines, process control, and machinery automation. Its advanced diagnostics and high reliability make it a go-to choice for engineers seeking performance and longevity in a single package.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Discrete Input Module |
| Platform | Modicon Premium Automation |
| Number of Channels | 16 digital inputs |
| Input Type | Sourcing (PNP) or sinking (NPN) selectable |
| Input Voltage | 24 V DC |
| Nominal Input Current | 6 mA per channel |
| Isolation | Opto-isolated inputs for electrical protection |
| Response Time | <1 ms typical |
| Status Indicators | LED per channel for input state |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | ‑25 °C to 70 °C |
| Humidity | 5 %–95 % (non-condensing) |
| Dimensions (approx.) | 12.0 × 3.0 × 7.5 cm (4.7″×1.2″×2.95″) |
| Weight | ~0.38 kg (0.84 lb) |
