Introduction

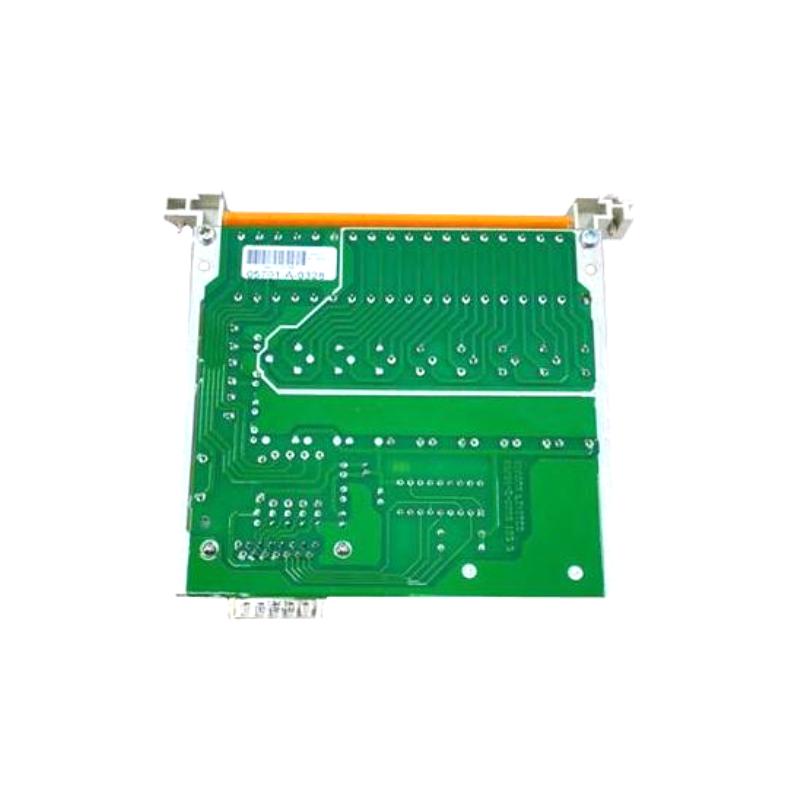

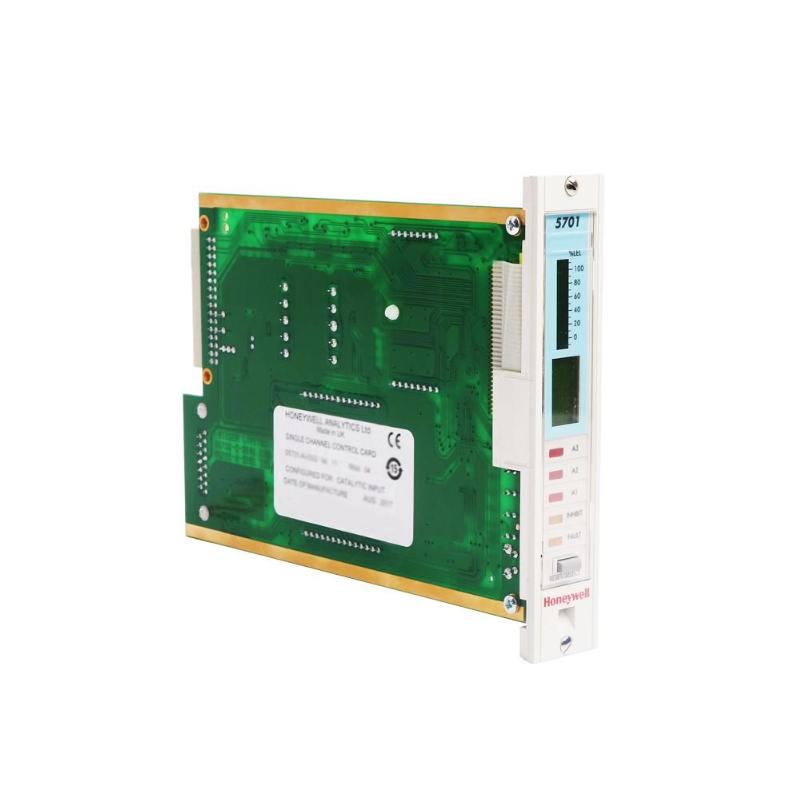

The Honeywell 05701-A-0328 Single-Channel Control Card, part of the System 57 Series, is designed to deliver precise, reliable, and responsive control for industrial automation applications. Optimized for single-channel operations, this module provides accurate signal monitoring and seamless integration with Honeywell System 57 control panels. Its robust construction ensures long-term stability, reducing downtime while maintaining optimal process efficiency. Ideal for both new installations and retrofits, it balances performance and durability in a compact design.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 05701-A-0328 |
| Module Type | Single-Channel Control Card |
| Series | System 57 |
| Input/Output | Digital I/O, control signal interface |
| Operating Voltage | 24 VDC nominal |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions (L × W × H) | 125 mm × 90 mm × 30 mm (4.92" × 3.54" × 1.18") |
| Weight | 0.48 kg (1.06 lbs) |
| Mounting | Panel mount or slot integration |
| Certifications | CE, UL recognized, RoHS compliant |
