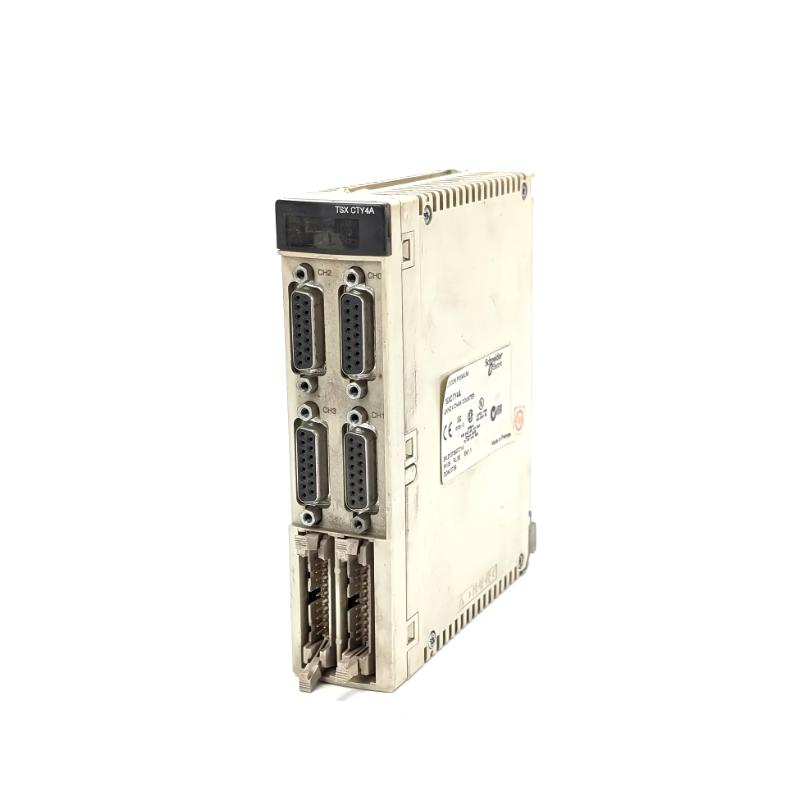

Schneider TSXCTY4A Counter Module

Name: Schneider TSXCTY4A Counter Module
Brand: Schneider PLC
SKU: 6057
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Schneider PLC
Item No.:TSXCTY4A
Product Origin:France
Product Dimensions: 5.1 × 15.2 × 7.6 cm
Product Weight:0.43 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The TSXCTY4A Counter Module is a high‑performance industrial counter interface designed for integration with Schneider Electric Modicon Premium PLC systems. Built for precise and reliable pulse counting in demanding automation environments, this module stands out with its 4 independent counting channels, high input frequency capability, and robust electrical protection features. Engineered for professionals who expect accuracy, durability, and seamless system interoperability, the TSXCTY4A finds use in packaging, conveyance, machine control, and advanced motion‑based monitoring tasks.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Type	Counter Module (4‑channel)
Platform	Modicon Premium Automation
Counting Frequency	Up to 40 kHz
Input Logic	Positive
Input Compatibility	Incremental encoders (5 V/RS422 & 10‑30 V), proximity sensors
Output Voltage	24 V DC
Nominal Output Current	0.5 A
Power Dissipation	8 – 11.5 W
Connection Interfaces	HE‑10 20‑pin & SUB‑D 15 connectors
LED Indicators	RUN, ERR, I/O, channel diagnostics
Operating Temperature	0 °C to 60 °C
Storage Temperature	‑25 °C to 70 °C
Humidity	5 %‑95 % (non‑condensing)

Applications

The TSXCTY4A is suitable for diverse industrial and automation applications where high-speed counting and precise input capture are essential:

Production line monitoring and real-time count tracking
Conveyor indexing and part counting
Encoder signal processing in motion control systems
Machinery event detection and digital input aggregation
OEM and legacy Modicon Premium installations requiring long-term reliability

Its compact design allows easy integration into industrial panels and control cabinets without compromising space.

Advantages

High-Speed Responsiveness: Handles up to 40 kHz inputs for fast sensors and encoders
Multi-Channel Capability: Four independent channels for complex monitoring needs
Robust Electrical Protection: Built-in current limiting and overvoltage safeguards
Diagnostic Feedback: Integrated LED indicators simplify troubleshooting
Legacy Compatibility: Seamless integration with existing Modicon Premium PLC systems

Technical FAQs

Can the TSXCTY4A handle TTL 5 V signals from encoders?
- Yes, it is compatible with 5 V TTL/RS422 incremental encoder inputs.
Is this module still supported by Schneider Electric?
- It is supported with extended lifecycle maintenance and service.
What mounting options are available?
- Standard PLC rack or Modicon Premium bus mounting is supported.
How many counting channels does the module provide?
- Four independent channels for comprehensive input capture.
What is the maximum input frequency?
- Up to 40 kHz for high-speed counting applications.
Can it be used with proximity sensors?
- Yes, it supports 2/3-wire PNP/NPN proximity sensors.
Does the module offer status LEDs?
- Yes, including RUN, ERR, I/O, and channel diagnostics.
What protections are built into the outputs?
- Thermal tripping and current limiting enhance reliability.
Is it suitable for harsh industrial environments?
- Yes, it operates in a broad humidity and temperature range.
Can this module replace older TSXCTY models?
- Yes, but verify PLC system compatibility before replacement.
