Product Introduction

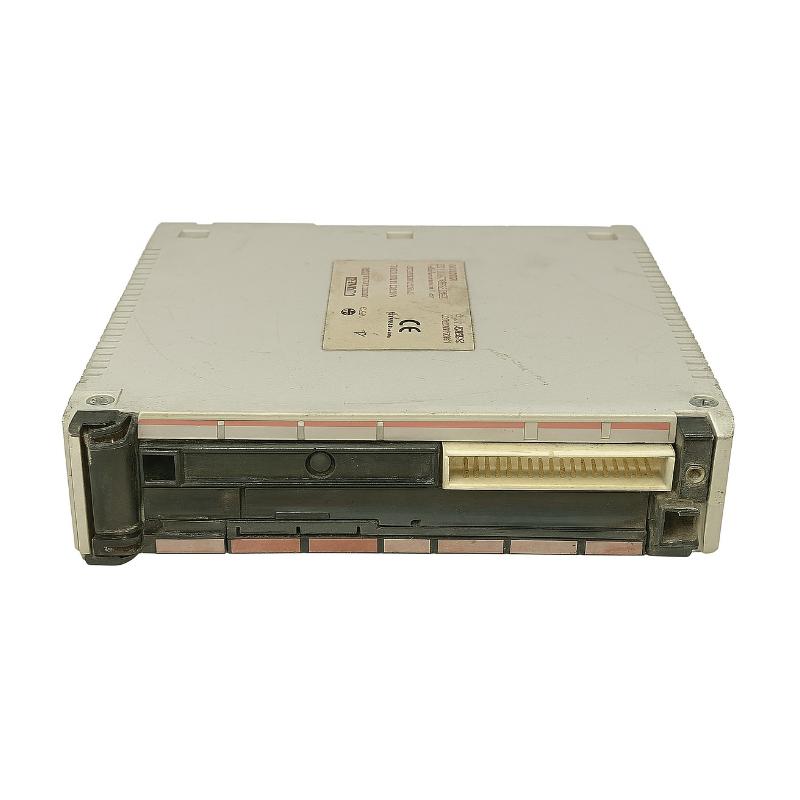

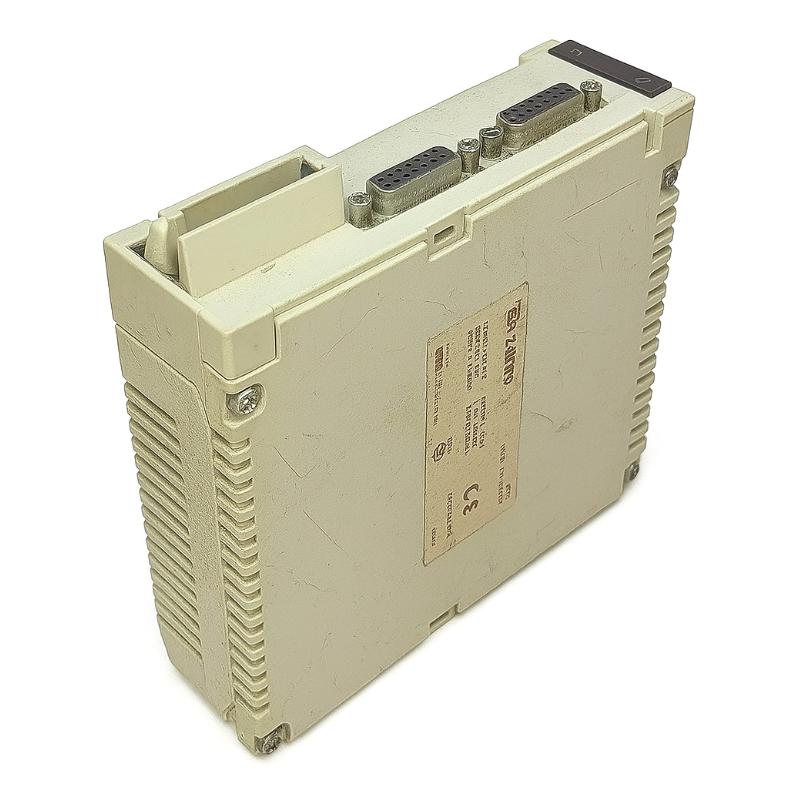

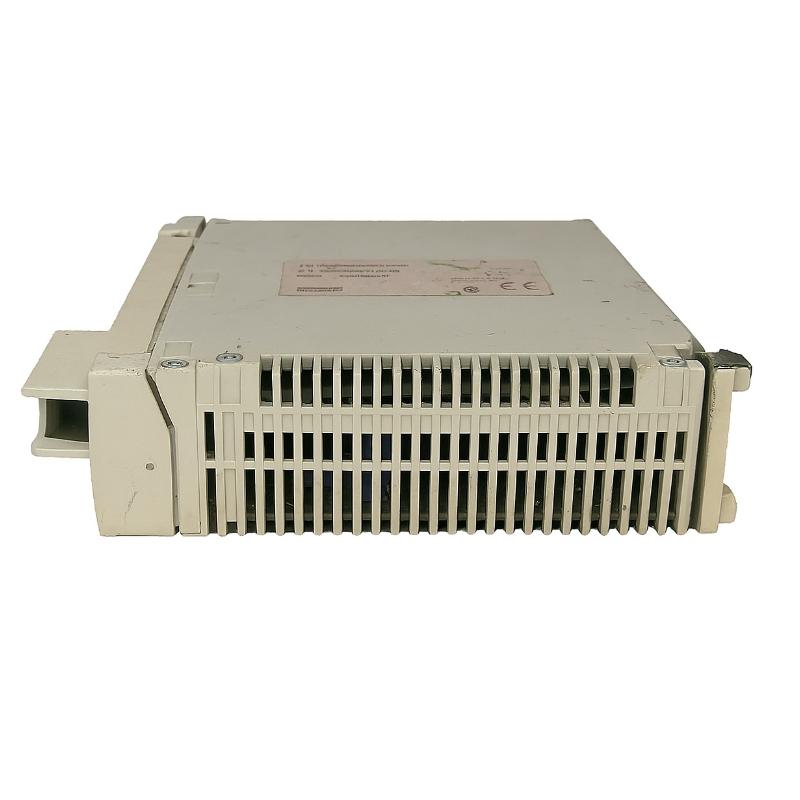

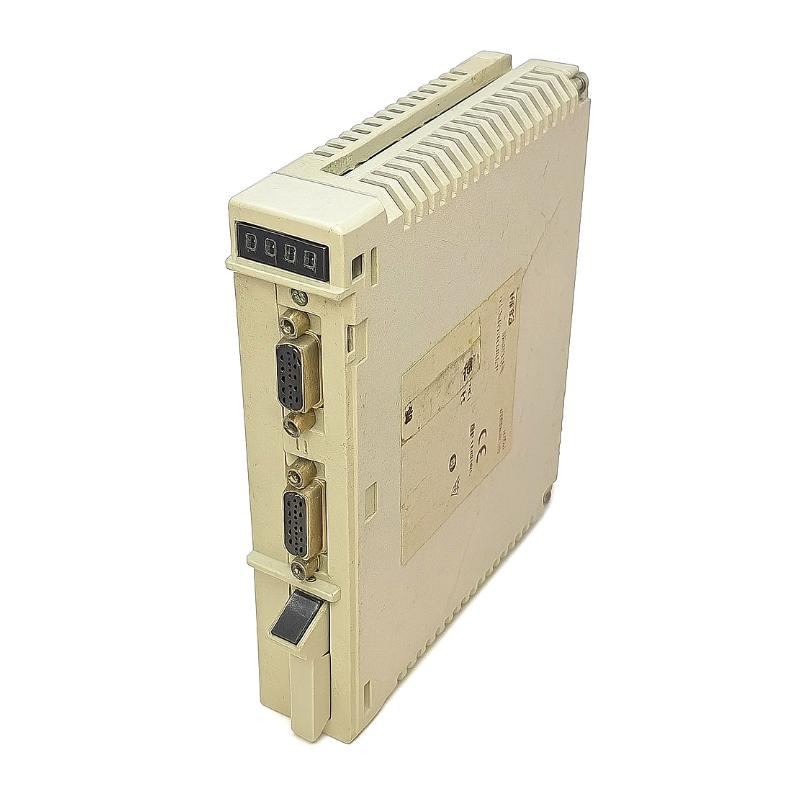

The Schneider TSXCFY21 Motion Control Module is a dedicated industrial automation component designed to provide advanced motion control capabilities within Schneider Electric’s TSX/Modicon PLC architecture. This module enables the execution of precise motion sequences, positioning tasks, and coordinated axis control directly from the PLC backplane, with high accuracy and deterministic response.
Engineered for use in complex motion systems, the TSXCFY21 integrates seamlessly with other TSX I/O and motion modules to form a scalable automation solution. Its real‑time processing ensures smooth motion profiles, tight synchronization, and reliable performance — critical in machine applications that require controlled acceleration, deceleration, and position control.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Schneider Electric |
| Model Number | TSXCFY21 |
| Module Type | Motion Control Module |
| Compatible PLC Family | TSX/Modicon |
| Function | Digital motion control and positioning |
| Supported Motion Axes | Configurable via software |
| Update Rate | Real‑time control cycle |
| Communication Interface | Backplane connection to PLC rack |
| Programming Software | Unity Pro / Motion Logic tools |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Relative Humidity | 5% – 95% (non‑condensing) |
| Mounting | Standard TSX rack mount |
| Dimensions | Standard TSX module form factor |
| Weight | Approx. 0.25 kg |
Industrial Applications
The TSXCFY21 Motion Control Module is tailored for automation systems that require precise movement and coordination of actuators, servos, and positioning elements. Typical applications include:
-
Multi‑axis conveyor synchronization
-
Robotic pick‑and‑place sequences
-
Packaging machinery motion control
-
Automated assembly systems
-
Indexing tables and turntables
-
Automated guided vehicles (AGVs)
-
Machine tools and cutting systems
By offloading motion profiles and position control logic into dedicated hardware, this module enhances performance, reduces PLC cycle load, and delivers reliable motion behavior.
Key Advantages
Real‑Time Motion Execution
Designed to perform motion control tasks within deterministic PLC cycles, ensuring precise and responsive movement.
Coordinated Axis Support
Allows synchronization across multiple motion axes for complex motion sequences.
Software‑Driven Flexibility
Motion profiles, speed curves, and positioning routines are configured using Schneider motion programming tools, enabling on‑the‑fly adjustments without hardware changes.
Reduced Mechanical Wear
Smooth motion control reduces mechanical stress and wear on actuators and transmission elements.
Seamless Integration
Integrates directly into the TSX/Modicon PLC rack and communicates over the backplane with minimal wiring complexity.
Technical FAQs
1. What is the main function of the TSXCFY21 module?
It delivers motion control and positioning capabilities for modular PLC automation systems.
2. Which PLC family is it compatible with?
It is designed for use with Schneider Electric TSX/Modicon PLC systems.
3. What types of motion tasks can it handle?
The module supports coordinated motion sequences, positioning, speed profiling, and axis synchronization.
4. How is motion configured?
Motion tasks, acceleration profiles, and axis coordination are programmed via software tools such as Unity Pro.
5. How many axes can it control?
The number of axes and control complexity depends on PLC configuration and software support.
6. Does it require special motion I/O hardware?
Dedicated motion I/O modules or servo drives may be needed depending on the specific application.
7. Can it operate in real time?
Yes, it executes motion control logic within the PLC’s real‑time operation cycle.
8. What environmental conditions can it withstand?
It is designed for industrial conditions with operation from 0°C to +55°C and humidity tolerance up to 95%.
9. Is hot‑swap supported?
Hot‑swap support depends on the PLC rack and overall system design, and is not universally available.
10. How is it mounted?
It mounts directly into the standard TSX/Modicon PLC rack.
