Product Introduction

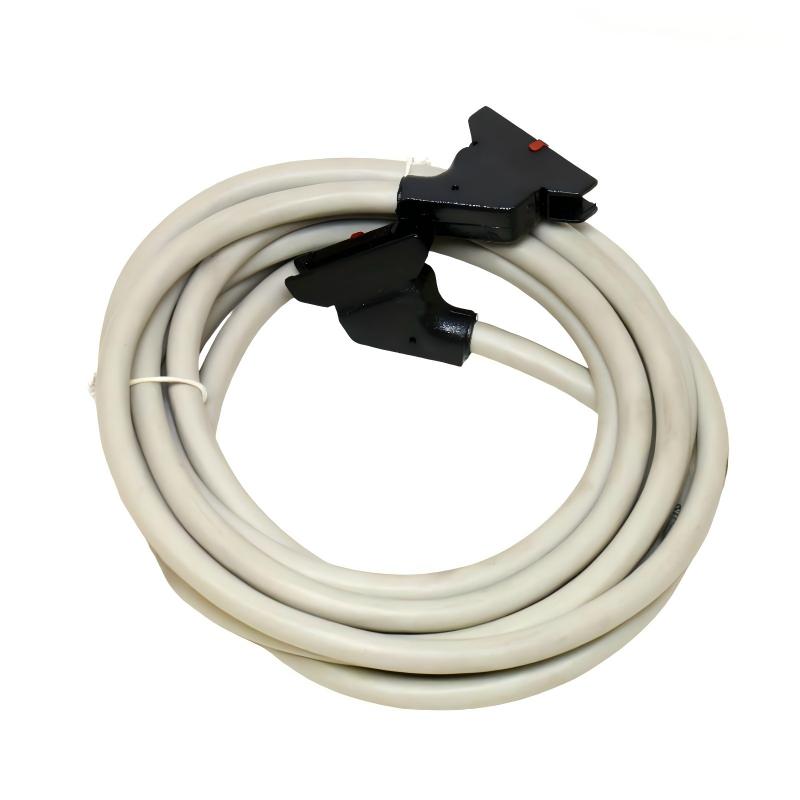

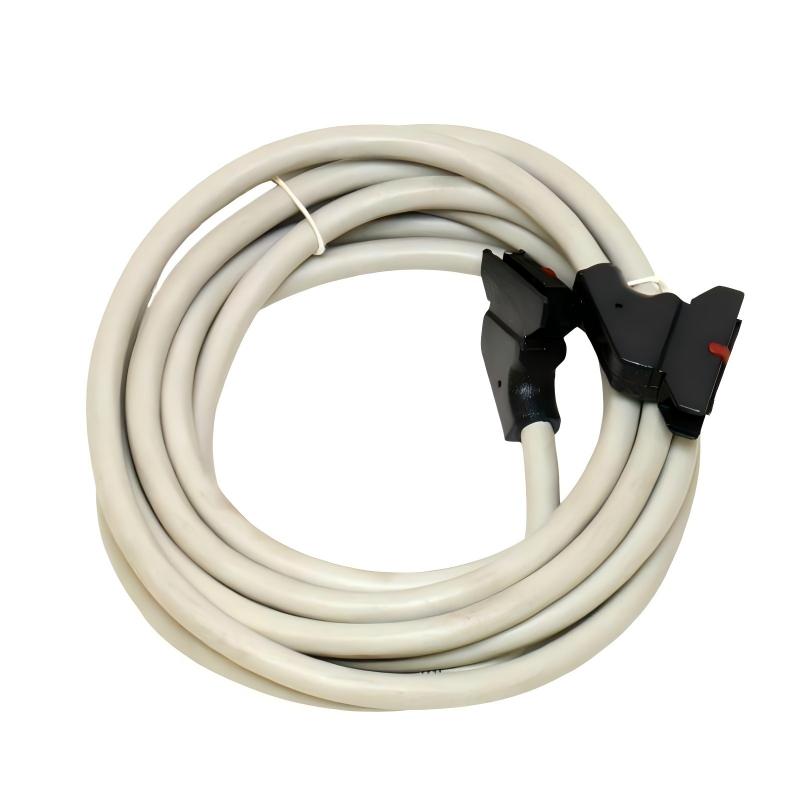

The Schneider TSXCDP303 Connecting Cable is a durable and reliable industrial‑grade connection cable engineered for Schneider Electric Modicon Premium automation systems. Designed to link PLC I/O modules or sub‑bases directly to the main PLC rack, this cable simplifies wiring and ensures dependable signal communication between control hardware components.
With robust construction and standardized connectors, the TSXCDP303 helps eliminate complex wiring errors in industrial control panels, making it ideal for automation professionals seeking a practical, plug‑and‑play connection solution in medium‑to‑large PLC installations.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Schneider Electric |
| Model Number | TSXCDP303 |
| Product Type | Modicon Premium Connecting Cable |
| Compatibility | Sub‑base ABE7H16R20 and selected TSX/Modicon modules |
| Cable Length | 3 m (approx. 9.8 ft) |
| Connectors | HE10 20‑way connector — both ends |
| Wire Gauge | AWG 22 |
| Wire Cross‑Section | ~0.324 mm² |
| Shielding | Industrial PVC cable jacket |
| Mounting | Inline cable connection |
| Weight | ~0.41 kg |
| Signal Compatibility | Digital I/O interfaces |
| Environmental Compliance | RoHS compliant |
| Typical Use | PLC extension, module and sub‑base wiring |
Industrial Applications
This connecting cable is typically employed in industrial automation environments where secure and tidy signal wiring is required between control components such as:
-
PLC I/O modules and sub‑bases
-
Digital interface adapters
-
Expansion points with HE10 connector systems
-
Control cabinets in manufacturing lines
-
Machine automation panels
-
Conveyor and process control installations
Because it uses standard HE10 connectors, the TSXCDP303 ensures a dependable interface for digital signal distribution in industrial settings.
Advantages
Reliable Connection Integrity
Dual HE10 20‑way connectors provide solid electrical contact and secure mechanical fit without loose wiring points — crucial in vibration‑prone environments.
Standardized Length
With a 3 m length, this cable offers flexibility in cabinet layout and routing without requiring custom lengths or additional adapters.
Robust Build for Industrial Settings
Designed with industrial‑grade PVC jacket and high‑quality conductor materials, the cable handles typical plant conditions with resilience.
Easy Integration
Plug‑and‑play design ensures quick installation between PLC racks and compatible modules or sub‑bases without special tools.
Compliance and Safety
RoHS compliance means the cable avoids hazardous materials, aligning with modern environmental and safety standards.
Technical FAQs
1. What connection type does the TSXCDP303 use?
It uses HE10 20‑way connectors on both ends for secure plug‑in wiring.
2. How long is this connecting cable?
The standard length is 3 m (9.8 ft), suited for most control panel layouts.
3. What products is this cable compatible with?
Designed for use with Modicon Premium hardware and compatible sub‑bases like the ABE7H16R20 interface.
4. What gauge wire does it use?
The cable uses AWG 22 conductors (~0.324 mm²).
5. Is it suitable for analog signal wiring?
This cable is primarily used for digital I/O connections and not recommended for high‑precision analog signals.
6. What environments can it be installed in?
It’s built for general industrial control panels and cabinet environments within typical electrical installation standards.
7. Does this cable include shielding?
The jacket is industrial‑grade PVC; additional shielding depends on specific panel design practices.
8. What connector ends does it have?
Both ends are HE10 20‑way connectors, ensuring consistent module and PLC side connections.
9. Can this cable replace custom wiring?
Yes — it simplifies field wiring by eliminating the need for manual multi‑wire connections between matched HE10 interfaces.
10. Is it RoHS compliant?
Yes, it meets modern materials safety standards by excluding restricted hazardous substances.
