Product Introduction

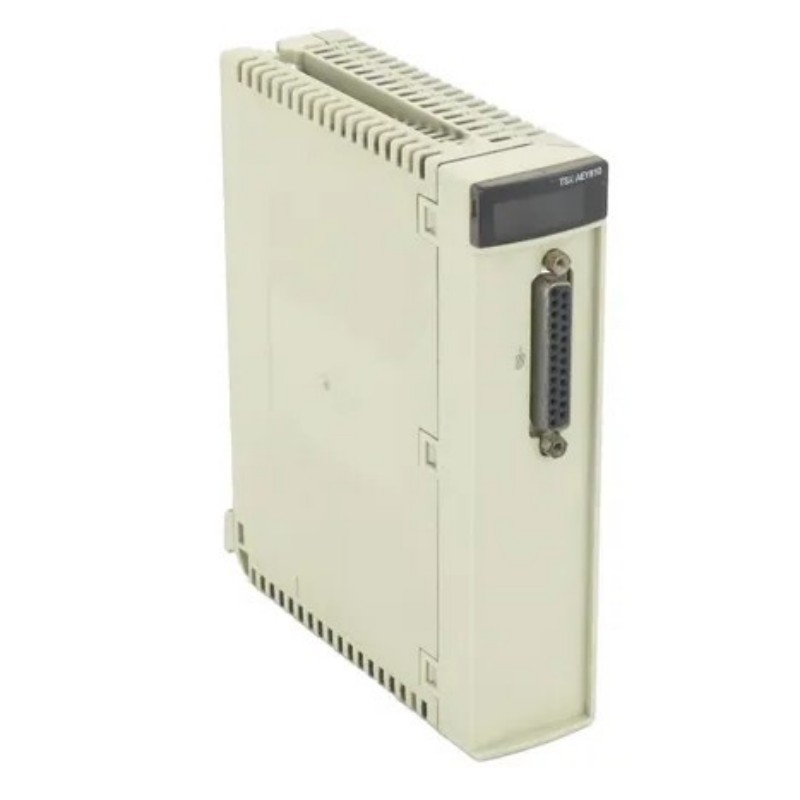

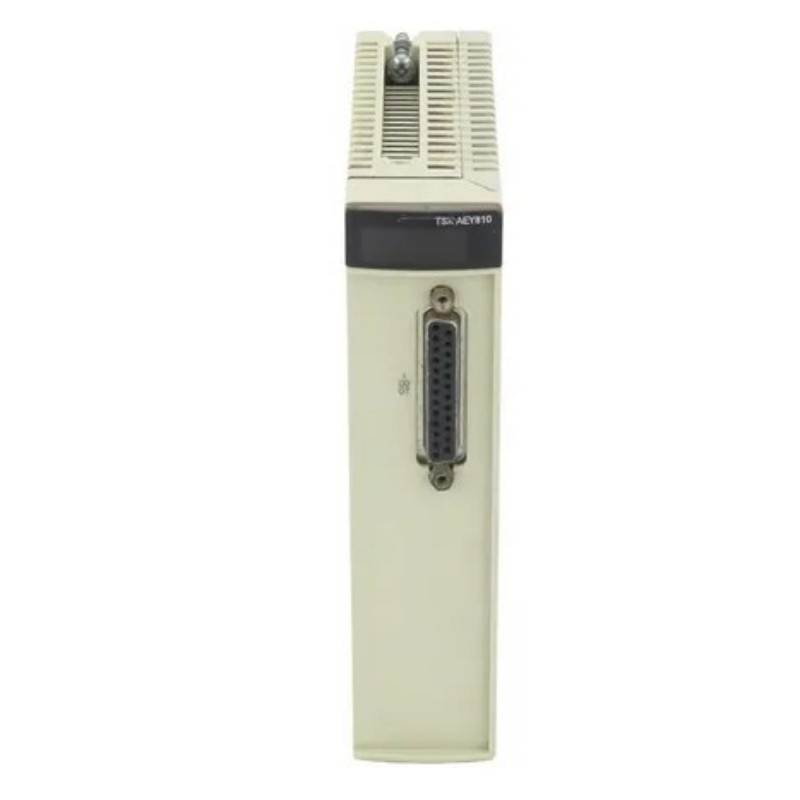

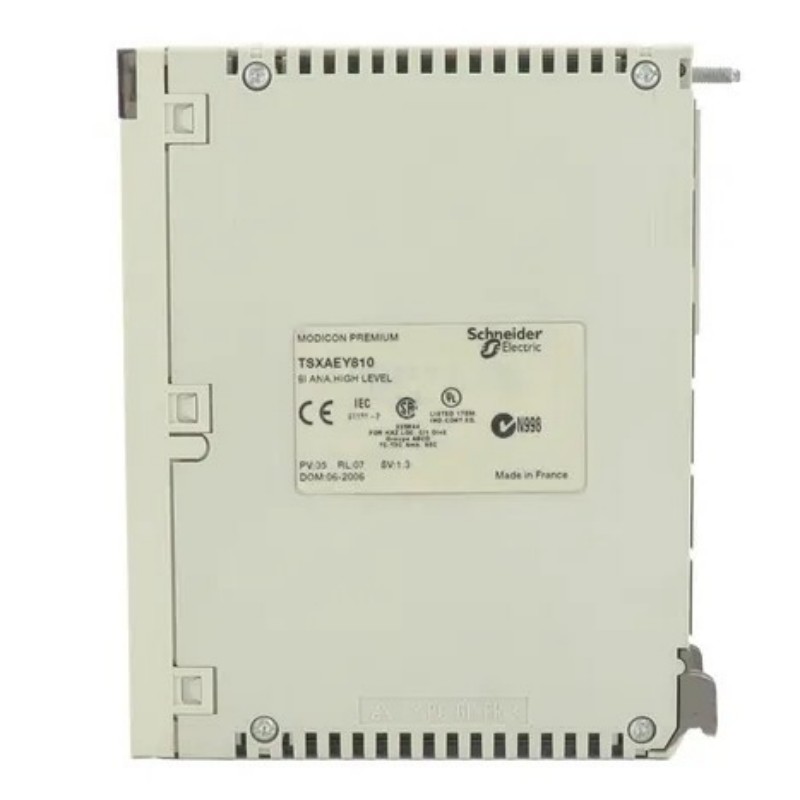

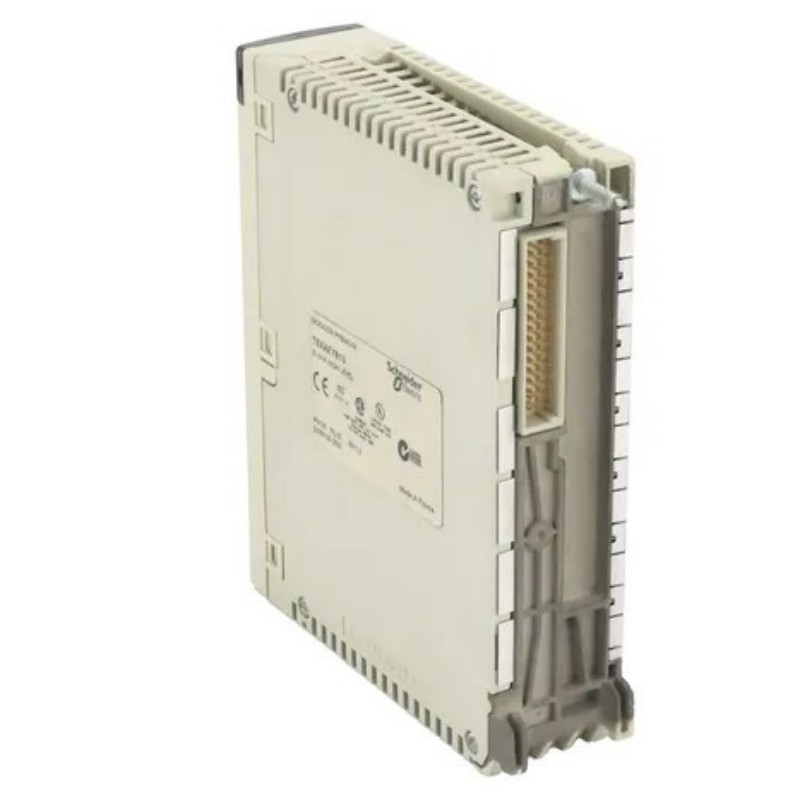

The Schneider TSXAEY810 Analog Input Module is a professional‑grade analog acquisition device designed for modular PLC systems used in industrial automation. As part of the Schneider Electric TSX/Modicon I/O family, this module provides highly accurate analog signal input capabilities, enabling seamless integration of real‑world process measurements into programmable logic controller systems.
Engineered for demanding environments, the TSXAEY810 supports multiple input types and delivers reliable performance for monitoring key process variables such as voltage, current, temperature, and transducer outputs. Its robust design and strong signal conditioning make it ideal for applications requiring precision data acquisition, real‑time control decisions, and long‑term operational stability.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Schneider Electric |
| Model Number | TSXAEY810 |
| Module Type | Analog Input Module |
| Input Channels | 8 analog inputs |
| Supported Signal Types | Voltage, Current, Thermocouple/RTD (system dependent) |
| Voltage Input Range | ±10 V (configurable) |
| Current Input Range | 0–20 mA / 4–20 mA |
| Temperature Sensor Support | Thermocouples (J, K, T, E) and PT100 RTDs (if configured) |
| Resolution | 12‑bit or higher |
| Sampling Rate | System‑dependent, high‑speed acquisition supported |
| Isolation | Channel‑to‑bus isolation |
| Communication Interface | Backplane connection to TSX PLC rack |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Relative Humidity | 5% – 95% (non‑condensing) |
| Dimensions | Standard TSX module form factor |
| Weight | Approx. 0.35 kg |
Industrial Applications
The TSXAEY810 Analog Input Module is suitable for systems that require comprehensive analog signal capture from a variety of field sensors. Typical industrial use cases include:
-
Continuous process control in chemical and refining plants
-
Temperature, pressure, and flow measurement in manufacturing
-
Energy and utilities monitoring systems
-
Environmental and HVAC automation
-
Machine diagnostics and performance monitoring
-
Water and wastewater treatment instrumentation
By enabling direct analog sensor integration, this module enhances PLC‑based systems with real‑time data needed for optimal control and decision‑making.
Key Advantages
High‑Precision Analog Capture
Provides accurate acquisition of analog signals across voltage, current, and temperature sensor types, enabling reliable process feedback.
Multi‑Channel Capability
With 8 input channels, the module supports simultaneous monitoring of multiple signals, reducing hardware redundancy.
Robust Signal Conditioning
Built‑in isolation and conditioning circuits enhance measurement integrity by minimizing noise and electrical interference.
Flexible Sensor Compatibility
Supports a broad range of industrial sensors, including voltage transducers, current loops, thermocouples, and RTDs (when configured).
Industrial Reliability
Designed for demanding automation environments, the module performs reliably over a wide range of operating conditions.
Technical FAQs
1. How many analog input channels does the TSXAEY810 have?
It provides 8 analog input channels.
2. What types of signals can it measure?
It can measure voltage, current, and—when supported by system configuration—thermocouple or RTD signals.
3. What input ranges are supported?
Voltage inputs typically support ±10 V, and current inputs support 0–20 mA / 4–20 mA ranges.
4. Does this module support temperature sensors?
Yes, with appropriate PLC configuration, it can accept thermocouple and RTD inputs.
5. What is the resolution of the inputs?
Analog inputs are typically captured with 12‑bit resolution or higher for precise data capture.
6. Is the module isolated from the PLC backplane?
Yes, it features channel‑to‑bus isolation to enhance signal integrity.
7. What PLC systems is it compatible with?
It is compatible with TSX/Modicon PLC racks using a backplane interface.
8. What software tools are used for configuration?
Schneider Electric tools such as Unity Pro or SoMachine are used for configuration and programming.
9. Can this module be hot‑swapped?
Hot‑swap capability depends on the specific PLC rack and system support.
10. What maintenance is recommended?
Periodic validation of signal quality through software diagnostics and physical inspection of wiring and connections is recommended.
