Product Introduction

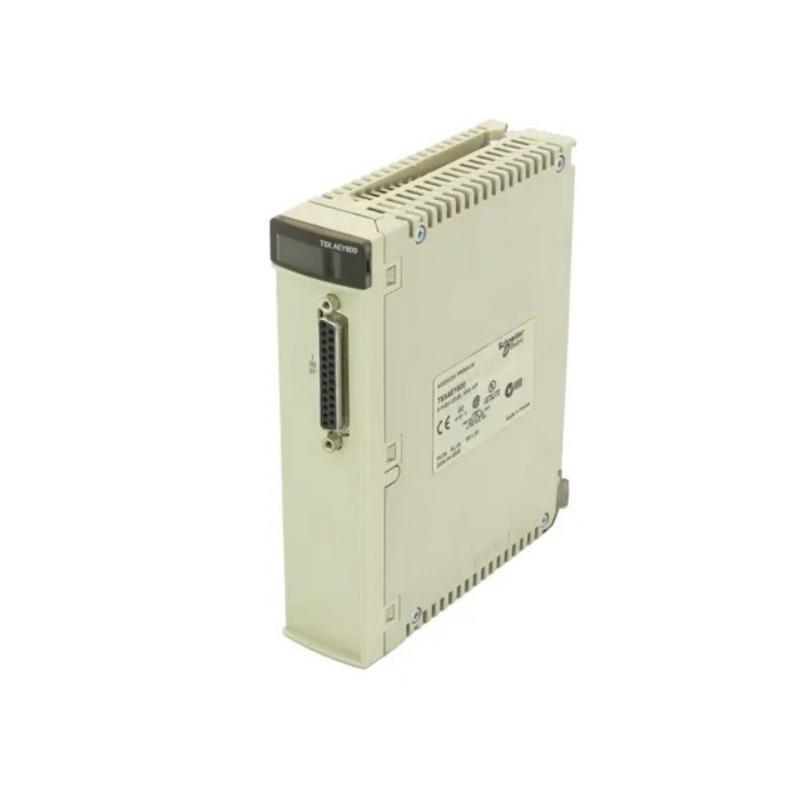

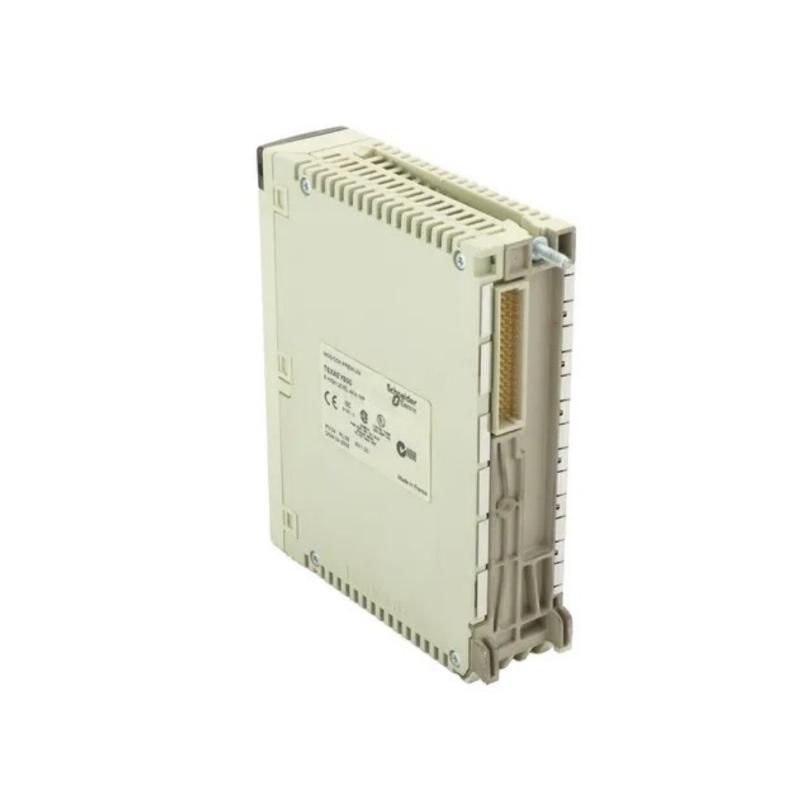

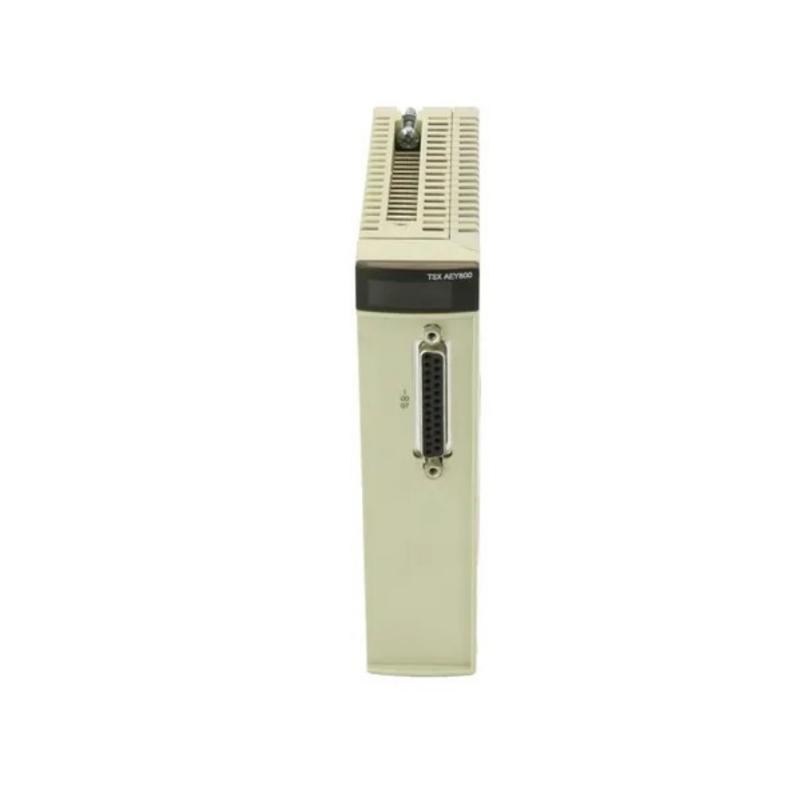

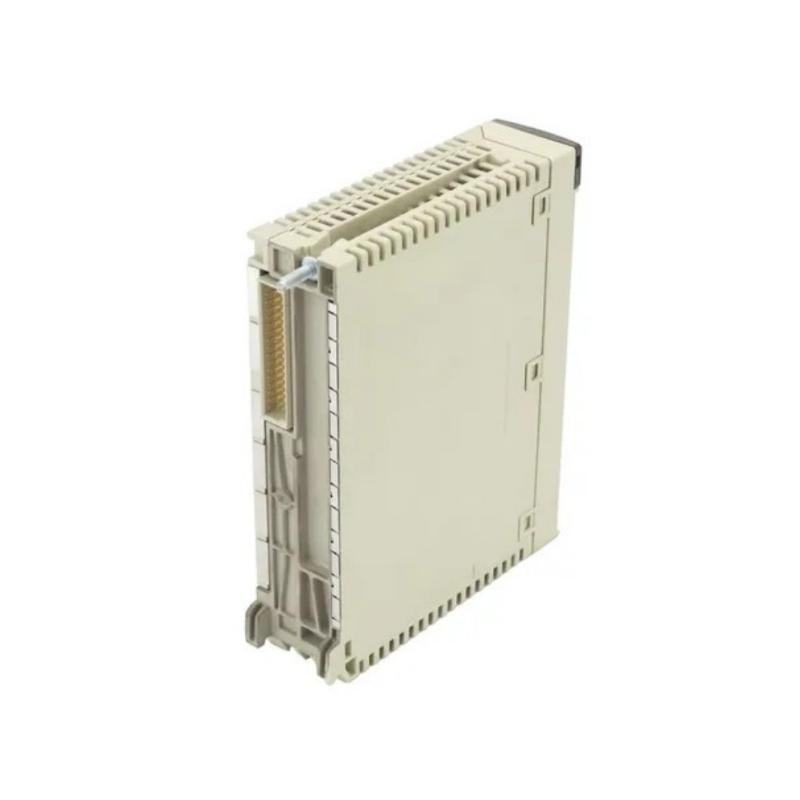

The Schneider TSXAEY800 Analog Input Module is a high‑performance, industrial‑grade input interface designed for modular PLC systems in automation applications. As part of the Schneider Electric TSX/Modicon I/O lineup, this module provides reliable acquisition of analog signals from field devices, enabling accurate monitoring of real‑world process variables such as voltage, current, temperature, pressure, and sensor outputs.
With robust signal conditioning and versatile input support, the TSXAEY800 simplifies integration of complex analog measurement tasks into PLC‑controlled systems. Its precise measurement capability, industrial reliability, and seamless integration with TSX automation platforms make it ideal for demanding applications in manufacturing, process control, utilities, and infrastructure automation.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Schneider Electric |
| Model Number | TSXAEY800 |
| Module Type | Analog Input Module |
| Input Channels | 8 analog inputs |
| Supported Signal Types | Voltage, Current, Thermocouple/RTD (depending on configuration) |
| Voltage Input Range | ±10 V (configurable) |
| Current Input Range | 0–20 mA / 4–20 mA |
| Thermocouple Types Supported | J, K, T, E (system dependent) |
| RTD Support | 2/3‑wire PT100 sensor (system dependent) |
| Resolution | 12‑bit or higher |
| Sampling Rate | System‑dependent; up to several kHz per channel |
| Isolation | Channel‑to‑bus isolation |
| Communication Interface | Backplane connection to TSX PLC rack |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Relative Humidity | 5% – 95% (non‑condensing) |
| Dimensions | Standard TSX module form factor |
| Weight | Approx. 0.3 – 0.4 kg |
Industrial Applications
The TSXAEY800 Analog Input Module is engineered for industrial systems requiring multi‑channel analog signal acquisition and analysis. Typical use cases include:
-
Process variable monitoring in chemical and petrochemical plants
-
Temperature, pressure, and flow measurement in manufacturing
-
Energy metering and utility automation
-
HVAC and environmental control systems
-
Machine performance monitoring and diagnostics
-
Feedback monitoring for motion and servo systems
By capturing accurate analog data from a variety of sensor types, this module supports PLC logic decisions that improve control precision, operational safety, and system productivity.
Key Advantages
High‑Channel Analog Acquisition
With 8 input channels, the module enables simultaneous acquisition of multiple analog signals, reducing the need for additional hardware.
Flexible Signal Compatibility
Supports a wide range of input types including voltage, current, and temperature sensors (thermocouple/RTD when configured), offering versatility in sensor integration.
Precise and Stable Measurements
High‑resolution signal conversion and isolation ensure accurate, noise‑resilient data for process control and decision making.
Modular and Scalable
Designed for the modular TSX/Modicon PLC architecture, the module supports scalable system expansion without redesigning the core controller.
Industrial Reliability
Constructed with industrial‑grade components and robust signal conditioning to withstand demanding automation environments.
Technical FAQs
1. How many analog channels does the TSXAEY800 provide?
It offers 8 analog input channels for simultaneous data acquisition.
2. What types of signals can this module measure?
It supports voltage and current inputs, and may support thermocouple or RTD signals depending on system configuration.
3. What input ranges are supported?
Voltage inputs typically support ±10 V, and current inputs support 0–20 mA / 4–20 mA ranges.
4. Does it support temperature sensors?
In appropriate PLC configurations, it can interface with thermocouples (types J, K, T, E) and PT100 RTD sensors.
5. What is the resolution of the analog inputs?
Inputs are usually captured with 12‑bit resolution or higher, ensuring precise analog measurement.
6. Is isolation provided?
Yes, the module includes channel‑to‑bus isolation to enhance signal integrity.
7. What PLC systems is it compatible with?
It is designed for TSX/Modicon PLC racks with backplane communication.
8. What programming tools are used?
Schneider Electric automation tools such as Unity Pro or SoMachine are commonly used.
9. Is hot‑swap supported?
Hot‑swap capability depends on the specific PLC rack and system support.
10. What maintenance is recommended?
Periodic inspection of physical connections and software diagnostics is advised as part of regular system upkeep.
