Product Introduction

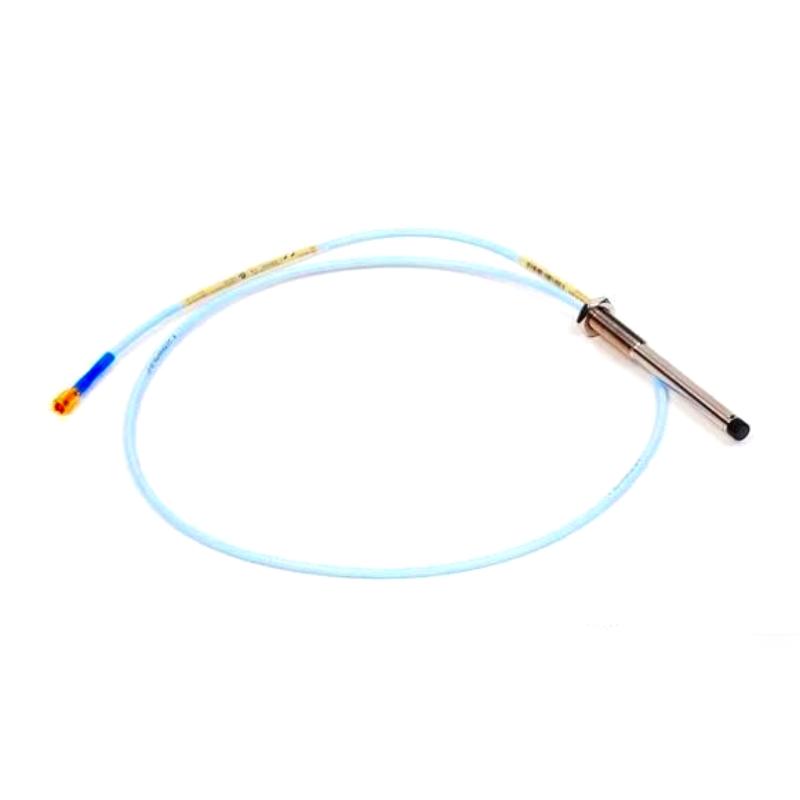

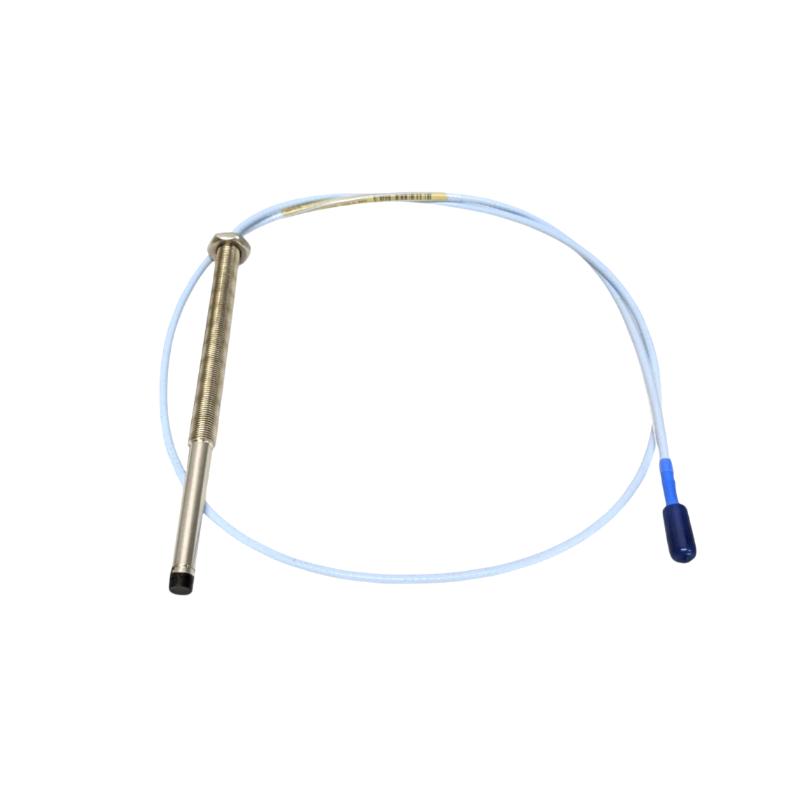

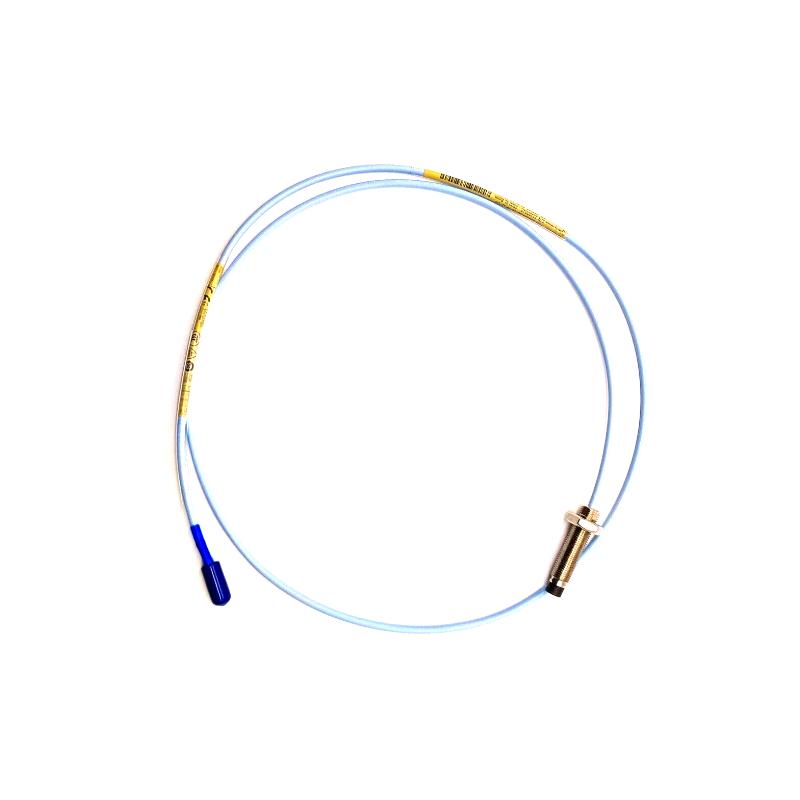

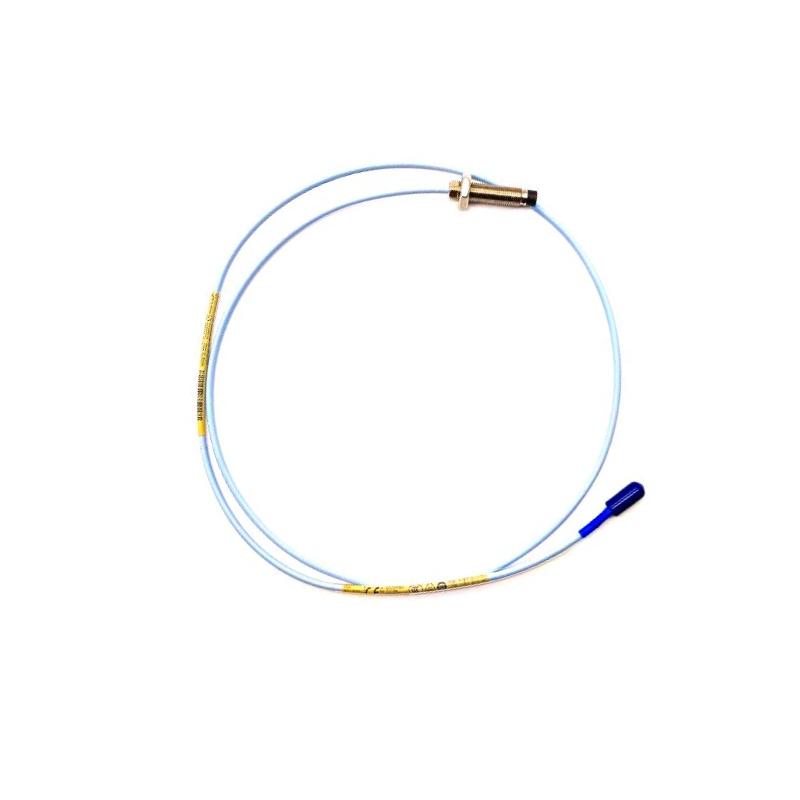

The Bently Nevada 330103-00-05-05-02-05 3300 XL 8 mm Proximity Probe is a precision vibration and displacement sensor designed for critical rotating machinery monitoring. Part of the renowned 3300 XL proximity transducer family, this probe uses eddy-current technology to provide non-contact, highly accurate measurements of shaft movement.
Its compact 8 mm probe tip allows installation in tight machinery spaces, while robust construction ensures long-term reliability even under high vibration, temperature, and industrial environmental stresses. This model is widely used in machinery protection systems to detect early signs of imbalance, misalignment, and bearing degradation, helping reduce unplanned downtime and maintenance costs.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-05-05-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length | 0.5 in |
| Cable Length | 1.0 m |
| Connector Type | ClickLoc™ miniature coaxial connector |
| Measurement Method | Eddy-current sensing |
| Linear Measurement Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | −52°C to +177°C |
| Housing Material | Stainless steel |
| Dimensions | 60 × 25 × 25 mm |
| Weight | Approximately 0.27 kg |
Industrial Applications
The 3300 XL 8 mm proximity probe is suitable for continuous monitoring of critical rotating equipment, including:
-
Steam and gas turbines
-
Centrifugal compressors in petrochemical plants
-
Industrial pumps and electric motors
-
Power generation machinery
-
Steel and metal processing equipment
-
High-speed fans and blowers
By continuously monitoring shaft displacement and vibration, this probe helps identify mechanical issues before they cause failure, improving operational reliability.
Advantages
High-Precision Non-Contact Measurement
Provides accurate displacement and vibration readings without physically contacting the shaft.
Compact and Flexible Design
The small 8 mm tip fits into tight installations without compromising performance.
Industrial Durability
Stainless steel housing ensures reliable operation in high-temperature, high-vibration conditions.
Secure Signal Transmission
ClickLoc™ connectors maintain consistent electrical contact for reliable data.
System Compatibility
Seamlessly integrates with 3300 XL extension cables and proximitor sensors for complete monitoring solutions.
Technical FAQs
1. What does this probe measure?
Shaft vibration and displacement using eddy-current technology.
2. Can it operate independently?
No. It functions as part of a 3300 XL transducer system with a proximitor sensor.
3. What is the probe tip size?
The probe features an 8 mm sensing tip.
4. What is the linear measurement range?
2 mm (80 mils).
5. Which industries use this probe?
Power generation, petrochemical, oil & gas, and heavy manufacturing.
6. What connector is used?
ClickLoc™ miniature coaxial connector.
7. Maximum operating temperature?
Up to 177°C.
8. Recommended installation gap voltage?
Approximately −9 VDC.
9. Housing material?
Stainless steel.
10. Maintenance requirements?
Periodic inspection of probe alignment, cable condition, and system calibration is recommended.
