Product Overview (Introduction)

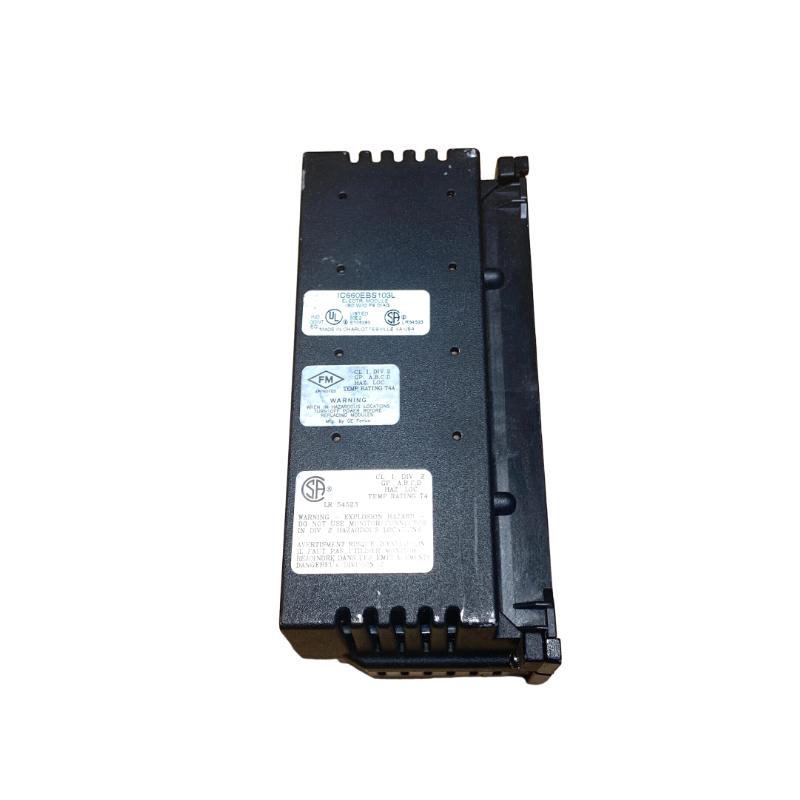

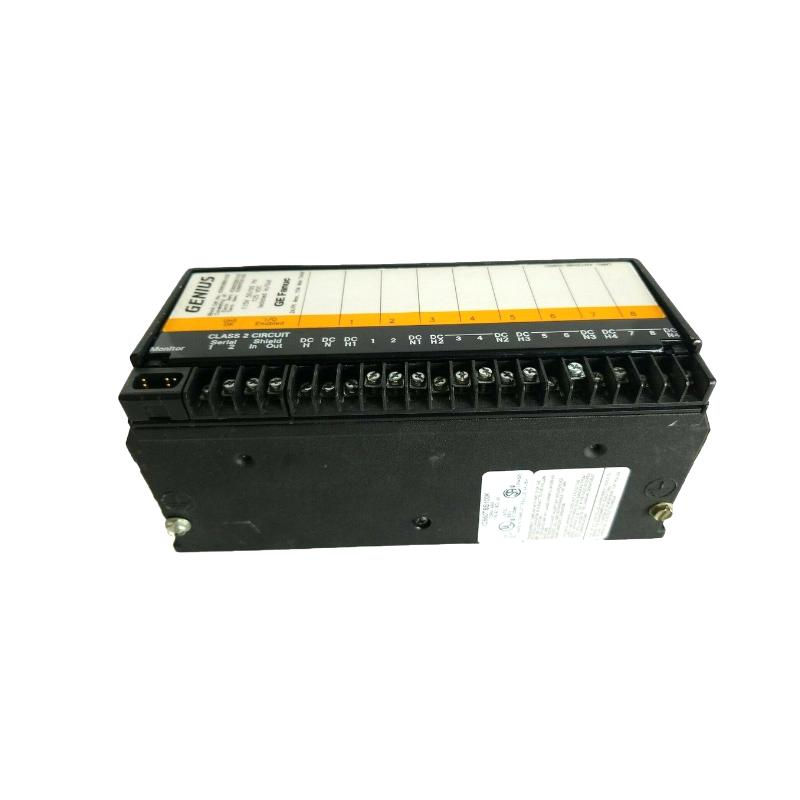

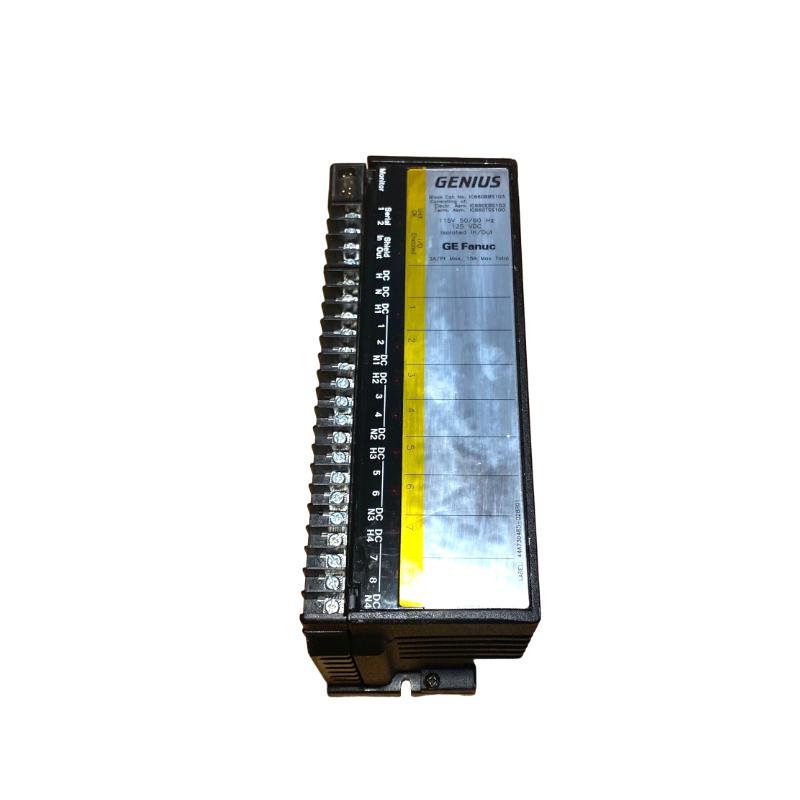

The GE IC660BBS103 Isolation I/O Module is an industrial-grade module that provides electrically isolated input and output connections for PLC systems. It ensures safe operation by protecting controllers from electrical surges and maintaining reliable signal transmission to field devices.
Designed for industrial environments, the module delivers consistent performance under vibration, electrical noise, and temperature fluctuations. Its modular design allows for easy installation, system expansion, and maintenance, making it ideal for industrial automation and process control applications requiring robust and protected I/O channels.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | GE |
| Model Number | IC660BBS103 |
| Module Type | Isolation I/O Module |
| Function | Electrically Isolated Inputs and Outputs |
| System Compatibility | GE Fanuc IC660 I/O Racks and PLCs |
| Installation | Rack or Chassis Mount |
| Input/Output Type | Isolated Digital I/O |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 224.4 mm × 88.9 mm × 100 mm |
| Weight | 1.48 kg (3.26 lb) |
Applications in Industrial Automation and Process Control (Applications)
The GE IC660BBS103 Isolation I/O Module provides electrically isolated input and output channels for PLC systems, ensuring safe interfacing with field devices while protecting the control system from electrical surges, noise, or faults.
Common applications include:
-
Industrial manufacturing for motors, pumps, and actuator control
-
Oil & gas facilities for valve and interlock control
-
Chemical and petrochemical plants requiring isolated I/O for safety systems
-
Power generation for auxiliary and alarm control
-
Water and wastewater treatment for pump, solenoid, and level monitoring
-
General industrial automation systems needing robust, protected I/O
By maintaining isolated I/O signals, the module ensures reliable operation and safeguards both controllers and connected field devices.
Key Advantages (Advantages)
Electrical Isolation for Safety
Prevents voltage spikes, surges, and electrical noise from affecting the PLC or other system modules.
Reliable Signal Acquisition and Output
Ensures accurate communication with field devices for consistent process control.
Industrial-Grade Durability
Designed to withstand vibration, temperature fluctuations, and harsh electrical conditions.
Modular and Scalable Design
Supports easy expansion of I/O channels without compromising system performance.
Versatile Device Connectivity
Interfaces reliably with relays, solenoids, sensors, and other field devices requiring isolation.
Technical FAQs (Technical FAQs)
1. What is the primary function of the IC660BBS103 module?
It provides electrically isolated input and output channels for PLC systems.
2. Which systems is it compatible with?
Designed for GE Fanuc IC660 I/O racks and PLC systems.
3. Can it handle both inputs and outputs?
Yes. Supports isolated digital inputs and outputs.
4. How does electrical isolation benefit the system?
It protects the controller from voltage surges, spikes, and electrical noise.
5. Is the module suitable for harsh industrial environments?
Yes. Built to perform reliably under vibration, temperature variation, and electrical interference.
6. How is the module installed?
Mounted in a GE IC660 I/O rack or PLC chassis.
7. Does it provide diagnostics?
Yes. Includes status indication and fault detection for I/O channels.
8. Can it connect to high-voltage or sensitive devices?
Yes. Isolation ensures safe interfacing with high-voltage or delicate field equipment.
9. What is the benefit of using an isolation I/O module?
Ensures safe, reliable signal transmission and protection of the control system.
10. Which industries typically use this module?
Oil & gas, chemical processing, manufacturing, power generation, and water/wastewater treatment.
