Product Overview (Introduction)

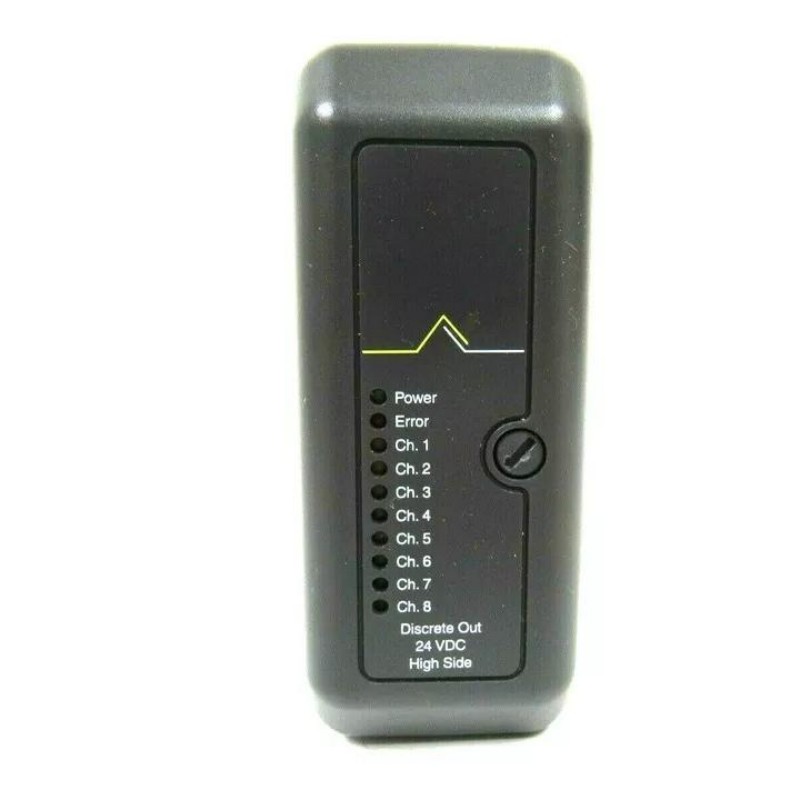

The Emerson KJ3001X1-BJ1 12P0555X152 Discrete Output Isolation Module is a dedicated module for controlling digital output devices while electrically isolating the control system. It ensures reliable signal transmission to actuators, valves, and relays, while protecting sensitive electronics from potential voltage surges or noise in industrial environments.
By providing isolated outputs, the module enhances system reliability and safety, making it ideal for industries such as oil & gas, chemical processing, power generation, and manufacturing. Its modular design supports integration into Emerson distributed control systems, enabling scalable, maintainable, and robust automation architectures.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Emerson |
| Model Number | KJ3001X1-BJ1 (12P0555X152) |
| Module Type | Discrete Output Isolation Module |
| Function | Electrically Isolated Digital Output |
| System Compatibility | Emerson Distributed Control Systems |
| Installation | Control System Rack Mount |
| Signal Type | Discrete Output (Isolated) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 107 mm × 41 mm × 105 mm |
| Weight | 0.67 kg (1.48 lb) |
Applications in Industrial Control and Automation (Applications)
The Emerson KJ3001X1-BJ1 Discrete Output Isolation Module is designed to safely interface and control digital output signals in distributed control systems. It provides electrical isolation between the control system and field devices, protecting both the controller and connected equipment while enabling reliable actuation of industrial devices.
Typical applications include:
-
Oil & gas facilities for valve and actuator control
-
Chemical plants for pump and motor switching
-
Power generation and substation automation
-
Manufacturing and assembly lines for machine control
-
Water and wastewater treatment plants for pump and solenoid actuation
-
Refinery and process operations requiring safe output isolation
This module ensures safe and reliable operation when sending discrete output signals to external devices in electrically noisy or harsh industrial environments.
Key Advantages (Advantages)
Electrical Isolation for Safety
Protects the control system from voltage spikes and electrical noise by isolating output channels.
Reliable Digital Output Control
Ensures accurate and stable actuation of field devices such as valves, relays, and solenoids.
Seamless Integration with Emerson Systems
Compatible with Emerson distributed control systems for coordinated system operation.
Robust Industrial Construction
Engineered for continuous operation in industrial environments with temperature fluctuations and electrical interference.
Modular and Compact Design
Facilitates easy installation in control racks while supporting scalable system expansion.
Technical FAQs (Technical FAQs)
1. What is the primary function of the KJ3001X1-BJ1 module?
It provides discrete output signal isolation for safely controlling field devices.
2. Which systems is it compatible with?
Designed for Emerson distributed control systems.
3. How does the module protect the control system?
By providing electrical isolation, it prevents voltage spikes and noise from damaging the controller.
4. What types of devices can it drive?
It can drive solenoids, relays, actuators, and other digital field devices.
5. Can it operate in harsh industrial environments?
Yes. It is built for industrial conditions with electrical noise and temperature variation.
6. Does it support diagnostics?
Yes. It includes diagnostic features for output integrity and channel status monitoring.
7. How many discrete outputs does it support?
Supports multiple isolated discrete output channels, depending on system configuration.
8. Is the module suitable for safety-critical applications?
Yes. Isolation enhances system safety, particularly in hazardous or high-voltage environments.
9. How is the module installed?
It is mounted in a control system rack or carrier, connecting via the system backplane.
10. What is the benefit of using an isolated discrete output module?
Provides safe and reliable actuation of field devices, while protecting the control system from electrical faults.
